The SP63CE is a Bluetooth hybrid controller pairing addressable RGB pixel strip with a 2-channel PWM tunable white run on DC 5-24V. It is the upgrade over a plain white second channel: the functional light can shift from 2700K to 6500K while the pixel tape handles the effects.
What This Controller Works With
- SPI output: addressable RGB strip on single-wire ICs (WS2812B, WS2811, WS2815 and similar), up to 600 ICs
- PWM output: two channels of CCT / tunable white tape at 6A each
- Both outputs at 5V, 12V or 24V, wired VCC / DAT / CW / WW / GND
Not compatible with: Clock-based two-wire ICs such as WS2801, APA102 and SK9822. If your second run is a single white rather than tunable white, the SP63BE is the matching model.
Key Features
- Addressable RGB plus 2CH PWM CCT from a single controller
- Dynamic, music-reactive and DIY effects across both outputs
- Effect collection for saved scenes
- Three music capture modes: phone microphone, player streaming, or the onboard microphone
- Sequential channel calibration plus ON/OFF animations and timers
- OTA firmware updates

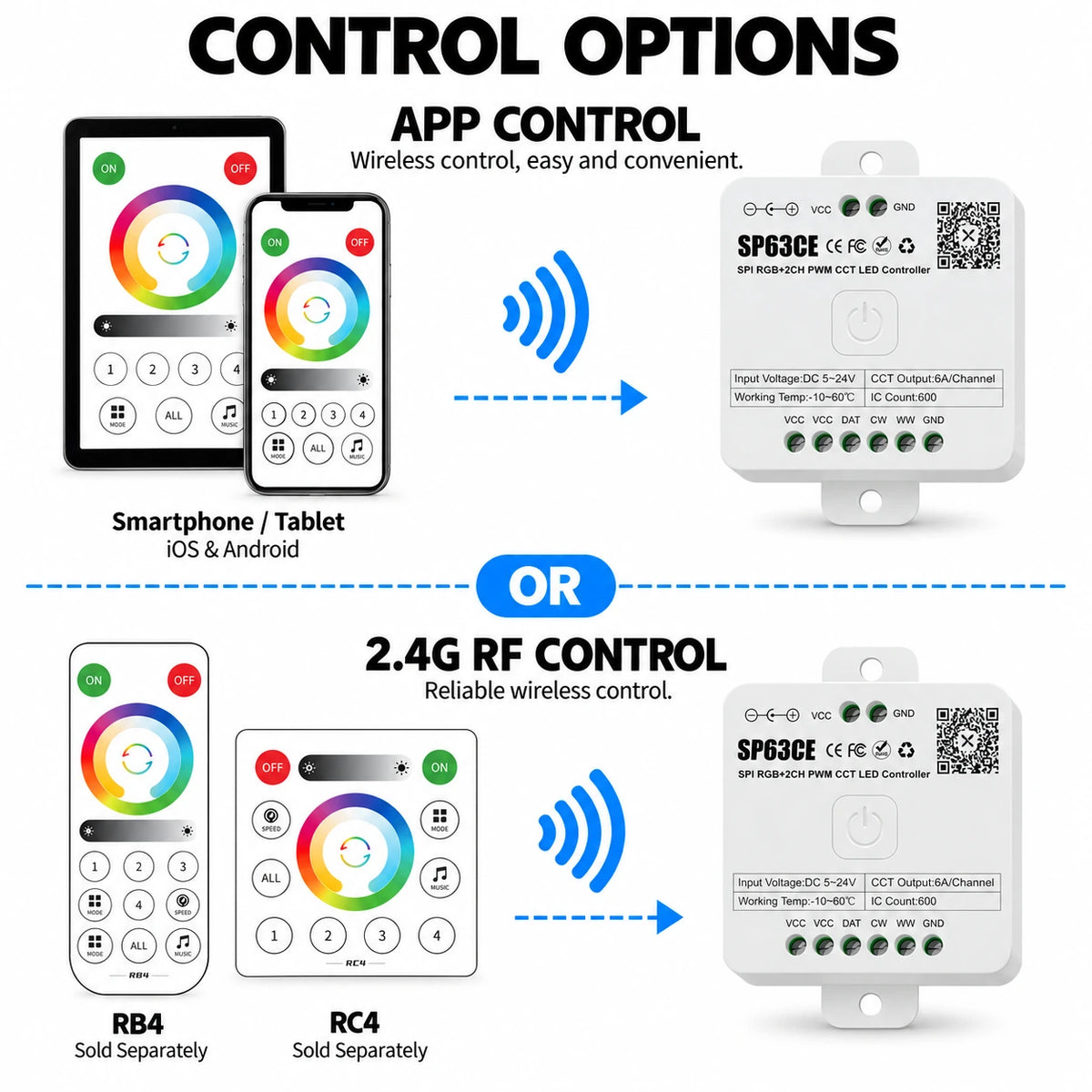

App and Remote Control
BanlanX Bluetooth App
BanlanX pairs over Bluetooth with no WiFi or hub. The white run gets its own brightness and color-temperature control, independent of whatever the pixel strip is doing.
Optional 2.4G Touch Remote and Wall Panel
SP63CE also pairs with the optional RB4 / RC4 2.4G touch remote and 86-type wall panel (sold separately). One remote can drive several controllers, each controller binds up to 5 remotes, and the system supports unified ALL control or 4-zone control.

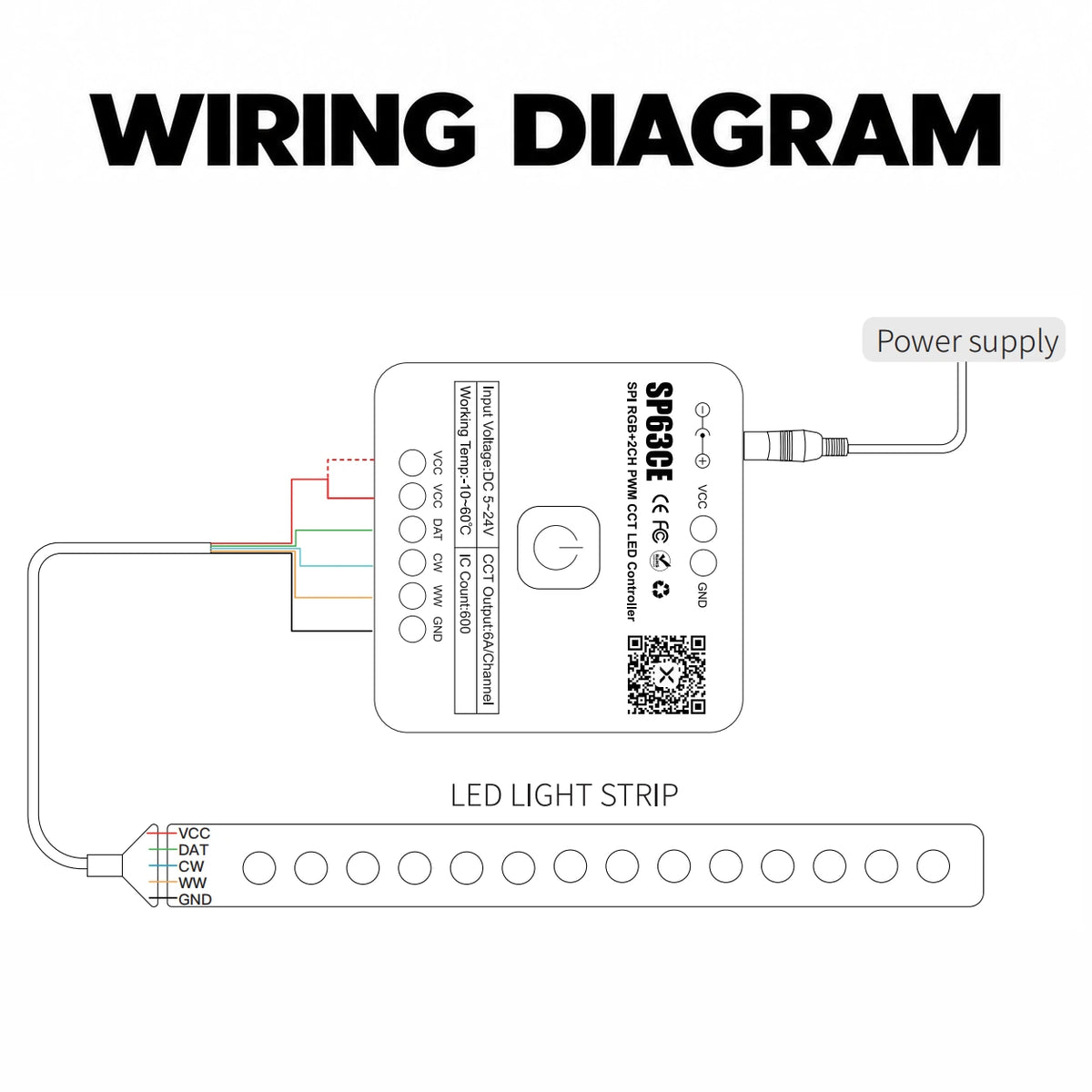

Wiring and Installation
Feed a regulated DC 5-24V supply into the controller input, then wire the strip to the VCC / DAT / CW / WW / GND output terminals as shown on the wiring diagram. Size the DC supply for the pixel run and the tunable white run combined — CCT tape at full output is the heavier load.
- Match the supply voltage to the strip: a 24V strip on a 12V supply will look dim, and the reverse will damage it.
- Keep total load inside the controller rating, and add a second supply or a power repeater on long runs.
- Mount the controller somewhere ventilated and dry — the housing is IP20 and not for outdoor or damp use.

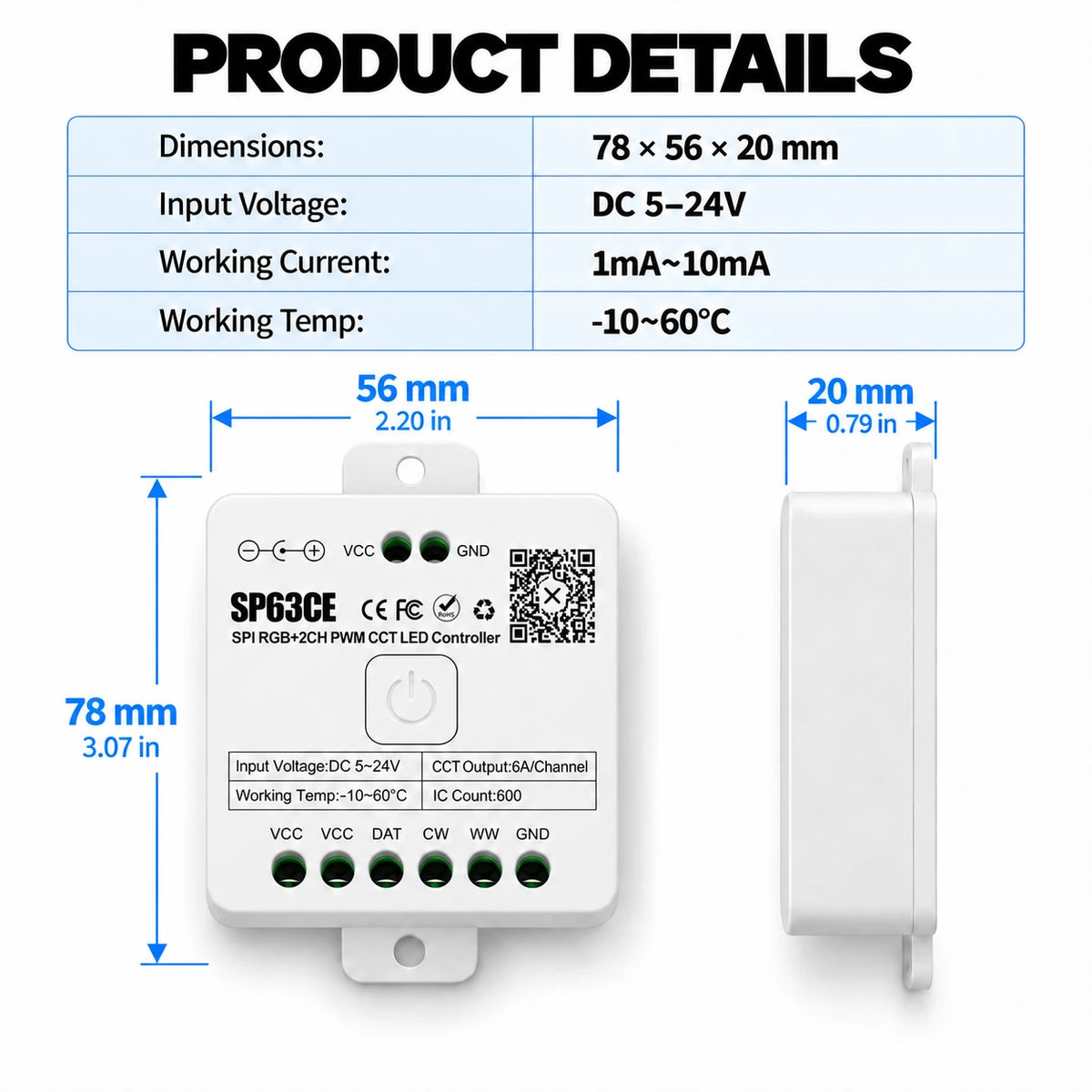

Technical Specifications
| Model | SP63CE |
| Controller Type | SPI RGB + 2CH PWM CCT LED Controller |
| Compatible Lighting | Addressable RGB strip plus two channels of PWM CCT tape |
| Connection | Bluetooth LE 5.0 + optional 2.4G RF remote (no WiFi) |
| Working Voltage | DC 5-24V |
| Addressable Capacity | Up to 600 single-wire RGB driver ICs |
| Single-Channel Max Output Current | 6A (PWM CCT) |
| Total Max Output Current | 12A |
| Working Current | 1mA-10mA |
| Working Temperature | -10°C to 60°C |
| Output Terminals | VCC / DAT / CW / WW / GND |
| Compatible Remotes | RB4 / RC4 (sold separately) |
| App | BanlanX (iOS 10.0+ / Android 4.4+) |
| Certifications | FCC ID 2ATV8SP63XE · CE (RED 2014/53/EU) · RoHS |
| IP Rating | IP20 — indoor, dry locations |
| Dimensions | 78 × 56 × 20 mm (3.07 × 2.20 × 0.79 in) |
Not Sure Which Model You Need?
The quickest check is to count the pads on the end of your strip and look for a chip marking. Two pads means single color, three means tunable white, four means RGB, five means RGBW and six means RGBCCT. A marking such as WS2812B, WS2811, SK6812 or WS2805 means the strip is addressable and needs an SPI model.
- Pick the SP63BE Addressable RGB + Single Color Controller if your second run is a single white, not tunable.
- Pick the SP638E Addressable RGB Controller if you only need the addressable RGB side.
- Pick the SP632E CCT / Tunable White Controller if you only need the tunable white side.
- Pick the SP630E All-in-One LED Strip Controller if you want one controller that covers every strip type.
Certifications and Support
Certified for the US and EU market: FCC ID 2ATV8SP63XE (Part 15C, 2402-2480 MHz), CE under the Radio Equipment Directive 2014/53/EU (EN 300 328, EN 301 489, EN 62368-1, EN 62479), and RoHS to 2011/65/EU with amendment (EU) 2015/863. The CE and RoHS attestations cover all thirteen SP63xE models. Copies of the certificates are available on request.
Each unit ships with a printed manual and the BanlanX QR code. If you want the wiring checked against a specific strip before you order, send us the strip spec and we will confirm the match.
