What Are Addressable LED Strip Lights?
Addressable LED strip lights contain integrated control chips that let individual LEDs or groups of LEDs show different colors and brightness levels along the same strip. Also known as digital, pixel, programmable, dream-color or RGBIC LED strips, they can produce chasing, flowing, gradient, twinkling, animated and mapped lighting effects that standard analog RGB strips cannot create.
Individually Addressable vs. Group Addressable
Individually addressable strips give each LED its own controllable pixel for detailed effects and precise cutting. Group-addressable strips use one IC to control a small section of LEDs together, which can reduce cost and simplify longer designs. Check the listed pixels per meter, LEDs per pixel and cutting interval rather than relying only on LED density.
Popular Control Types
- Single-data SPI: Common in WS2811, WS2812B, SK6812 and related systems.

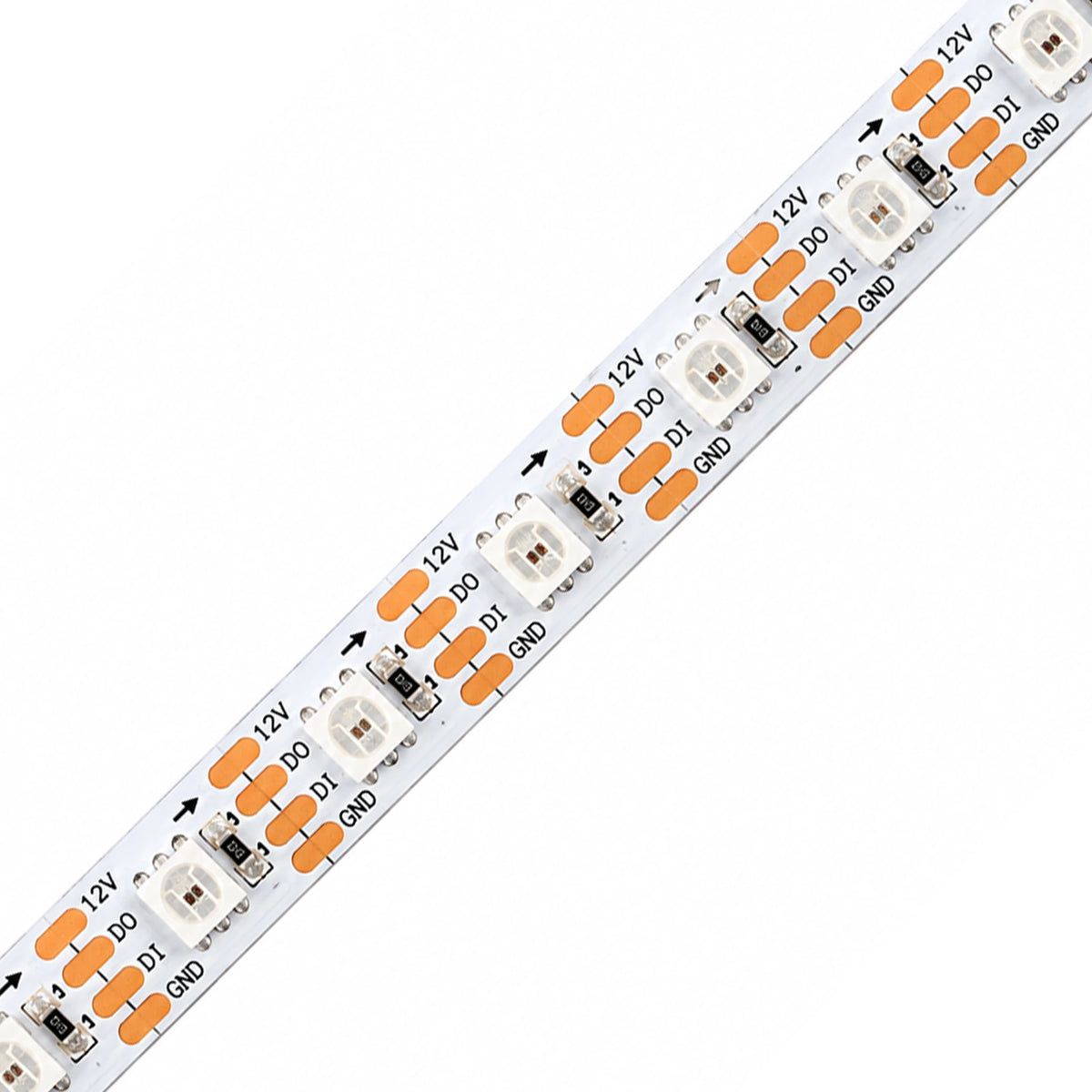

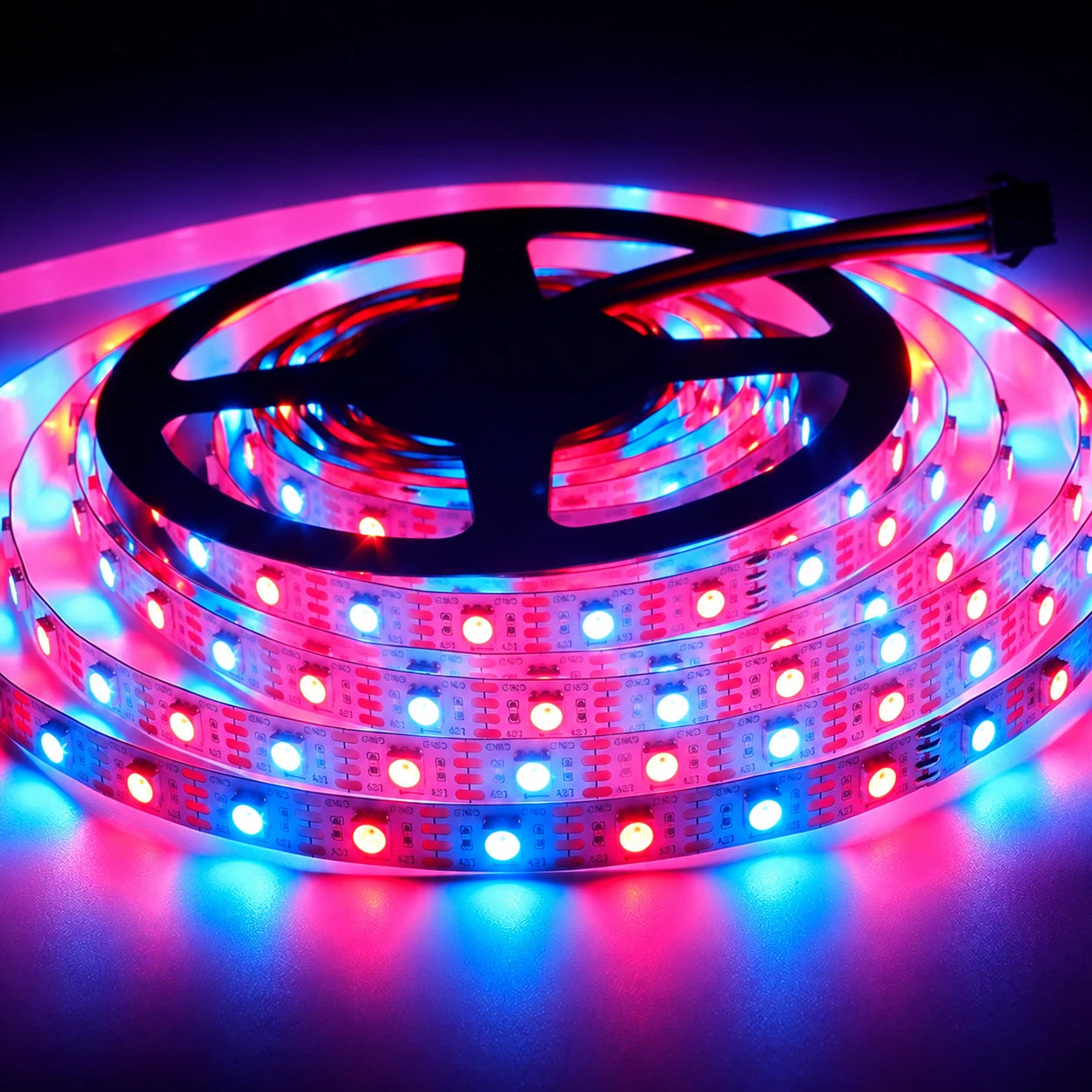

- Backup-data or breakpoint-resume: Uses an extra signal path so effects can continue after certain pixel failures.
- Clocked dual-signal: Uses data and clock lines for fast, stable communication in supported systems.

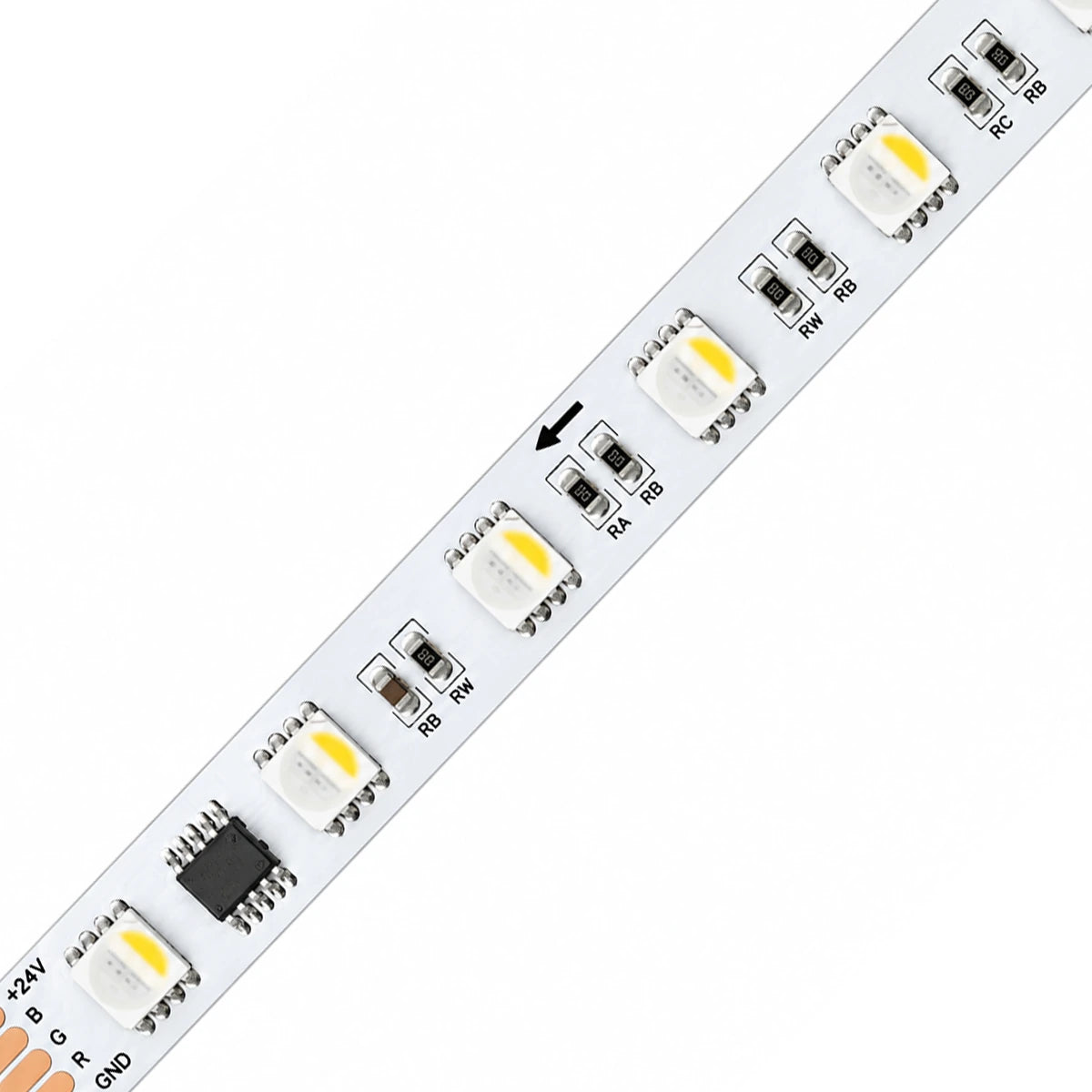

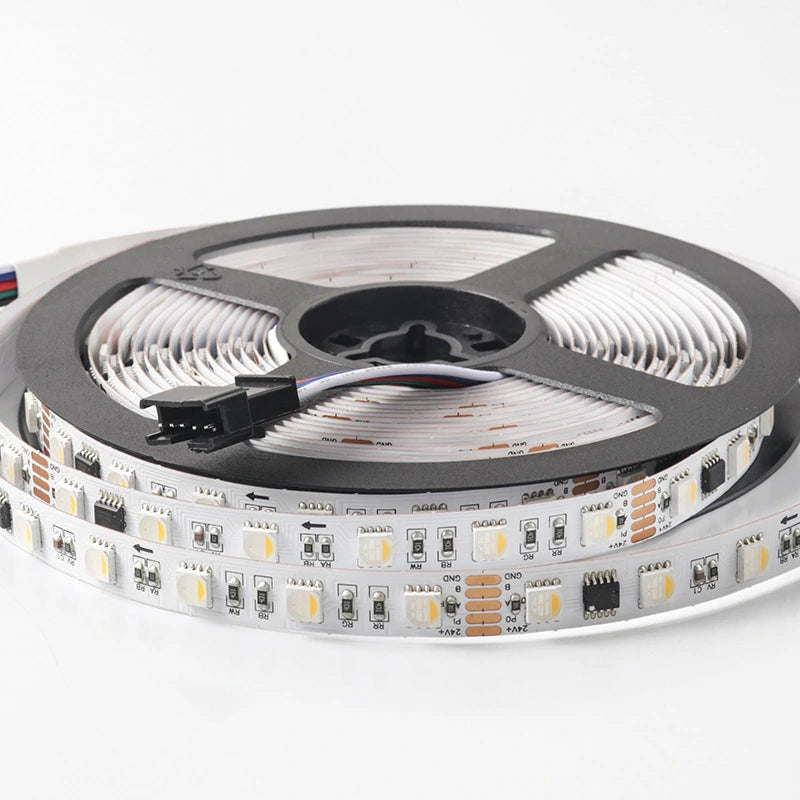

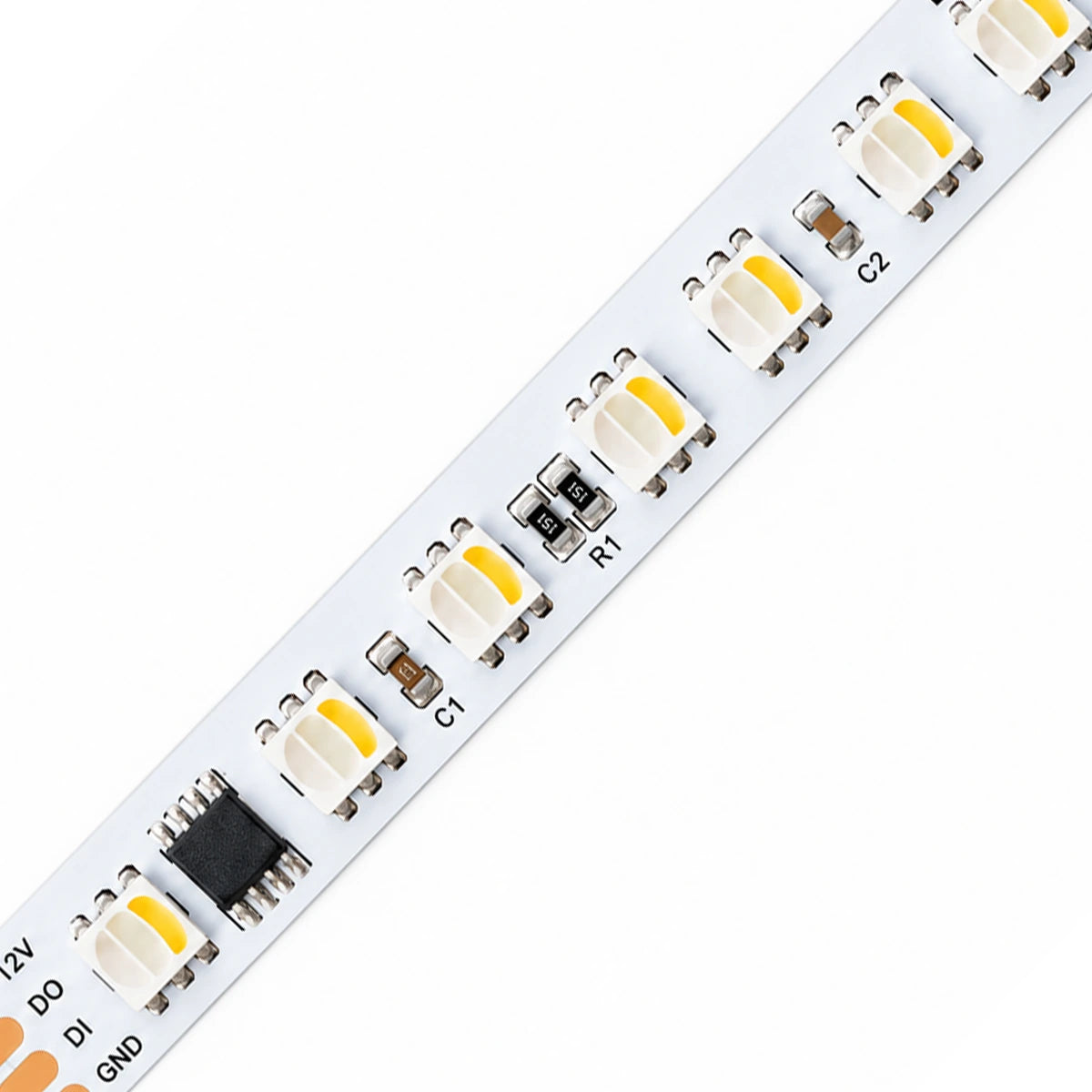

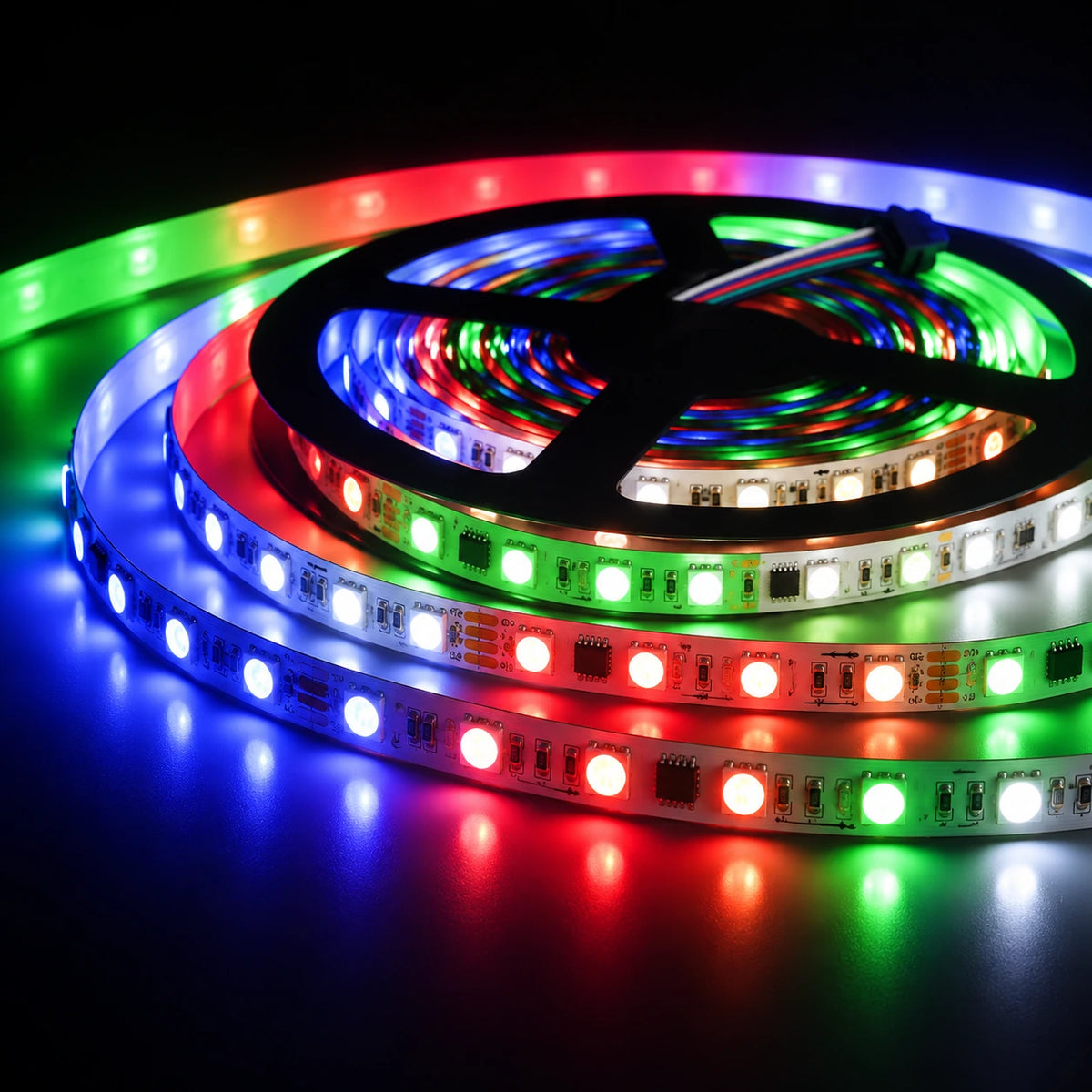

- DMX512: Suited to professional stage, architectural and show-control environments.
- Addressable COB: Combines dynamic pixel effects with a smoother dotless light line.
RGB, RGBW, RGBCCT and White Pixels
Addressable RGB strips focus on multicolor effects. RGBW adds a dedicated white channel, while addressable RGBCCT combines color with adjustable warm and cool white output. Addressable white and CCT strips can create moving white-light effects for specialty architectural or display projects.
Choosing 5V, 12V or 24V
5V strips are common for dense individually controlled pixels and short electronics projects, but they may need more frequent power injection. 12V and 24V strips support longer distances between power-feed points, although each controllable pixel may contain several LEDs. Match the strip voltage, controller logic, power supply and wiring plan.
Controller Compatibility and Power Injection
The controller must support the strip’s IC protocol, color order, signal type and total pixel count. Set the correct IC before testing. Long or high-density installations may need power injection at multiple points to reduce voltage drop. Connect all grounds correctly and size power supplies, fuses and wire for the calculated load.
Applications
Programmable LED tape is used for gaming rooms, PC builds, streaming studios, signs, displays, stages, festivals, holiday installations, bars, clubs, art projects, stair effects and dynamic architectural lighting. WLED-compatible, app-controlled, music-reactive and DMX systems support different levels of DIY and professional control.
Frequently Asked Questions
What is the difference between RGB and addressable RGBIC strips?
A standard RGB strip shows one color across a connected zone. An addressable RGBIC strip can control separate pixels or sections, so several colors and animated effects can appear on the same strip at once.
How do I choose a controller for an addressable strip?
Match the controller to the exact IC protocol (for example WS2812B or WS2811), voltage, signal type, color channels and required pixel count. Also confirm whether the controller powers the strip directly or only sends data while the strip uses a separate power connection.
For synchronized color-changing light, shop RGB & RGBW LED Strip Lights. For smoother pixel effects, browse COB LED Strip Lights and select an addressable model.
