5mm SMD 2835 RGBIC Addressable RGB LED Strip Light, 120 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

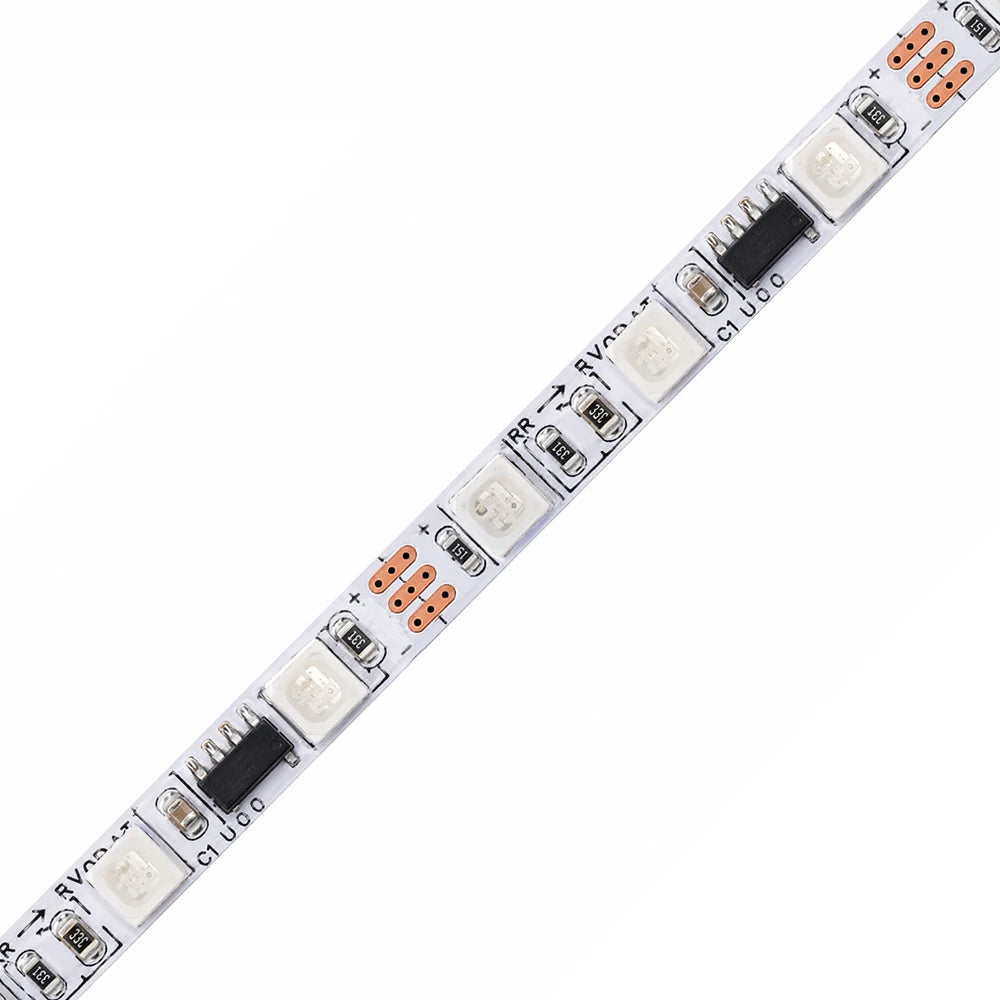

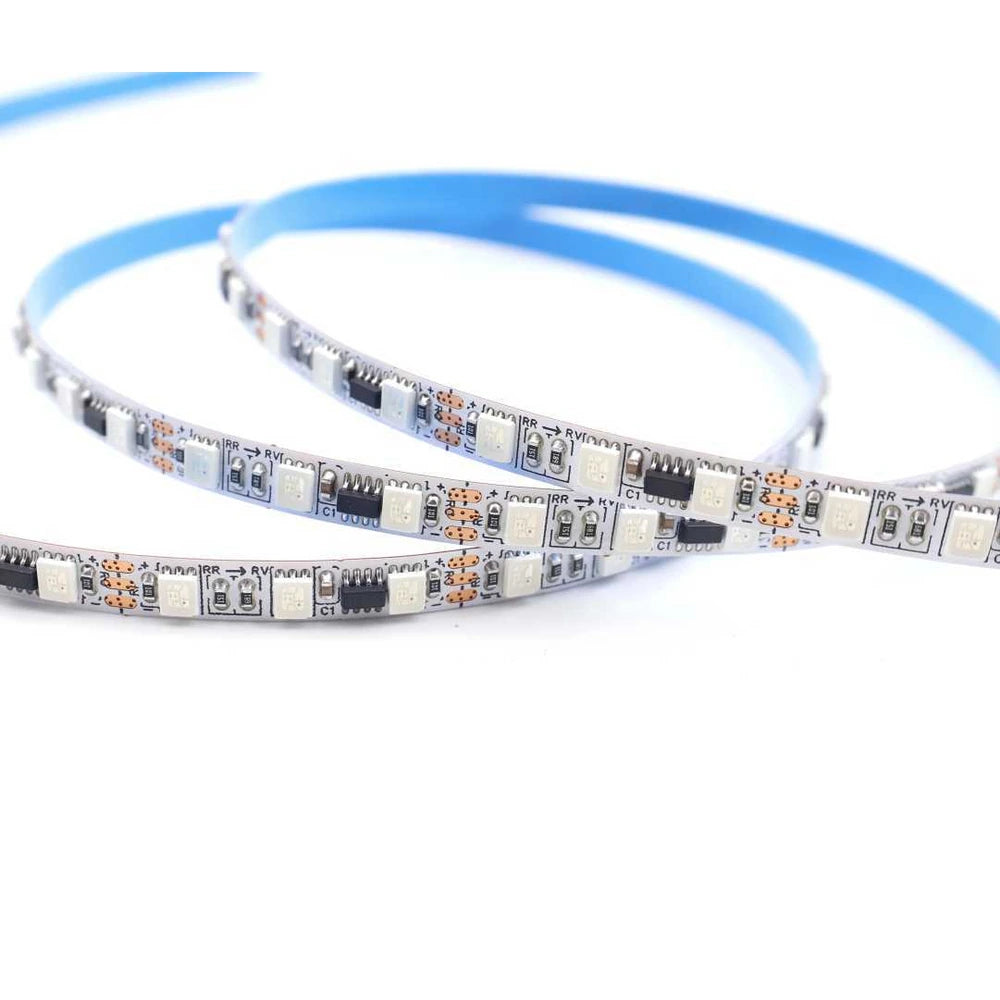

The 2835-120-5mm-12V-ADDRESSABLE combines 120 LEDs/m 2835 LEDs with a 5mm format and DC12V operation. It uses RGBIC addressable control for individually programmable color effects and dynamic lighting scenes. Its listed color option is Addressable RGB (RGBIC). This listed 5mm SMD 2835 Addressable RGB LED Strip Light, 120 LEDs/m, 12V configuration is catalogued for that application.
Why Choose These LED Strip Lights?
- RGBIC dynamic effects: Integrated IC control enables programmable addressable RGB color effects.
- Controller-based operation: Pair with the appropriate controller to select color, brightness, and effects.
- Flexible low-voltage design: Suitable for entertainment, retail, home ambience, and themed installations.
- LED density: 120 LEDs/m LED layout for the catalog configuration.
- Color rendering: Catalog CRI shown where specified.
- Power: Up to 24W/m.
- Luminous output: Output varies by color temperature and configuration.
Technical Specifications
| Catalog Model | 2835-120-5mm-12V-ADDRESSABLE |
|---|---|
| LED Type | 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC12V |
| Power | Up to 24W/m |
| Luminous Output | Output varies by color temperature and configuration |
| Color Rendering | Catalog CRI shown where specified |
| Color / CCT | Addressable RGB (RGBIC) |
| LED Pitch | 8.3mm |
| Cutting Interval | 25mm / 0.98in, 3 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

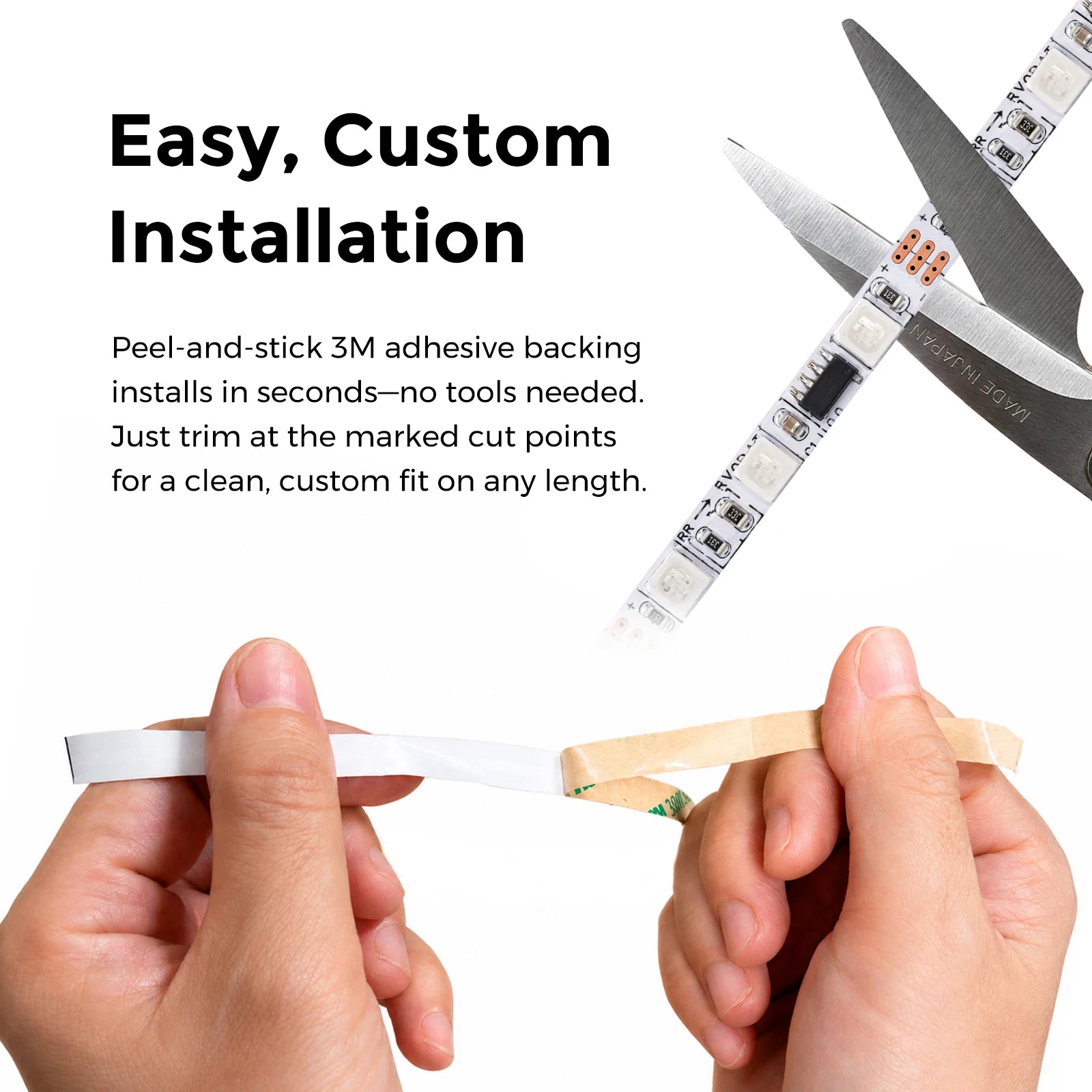

Cutting and Installation
Cut only at the marked cut points (25mm / 0.98in, 3 LEDs per cut). Connect the strip to a compatible RGBIC/addressable controller and the specified constant-voltage power supply, observing all channel markings. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.

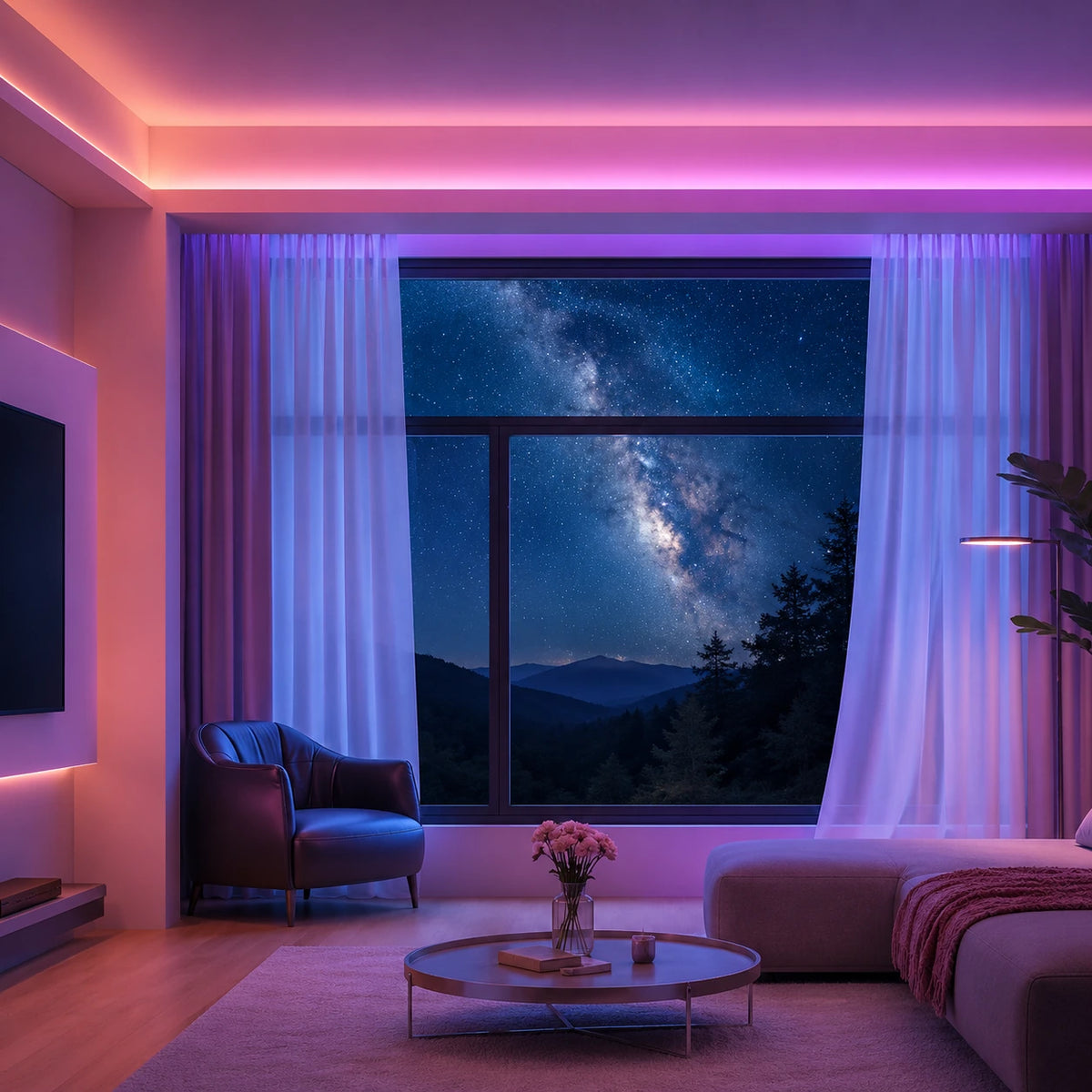

Recommended Applications
- Whole-home scenes such as living rooms and kitchen cabinets, combining practical white light and color ambience
- Gaming rooms and home theaters requiring immersive or music-synchronized effects
- Apparel stores, jewelry counters, KTV rooms, cinemas, outdoor beautification, and themed commercial displays
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote RGB/RGBW/RGBCW/addressable configuration, controller, voltage, cable, connector, IP construction, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
