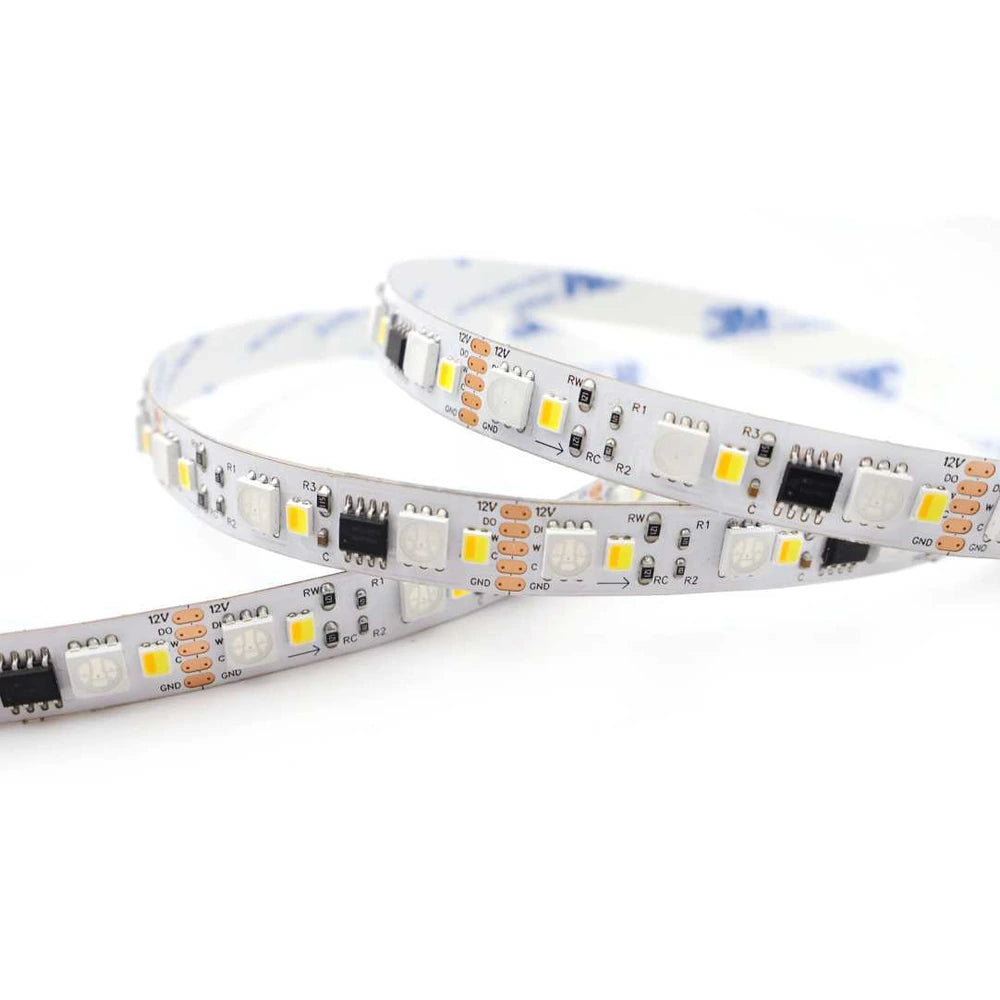

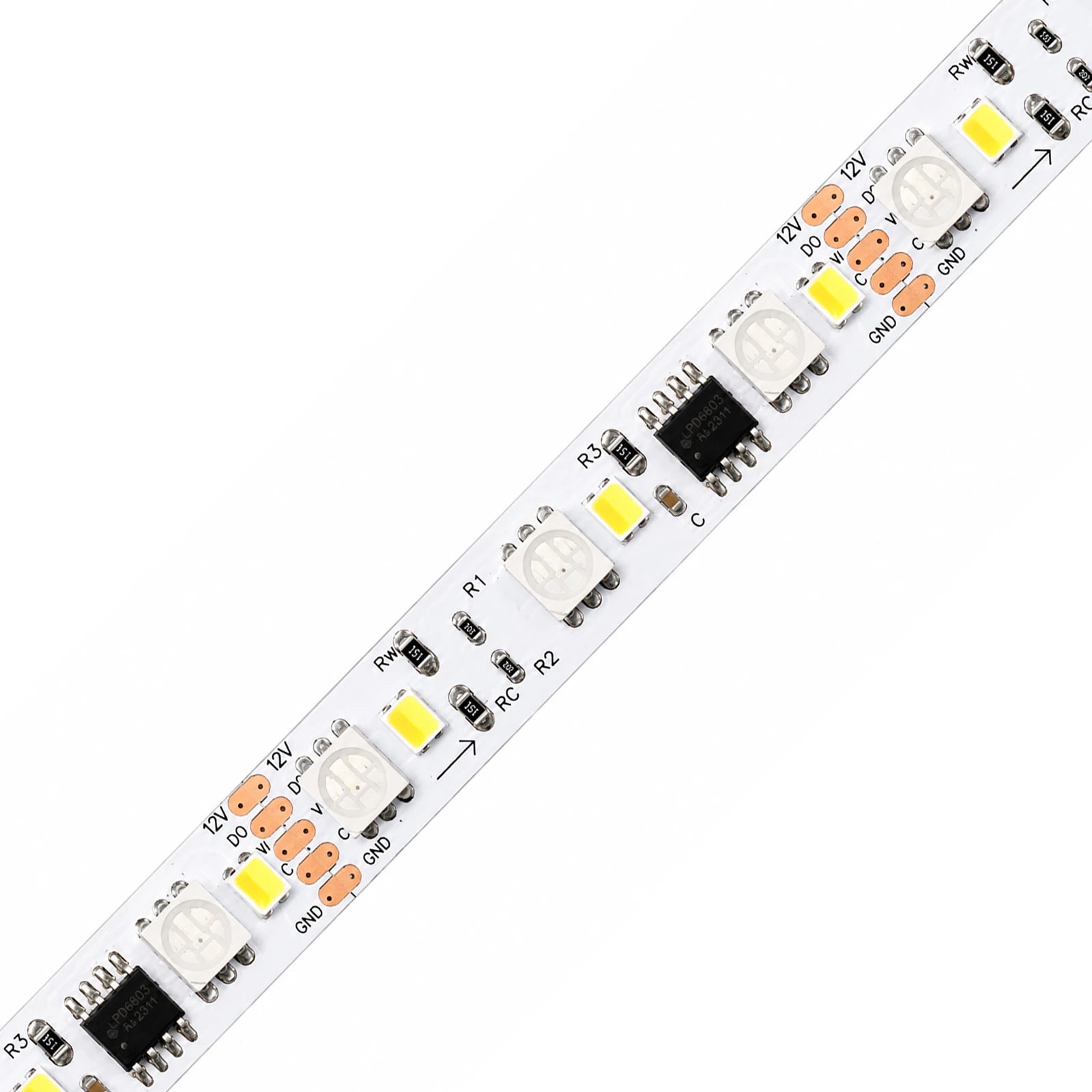

10mm SMD 5050 Addressable RGBCW + Tunable White LED Strip Light, 120 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
The 5050-120-10mm-12V-ADDRESSABLE combines 120 LEDs/m 5050 LEDs with a 10mm format and DC12V operation. It combines addressable RGBCW color control with tunable white output from 2700K to 6500K for programmable color and white-light scenes. Its listed color option is Addressable RGBCW + Tunable White. This listed 10mm SMD 5050 Addressable RGB LED Strip Light, 120 LEDs/m, 12V configuration is catalogued for that application.
Why Choose These LED Strip Lights?
- RGBCW + tunable white: Addressable color effects combine with adjustable white light from 2700K to 6500K.
- Controller-based operation: Pair with the appropriate controller to select color, brightness, and effects.
- Flexible low-voltage design: Suitable for entertainment, retail, home ambience, and themed installations.
- LED density: 120 LEDs/m LED layout for the catalog configuration.
- Color rendering: Catalog CRI shown where specified.
- Power: Up to 3W/m.
Technical Specifications
| Catalog Model | 5050-120-10mm-12V-ADDRESSABLE |
|---|---|
| LED Type | 5050 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 10mm |
| Input Voltage | DC12V |
| Power | Up to 3W/m |
| Color Rendering | Catalog CRI shown where specified |
| Color / CCT | Addressable RGBCW + Tunable White, 2700K–6500K |
| Module Pitch | 16.7mm |
| Cutting Interval | 50mm / 1.97in, 6 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points (50mm / 1.97in, 6 LEDs per cut). Connect the strip to a compatible addressable RGBCW/CCT controller and the specified constant-voltage power supply, observing all channel markings. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.

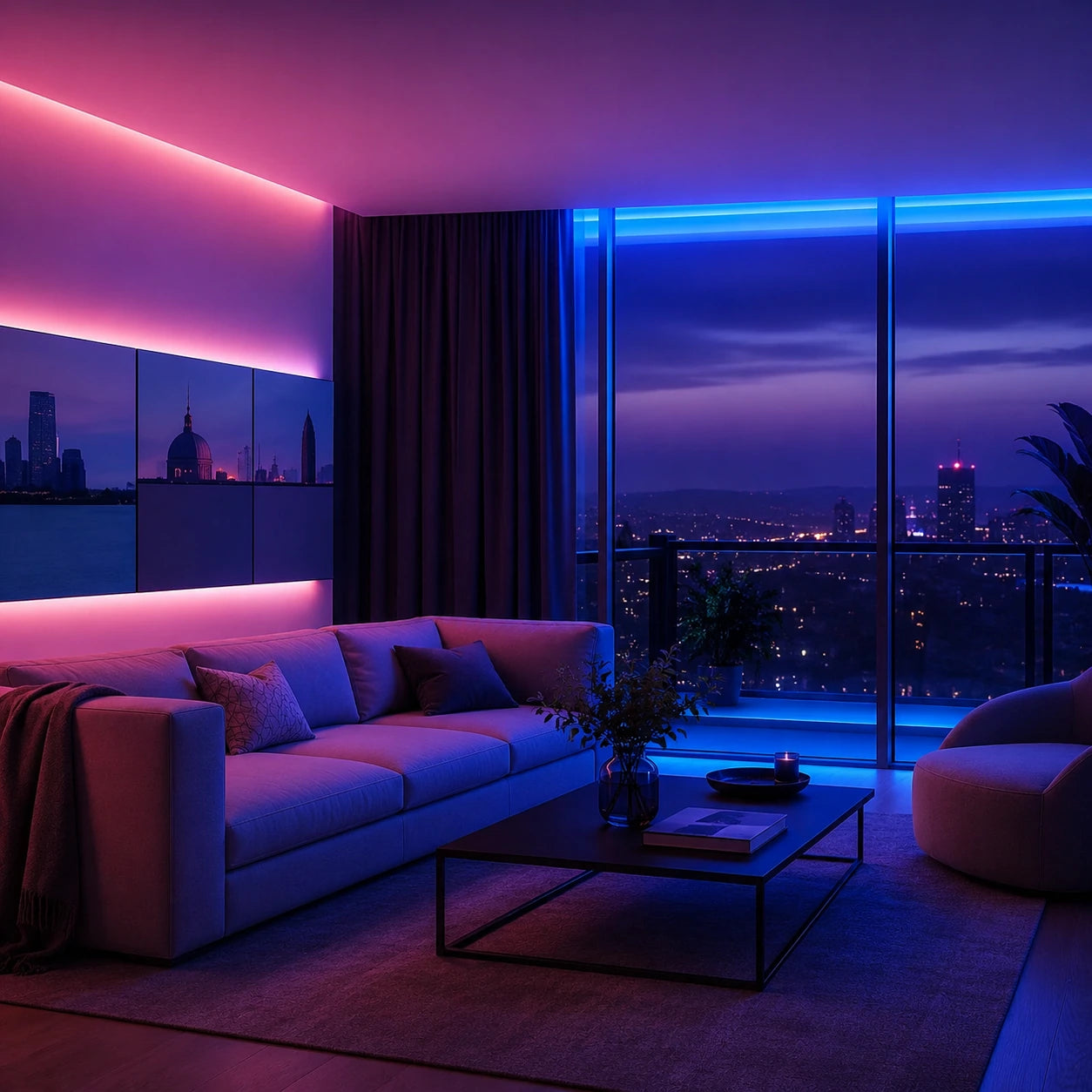

Recommended Applications
- Whole-home scenes such as living rooms and kitchen cabinets, combining practical white light and color ambience
- Gaming rooms and home theaters requiring immersive or music-synchronized effects
- Apparel stores, jewelry counters, KTV rooms, cinemas, outdoor beautification, and themed commercial displays
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote RGB/RGBW/RGBCW/addressable configuration, controller, voltage, cable, connector, IP construction, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
