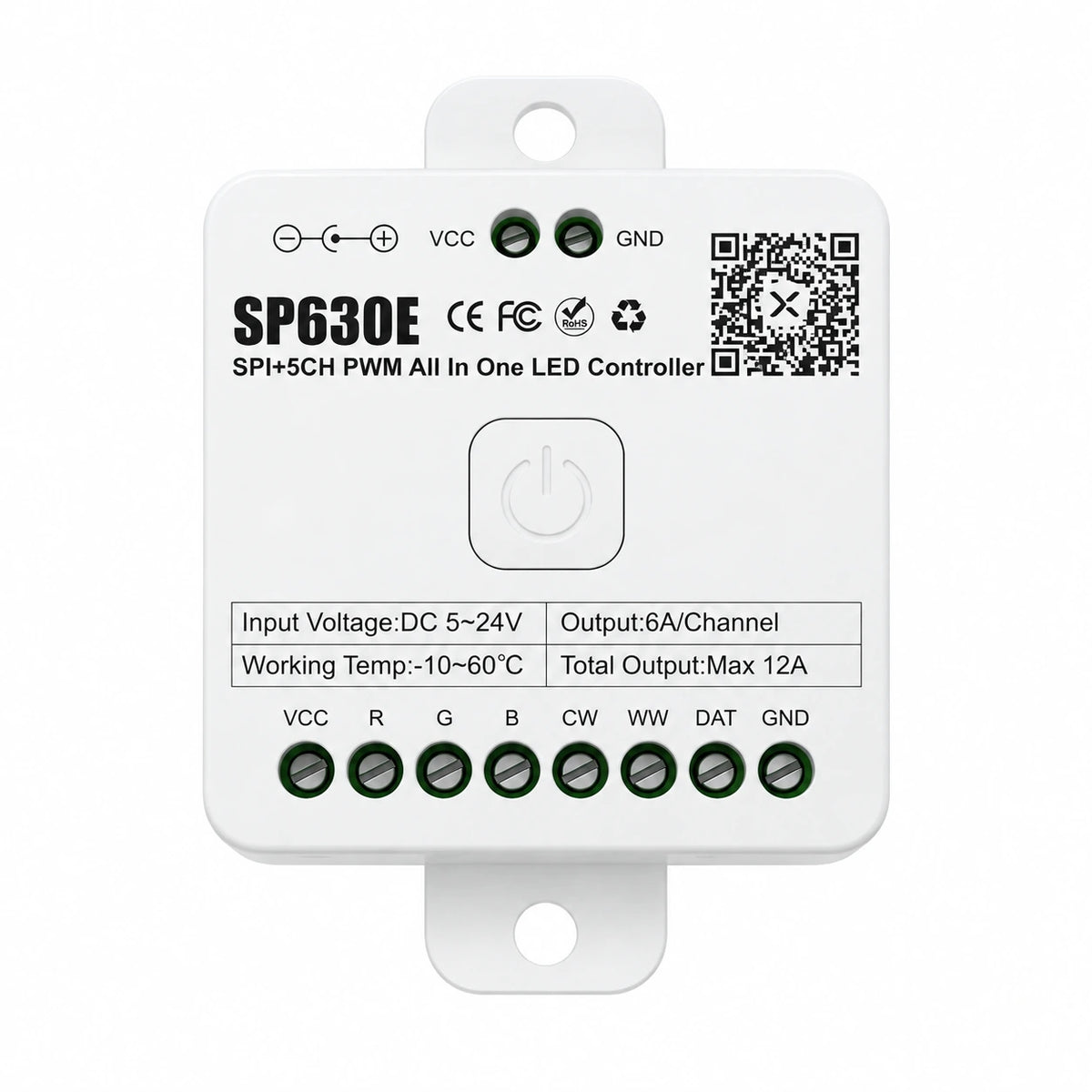

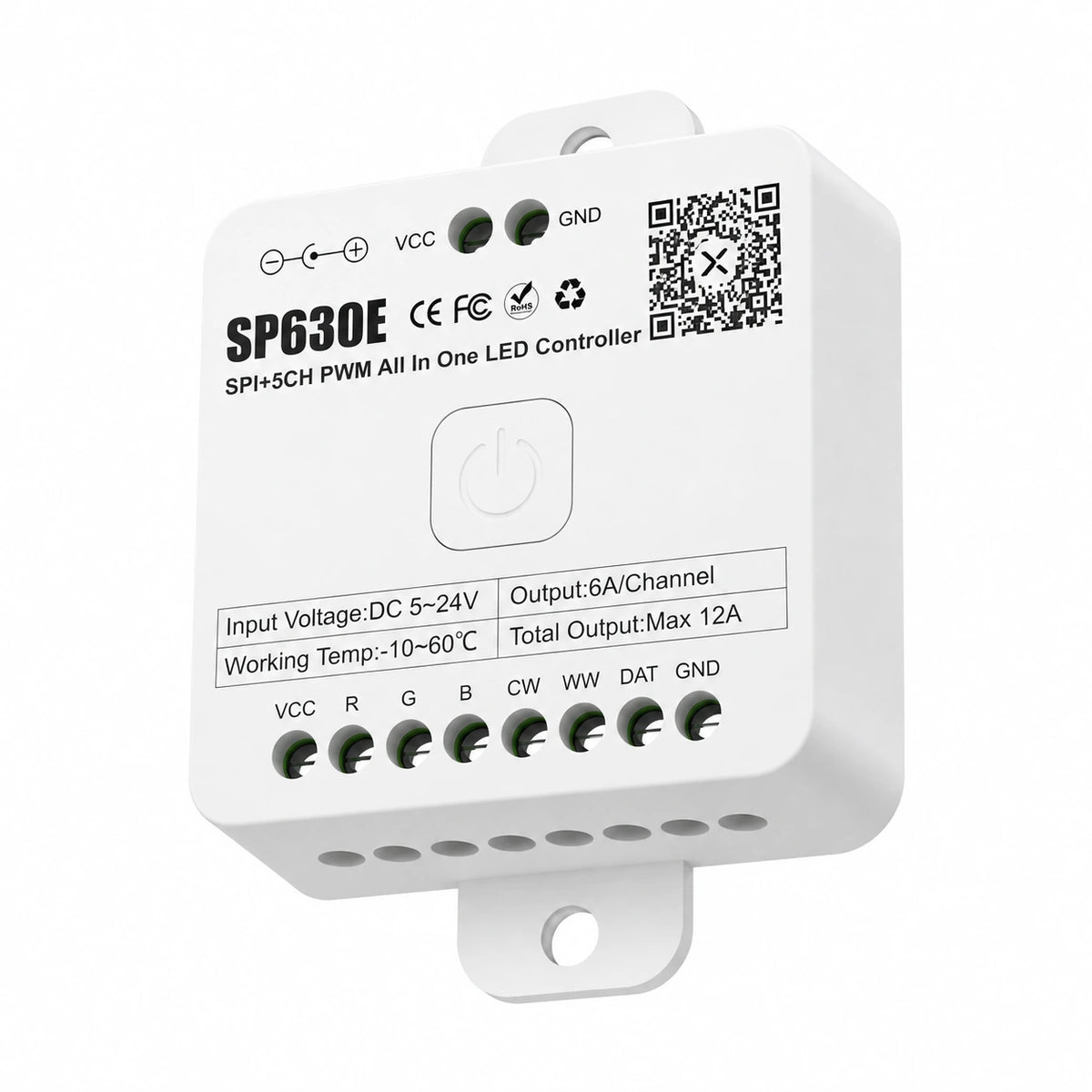

All-in-One LED Strip Controller, 12 LED Types PWM + SPI, 5-24V Bluetooth – SP630E

The SP630E is the all-in-one LED strip controller of the range: one box that covers 12 different strip types on DC 5-24V, PWM and addressable alike. You pick the LED type in the BanlanX app rather than buying a different controller — which makes it the safe choice when you are not sure what your strip is, or when you keep spares on a shelf.

What This Controller Works With

• PWM (no IC): 1CH single color, 2CH CCT, 3CH RGB, 4CH RGBW, 5CH RGBCCT — 2-pin through 6-pin tape
• SPI (addressable): single color, CCT, RGB, RGBW and RGBCCT pixel strip on single-wire ICs such as WS2812B, WS2811, WS2815, SK6812 and WS2805
• Combined: SPI RGB + 1CH PWM single color, and SPI RGB + 2CH PWM CCT, running together
• 5V, 12V or 24V, with 6A per channel and 12A total on the PWM side (up to 288W at 24V)

Not compatible with: Clock-based two-wire ICs such as WS2801, APA102 and SK9822, and mains-voltage 110V/220V strip. This model is Bluetooth only — there is no WiFi, Alexa or Google Home support.

Key Features

• 12 selectable LED types switched in the app, no rewiring of the controller
• Dynamic, static, music-reactive and custom pages in BanlanX
• Multiple ON/OFF animations and a selectable default power-on state
• Device renaming, LED type selection, color-order calibration and timers
• Three music capture modes: phone microphone, player streaming, or the onboard microphone
• Supports RB1-RB4 touch remotes and RC1-RC4 86-type wall panels, unified or 4-zone

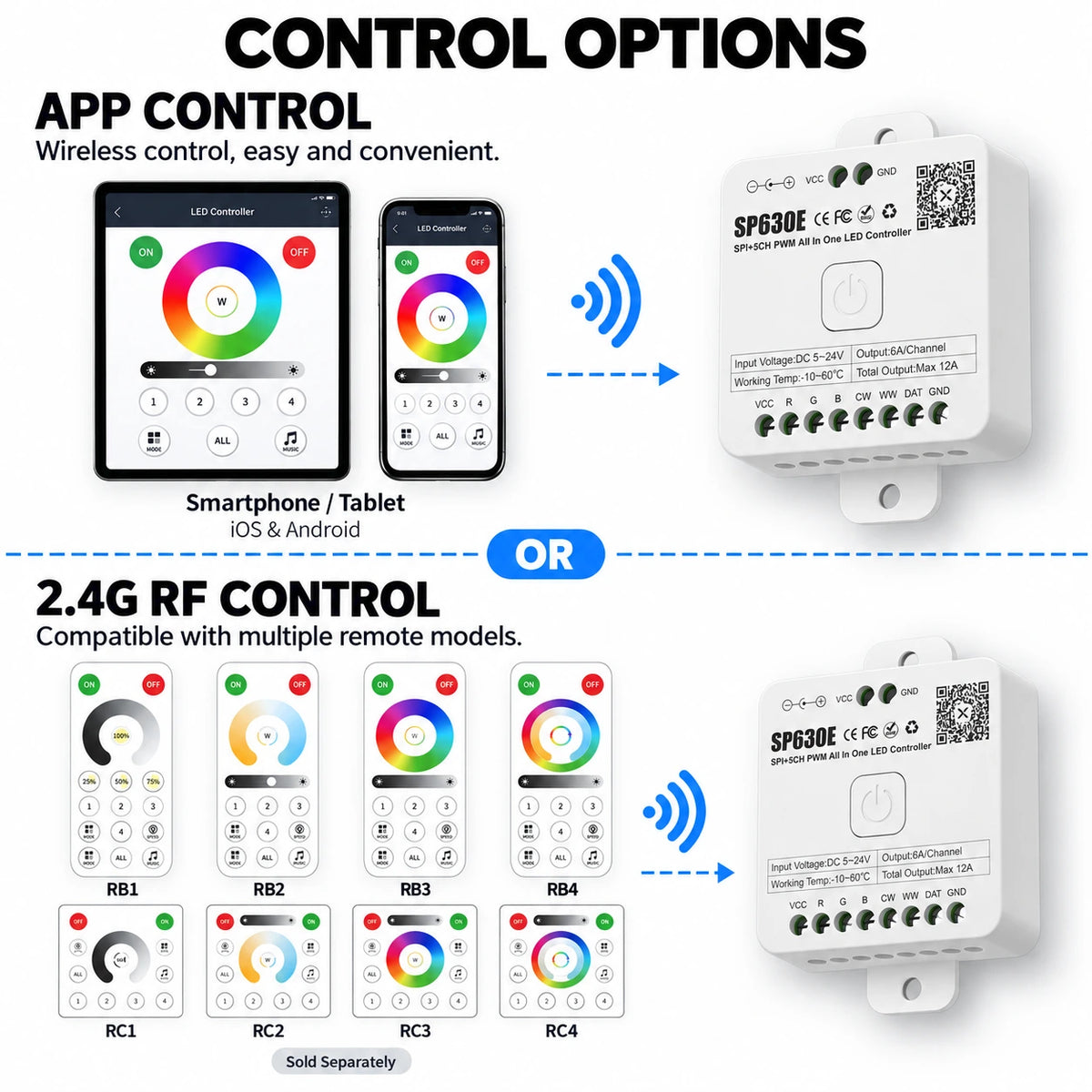

App and Remote Control

BanlanX Bluetooth App

Pair over Bluetooth in BanlanX — no WiFi, account or hub — then set the LED type to match your strip. Change strips later and you change a setting, not the hardware.

Optional 2.4G Touch Remote and Wall Panel

SP630E also pairs with the optional RB1-RB4 / RC1-RC4 (matched to the LED type you select) 2.4G touch remote and 86-type wall panel (sold separately). One remote can drive several controllers, each controller binds up to 5 remotes, and the system supports unified ALL control or 4-zone control.

Wiring and Installation

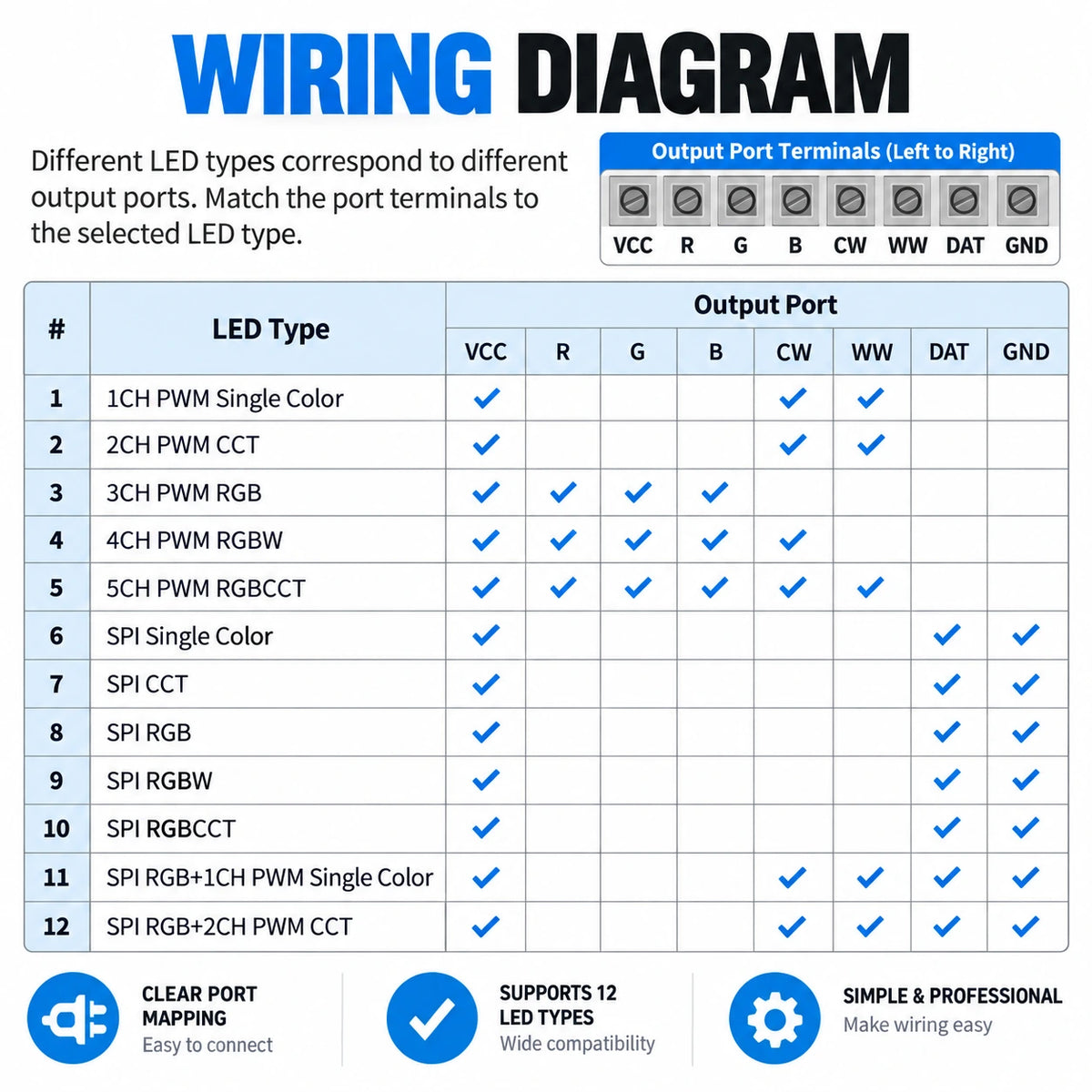

Feed a regulated DC 5-24V supply into the controller input, then wire the strip to the depends on the selected LED type — up to V+ / R / G / B / WW / CW on PWM, or VCC / DAT / GND on SPI output terminals as shown on the wiring diagram. Set the LED type in the app before powering a strip for the first time, so the outputs match your tape.

• Match the supply voltage to the strip: a 24V strip on a 12V supply will look dim, and the reverse will damage it.
• Keep total load inside the controller rating, and add a second supply or a power repeater on long runs.
• Mount the controller somewhere ventilated and dry — the housing is IP20 and not for outdoor or damp use.

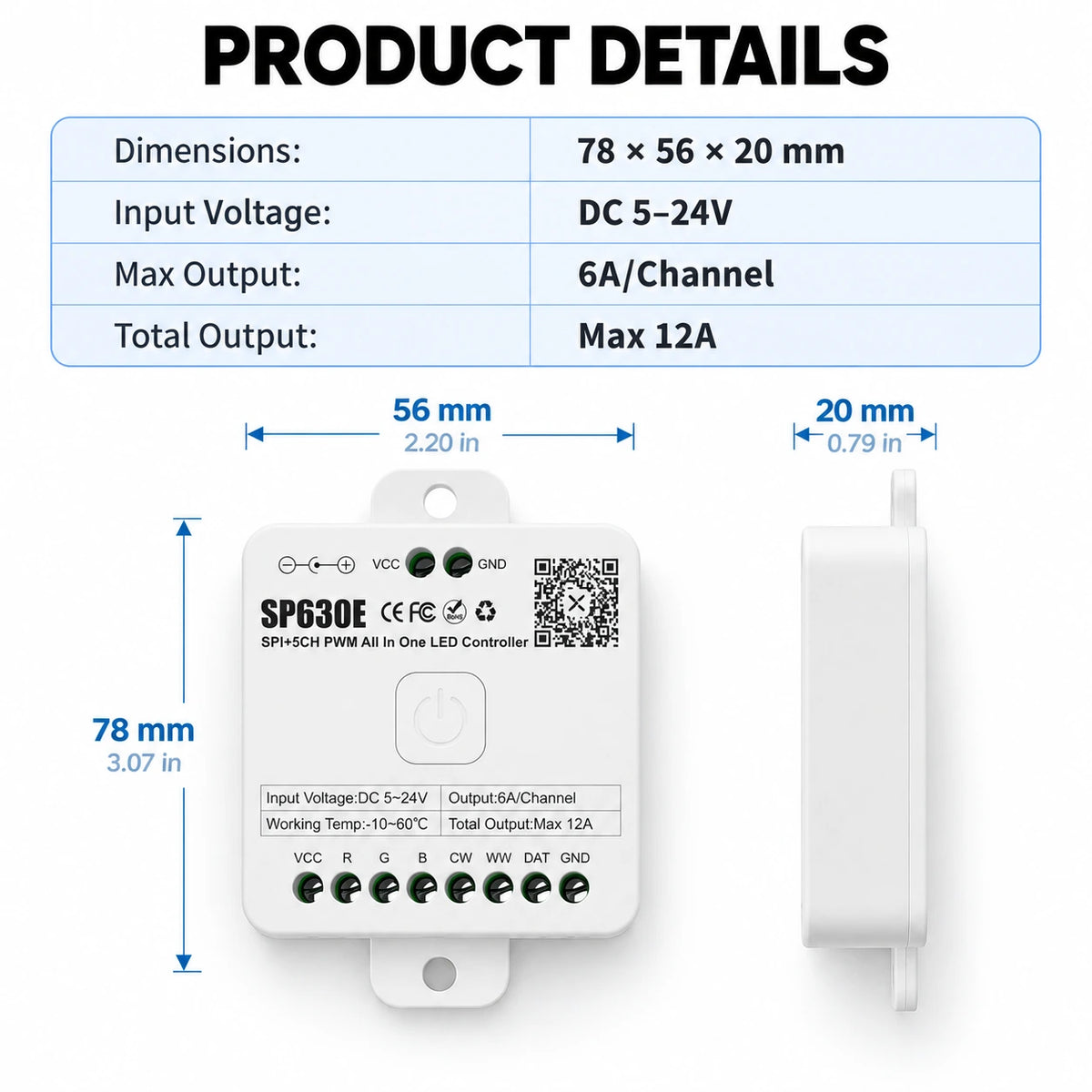

Technical Specifications

Not Sure Which Model You Need?

The quickest check is to count the pads on the end of your strip and look for a chip marking. Two pads means single color, three means tunable white, four means RGB, five means RGBW and six means RGBCCT. A marking such as WS2812B, WS2811, SK6812 or WS2805 means the strip is addressable and needs an SPI model.

• Pick the SP631E Single Color Dimmer Controller if you only ever run plain single color tape.
• Pick the SP633E RGB LED Strip Controller if you only ever run 4-pin RGB tape.
• Pick the SP638E Addressable RGB Controller if you only ever run WS2812B pixel tape.
• Pick the SP63CE Addressable RGB + CCT Controller if you run pixel RGB and tunable white together.

Certifications and Support

Certified for the US and EU market: FCC ID 2ATV8SP63XE (Part 15C, 2402-2480 MHz), CE under the Radio Equipment Directive 2014/53/EU (EN 300 328, EN 301 489, EN 62368-1, EN 62479), and RoHS to 2011/65/EU with amendment (EU) 2015/863. The CE and RoHS attestations cover all thirteen SP63xE models. Copies of the certificates are available on request.

Each unit ships with a printed manual and the BanlanX QR code. If you want the wiring checked against a specific strip before you order, send us the strip spec and we will confirm the match.
