Addressable RGB + Single Color LED Controller, SPI + PWM 5-24V – SP63BE

The SP63BE is a Bluetooth hybrid controller that runs addressable RGB pixel strip and a plain single color strip at the same time on DC 5-24V. It is built for the common cove setup: pixel tape for effects, an ordinary white run for actual light, both on one controller and one app.

What This Controller Works With

• SPI output: addressable RGB strip on single-wire ICs (WS2812B, WS2811, WS2815 and similar), up to 600 ICs
• PWM output: one channel of plain single color tape at 6A
• Both outputs at 5V, 12V or 24V, wired VCC / DAT / W / GND

Not compatible with: Clock-based two-wire ICs such as WS2801, APA102 and SK9822. If you only need one of the two output types, the single-purpose models below cost the same and are simpler to wire.

Key Features

• Addressable RGB plus 1CH PWM white from a single controller
• Dynamic, music-reactive and DIY effects across both outputs
• Effect collection for saved scenes
• Three music capture modes: phone microphone, player streaming, or the onboard microphone
• Sequential channel calibration plus ON/OFF animations and timers
• OTA firmware updates

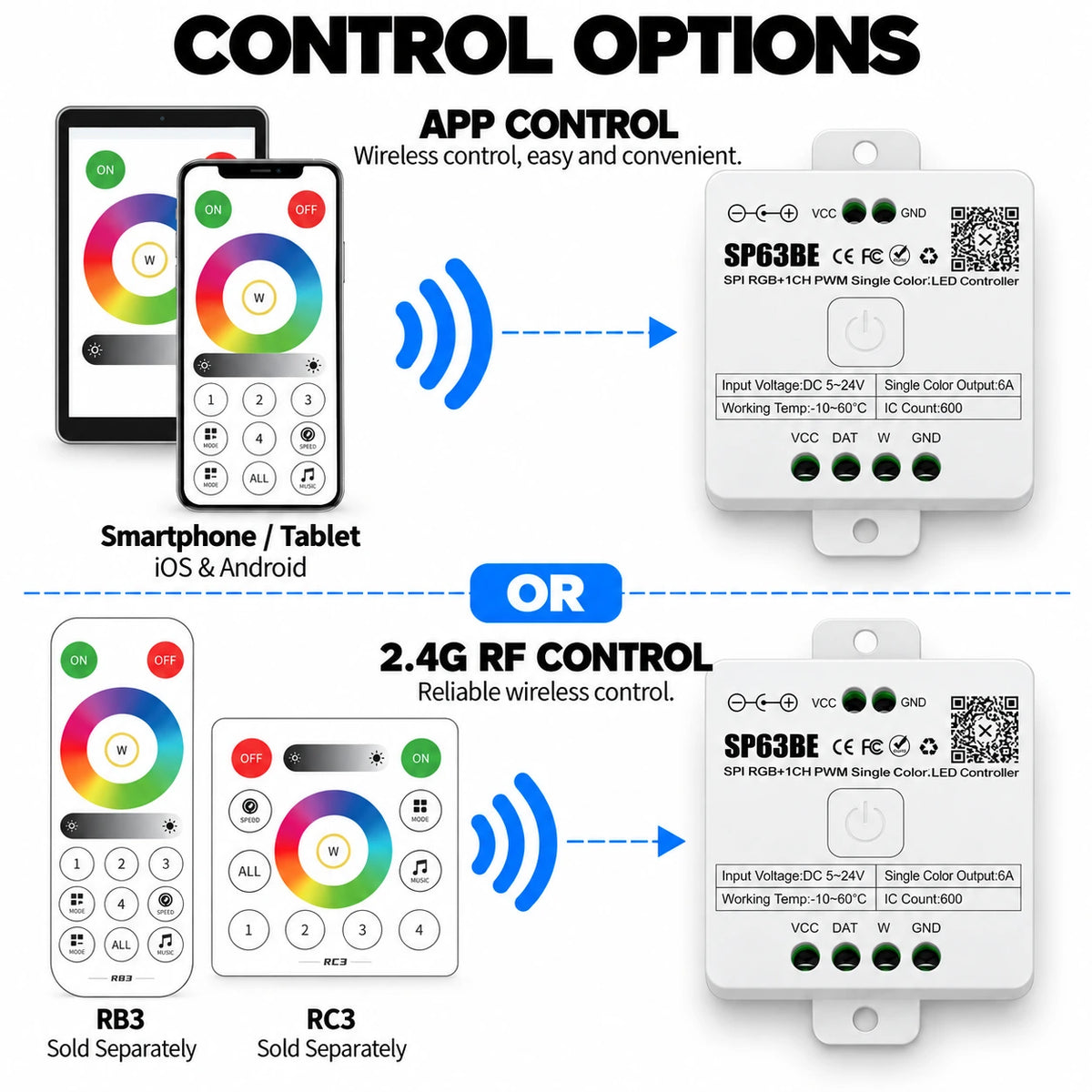

App and Remote Control

BanlanX Bluetooth App

BanlanX pairs over Bluetooth with no WiFi or hub, and treats the pixel run and the white run as separate controls — so the white can stay on while an effect plays.

Optional 2.4G Touch Remote and Wall Panel

SP63BE also pairs with the optional RB3 / RC3 2.4G touch remote and 86-type wall panel (sold separately). One remote can drive several controllers, each controller binds up to 5 remotes, and the system supports unified ALL control or 4-zone control.

Wiring and Installation

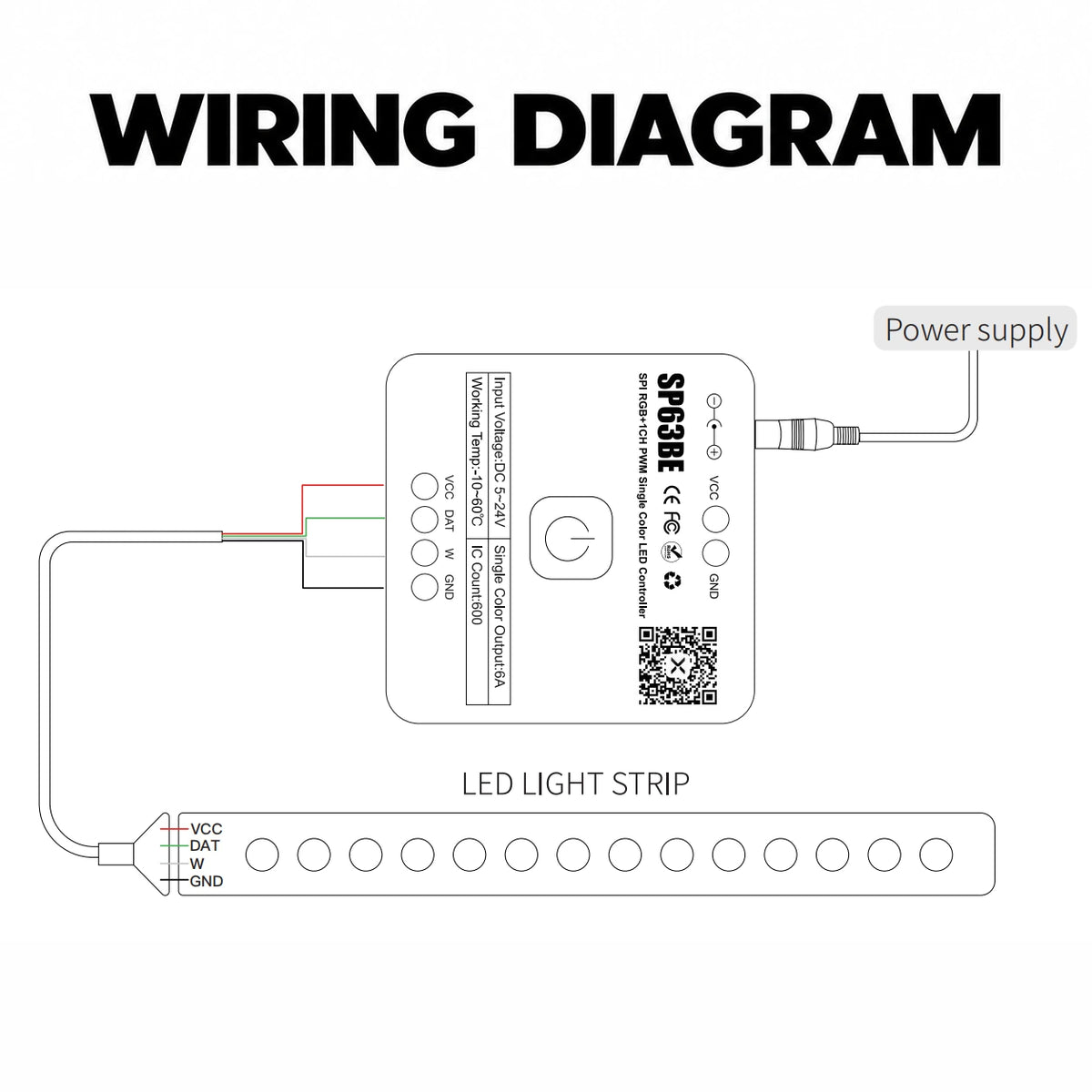

Feed a regulated DC 5-24V supply into the controller input, then wire the strip to the VCC / DAT / W / GND output terminals as shown on the wiring diagram. Both strips share one DC supply, so size the power supply for the two runs together, not just the pixel tape.

• Match the supply voltage to the strip: a 24V strip on a 12V supply will look dim, and the reverse will damage it.
• Keep total load inside the controller rating, and add a second supply or a power repeater on long runs.
• Mount the controller somewhere ventilated and dry — the housing is IP20 and not for outdoor or damp use.

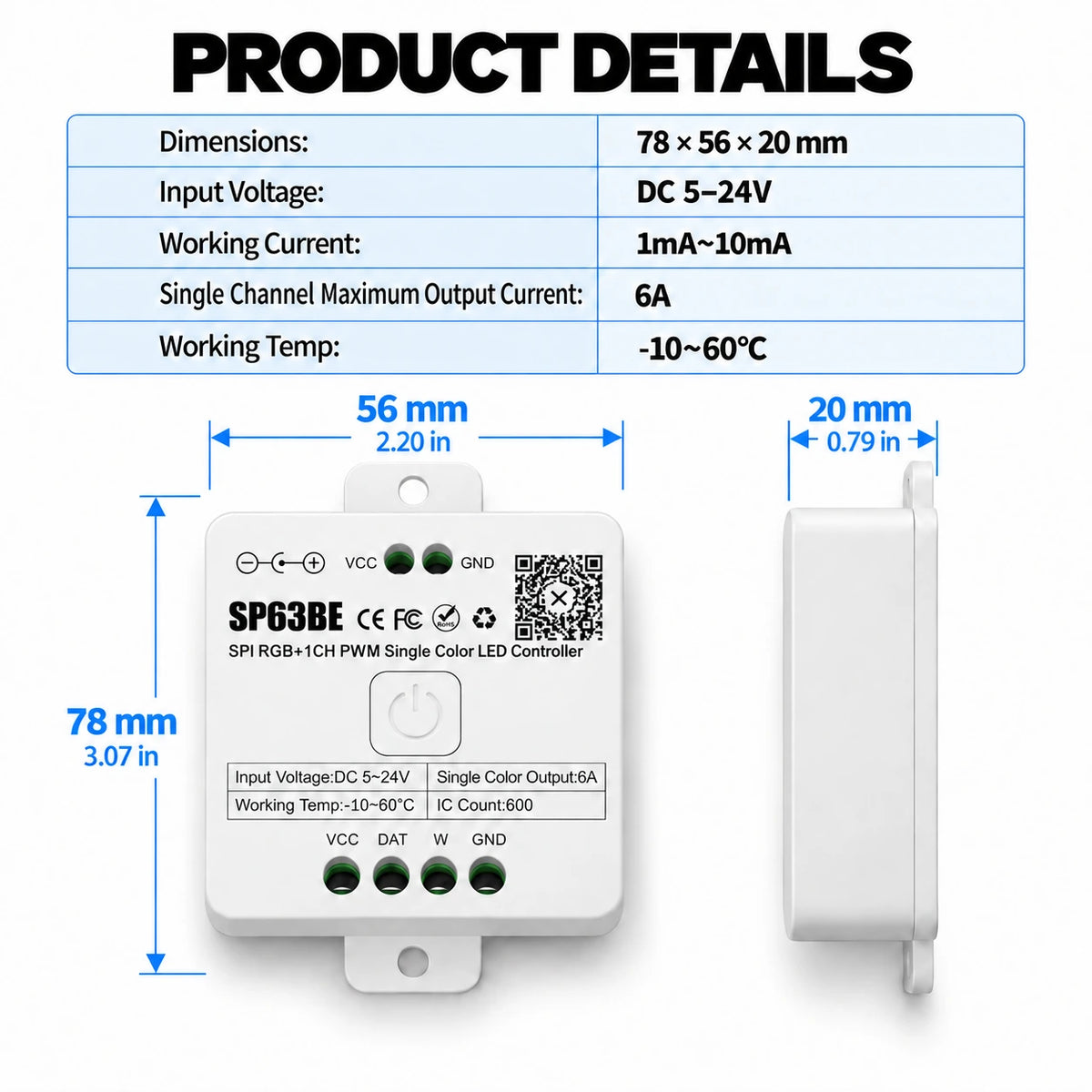

Technical Specifications

Not Sure Which Model You Need?

The quickest check is to count the pads on the end of your strip and look for a chip marking. Two pads means single color, three means tunable white, four means RGB, five means RGBW and six means RGBCCT. A marking such as WS2812B, WS2811, SK6812 or WS2805 means the strip is addressable and needs an SPI model.

• Pick the SP638E Addressable RGB Controller if you only need the addressable RGB side.
• Pick the SP631E Single Color Dimmer Controller if you only need the plain white side.
• Pick the SP63CE Addressable RGB + CCT Controller if your white run is tunable white rather than one white.
• Pick the SP630E All-in-One LED Strip Controller if you want one controller that covers every strip type.

Certifications and Support

Certified for the US and EU market: FCC ID 2ATV8SP63XE (Part 15C, 2402-2480 MHz), CE under the Radio Equipment Directive 2014/53/EU (EN 300 328, EN 301 489, EN 62368-1, EN 62479), and RoHS to 2011/65/EU with amendment (EU) 2015/863. The CE and RoHS attestations cover all thirteen SP63xE models. Copies of the certificates are available on request.

Each unit ships with a printed manual and the BanlanX QR code. If you want the wiring checked against a specific strip before you order, send us the strip spec and we will confirm the match.
