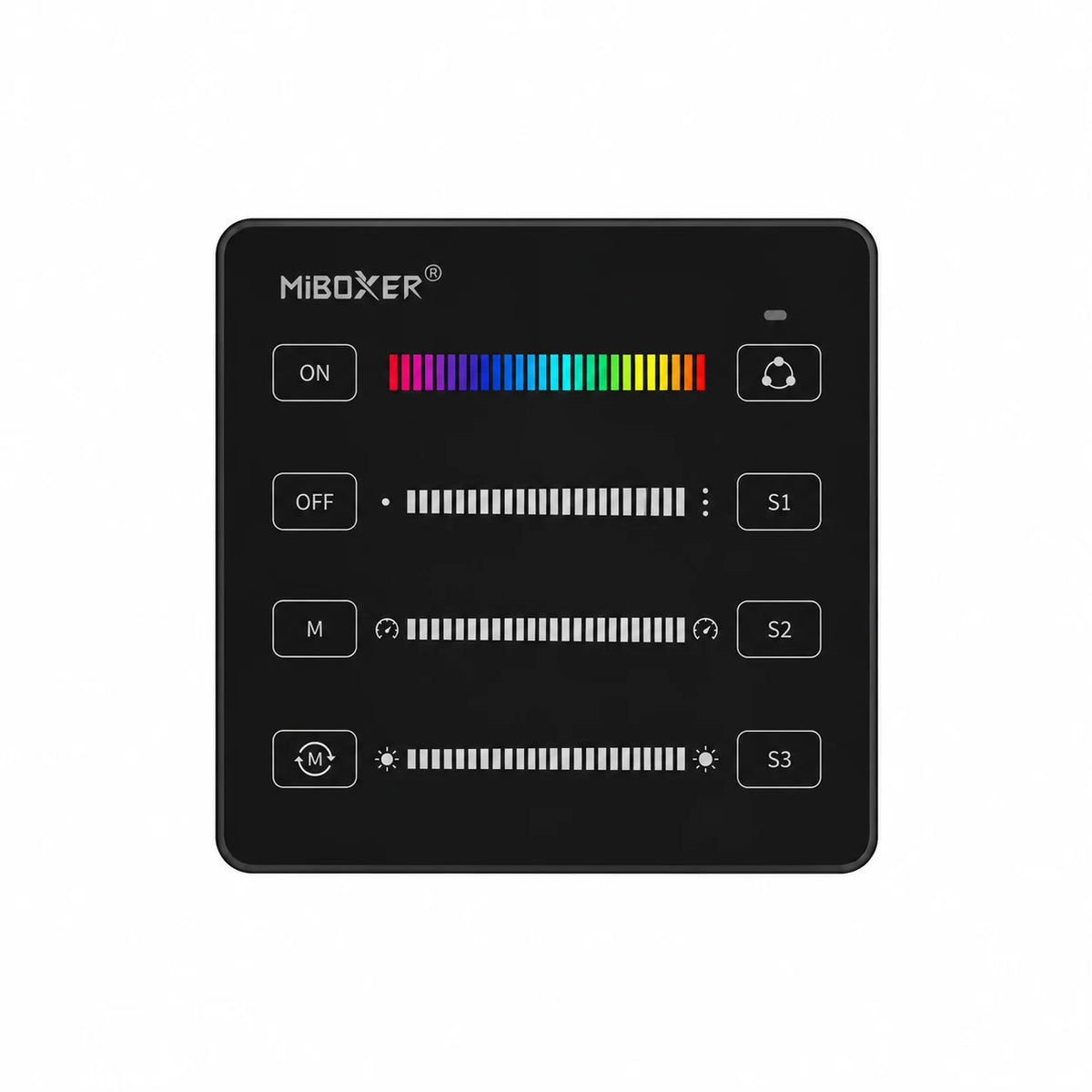

B6 SPI LED control panel in black, close-up of the front face

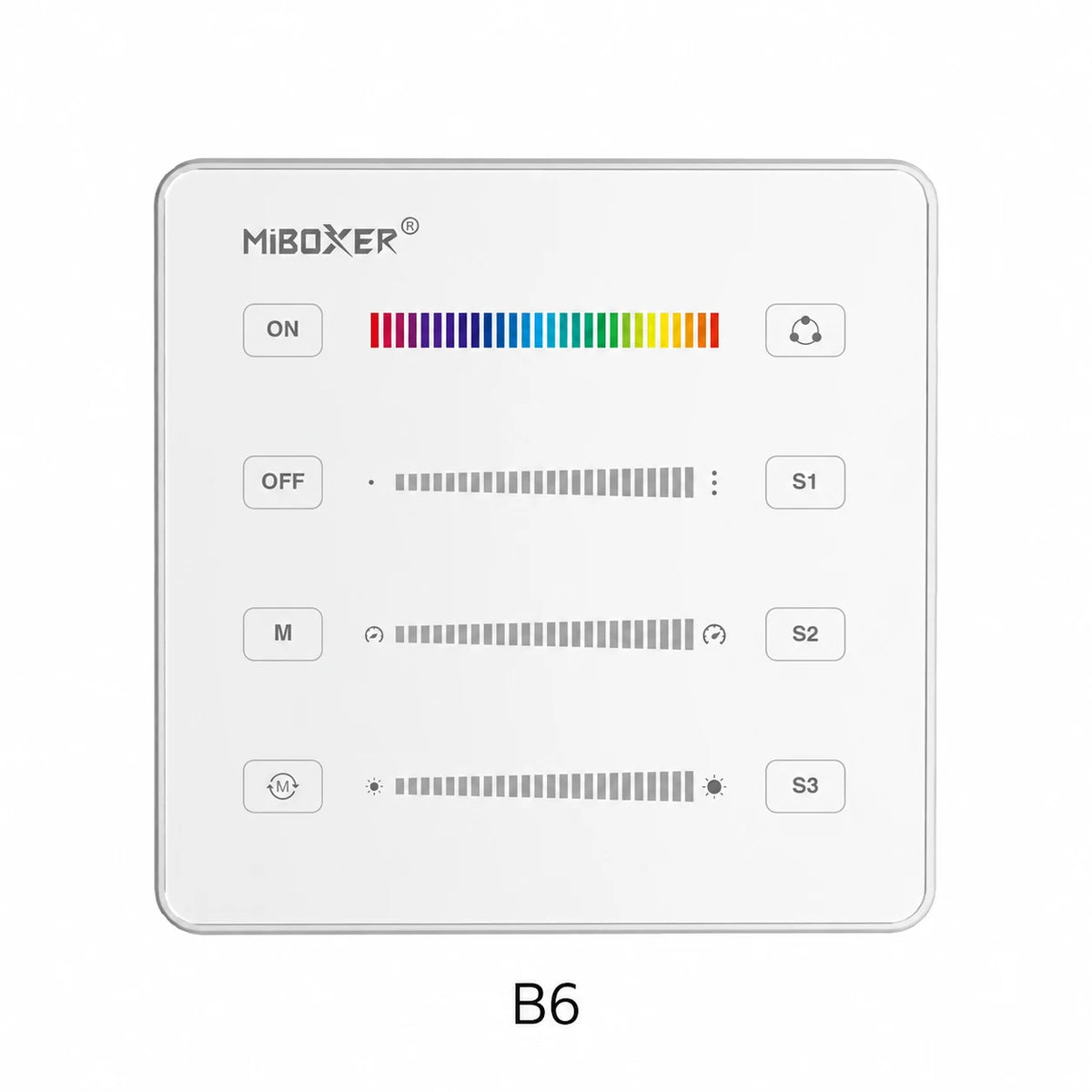

B6 SPI LED control panel in white, front view

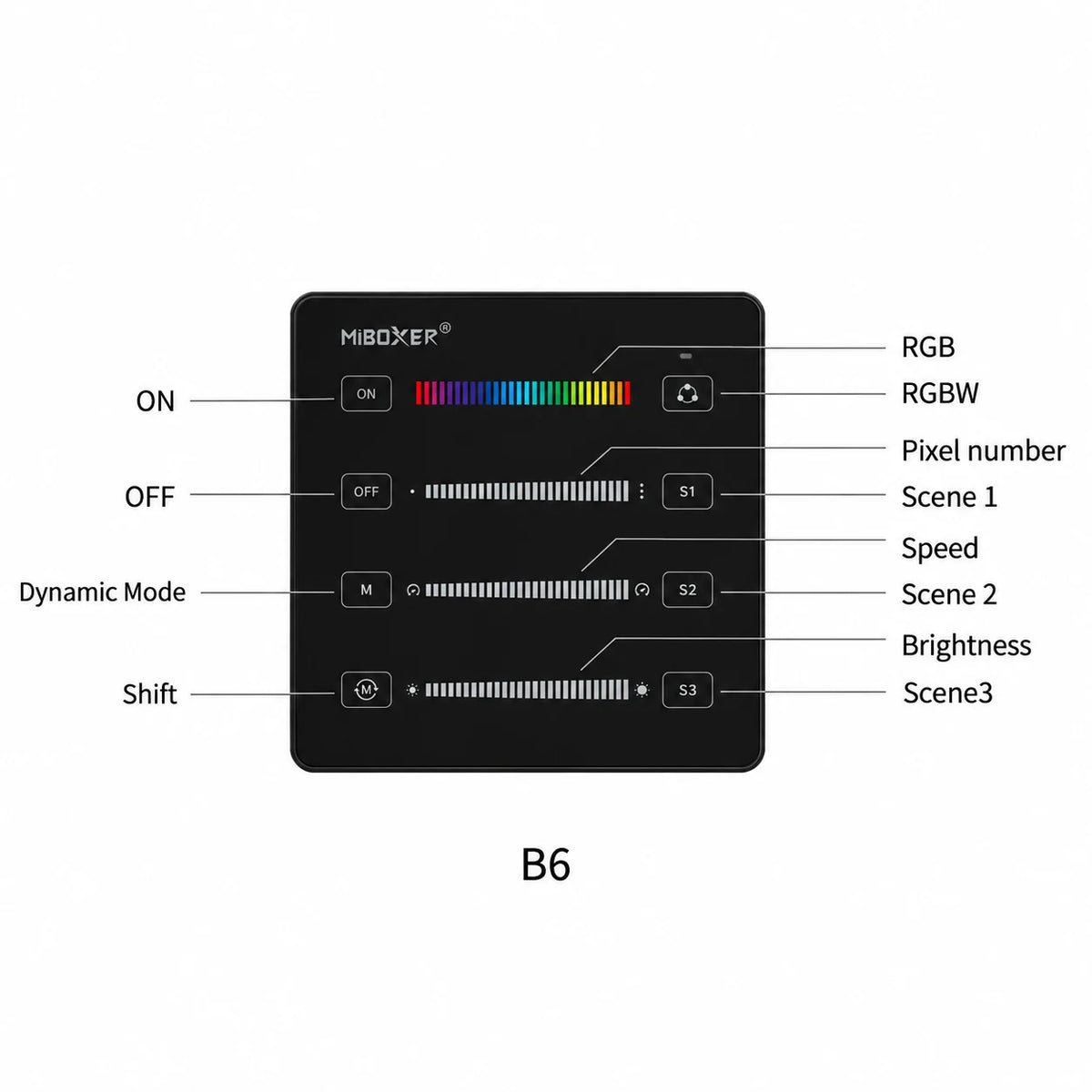

B6 wall panel button functions diagram for SPI LED controllers

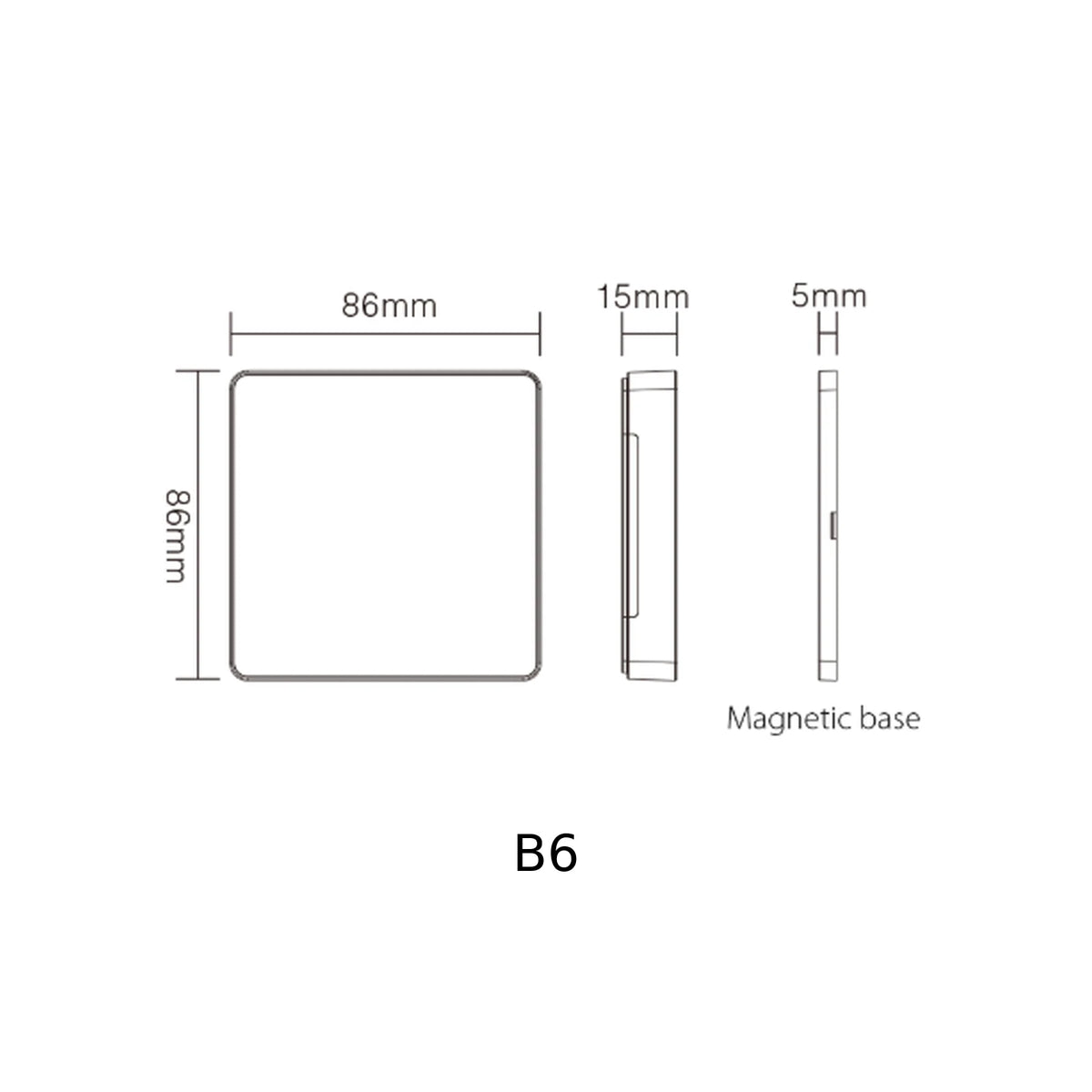

B6 LED control panel dimension drawing, 86 mm with magnetic base

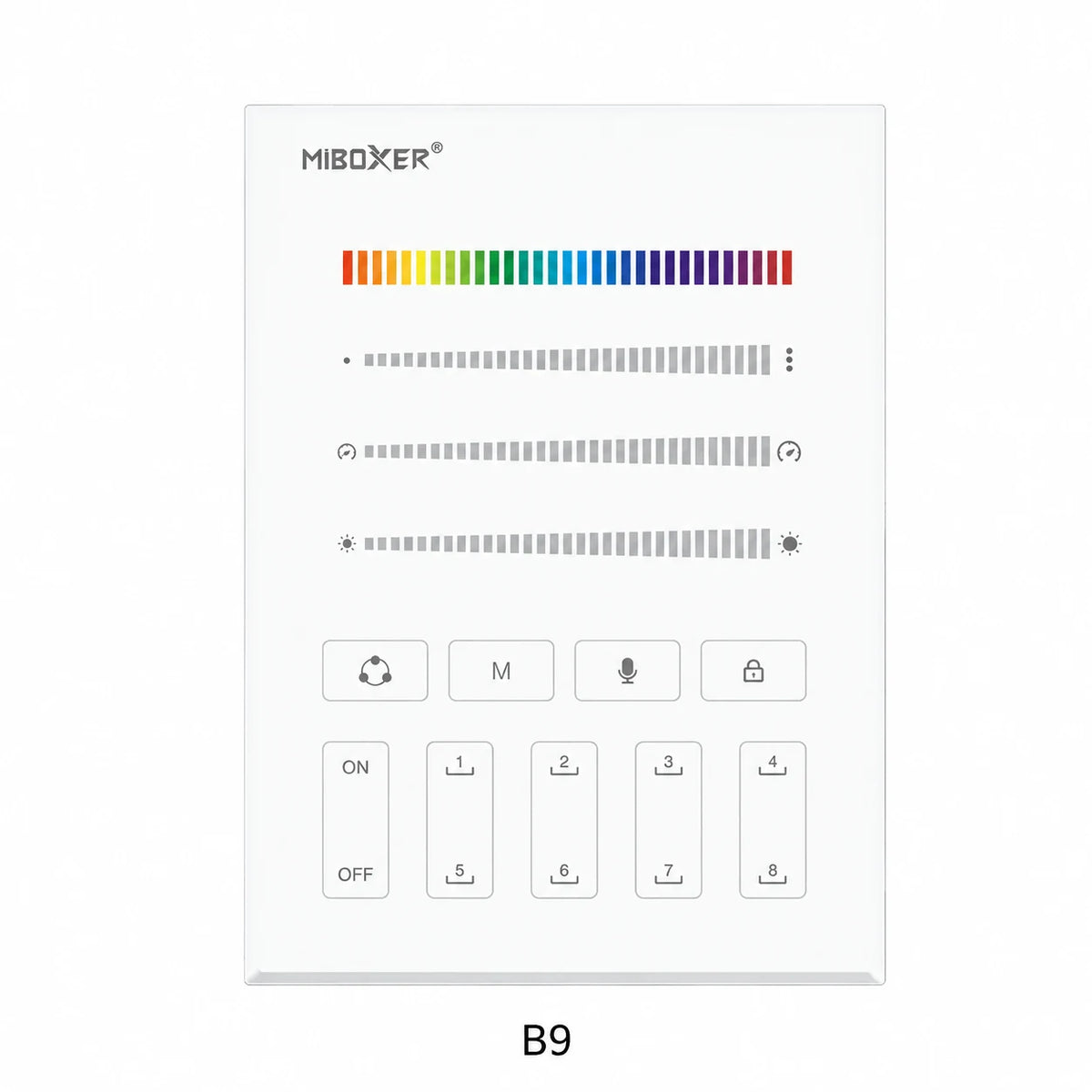

B9 SPI LED control panel in white, front view

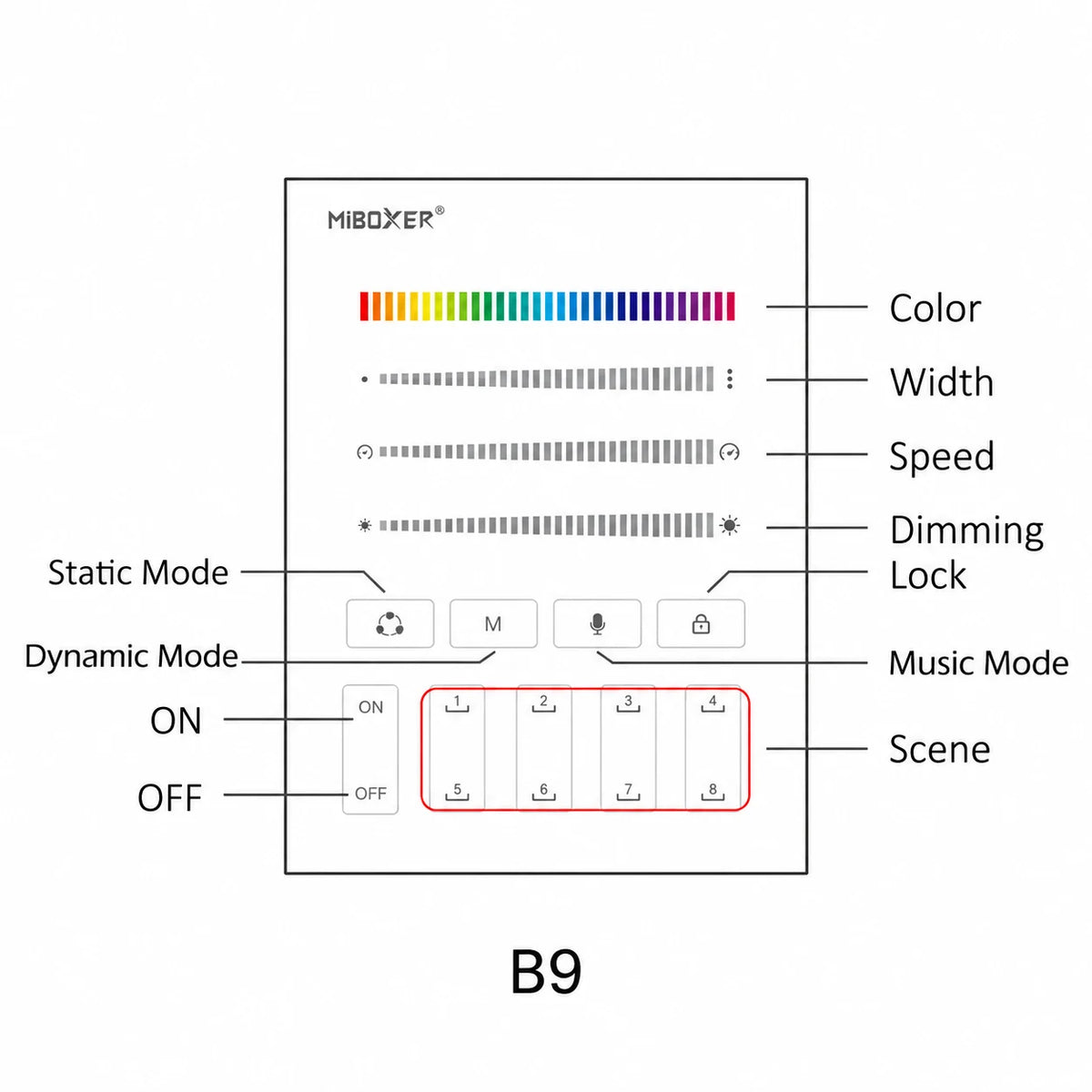

B9 wall panel button functions diagram for SPI LED controllers

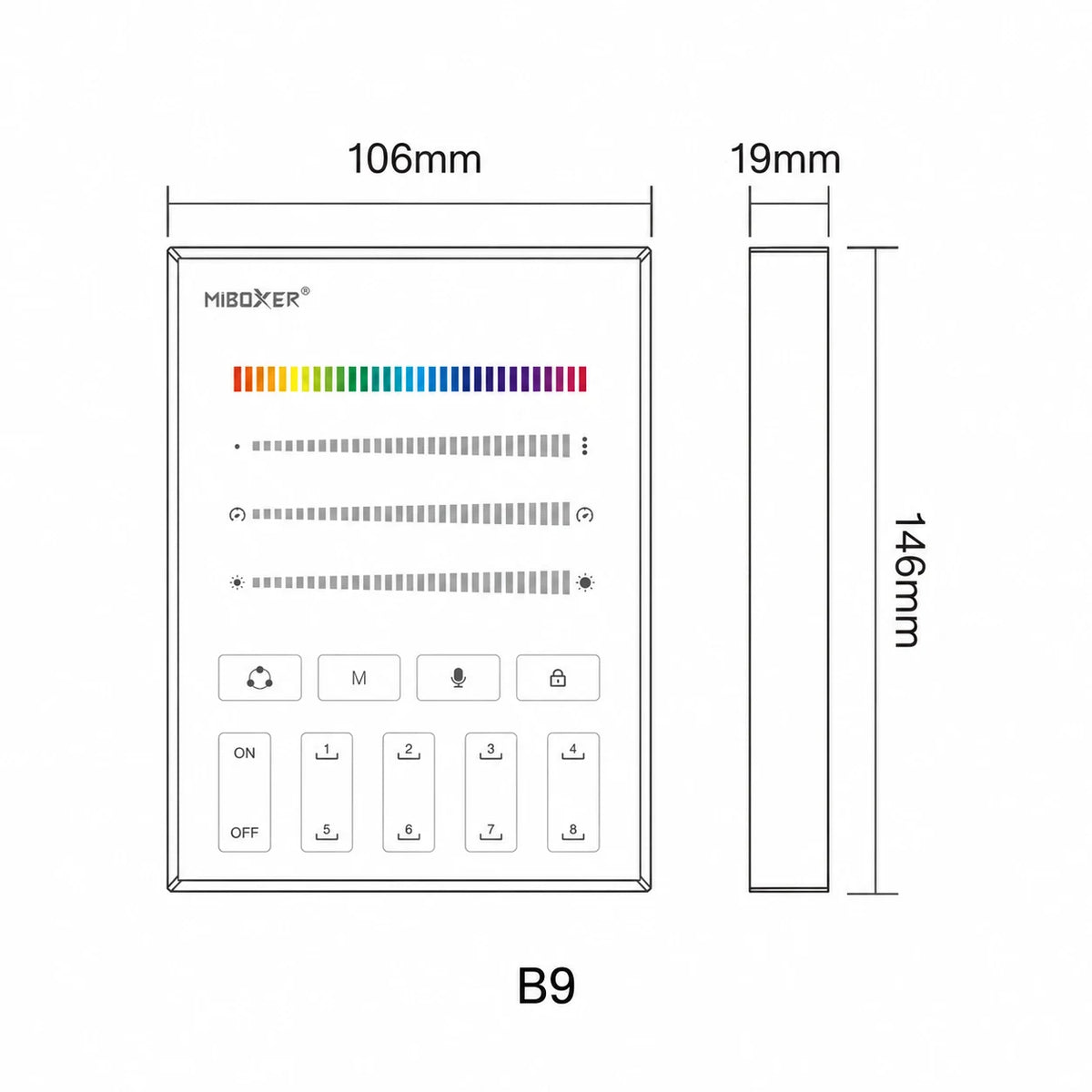

B9 LED control panel dimension drawing, 106 x 146 mm

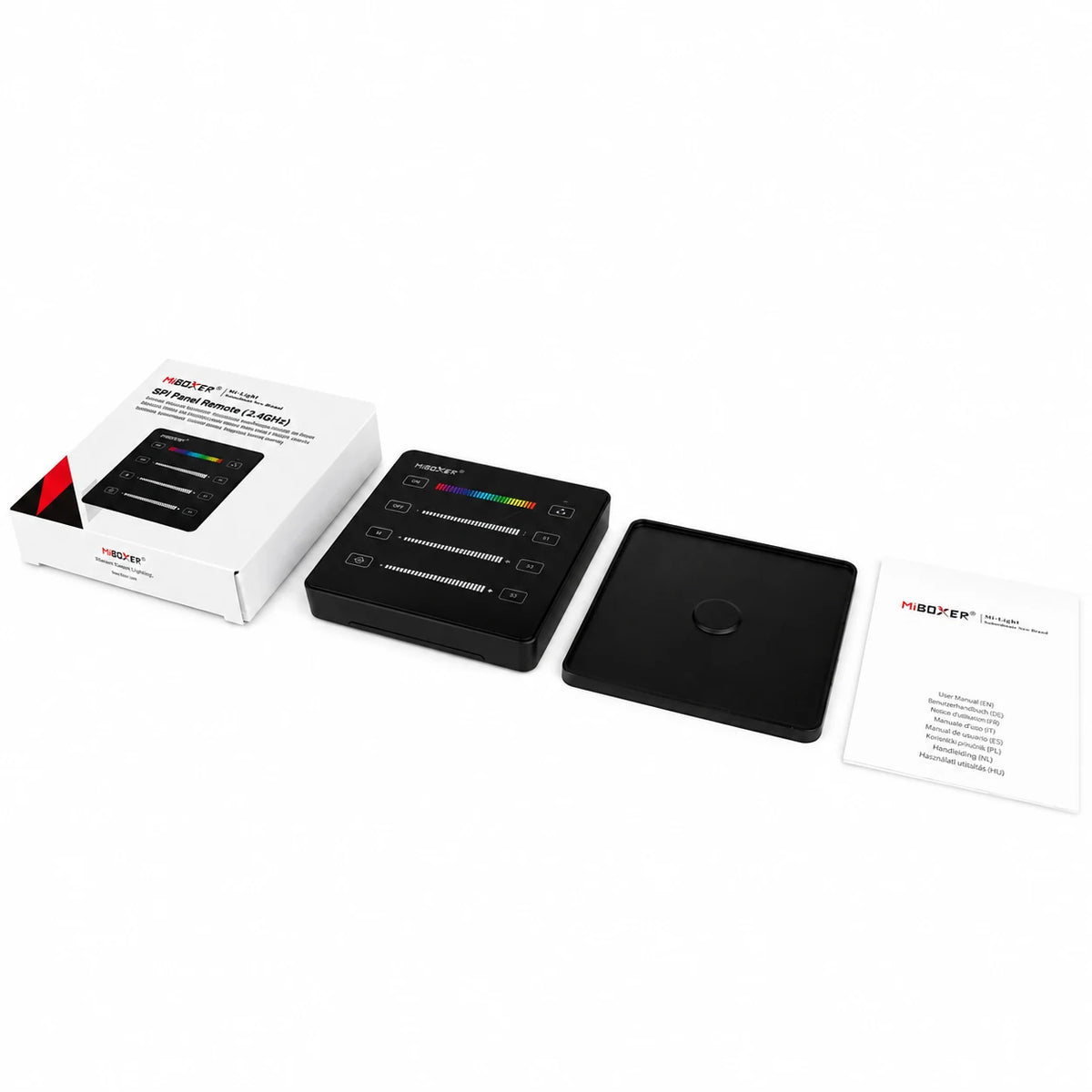

B6 SPI LED control panel with magnetic base and retail box
B6 SPI LED control panel in black, close-up of the front face
B6 SPI LED control panel in white, front view
B6 wall panel button functions diagram for SPI LED controllers
B6 LED control panel dimension drawing, 86 mm with magnetic base
B9 SPI LED control panel in white, front view
B9 wall panel button functions diagram for SPI LED controllers
B9 LED control panel dimension drawing, 106 x 146 mm
B6 SPI LED control panel with magnetic base and retail box

B6 / B9 2.4GHz SPI Panel Remotes for Addressable LED Controllers

$18.98
Tax included. Shipping calculated at checkout.
Model: B6 SPI Panel Remote
Color: White
  • Free International Shipping over $99
  • Free Returns Within 30 days
Payment & Security
  • PayPal

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
B6 SPI LED control panel in black, close-up of the front face

B6 / B9 2.4GHz SPI Panel Remotes for Addressable LED Controllers

$18.98

Choose the correct 2.4GHz SPI panel remote for your compatible BrightTapeLED SPI controller. The B6 and B9 panel remotes use 2.4GHz RF wireless transmission and are designed for stable multi-device control, dynamic lighting adjustments, and magnetic wall mounting.

Choose Your Panel Remote

Model Color Type Compatible Controllers
B6 White / Black SPI Panel Remote SPIR3 / SPIR3-M
B9 White SPI Panel Remote SPIR5 / SPIW5 / SPIB5

Product Information

  • 2.4GHz RF: Fast wireless transmission with stable signal and strong anti-interference performance.
  • Control distance: Up to 30m in suitable conditions.
  • Dynamic lighting control: Adjust supported color, brightness, speed, pixel length/width, scenes and dynamic effects.
  • Multi-controller support: A compatible panel remote can communicate with multiple paired controllers.
  • Magnetic mounting: Designed for simple wall mounting with a magnetic holder/base.

Technical Specifications

Models B6 / B9
RF 2.4GHz
Modulation GFSK
Control Distance 30m
Working Temperature -10°C to 40°C
Transmitting Power 6dBm
Certification CE / EMC / LVD / RED

Model-Specific Specifications

B6 3V (2 × AAA batteries), 15μA standby consumption, 86 × 86 × 15mm; available in White or Black.
B9 3V (2 × AAA batteries) / DC3.3V, 30μA standby consumption; White only.

Compatible Controllers

B6 can be matched only with SPIR3 and SPIR3-M controllers.

B9 can be matched only with SPIR5 and SPIW5 / SPIB5 controllers.

Important Compatibility Note

Select the panel remote model that matches your controller. B6 and B9 are not interchangeable across all SPI controller models.
