SPIR5 5-in-1 SPI Addressable LED Controller, 2.4GHz RF, DC5V-24V
Regular price
$19.90
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

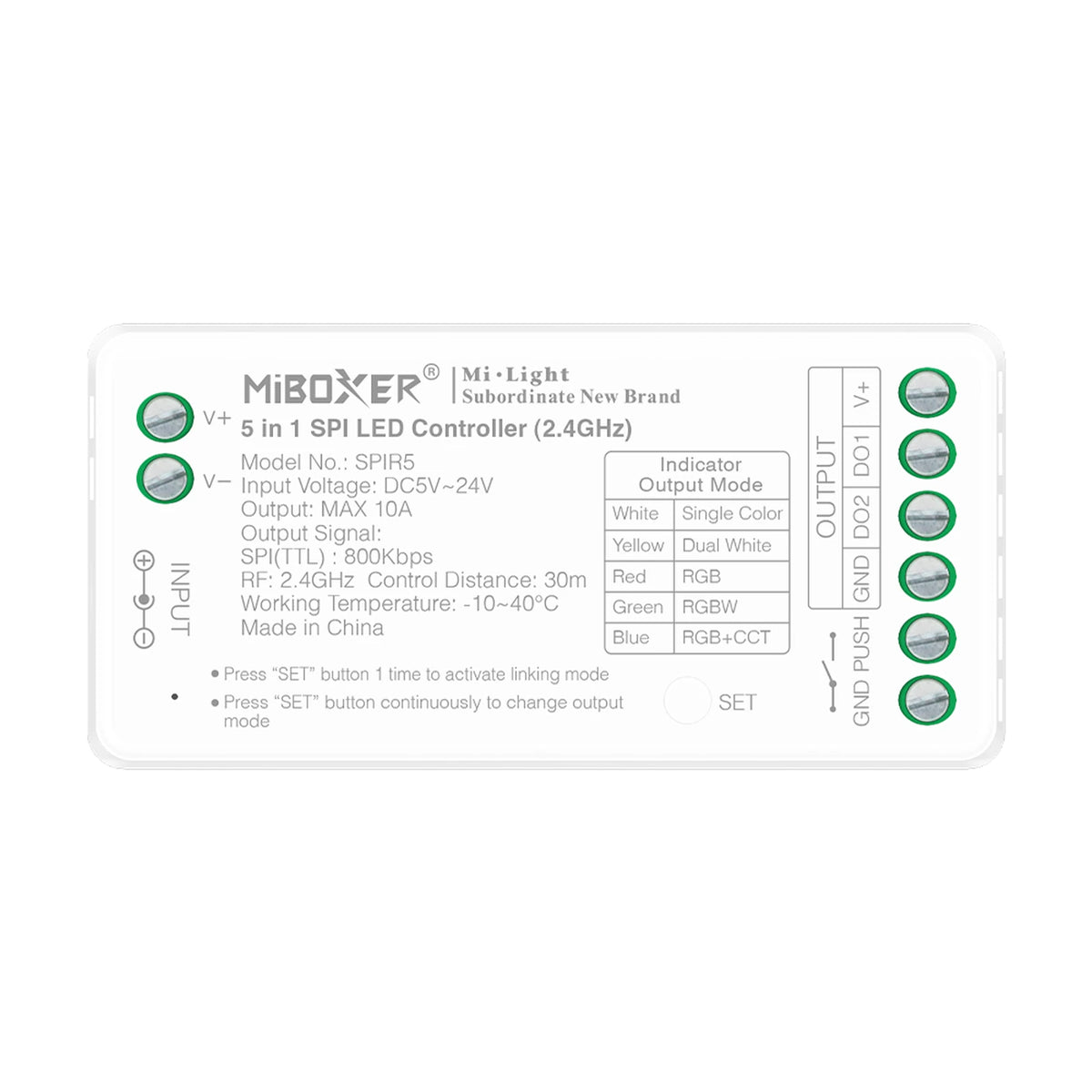

The SPIR5 5-in-1 SPI LED Controller is a 2.4GHz RF controller for addressable Single Color, CCT, RGB, RGBW, and RGBCCT LED strips. It supports DC5V-24V input, up to 10A output current, SPI (TTL) 800Kbps signal output, and up to 1024 pixels.
Key Features
- 5-in-1 control: Single Color / CCT / RGB / RGBW / RGBCCT.
- 2.4GHz RF: Wireless control with up to 30m control distance in suitable conditions.
- SPI output: SPI (TTL) 800Kbps, up to 1024 pixels.
- Dynamic effects: Supports 28 white-color modes and 80 RGB color modes.
- Music modes: 8 music modes using the built-in microphone.
- Wide voltage range: DC5V-24V input with max 10A output.
- Remote compatibility: Works with C9 SPI Handheld Remote and B9 SPI Panel Remote.
Technical Specifications
| Model | SPIR5 |
|---|---|
| Controller Type | 5-in-1 SPI LED Controller |
| Supported Strip Types | Single Color / CCT / RGB / RGBW / RGBCCT |
| Input Voltage | DC5V-24V |
| Output Current | Max 10A |
| Output Signal | SPI (TTL) 800Kbps |
| Pixel Capacity | Max 1024 Pixels |
| Control Signal | 2.4GHz RF |
| Control Distance | 30m |
| Standby Current | 20mA |
| IP Rating | IP20 |
| Working Temperature | -10°C to 40°C |

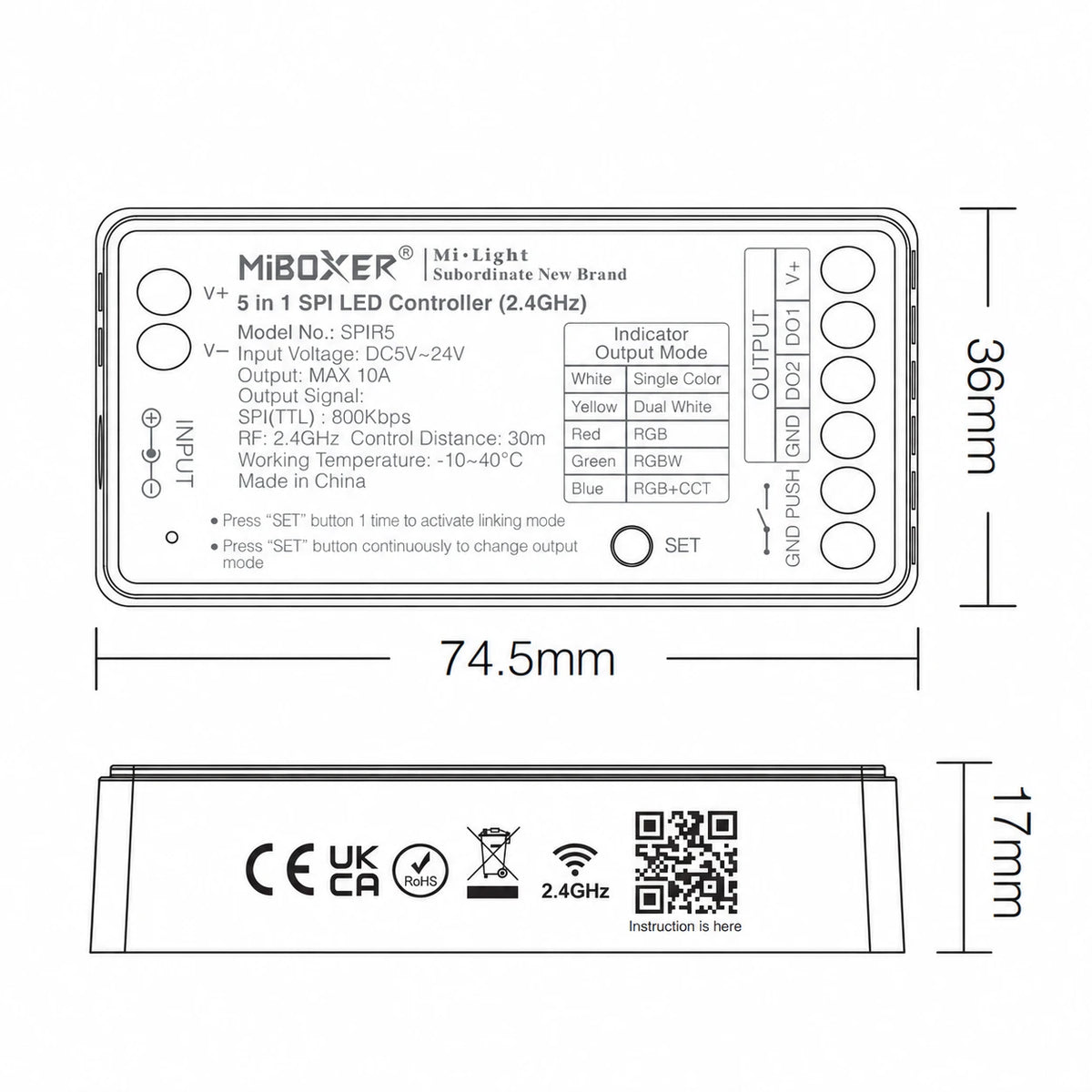

| Dimensions | 74.5 × 36 × 17mm |
| Certification | CE / EMC / LVD / RED |

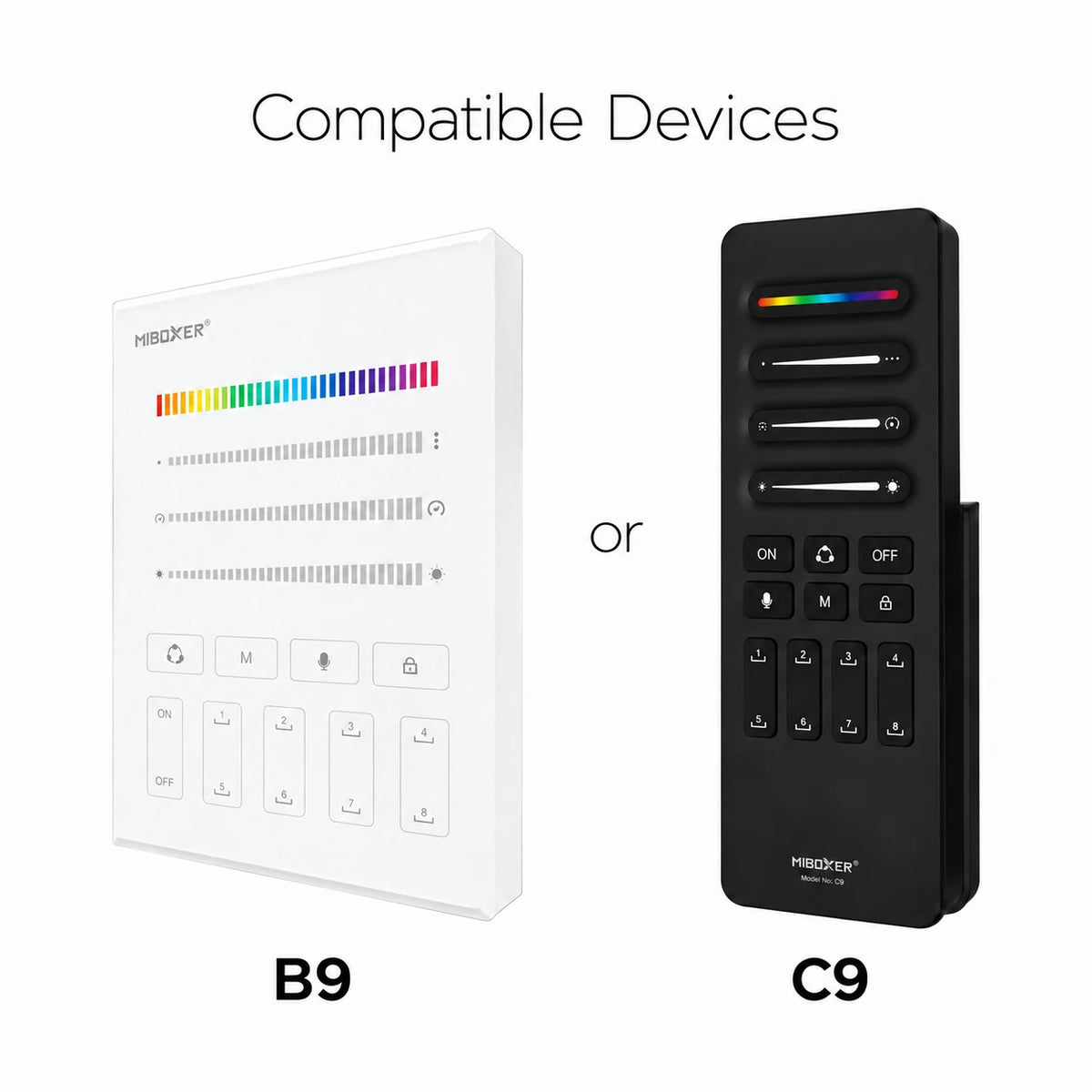

Compatible Remotes
Compatible with C9 SPI Handheld Remote and B9 SPI Panel Remote. Remotes are optional and can be purchased as a package with the controller.

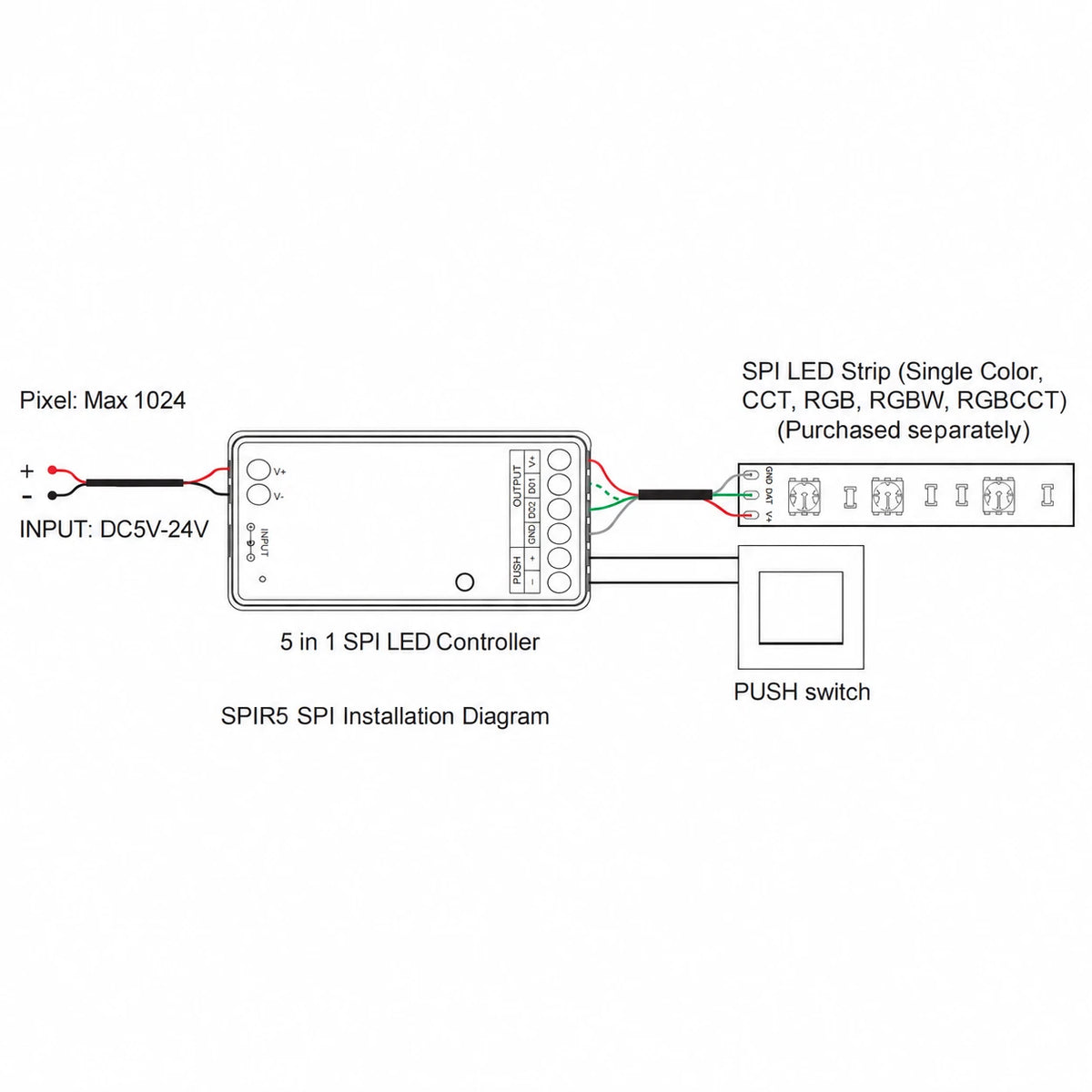

Installation Notes
Use a regulated constant-voltage DC power supply matching the connected LED strip. Do not exceed the controller's 10A maximum output current.
