5-in-1 SPI+DMX Addressable LED Controller, WiFi/BLE + 2.4GHz, DC5V-24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

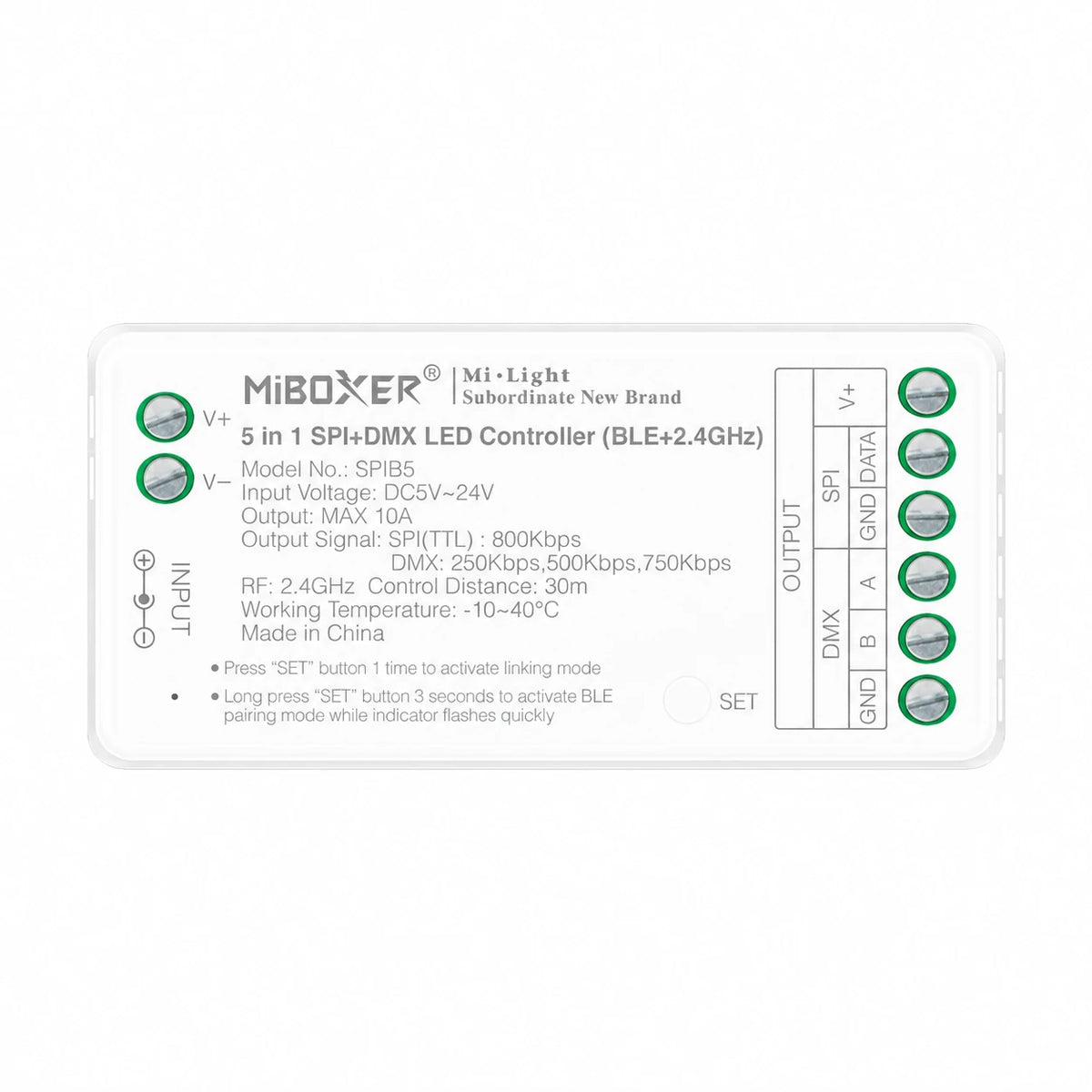

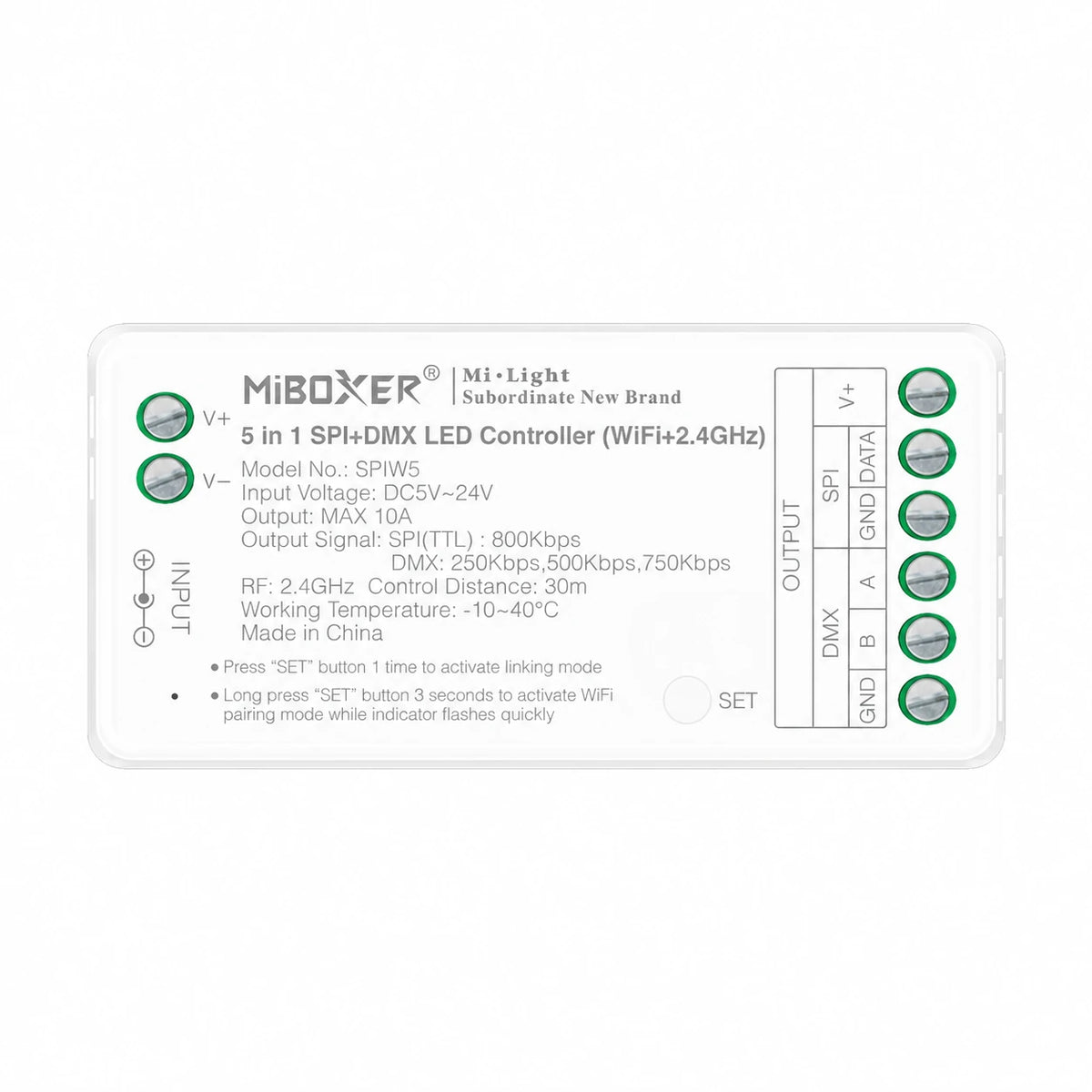

This 5-in-1 SPI+DMX addressable LED controller is available in two wireless versions: SPIW5 (WiFi + 2.4GHz RF) and SPIB5 (BLE + 2.4GHz RF). Both versions support SPI and DMX dual communication protocols, DC5V-24V input, up to 10A output current, TUYA SMART APP control, and Single Color / CCT / RGB / RGBW / RGBCCT lighting modes.
Choose Your Controller Version
| Feature | SPIW5 | SPIB5 |
|---|---|---|
| Wireless Version | WiFi + 2.4GHz RF | BLE + 2.4GHz RF |
| App Control | TUYA SMART APP | TUYA SMART APP |
| Remote Compatibility | C9 Handheld / B9 Panel | C9 Handheld / B9 Panel |
| Input Voltage | DC5V-24V | DC5V-24V |
| Max Output Current | 10A | 10A |
| SPI / DMX | Yes | Yes |
Key Features
- 5-in-1 control: Single Color / CCT / RGB / RGBW / RGBCCT.
- Dual SPI + DMX protocol: Select the required communication protocol in the app.
- SPI output: SPI (TTL) 800Kbps, up to 1024 pixels.
- DMX output: 250Kbps up to 256 pixels, 500Kbps up to 512 pixels, or 750Kbps up to 768 pixels.
- Dynamic effects: 28 white-color modes and 80 RGB color modes with adjustable color, brightness, width and speed.
- Music control: 8 music modes using the built-in microphone or smartphone microphone.

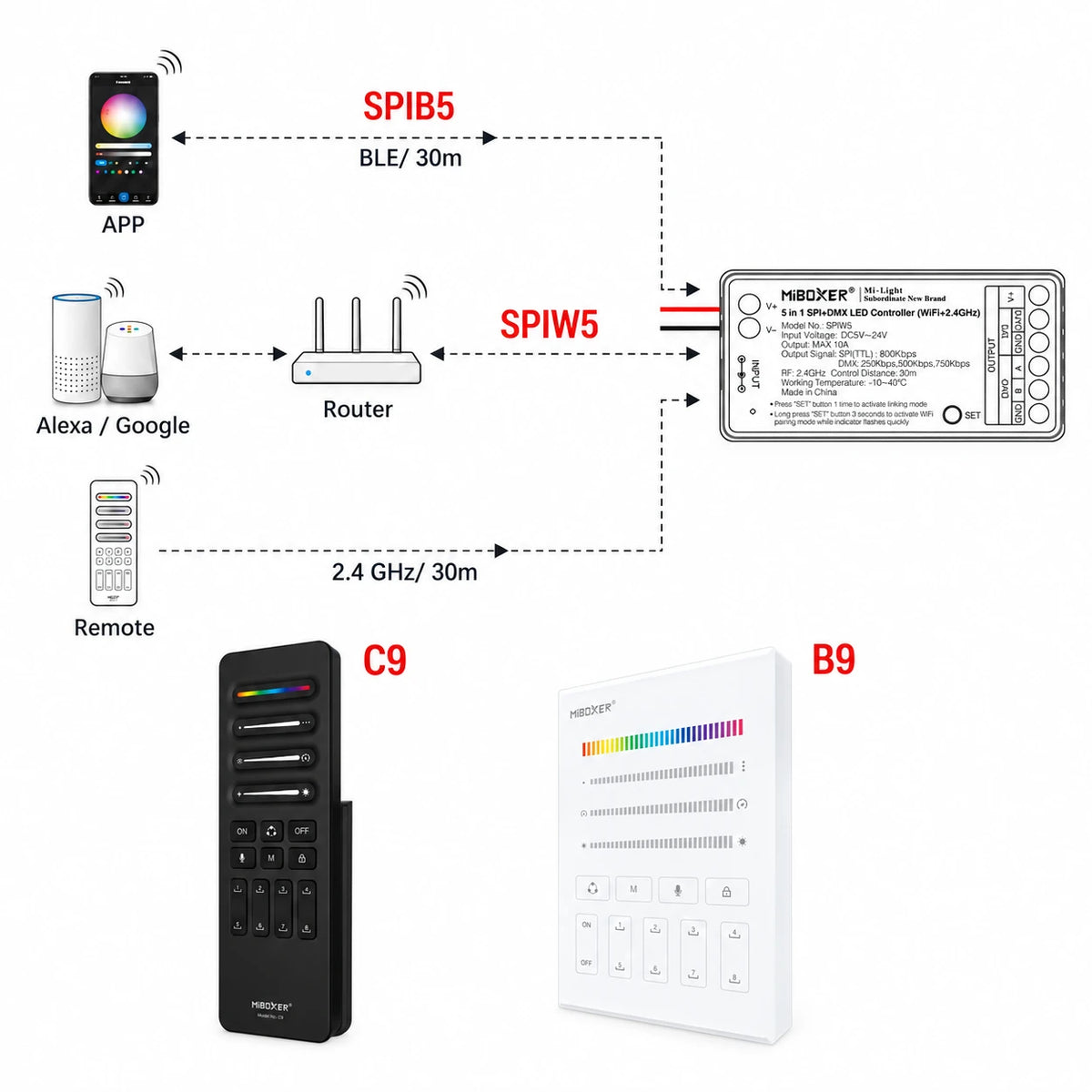

- Remote control: Compatible with C9 SPI Handheld Remote and B9 SPI Panel Remote.
- 5-year warranty: Controller specification lists a 5-year warranty.
Technical Specifications
| Models | SPIW5 / SPIB5 |
|---|---|
| Controller Type | 5-in-1 SPI+DMX LED Controller |
| Supported Strip Types | Single Color / CCT / RGB / RGBW / RGBCCT |
| Input Voltage | DC5V-24V |
| Output Current | Max 10A |
| Output Signal | SPI (TTL) 800Kbps; DMX 250Kbps / 500Kbps / 750Kbps |
| Standby Current | 20mA |
| RF Control Distance | 30m |
| IP Rating | IP20 |
| Working Temperature | -10°C to 40°C |

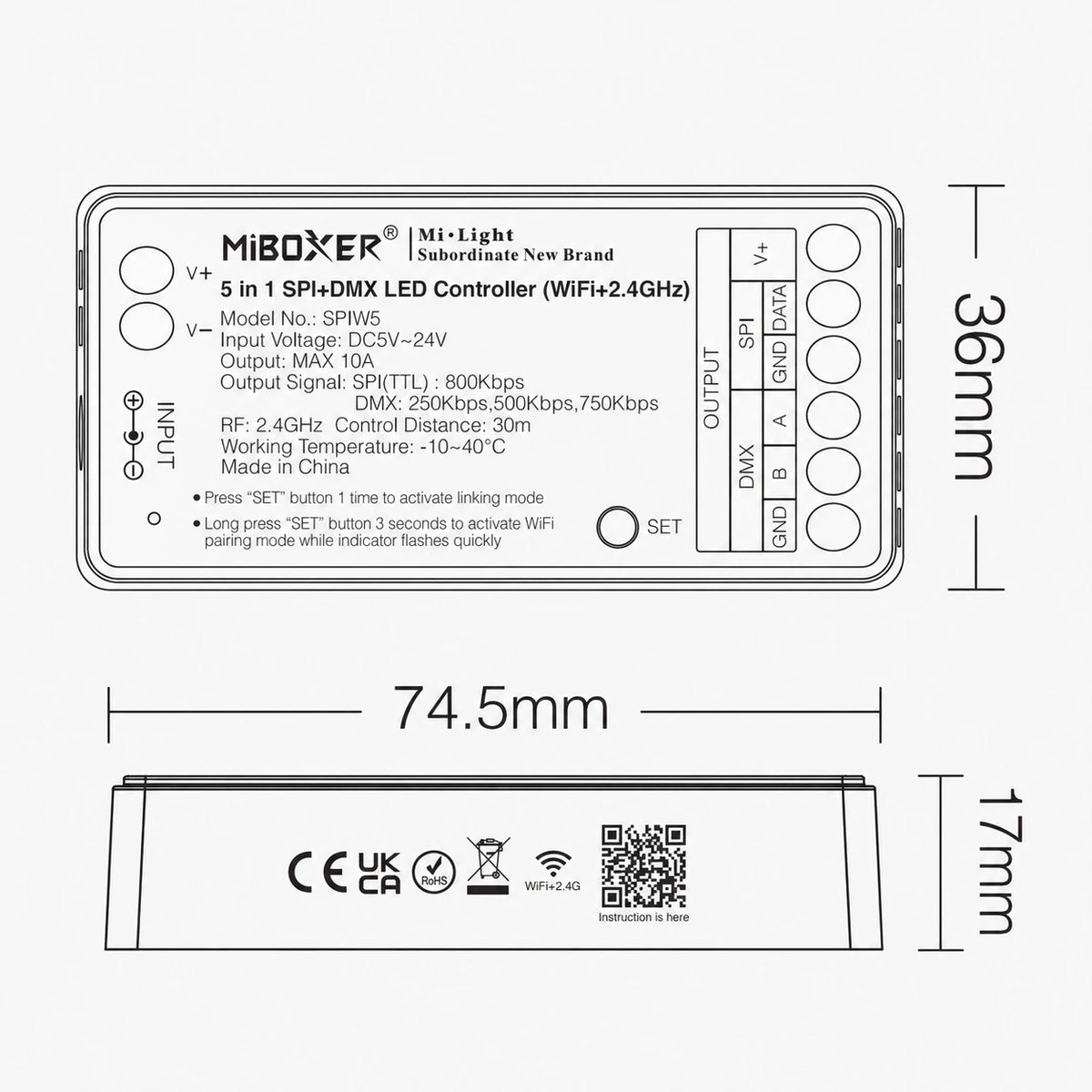

| Dimensions | 74.5 × 36 × 17mm |
| Certification | CE / EMC / LVD / RED |
| Warranty | 5 Years |
Compatible ICs
TM1809, TM1804, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, SK6812 (RGBW), WS2813 (RGBW), and WS2814 (RGBW).
Package Options
- Controller Only
- Controller + C9 Handheld Remote
- Controller + B9 Panel Remote

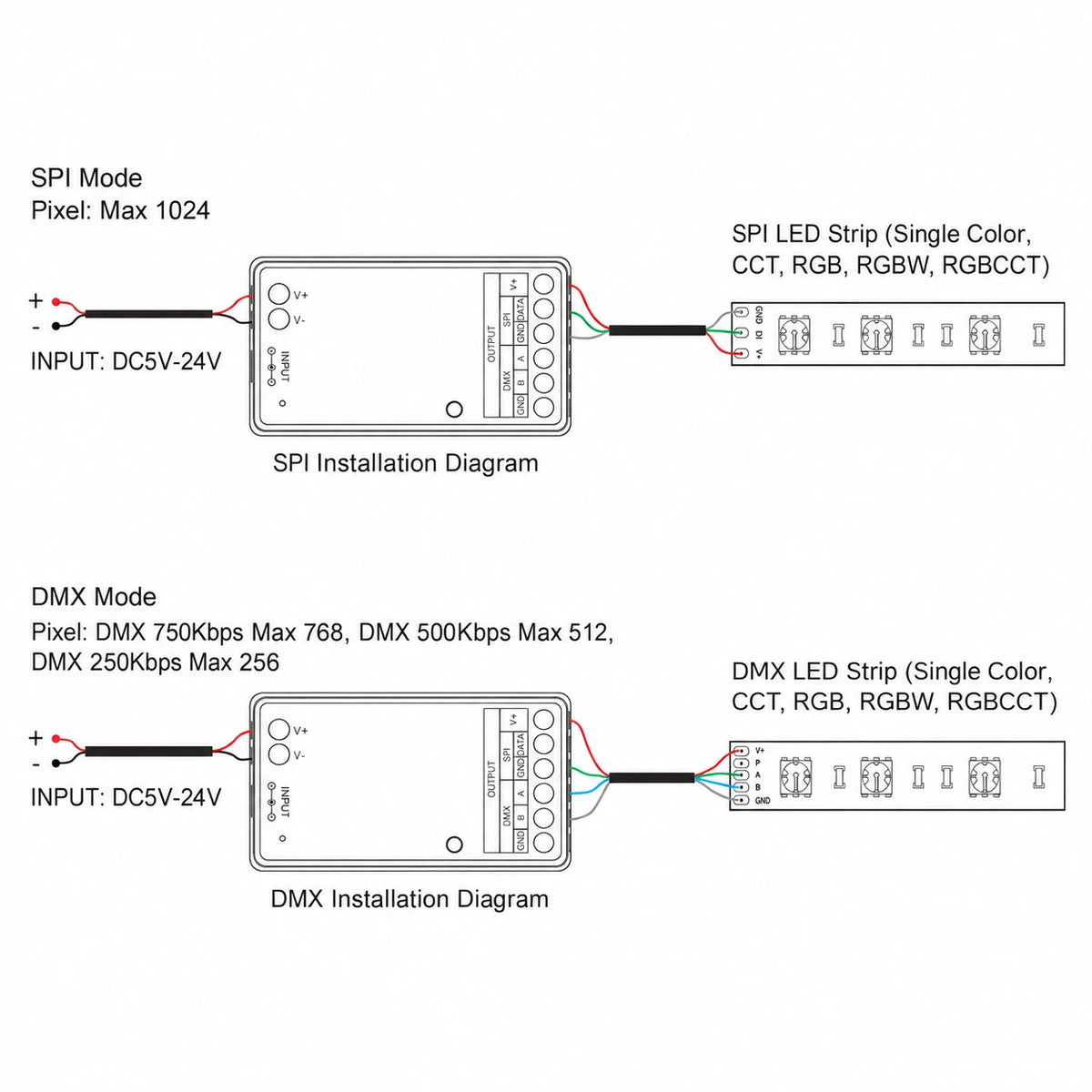

Installation Notes
Use a regulated constant-voltage DC power supply that matches the connected LED strip. Do not exceed the controller's 10A maximum output current. Confirm the strip's SPI or DMX protocol before installation.
