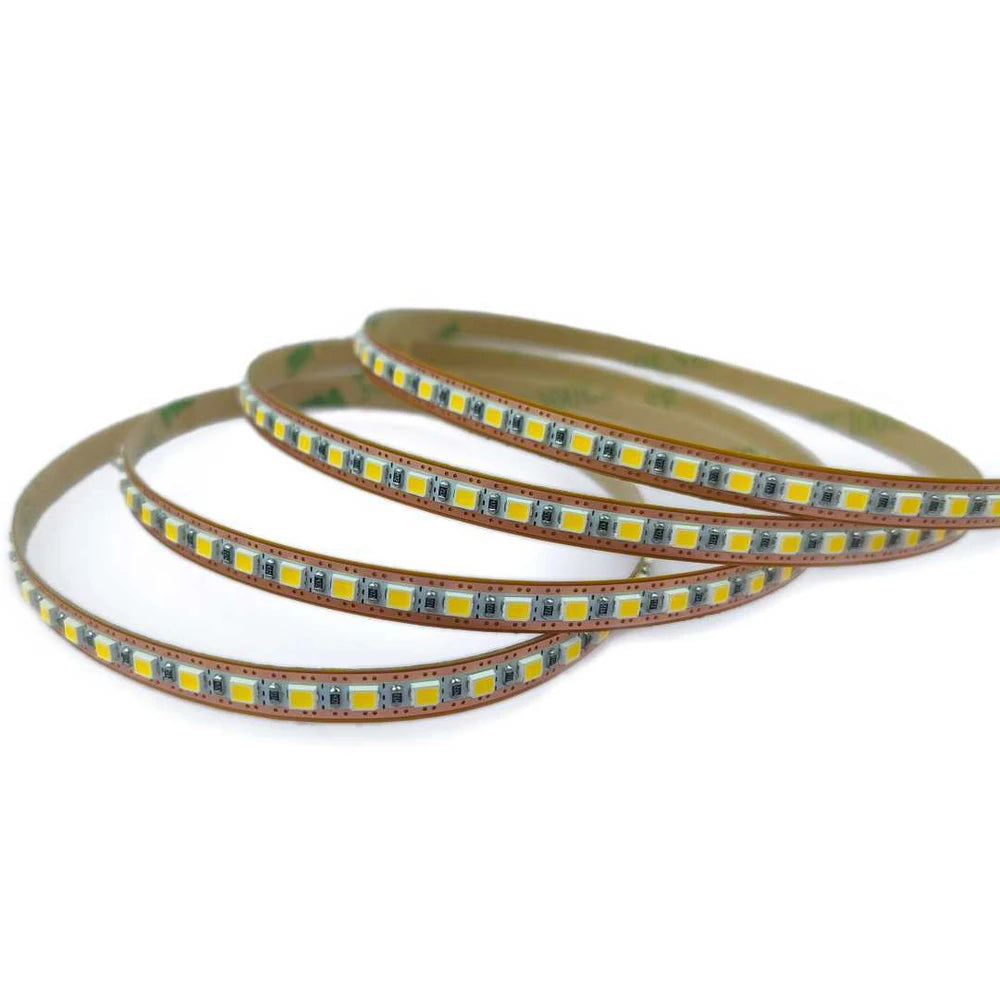

Single-LED Cuttable White LED Strip Lights – 5mm, 200 LEDs/m, 12V/24V, SMD 2025
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Because this 5mm white LED strip has a cut point after every LED (every 5mm), it fits short or odd-sized runs — under-shelf, inside display cases, around letters — with no dark gap at the end. It runs on 12V or 24V DC with 200 SMD 2025 LEDs per metre, 8W/m, CRI 90, about 780 lm/m, in 2700K, 3000K, 3500K, 4000K and 6500K.
Why Choose These LED Strip Lights?
Single-LED cutting precision
A cut point between every LED lets you trim to the exact millimeter, eliminating guesswork on short custom-length runs.
5mm PCB width
The slim 5mm board fits standard aluminum channels and tight mounting slots without modification.
200 LEDs/m LED density
At 200 LEDs/m, spacing is tight enough for smooth, shadow-free illumination across shelves and display faces.
12V/24V multi-voltage input
Available in separate 12V and 24V versions; select the voltage that matches your constant-voltage power supply.
White-light CCT options
Available from warm 2700K to daylight 6500K; choose the CCT that suits the application.
IP20 or IP67 construction
Open PCB for dry interiors; full encapsulation for damp or humid locations.
Certified & compliant
Carries CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial projects.
Custom lengths & options
Project quantities can be quoted with custom cut length, CCT, connectors, adhesive, and packaging.
Technical Specifications
| Catalog Model | 2025-200-5mm-12V/24V-WHITE |
|---|---|
| LED Type | SMD 2025 |
| LED Density | 200 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC12V/24V |
| Power | 8 W/m |
| Luminous Output | 780 lm/m |
| Color Rendering | 90 |
|---|---|
| Color / CCT | 2700K, 3000K, 3500K, 4000K, 6500K |
| LED Spacing | 5 mm (0.20 in) |
| Cutting Interval | 5 mm (0.20 in) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
This single-LED cuttable design allows cuts at every LED position, with a 5 mm (0.20 in) cutting interval. Observe polarity, match the driver to the specified voltage, and test before final mounting. Add feed points on runs over 5m to avoid visible voltage drop.
What This Strip Works With
| Power supply | Constant-voltage DC driver matching the version you order. A full 5m reel uses about 40W (12V ≈ 3.3A, 24V ≈ 1.7A), so choose a driver rated at least 50W (20% headroom) |
|---|---|
| Dimming & control | SP631E single-color dimmer (Bluetooth app + remote) or E2 Series (RF / WiFi / Zigbee smart-home control) |
| Max load per controller | 12V: SP631E 1 reel, E2 3 reels; 24V: SP631E 3 reels, E2 7 reels. Wire each reel back to the controller separately rather than chaining reels end to end |
| Wall dimmers | A 120V wall dimmer only works through a dimmable driver that matches it (TRIAC/ELV or 0–10V); it cannot dim the strip directly |
| Mounting | Aluminum channel with an inner width of at least 5mm; allow a little extra for the IP67 silicone coating |
Not Compatible With
- 120V AC mains — always power it through a low-voltage DC driver
- Mixing voltages — the 12V/24V versions are separate builds; order the one that matches your driver
- RGB, RGBW and addressable (SPI) controllers — this is a 2-wire single-color strip and needs a single-color dimmer
- Outdoor or damp locations in the IP20 version — choose the IP67 option, and use a driver rated for the location

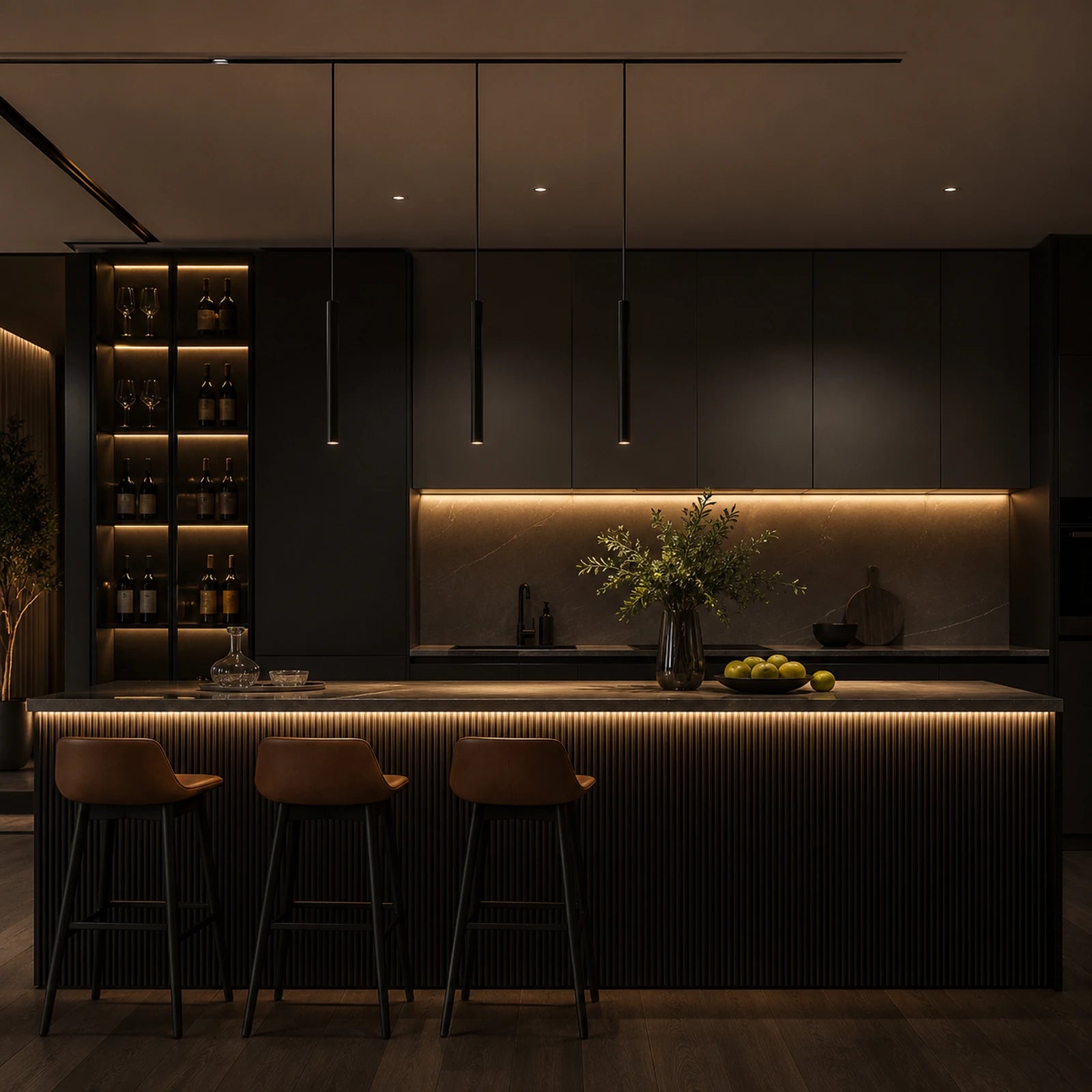

Recommended Applications
- Cabinet interiors, shelving, wardrobes, and furniture recesses requiring precise cut lengths
- Display cases, retail fixtures, and museum vitrines where standard reel lengths would leave excess strip
- Residential and hospitality accent lighting in alcoves, toe-kicks, and cove details
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
