E2 Series 2-in-1 CCT & Dimming LED Controller, RF / WiFi / Zigbee, 12-24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

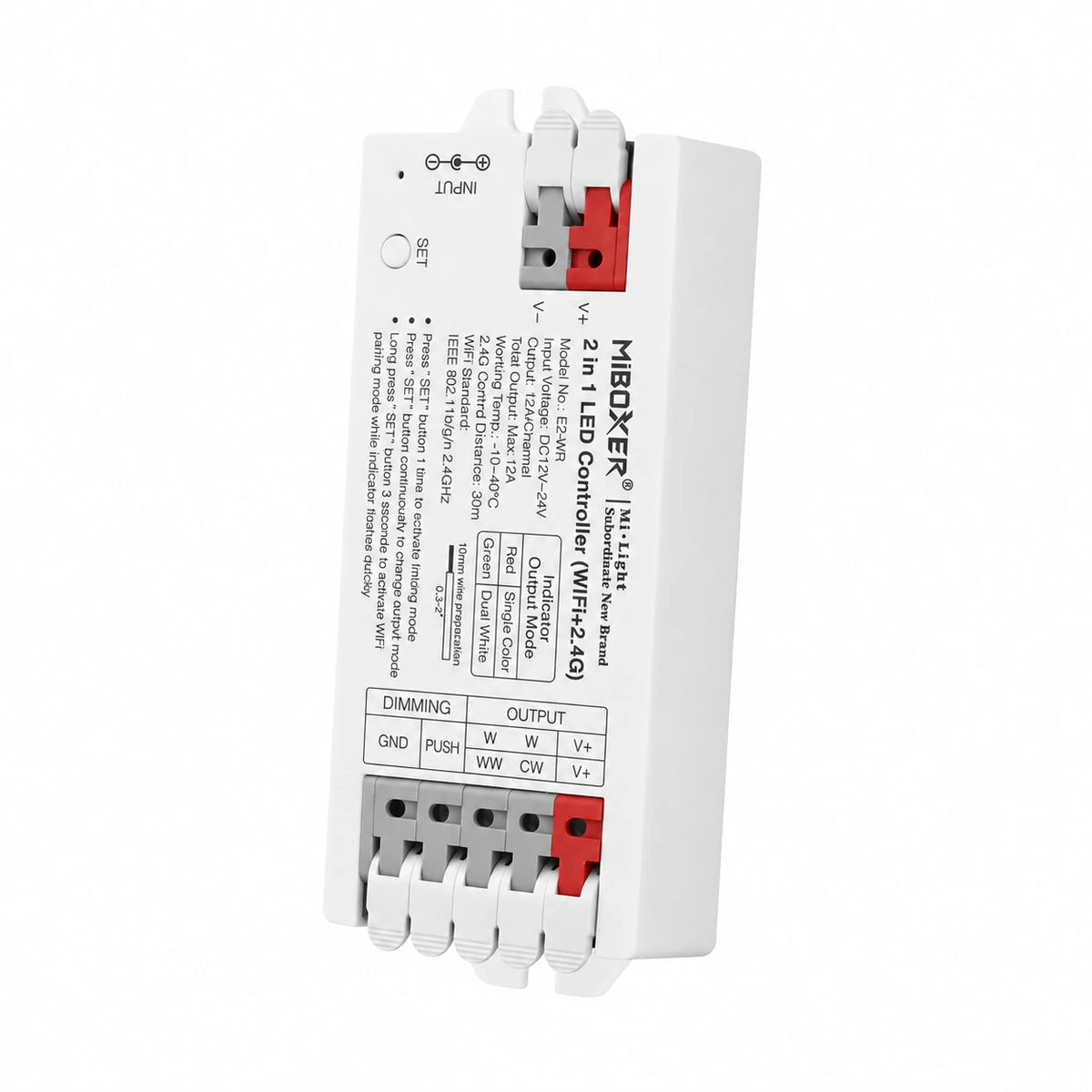

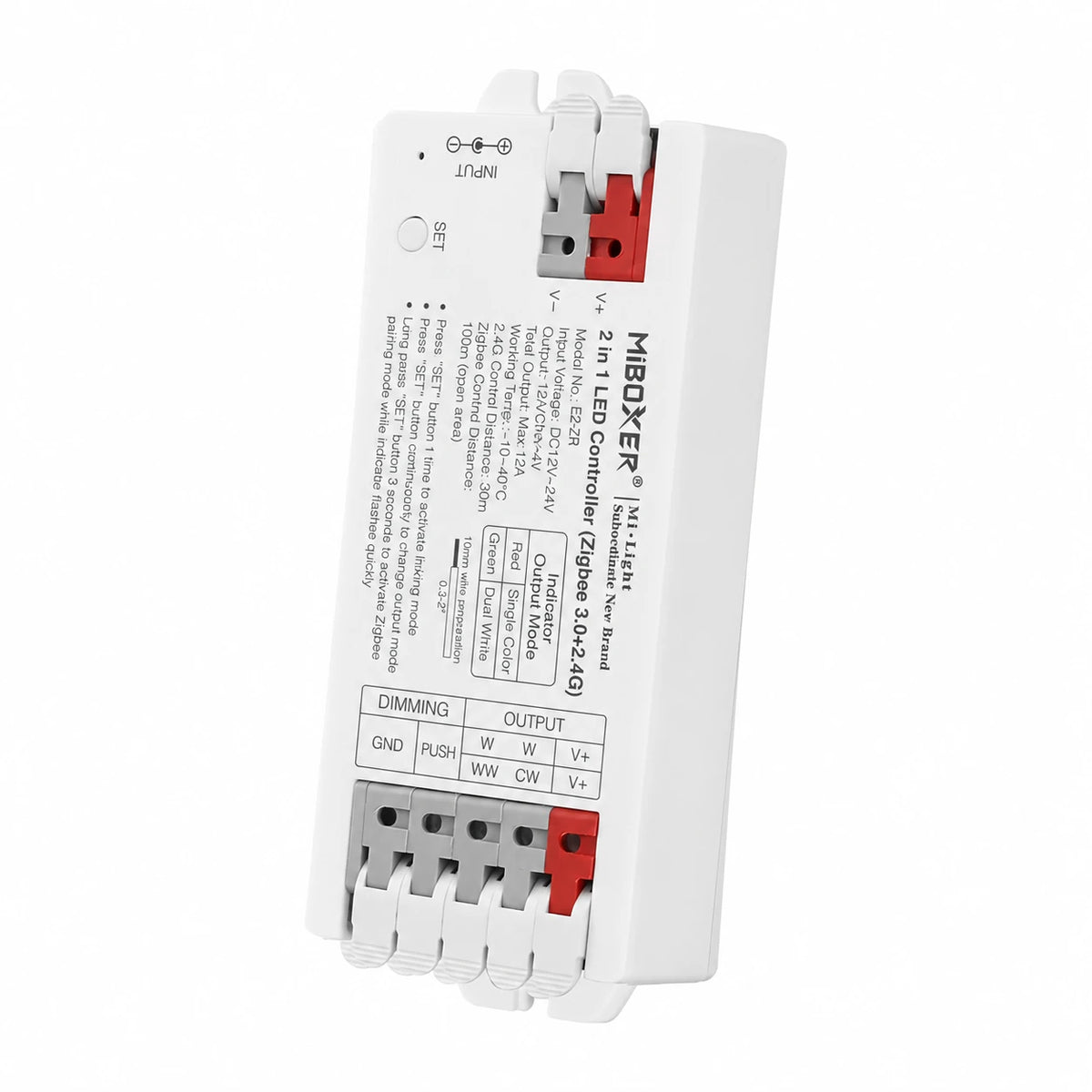

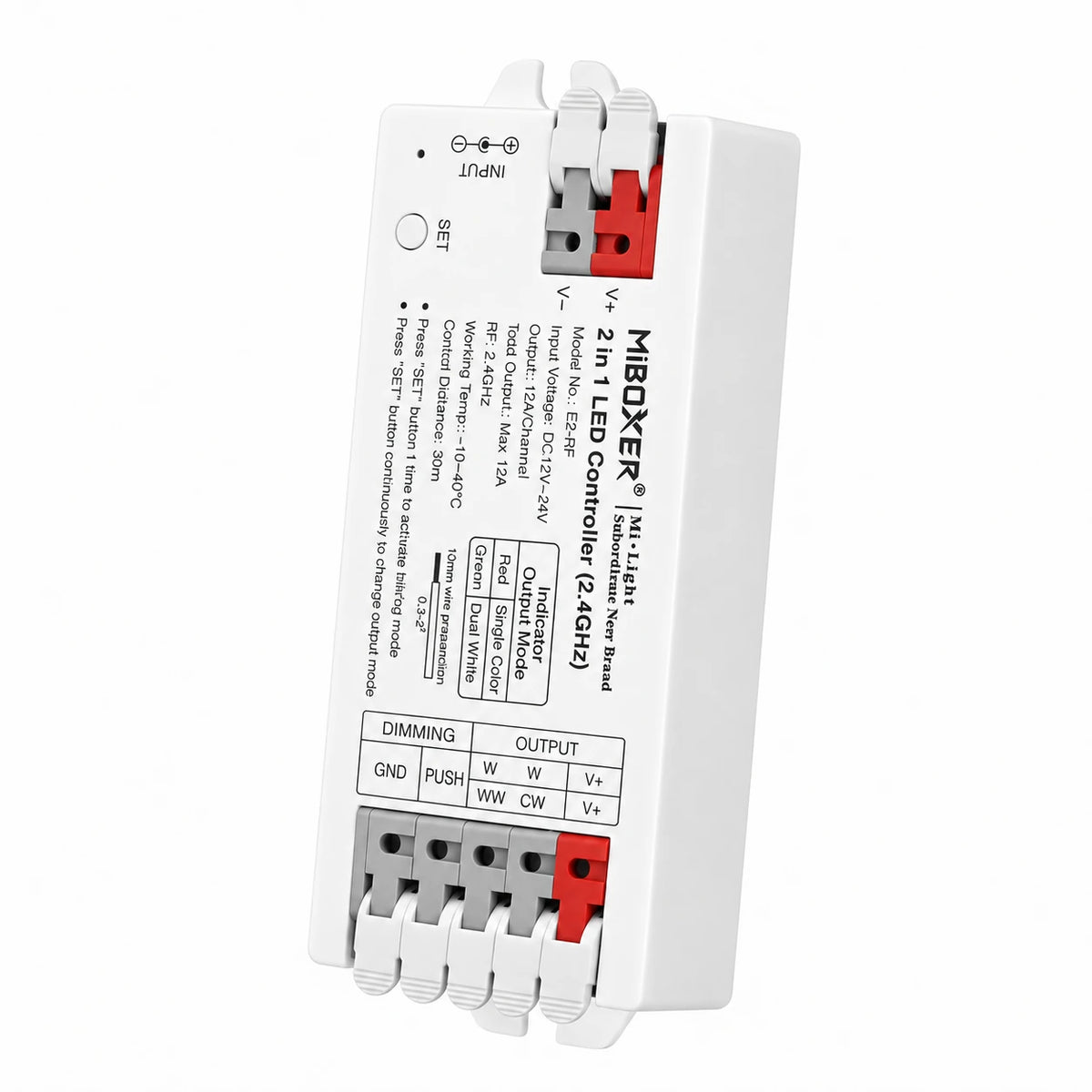

The E2 Series 2-in-1 CCT & Dimming LED Controller is designed for single-color dimmable LED strips and dual-white CCT LED strips. Choose from three wireless versions: E2-RF (2.4GHz RF), E2-WR (WiFi + 2.4GHz RF), or E2-ZR (Zigbee 3.0 + 2.4GHz RF). All versions support DC12V-24V input, PUSH dimming, common-anode output, and MiBoxer / Mi-Light 2.4GHz remote control.
Choose Your Controller Version
| Feature | E2-RF | E2-WR | E2-ZR |
|---|---|---|---|
| Wireless Control | 2.4GHz RF | WiFi + 2.4GHz RF | Zigbee 3.0 + 2.4GHz RF |
| App Control | Via compatible 2.4GHz gateway | Direct Tuya Smart App | Via compatible Zigbee 3.0 gateway |
| Voice Control | Via compatible 2.4GHz gateway | Supported through Tuya / third-party voice platforms | Supported through compatible Zigbee gateway or supported Zigbee ecosystem |
| RF Distance | 30m | 30m | 30m |
Key Features
- 2-in-1 output: Supports Single Color Mode and Dual White / CCT Mode.
- SET button mode selection: Red indicator for Single Color Mode; green indicator for Dual White Mode.
- PUSH dimming: Short press for ON/OFF; long press for stepless brightness adjustment.
- 12-24V input: Works with DC12V-24V constant-voltage LED strip systems.
- High-current output: 12A per channel, max 12A total output.
- Common-anode output: Designed for compatible single-color and CCT LED strips.
- 2.4GHz RF compatibility: Compatible with MiBoxer / Mi-Light 2.4GHz remote controls.
- PWM frequency switching: Supports high-frequency and low-frequency PWM modes through compatible remote-control operation.
- Auto-transmitting: 2.4GHz RF remote signals can relay between linked lights/controllers within the specified range.
- Do Not Disturb mode: Supports power-failure behavior settings.
Technical Specifications
| Series | E2 Series |
|---|---|
| Models | E2-RF / E2-WR / E2-ZR |
| Controller Type | 2-in-1 CCT & Dimming LED Controller |
| Supported Output Modes | Single Color / Dual White (CCT) |
| Input Voltage | DC12V-24V |
| Output | 12A / Channel |
| Total Output | Max 12A |
| Output Connection | Common Anode |
| 2.4GHz RF Control Distance | 30m |
| Working Temperature | -10°C to 40°C |
Version-Specific Specifications
| E2-RF | 2.4GHz RF control; app and voice control available through a compatible 2.4GHz gateway. |
|---|---|
| E2-WR | WiFi + 2.4GHz RF; IEEE 802.11 b/g/n 2.4GHz; Bluetooth 4.2 Low Energy; direct Tuya Smart App support. |
| E2-ZR | Zigbee 3.0 + 2.4GHz RF; Zigbee 802.15.4; 2.400-2.480GHz; Zigbee range up to 100m in open area. |
Compatible 2.4GHz RF Remotes
Compatible with MiBoxer / Mi-Light 2.4GHz remote controls listed in the product manuals, including FUT006, FUT007, B1 / B1-B / T1, B2 / T2, K1 / K1-B, FUT087 / FUT087-B, S1-B / S1-W / S1-G, and WL-Box1 where applicable.
Installation Notes
Select the correct output mode for the connected LED strip before use. Use a regulated DC12V-24V constant-voltage power supply and do not exceed the controller's maximum output rating.
