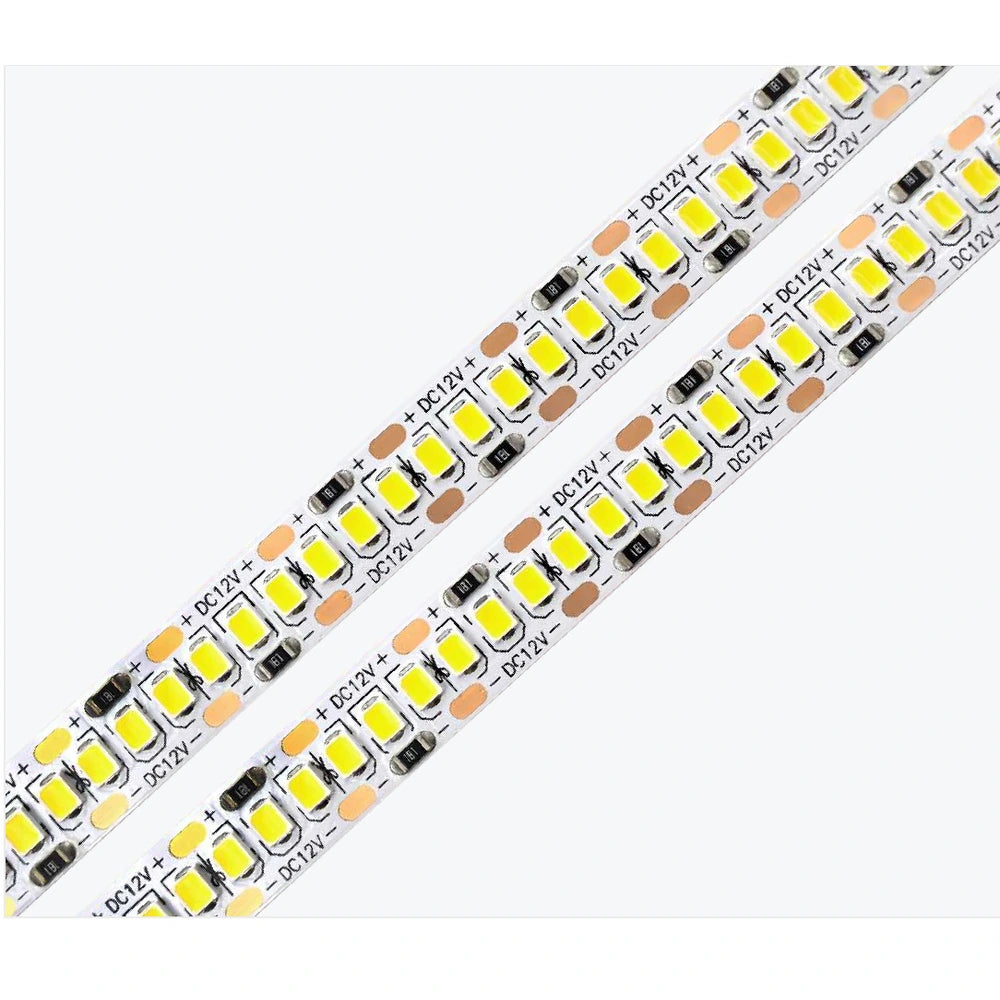

This 10mm high-output white LED strip delivers about 2,127 lm/m from a single 12V strip, making it bright enough for task lighting under cabinets and in display cases, not just accent glow. It runs on 12V DC with 240 SMD 2835 LEDs per metre, 18W/m, CRI 90, in 2200K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K. Cut points fall every 12.5mm.
Why Choose These LED Strip Lights?
2127 lm/m luminous output
High-output 2127 lm/m per metre provides the brightness level required for commercial display and retail lighting.
240 LEDs/m LED density
Dense 240 LEDs/m layout concentrates light output and minimises visible gaps across the lit surface.
10mm PCB width
Standard 10mm footprint is compatible with widely available LED channels and extrusion profiles.
12V constant-voltage input
Constant-voltage 12V operation works with standard drivers and dimming systems.
CRI 80 / 90 colour rendering
Renders merchandise, surfaces, and architectural details accurately under high illumination.
IP20 or IP67 options
Open PCB for dry environments; encapsulated option for damp or wet locations.
Certified & compliant
CE, RoHS, CB, UKCA, PSE, and ErP marks for commercial installations.
Custom project supply
Available in custom CCT, length, power, connector, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2835-240-10mm-12V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 240 LEDs/m |
| PCB / Product Width | 10mm |
| Input Voltage | DC12V |
| Power | Up to 18W/m |
| Luminous Output | 2127 lm/m |
| Color Rendering | 90 |
|---|---|
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| LED Pitch | 4.2mm |

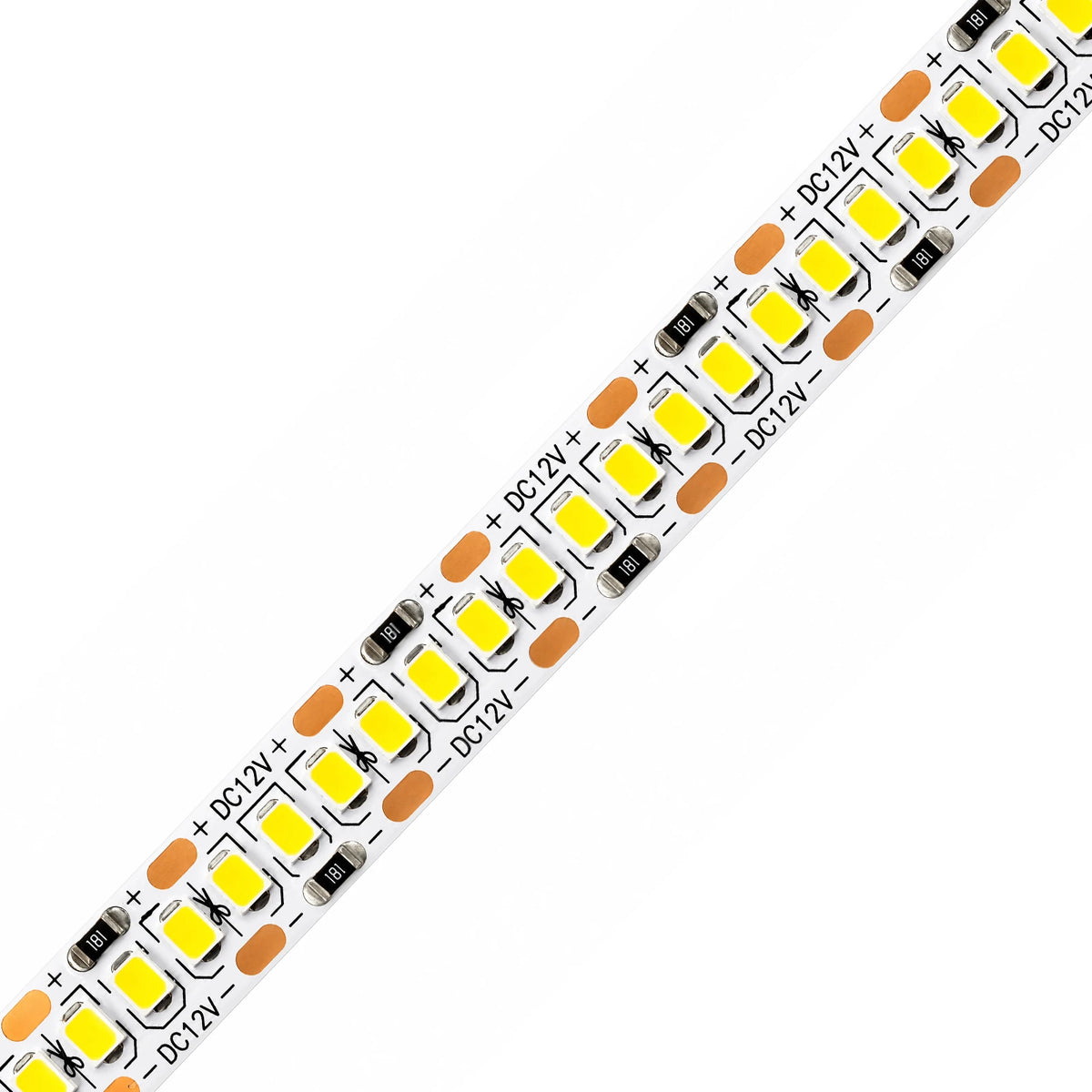

| Cutting Interval | 12.5mm / 0.49in, 3 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation

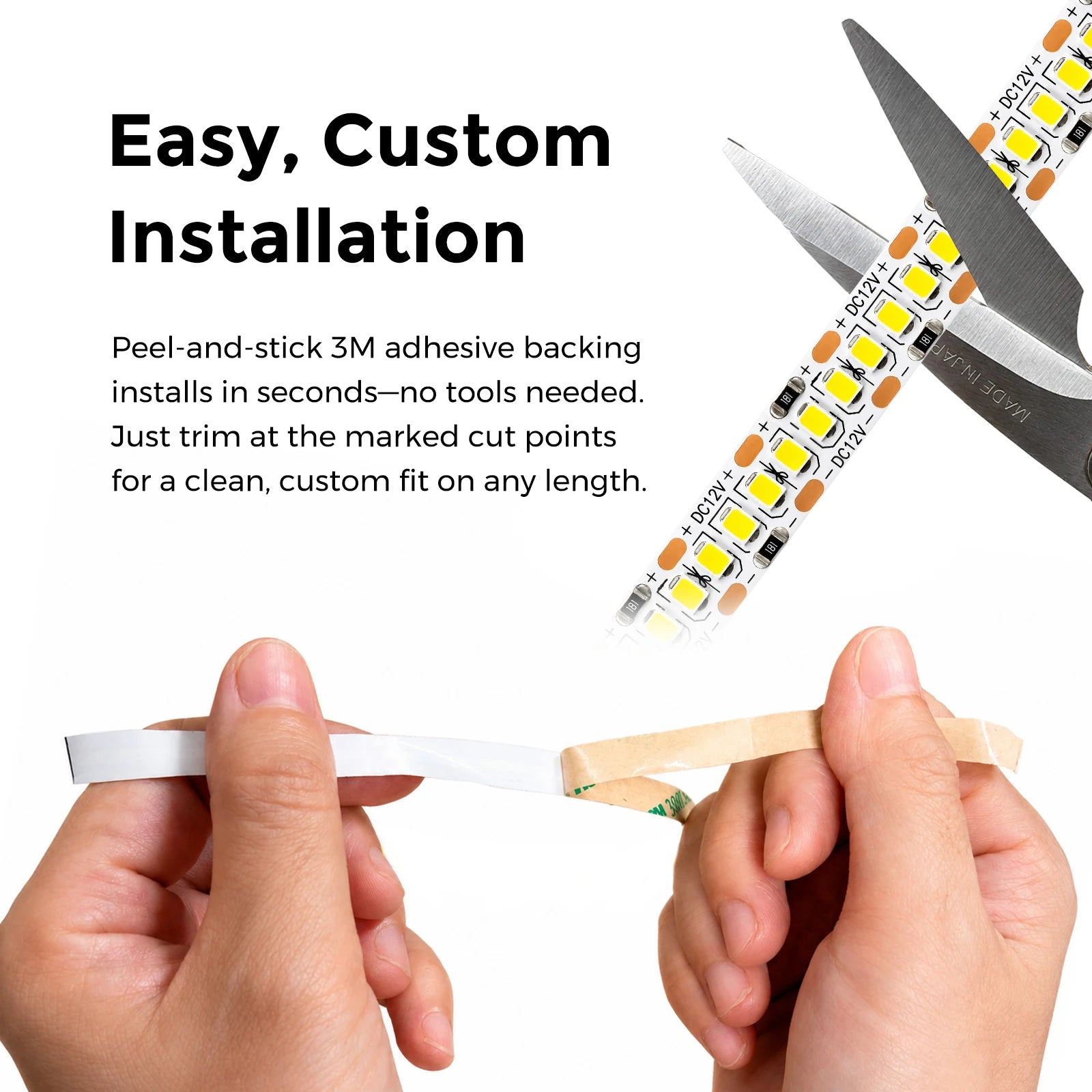

Cut only at marked cut points (12.5mm / 0.49in, 3 LEDs per cut). High-output strips produce significant heat at 18 W/m per metre — always mount in an aluminum channel or on a heatsink surface. Size the power supply with at least 20% reserve. Add additional feed points on runs where voltage drop is a concern.
What This Strip Works With
| Power supply | 12V DC constant-voltage driver. A full 5m reel uses about 90W (7.5A), so choose a driver rated at least 110W (20% headroom) |
|---|---|
| Dimming & control | SP631E single-color dimmer (Bluetooth app + remote) or E2 Series (RF / WiFi / Zigbee smart-home control) |
| Max load per controller | 12V: SP631E under 3.6m, E2 1 reel. Wire each reel back to the controller separately rather than chaining reels end to end |
| Wall dimmers | A 120V wall dimmer only works through a dimmable driver that matches it (TRIAC/ELV or 0–10V); it cannot dim the strip directly |
| Mounting | Aluminum channel with an inner width of at least 10mm; allow a little extra for the IP67 silicone coating |
Not Compatible With
- 120V AC mains — always power it through a low-voltage DC driver
- 24V drivers — a 12V strip on 24V will overheat and fail
- RGB, RGBW and addressable (SPI) controllers — this is a 2-wire single-color strip and needs a single-color dimmer
- Outdoor or damp locations in the IP20 version — choose the IP67 option, and use a driver rated for the location
Recommended Applications

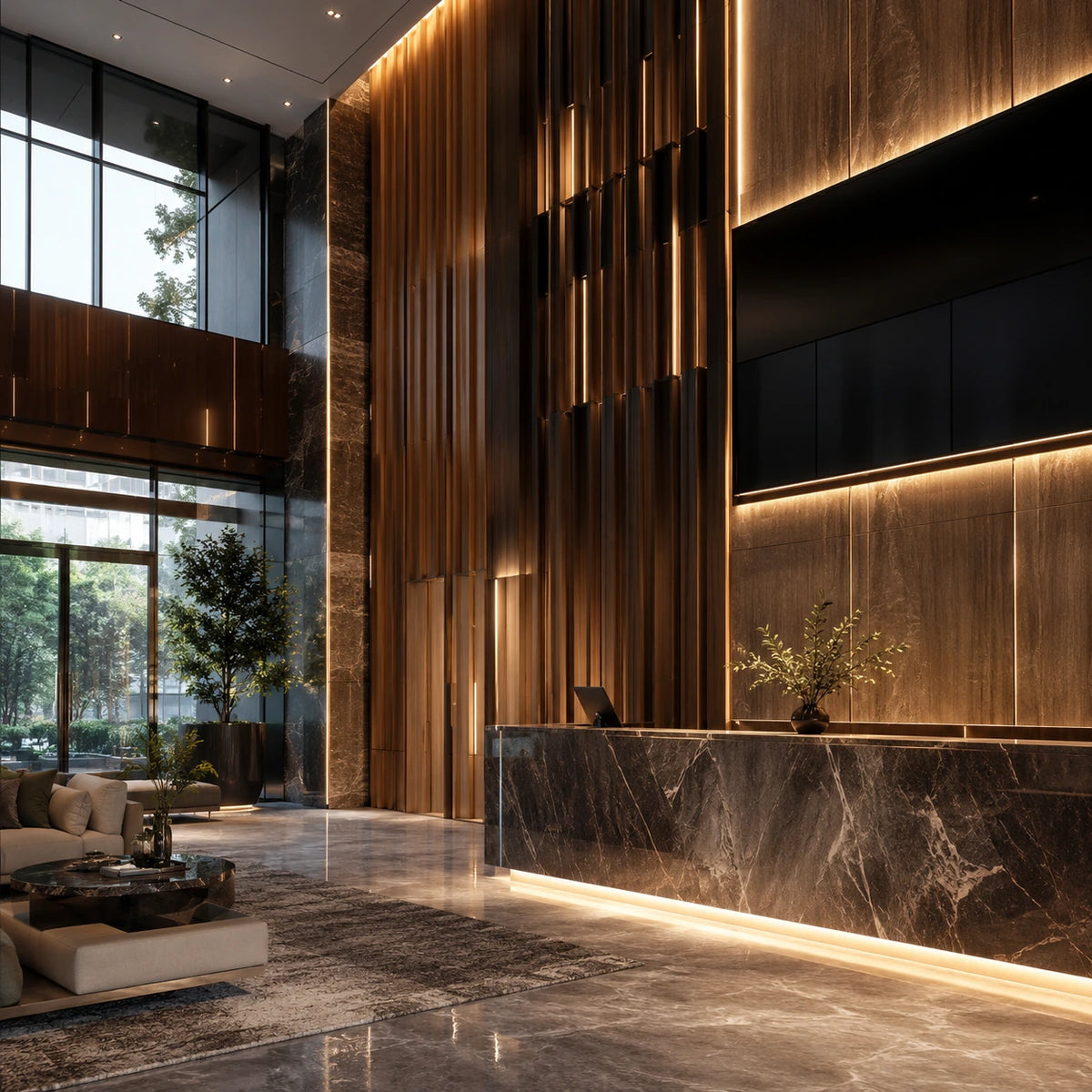

- Retail display cases, commercial shelving, and point-of-sale lighting
- Back-bar illumination, hotel lobbies, and hospitality environments requiring high ambient brightness
- Architectural feature walls, cove lighting, and commercial interior accent applications
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
