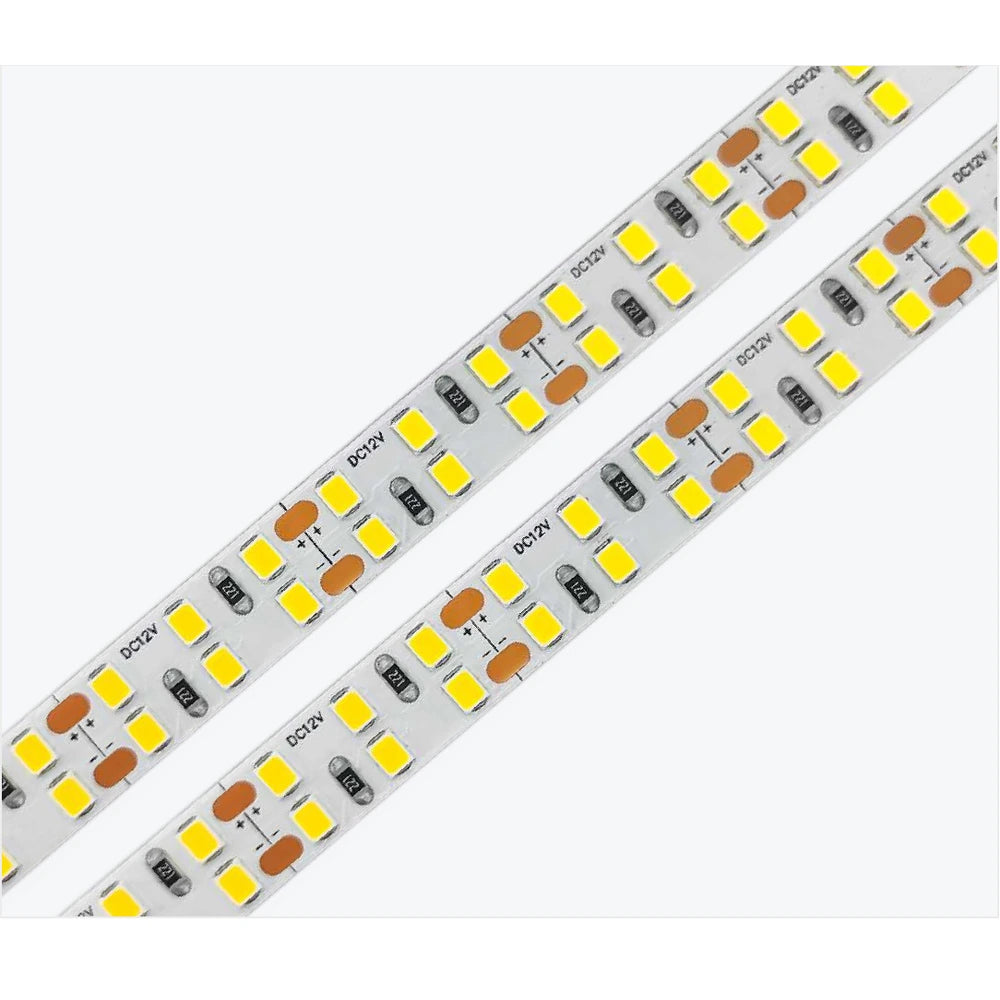

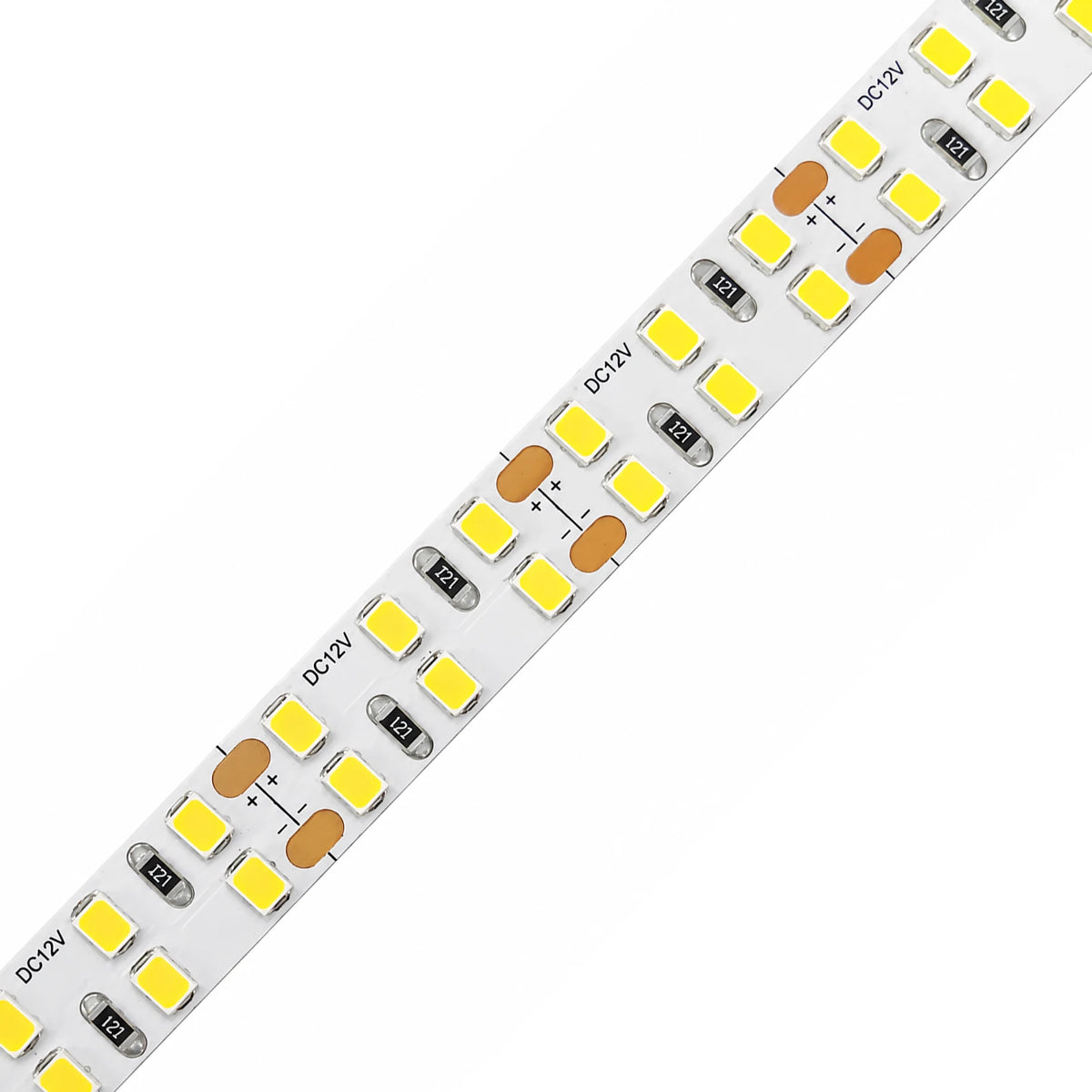

The 2835-240-10mm-12V-WHITE is a dual-row SMD 2835 layout delivering approximately double the lumen output of a single-row strip in the same 10mm PCB footprint — ideal when maximum brightness is needed without increasing the channel width. With 240 LEDs/m SMD 2835 LEDs on a 10mm PCB and 12V constant-voltage input, it is well-suited to cabinet, display, furniture, and architectural accent lighting, available in 2200K, 2700K, 3000K, 3500K, 4000K.
Why Choose These LED Strip Lights?
- Dual-row layout for double output: Two parallel rows of LEDs on a 10mm PCB deliver significantly higher lumens than a single-row strip of the same width.
- 240 LEDs/m combined LED density: 240 LEDs/m across both rows provides dense, uniform illumination across the full beam width.
- 10mm compact footprint: Fits standard 10mm aluminum extrusion channels — no wider channel needed for the extra output.
- 12V constant-voltage input: Constant-voltage 12V DC operation works with standard LED drivers and dimming controls.
- CRI 90 / 97 colour rendering: High CRI maintains accurate colour rendering even at elevated brightness levels.
- IP20 or IP67 options: Open or fully encapsulated construction available for dry, damp, and wet locations.
- Certified & compliant: UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial projects.
- Custom project supply: Available with custom CCT, length, power, adhesive backing, connector, and packaging.
Technical Specifications
| Catalog Model | 2835-240-10mm-12V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 240 LEDs/m |
| PCB / Product Width | 10mm |
| Input Voltage | DC12V |
| Power | 16 W/m |
| Luminous Output | 1870 lm/m |
| Color Rendering | 90 / 97 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

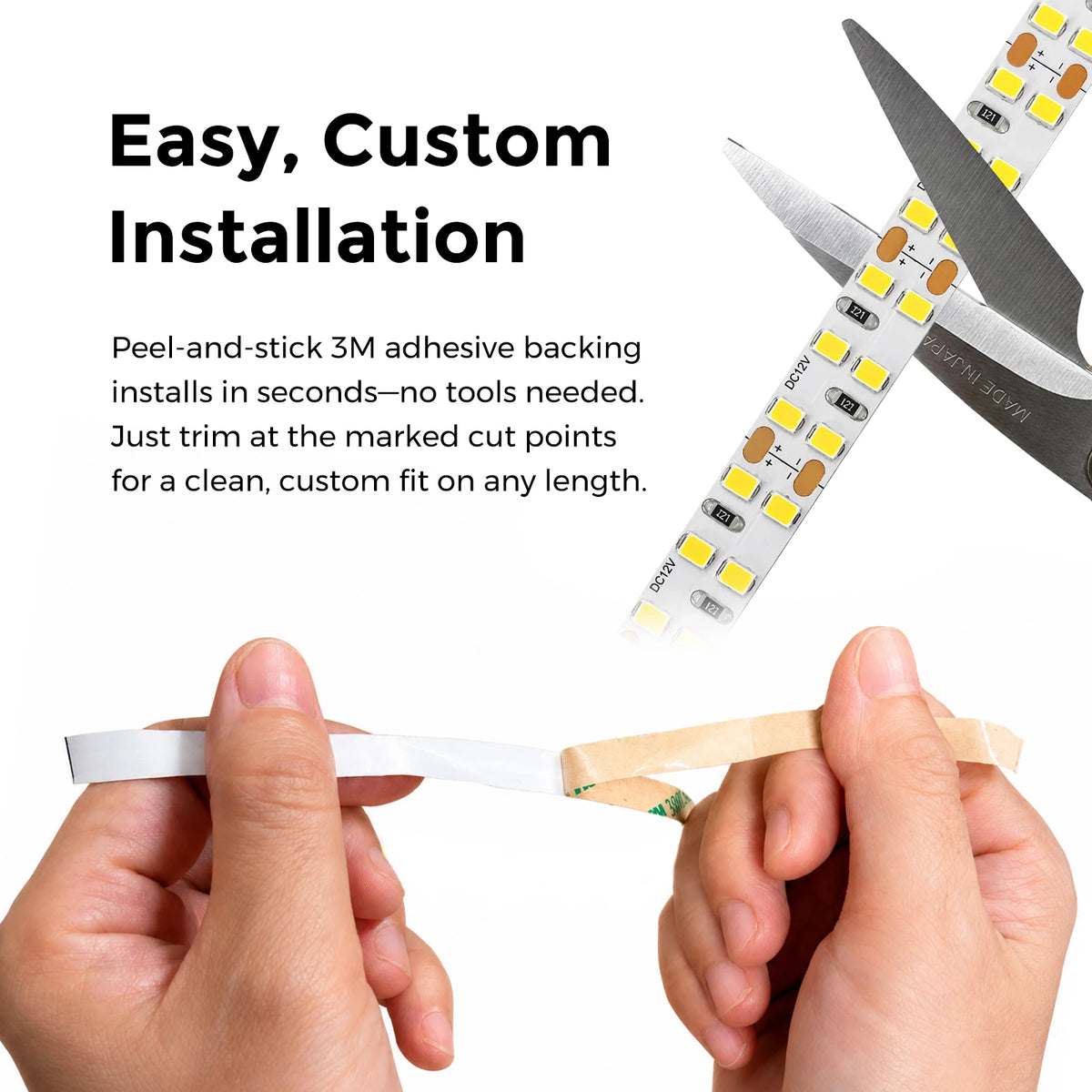

Cutting and Installation
Cut only at marked cut points. The dual-row layout generates more heat per metre than a single-row strip — always mount in an aluminum heatsink channel. Size the power supply for the combined wattage with at least 20% reserve capacity.

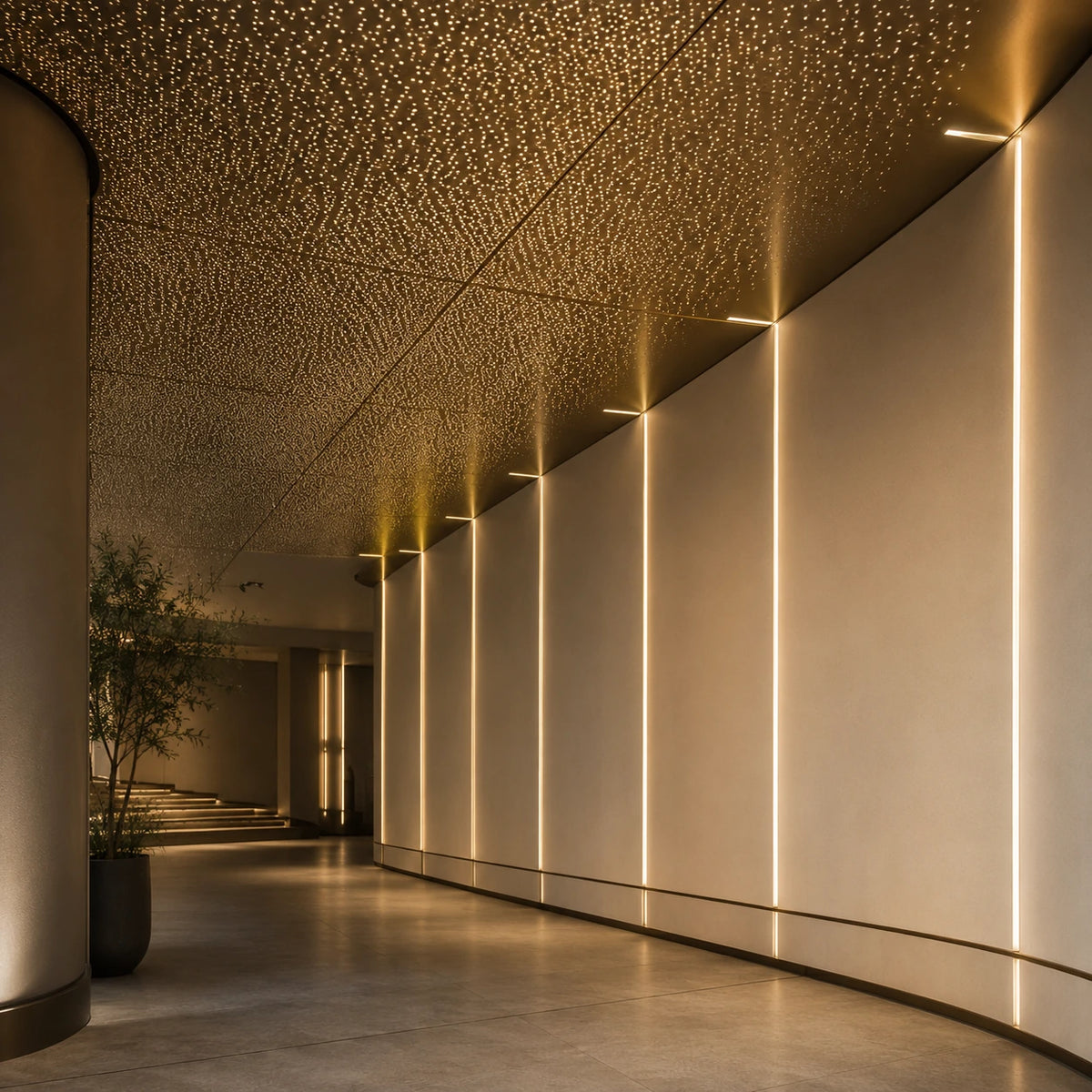

Recommended Applications
- High-brightness display cases, retail shelving, and showcase lighting where channel width is fixed
- Commercial cove and valance lighting requiring higher output than a standard single-row strip
- Back-bar, hospitality, and architectural lighting where maximum lumen density is required
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
