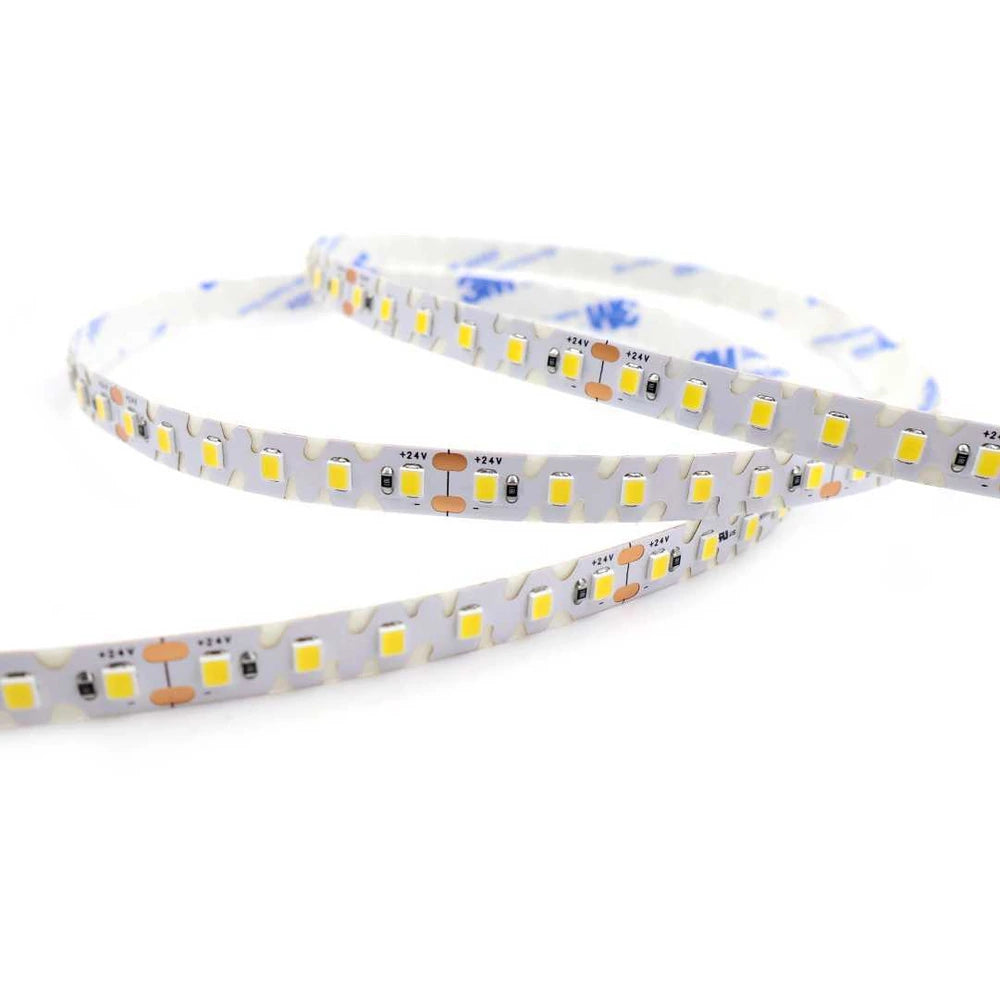

Bendable White LED Strip Lights – 8mm, 120 LEDs/m, 24V, SMD 2835
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

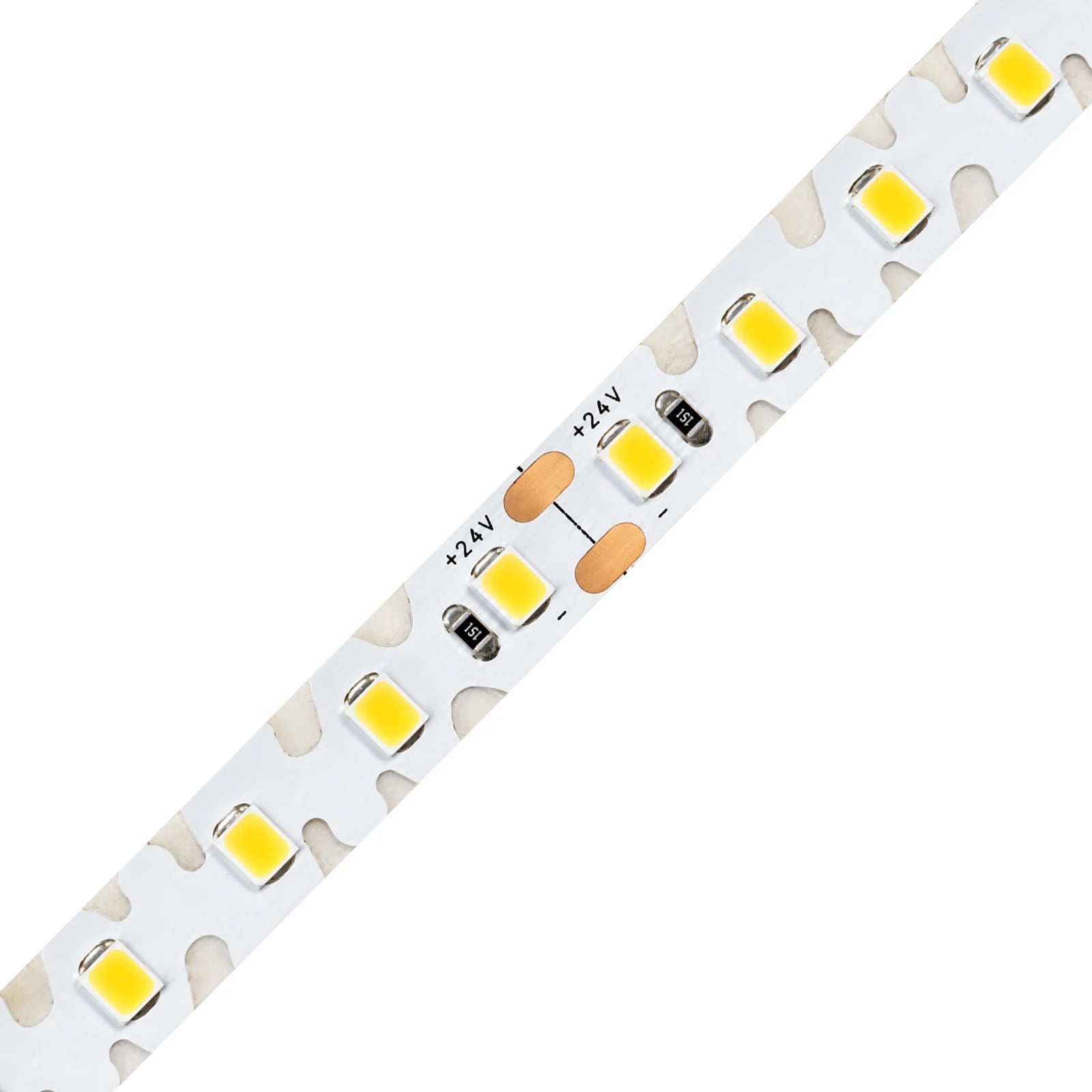

The 2835-120-8mm-24V-WHITE is a flexible PCB engineered to bend horizontally around curves, corners, and irregular surfaces — fitting shaped coves, curved signage, and contoured architectural details that a rigid strip cannot follow without connectors. With 120 LEDs/m SMD 2835 LEDs on a 8mm PCB and 24V constant-voltage input, it is well-suited to cabinet, display, furniture, and architectural accent lighting, available in 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K.
Why Choose These LED Strip Lights?
- Sawtooth bendable PCB: The notched board is designed to follow curved and shaped installations while maintaining a continuous light path.
- 8mm slim PCB: The 8mm board fits standard extrusion channels and curved mounting surfaces.
- 120 LEDs/m LED density: 120 LEDs/m delivers even illumination across the curve without visible spacing gaps.
- 24V constant-voltage input: Runs on 24V DC — compatible with standard low-voltage drivers and dimmers.
- White-light CCT selection: Available in 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K for warm, neutral, cool, and specialty white-light requirements.
- IP20 or IP67 options: Open PCB for interior dry locations; encapsulated construction for damp environments.
- Certified & compliant: UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- Custom project supply: Custom CCT, length, connectors, adhesive, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2835-120-8mm-24V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 8mm |
| Structure | Sawtooth Bendable PCB |
| Input Voltage | DC24V |
| Power | Up to 9.6W/m |
| Luminous Output | 880 lm/m |
| Color Rendering | 90 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| LED Pitch | 8.3mm |
| Cutting Interval | 50mm / 1.97in, 6 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points (50mm / 1.97in, 6 LEDs per cut). Bend the strip gradually — avoid kinking or creasing the PCB. Minimum bend radius varies by model; test the bend before final mounting. Use a constant-voltage driver matched to the specified input voltage with at least 20% reserve capacity.

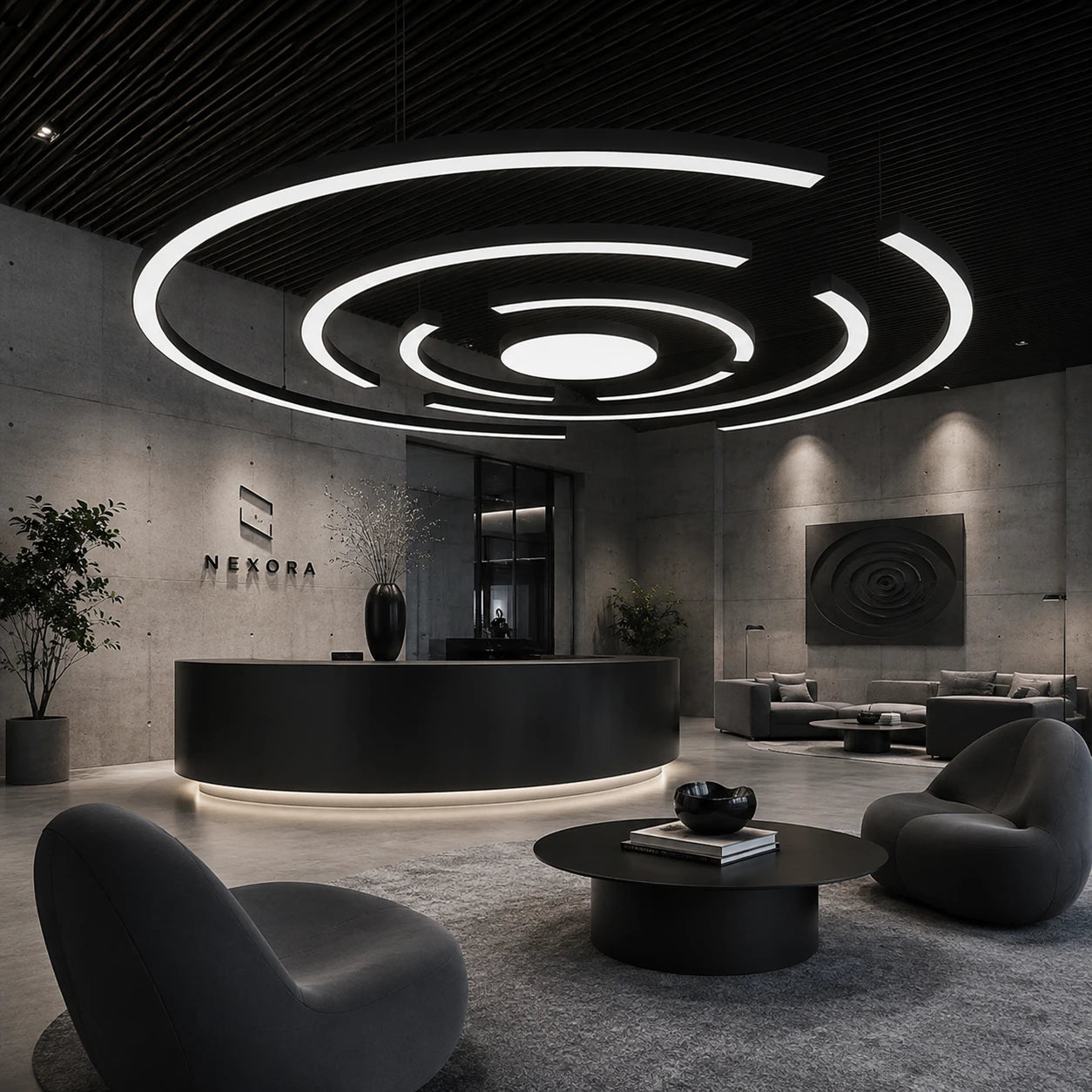

Recommended Applications
- Curved coves, columns, arched niches, and rounded architectural features
- Shaped signage, logos, and illuminated lettering requiring 90° bends without connectors
- Retail, hospitality, and display lighting on curved surfaces where rigid strips cannot conform
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
