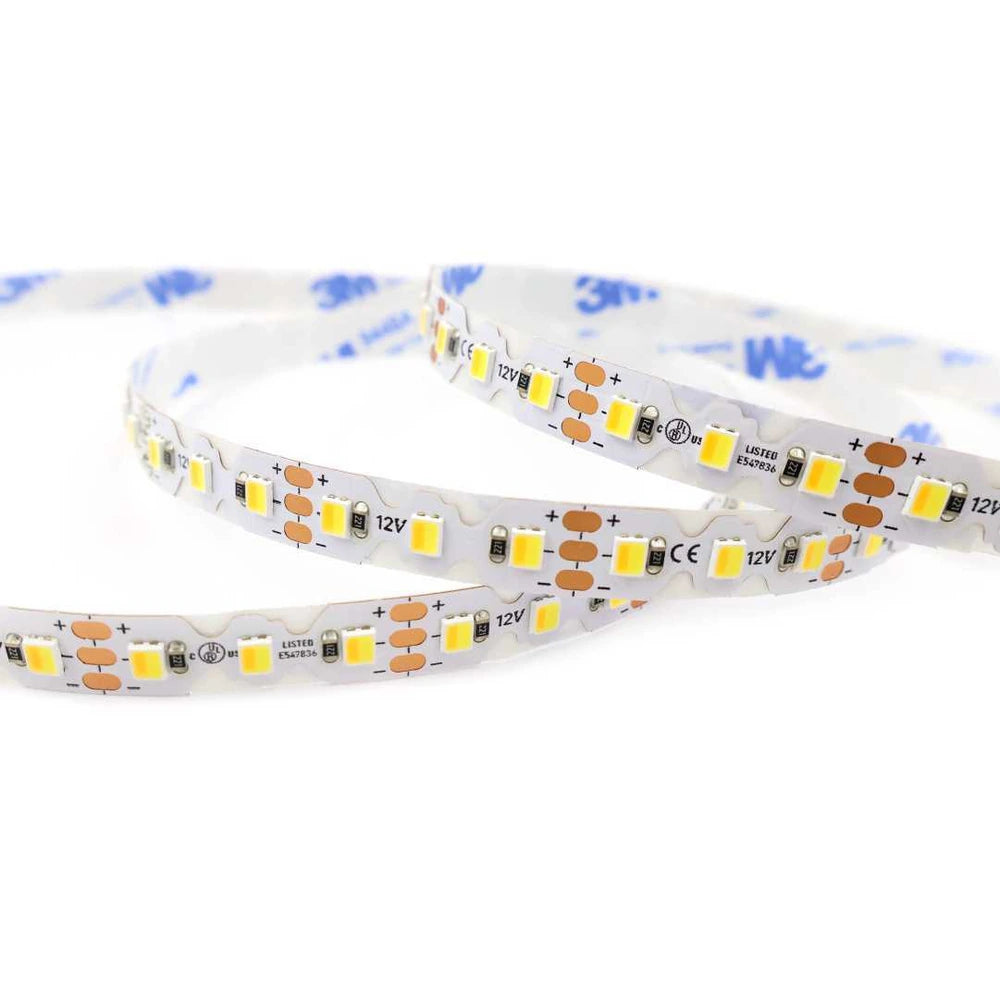

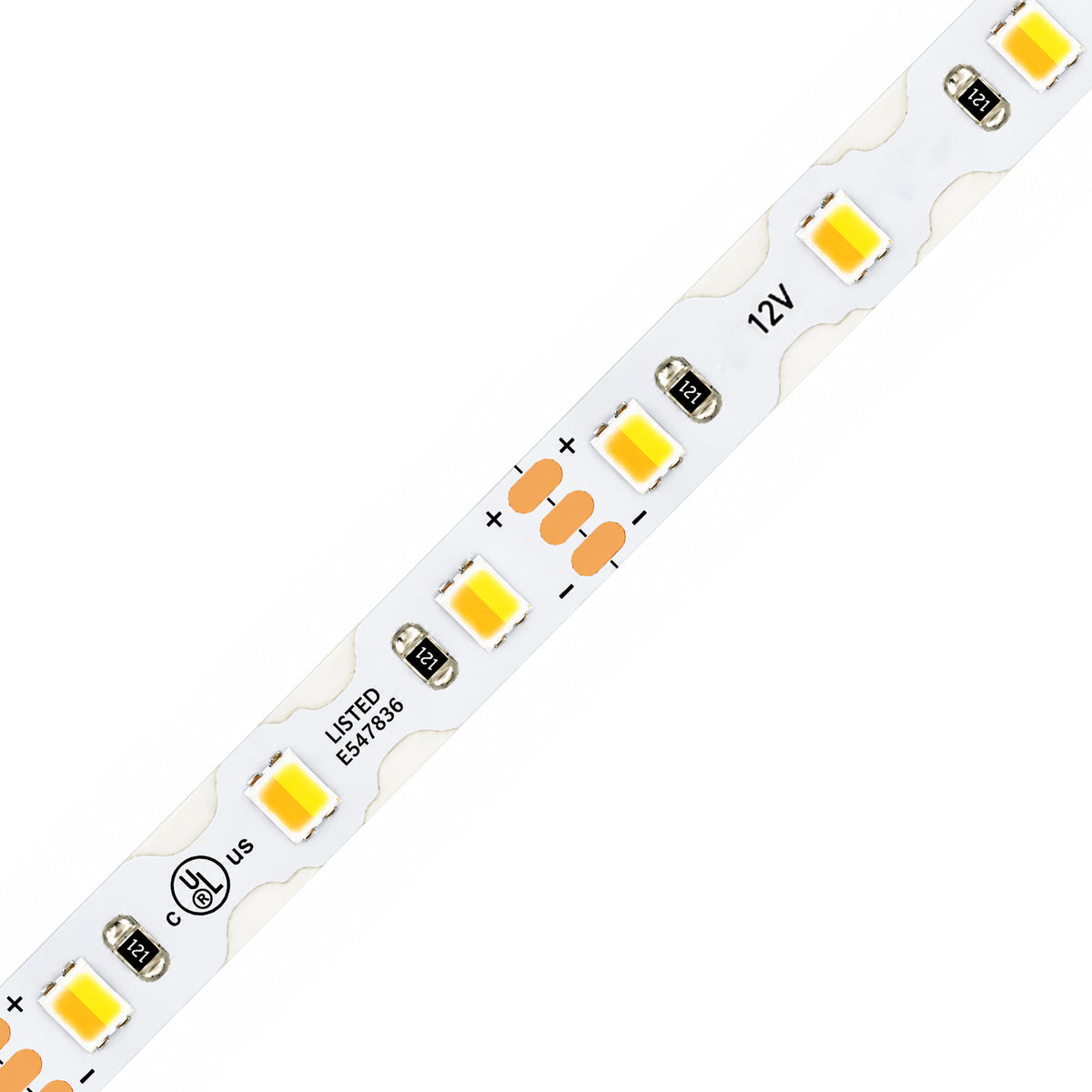

This 8mm bendable white LED strip uses an S-shaped PCB that bends sideways, in the plane of the strip, so it can follow curved coves, rounded signage and 90° corners without being cut and reconnected. It runs on 12V DC with 120 SMD 2835 LEDs per metre, 8W/m, CRI 95, in 6500K.
Why Choose These LED Strip Lights?
Horizontal-bend flexibility
The PCB flexes around curves and 90° corners without cracking or connector interruptions.
8mm slim PCB
The 8mm board fits standard extrusion channels and curved mounting surfaces.
120 LEDs/m LED density
120 LEDs/m delivers even illumination across the curve without visible spacing gaps.
12V constant-voltage input
Runs on 12V DC — compatible with standard low-voltage drivers and dimmers.
White-light CCT selection
Multiple CCT options from 3000K to 6500K for warm or cool white requirements.
IP20 or IP67 options
Open PCB for interior dry locations; encapsulated construction for damp environments.
Certified & compliant
CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
Custom project supply
Custom CCT, length, connectors, adhesive, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2835-120-8mm-12V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC12V |
| Power | 8 W/m |
|---|---|
| Color Rendering | 95 |
| Color / CCT | 6500K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points. Bend the strip gradually — avoid kinking or creasing the PCB. Minimum bend radius varies by model; test the bend before final mounting. Use a constant-voltage driver matched to the specified input voltage with at least 20% reserve capacity.
What This Strip Works With
| Power supply | 12V DC constant-voltage driver. A full 5m reel uses about 40W (3.3A), so choose a driver rated at least 50W (20% headroom) |
|---|---|
| Dimming & control | SP631E single-color dimmer (Bluetooth app + remote) or E2 Series (RF / WiFi / Zigbee smart-home control) |
| Max load per controller | 12V: SP631E 1 reel, E2 3 reels. Wire each reel back to the controller separately rather than chaining reels end to end |
| Wall dimmers | A 120V wall dimmer only works through a dimmable driver that matches it (TRIAC/ELV or 0–10V); it cannot dim the strip directly |
| Mounting | Aluminum channel with an inner width of at least 8mm; allow a little extra for the IP67 silicone coating; for curves, use flexible silicone channel or mount directly on the surface |
Not Compatible With
- 120V AC mains — always power it through a low-voltage DC driver
- 24V drivers — a 12V strip on 24V will overheat and fail
- RGB, RGBW and addressable (SPI) controllers — this is a 2-wire single-color strip and needs a single-color dimmer
- Outdoor or damp locations in the IP20 version — choose the IP67 option, and use a driver rated for the location
Recommended Applications
- Curved coves, columns, arched niches, and rounded architectural features

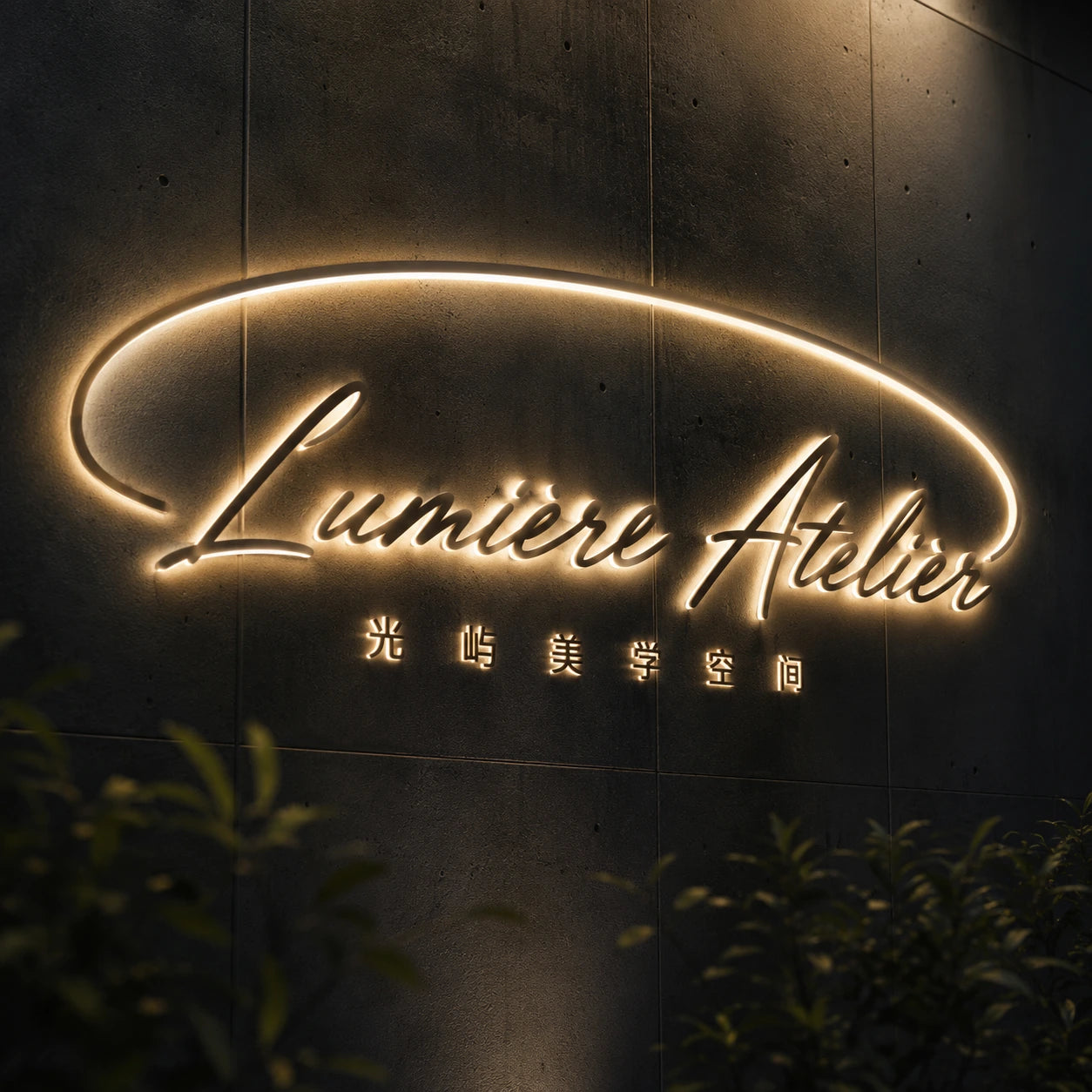

- Shaped signage, logos, and illuminated lettering requiring 90° bends without connectors
- Retail, hospitality, and display lighting on curved surfaces where rigid strips cannot conform
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
