24V White LED Strip Lights – 5mm, 120 LEDs/m, 24V, SMD 2835
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
For cabinets, shelves, coves and general accent lighting, this 5mm white LED strip delivers CRI 90 white light from 120 LEDs per metre on 24V. It uses SMD 2835 LEDs at 11W/m (about 1,402 lm/m), in 2700K, 3000K, 3500K, 4000K, 5000K and 6500K. Cut points fall every 50mm.
Why Choose These LED Strip Lights?
24V for longer runs
24V DC halves the current at the same wattage, reducing resistive losses and allowing longer uninterrupted runs before voltage drop becomes visible.
5mm PCB width
The 5mm board fits standard aluminum extrusion channels and surface-mount profiles.
120 LEDs/m LED density
120 LEDs/m provides smooth, even white-light output for general and accent lighting.
SMD 2835 chip technology
SMD 2835 LEDs deliver consistent white output and long operating life at 24V.
White-light CCT selection
Available in 2700K, 3000K, 3500K, 4000K, 5000K, and 6500K.
IP20 or IP67 options
Open PCB for dry locations; encapsulated construction for damp and outdoor-adjacent environments.
Certified & compliant
CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial projects.
Custom project supply
Custom CCT, length, power, connector, adhesive, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2835-120-5mm-24V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC24V |
| Power | 11 W/m |
| Luminous Output | 1402 lm/m |
| Color Rendering | 90 |
|---|---|
| Color / CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| Cutting Interval | 50mm / 1.97in |
| LED Spacing | Approx. 8.3mm / 0.33in |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut every 50mm (1.97in) at the marked cut points. Use a 24V constant-voltage driver with at least 20% reserve capacity. 24V strips support longer runs — still add feed points on very long continuous runs to maintain consistent brightness.
What This Strip Works With
| Power supply | 24V DC constant-voltage driver. A full 5m reel uses about 55W (2.3A), so choose a driver rated at least 70W (20% headroom) |
|---|---|
| Dimming & control | SP631E single-color dimmer (Bluetooth app + remote) or E2 Series (RF / WiFi / Zigbee smart-home control) |
| Max load per controller | 24V: SP631E 2 reels, E2 5 reels. Wire each reel back to the controller separately rather than chaining reels end to end |
| Wall dimmers | A 120V wall dimmer only works through a dimmable driver that matches it (TRIAC/ELV or 0–10V); it cannot dim the strip directly |
| Mounting | Aluminum channel with an inner width of at least 5mm; allow a little extra for the IP67 silicone coating |
Not Compatible With
- 120V AC mains — always power it through a low-voltage DC driver
- 12V drivers — a 24V strip on 12V will run very dim
- RGB, RGBW and addressable (SPI) controllers — this is a 2-wire single-color strip and needs a single-color dimmer
- Outdoor or damp locations in the IP20 version — choose the IP67 option, and use a driver rated for the location
Recommended Applications

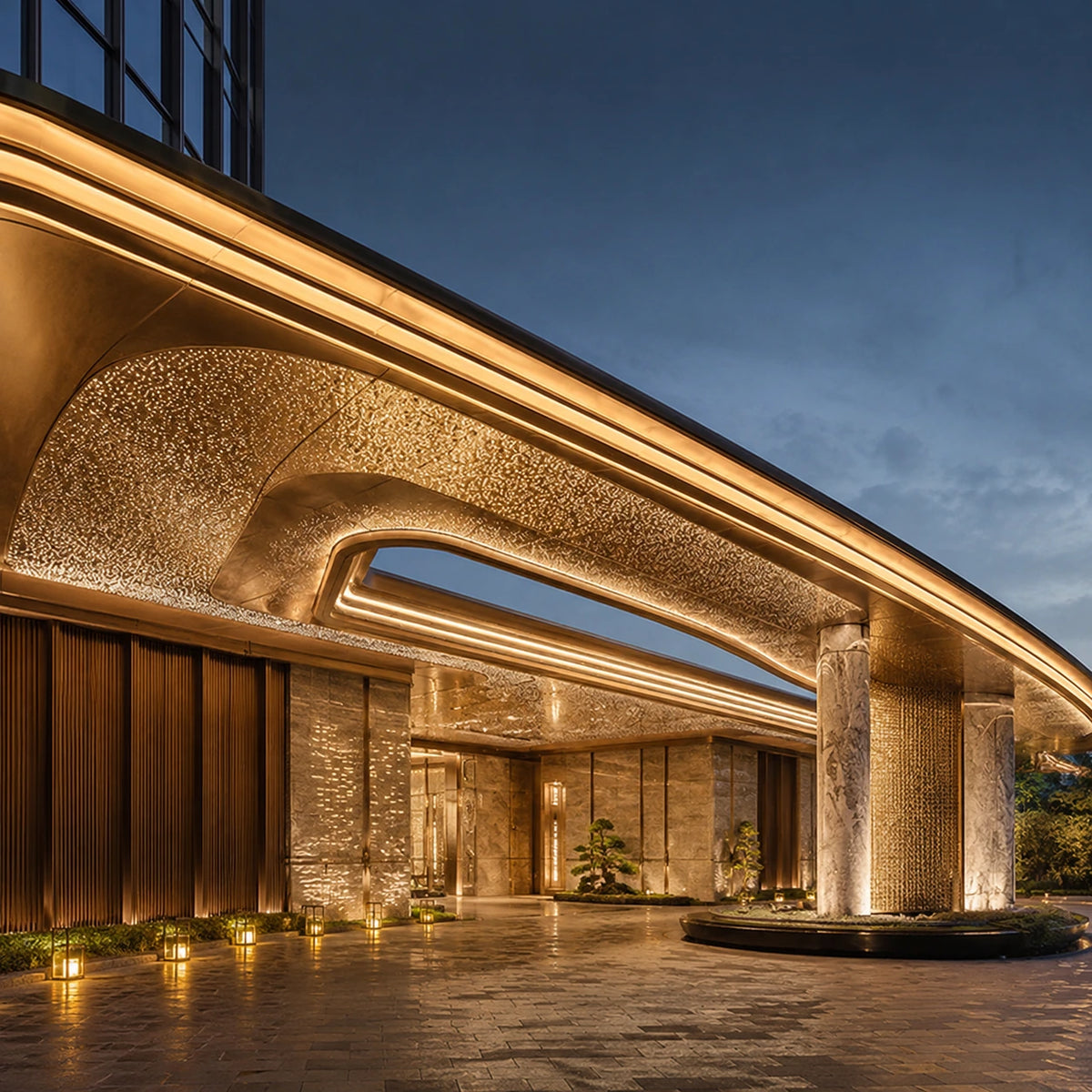

- Commercial cove lighting, perimeter lighting, and long-run architectural linear installations
- Retail environments, hotel corridors, and office spaces where minimal voltage drop over distance is required
- Residential and hospitality cabinet, display, and accent lighting on 24V DC systems
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
