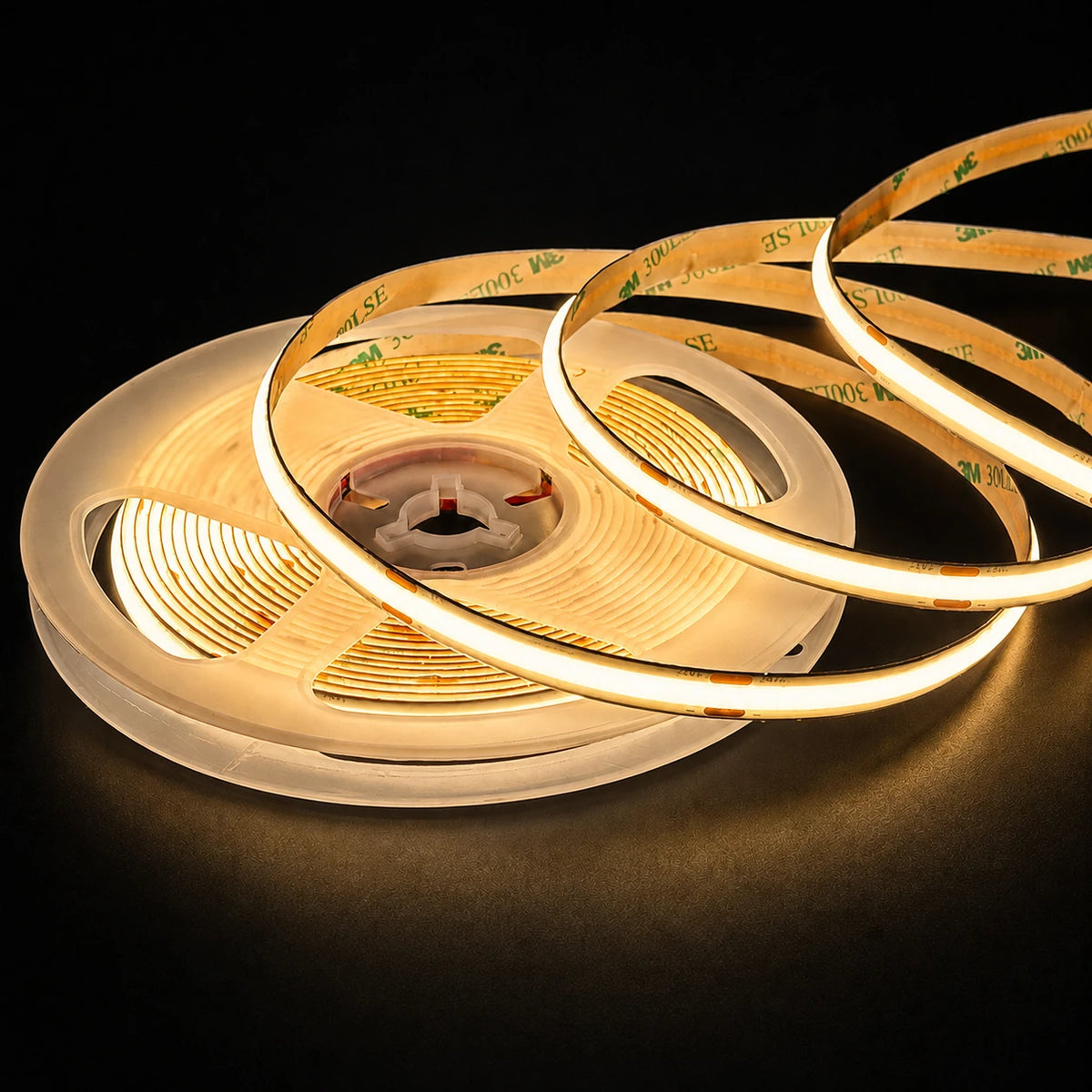

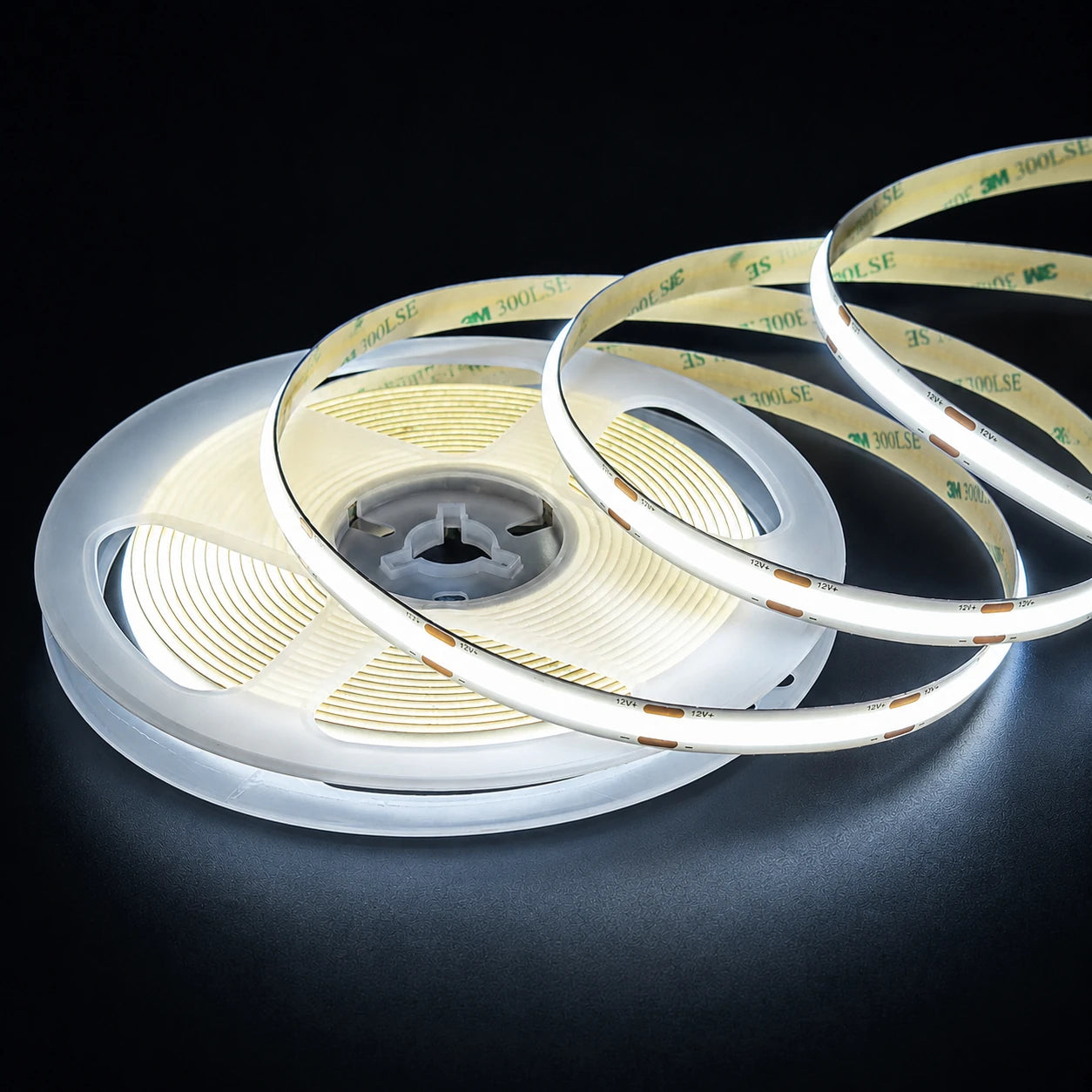

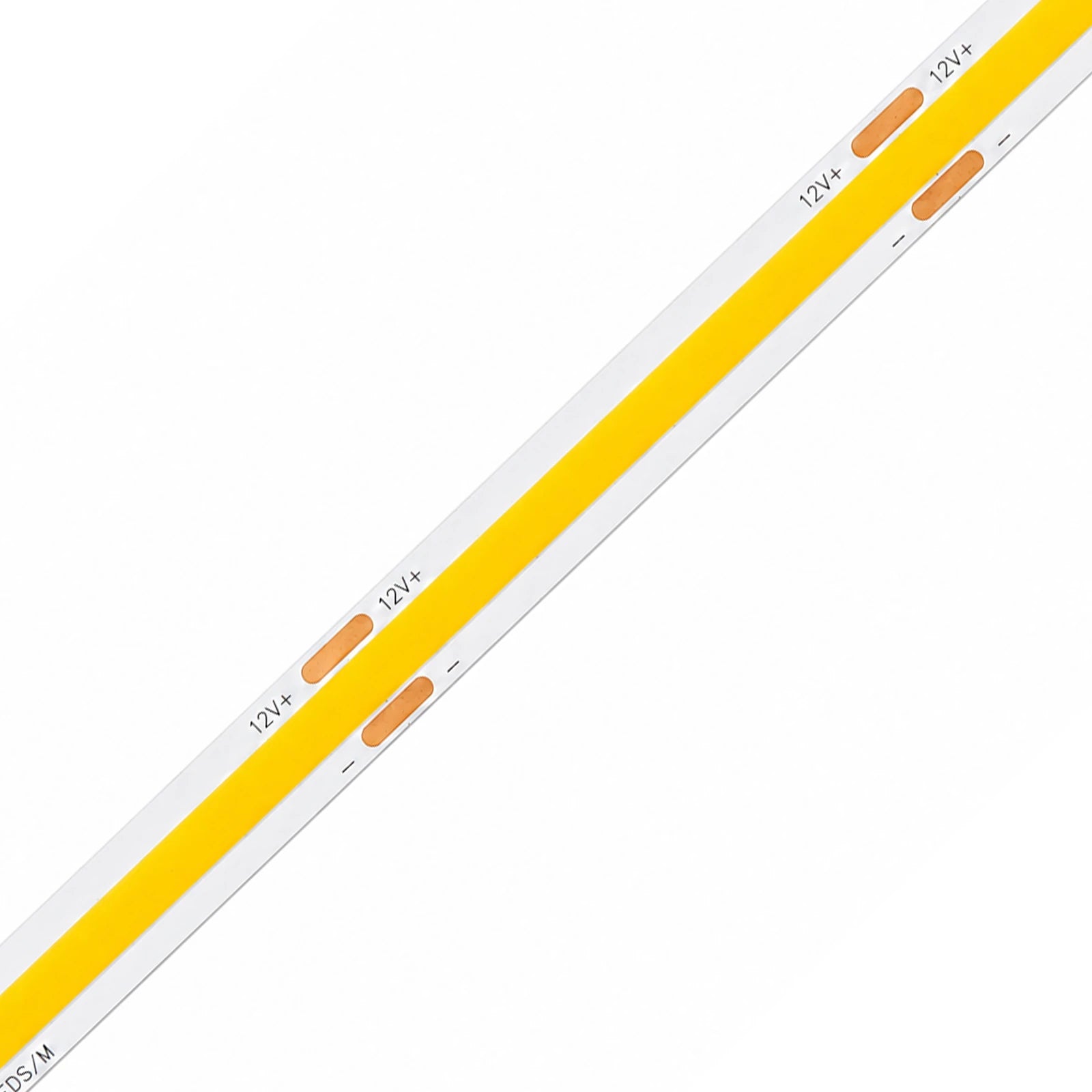

This 8mm COB white LED strip packs 480 LEDs per metre under a continuous phosphor layer, so it shows a smooth, dot-free line of light even without a diffuser — handy for shallow channels, open shelves and reflective surfaces where individual LED dots would show. It runs on 12V DC at 10.5W/m with CRI 90 and about 1,420 lm/m, in 3000K, 3500K, 4000K and 6500K.
Why Choose These LED Strip Lights?
Continuous dot-free light
COB construction creates a smooth, uninterrupted linear light effect.
Wide emission
The catalog highlights wide-angle output, high color rendering, and flexible installation.
Refined display lighting
Designed for close-range cabinet, mirror, showcase, and architectural detailing.
LED density
480 LEDs/m LED layout for the catalog configuration.
Color rendering
90.
Power
10.5W/m.
Luminous output
1420lm/m.
Technical Specifications
| Catalog Model | COB-480-8mm-12V-WHITE |
|---|---|
| LED Type | COB |
| LED Density | 480 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC12V |
| Power | 10.5W/m |
| Luminous Output | 1420lm/m |
|---|---|
| Color Rendering | 90 |
| Color / CCT | 3000K, 3500K, 4000K, 6500K |

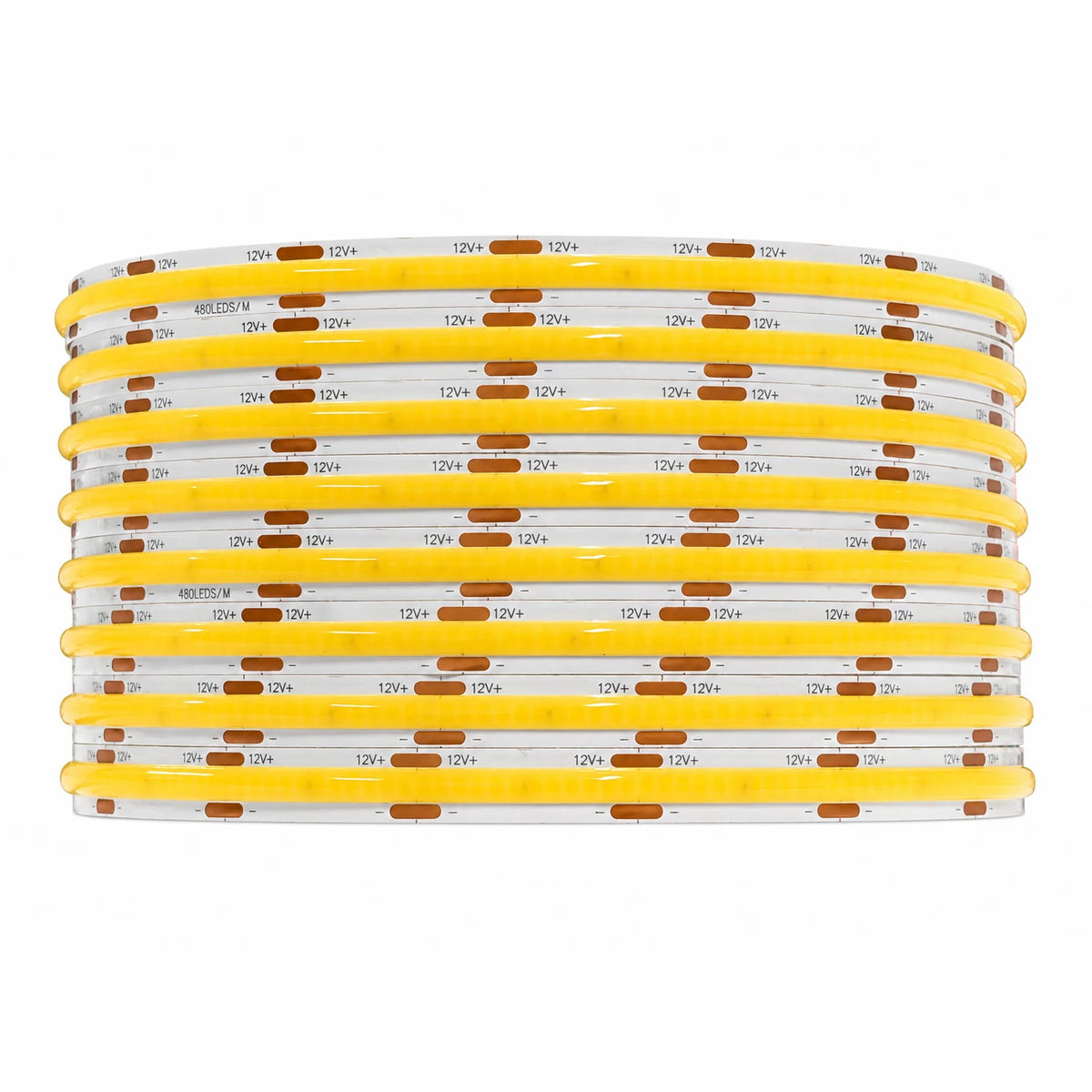

| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

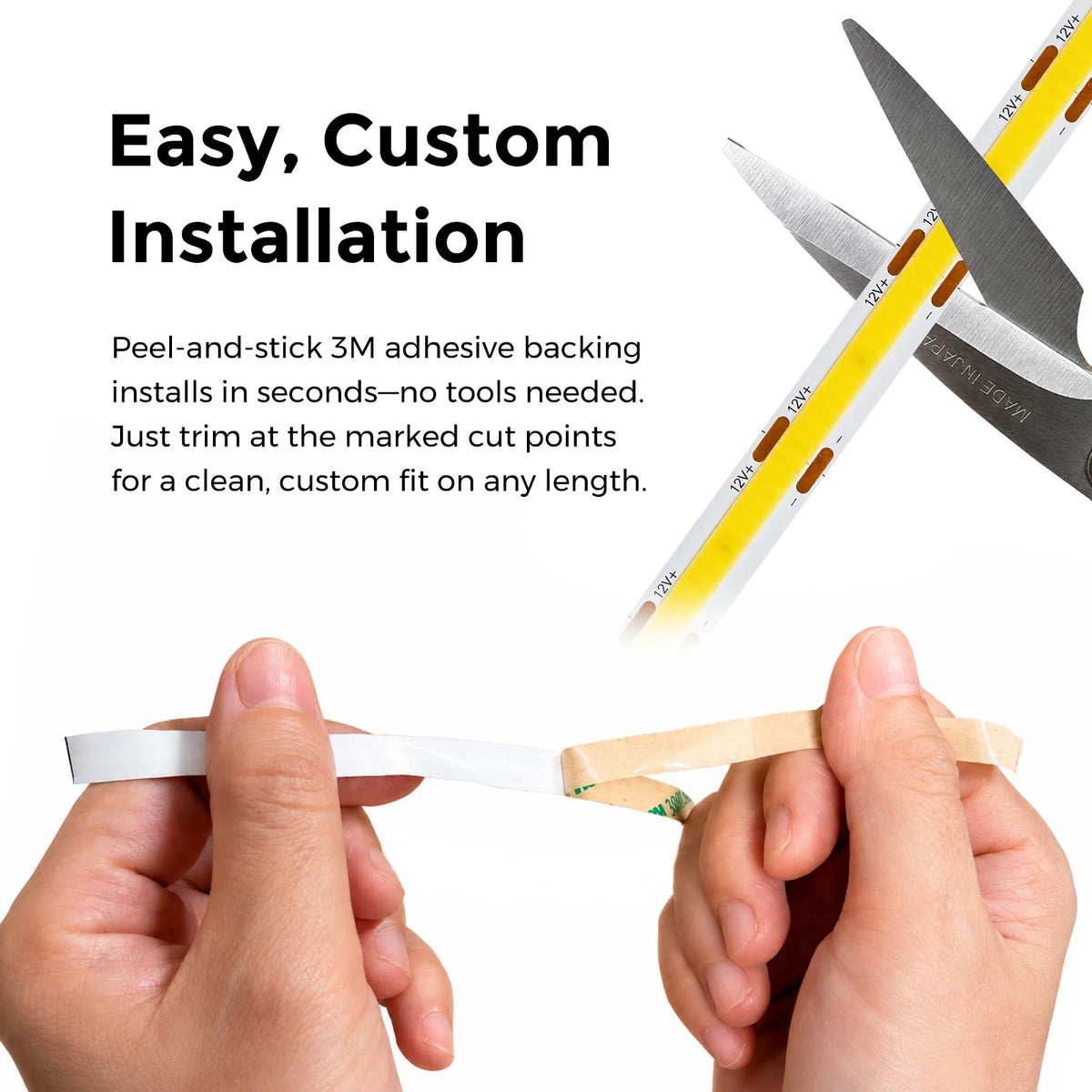

Cutting and Installation

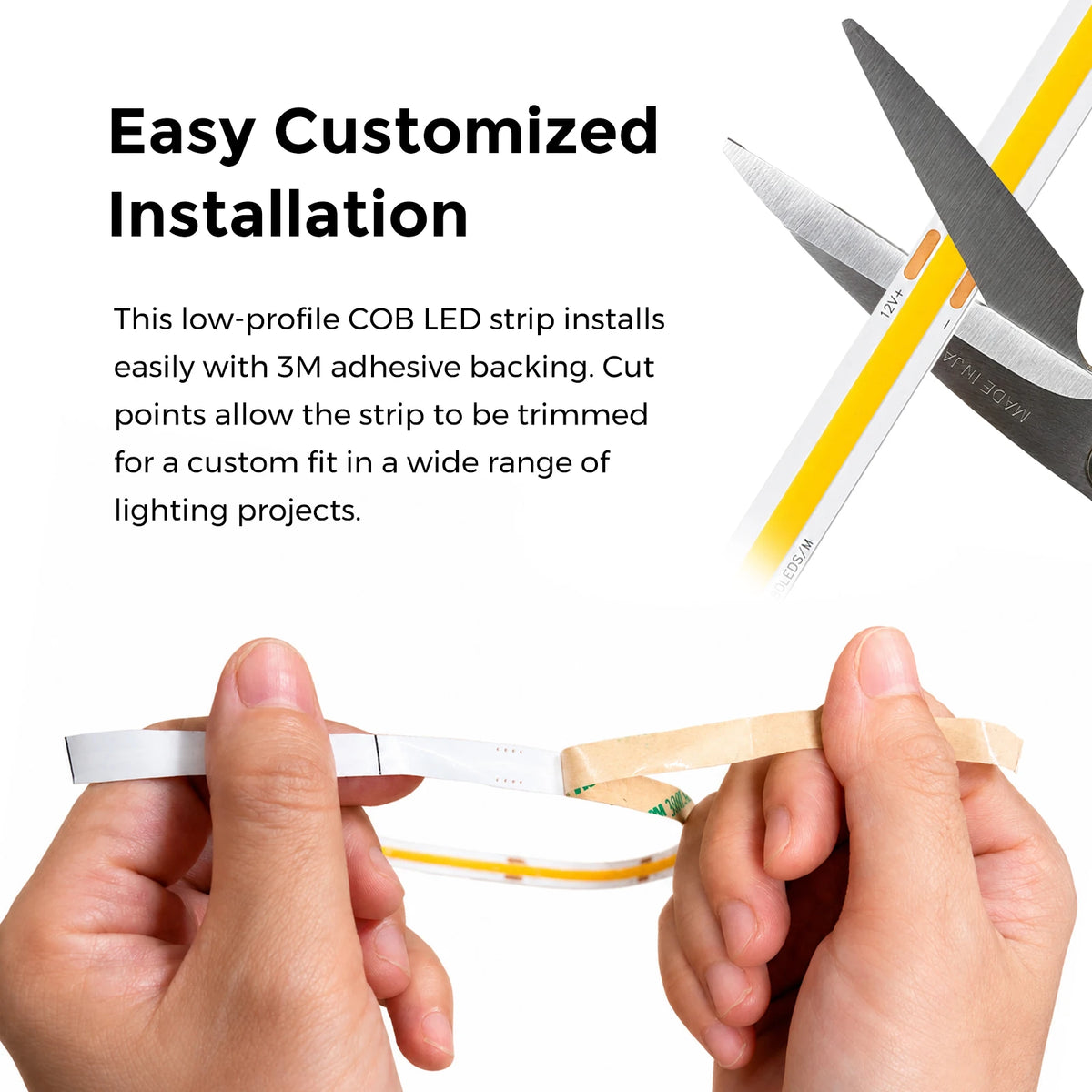

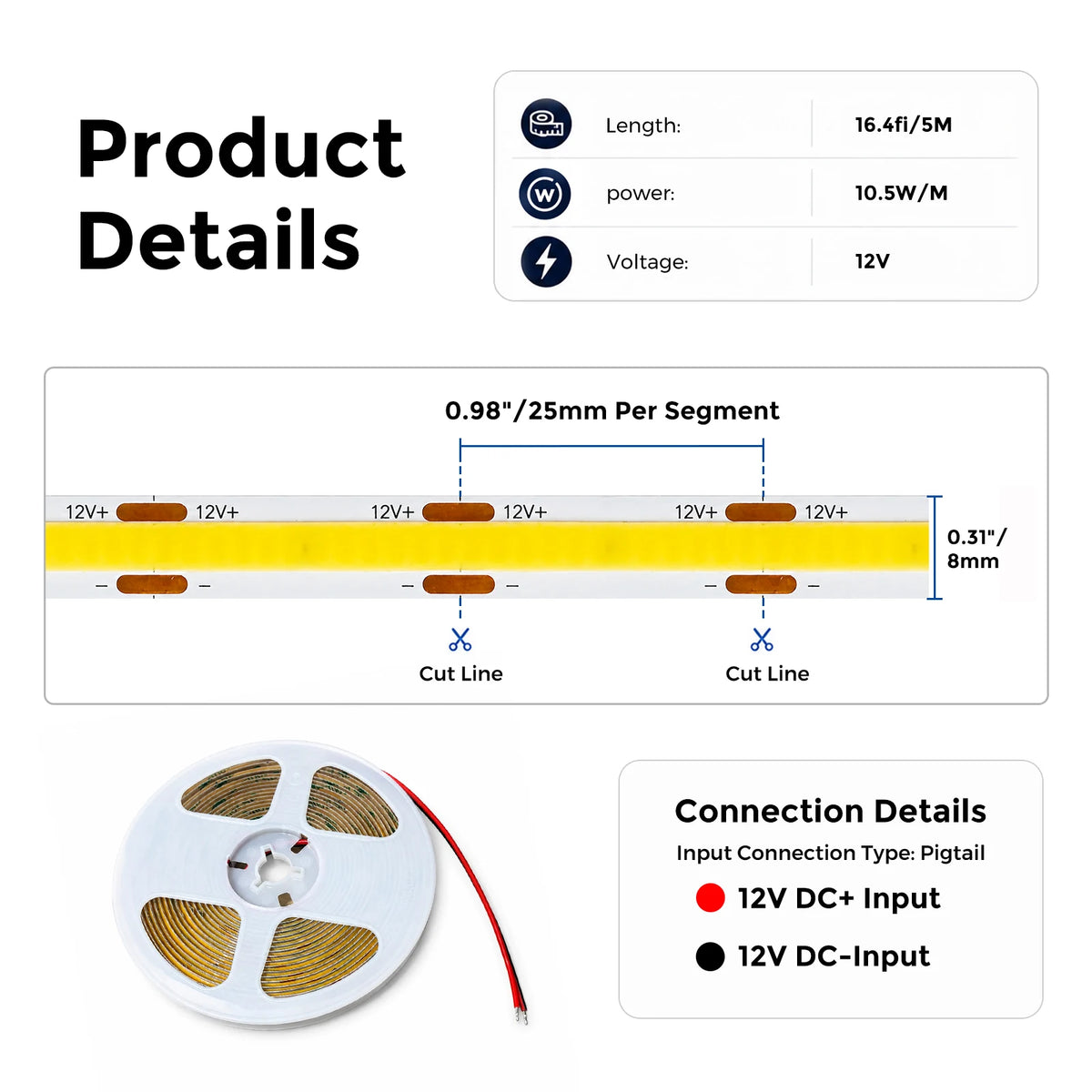

Cut only at the marked cut points. Observe polarity, use the specified constant-voltage power supply, and test the strip before final mounting. For longer runs, add feed points where voltage drop becomes visible. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.
What This Strip Works With
| Power supply | 12V DC constant-voltage driver. A full 5m reel uses about 52.5W (4.4A), so choose a driver rated at least 65W (20% headroom) |
|---|---|
| Dimming & control | SP631E single-color dimmer (Bluetooth app + remote) or E2 Series (RF / WiFi / Zigbee smart-home control) |
| Max load per controller | 12V: SP631E 1 reel, E2 2 reels. Wire each reel back to the controller separately rather than chaining reels end to end |
| Wall dimmers | A 120V wall dimmer only works through a dimmable driver that matches it (TRIAC/ELV or 0–10V); it cannot dim the strip directly |
| Mounting | Aluminum channel with an inner width of at least 8mm; allow a little extra for the IP67 silicone coating |
Not Compatible With
- 120V AC mains — always power it through a low-voltage DC driver
- 24V drivers — a 12V strip on 24V will overheat and fail
- RGB, RGBW and addressable (SPI) controllers — this is a 2-wire single-color strip and needs a single-color dimmer
- Outdoor or damp locations in the IP20 version — choose the IP67 option, and use a driver rated for the location
Recommended Applications
- Jewelry, watch, cosmetics, museum, gallery, and glass-display lighting

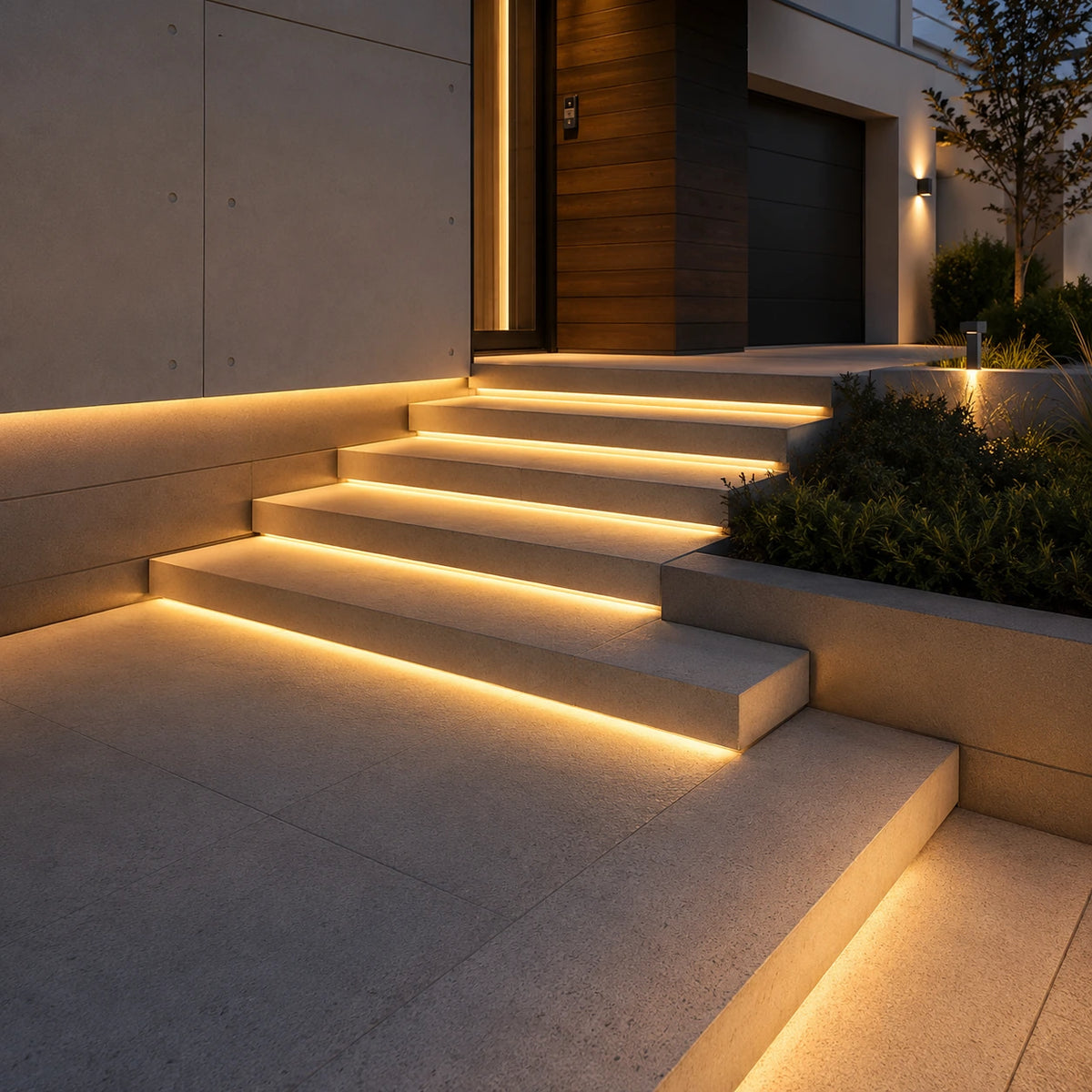

- Ceilings, TV backdrops, entryways, stairs, mirrors, cabinets, wardrobes, and bar lighting
- Offices, workstations, hospitals, hotels, models, counters, and refined architectural details
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote CCT or color mode, CRI, output level, PCB width, reel length, adhesive backing, cable, connector, and packaging for project quantities.
Compliance
This product carries CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
