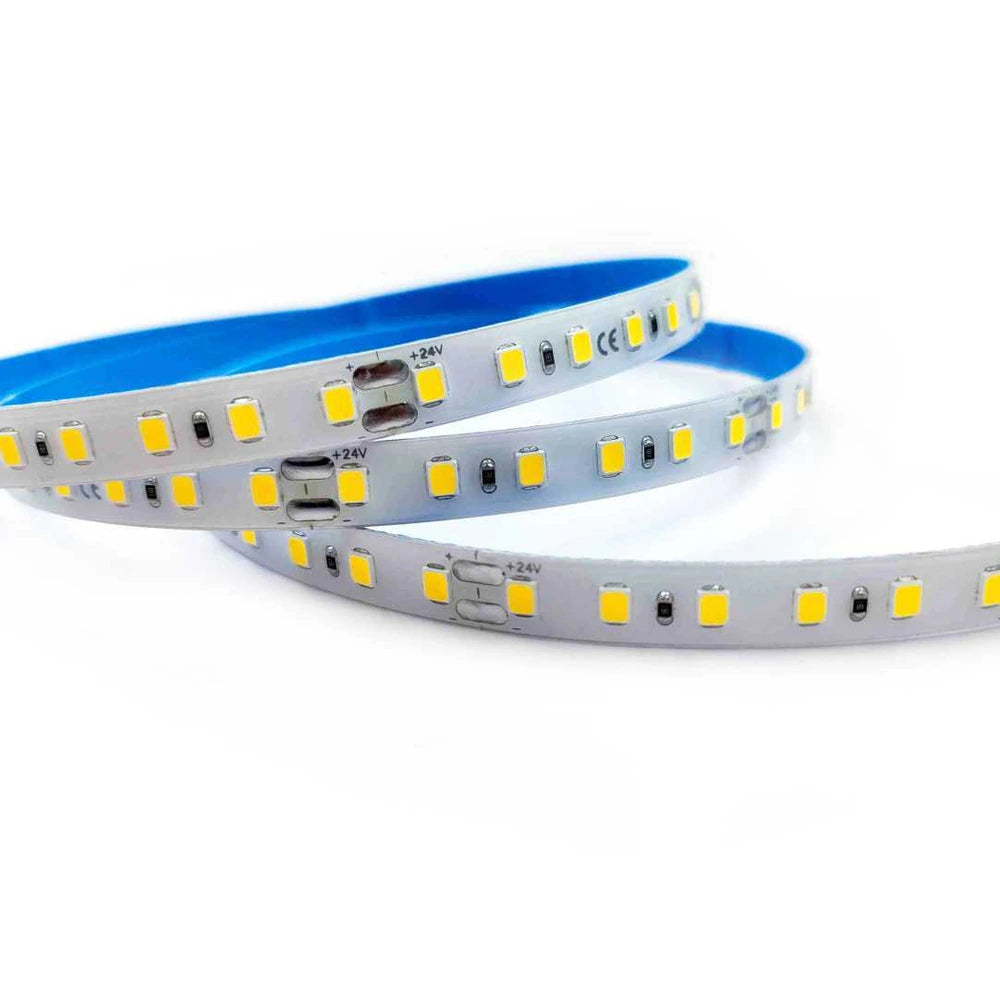

8mm SMD 2835 Waterproof White LED Strip Light, 120 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 8mm white LED strip is offered in an IP67 waterproof build for outdoor, damp and wash-down locations — decks, eaves, signage and kitchens — with an open IP20 version for dry indoor use. It runs on 24V DC with 120 SMD 2835 LEDs per metre, 9.6W/m, CRI 90, about 1,215 lm/m, in 3000K, 4000K and 6500K.
Why Choose These LED Strip Lights?
Dust- and water-resistant series
Built for environments that require more protection than standard indoor strips.
Outdoor-ready positioning
The catalog highlights weather, UV, and temperature resistance for demanding projects.
Flexible protected lighting
Suitable for curved installation and long-life decorative or landscape lighting.
LED density
120 LEDs/m LED layout for the catalog configuration.
Color rendering
80/90.
Power
9.6W/m.
Luminous output
1215lm/m.
Technical Specifications
| Catalog Model | 2835-120-8mm-24V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC24V |
| Power | 9.6W/m |
| Luminous Output | 1215lm/m |
|---|---|
| Color Rendering | 90 |
| Color / CCT | 3000K, 4000K, 6500K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points. Reseal every cut, joint, and cable entry with a compatible waterproof termination before use in a wet or outdoor environment. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.
What This Strip Works With
| Power supply | 24V DC constant-voltage driver. A full 5m reel uses about 48W (2A), so choose a driver rated at least 60W (20% headroom) |
|---|---|
| Dimming & control | SP631E single-color dimmer (Bluetooth app + remote) or E2 Series (RF / WiFi / Zigbee smart-home control) |
| Max load per controller | 24V: SP631E 3 reels, E2 6 reels. Wire each reel back to the controller separately rather than chaining reels end to end |
| Wall dimmers | A 120V wall dimmer only works through a dimmable driver that matches it (TRIAC/ELV or 0–10V); it cannot dim the strip directly |
| Mounting | Aluminum channel with an inner width of at least 8mm; allow a little extra for the IP67 silicone coating |
Not Compatible With
- 120V AC mains — always power it through a low-voltage DC driver
- 12V drivers — a 24V strip on 12V will run very dim
- RGB, RGBW and addressable (SPI) controllers — this is a 2-wire single-color strip and needs a single-color dimmer
- Outdoor or damp locations in the IP20 version — choose the IP67 option, and use a driver rated for the location
Recommended Applications

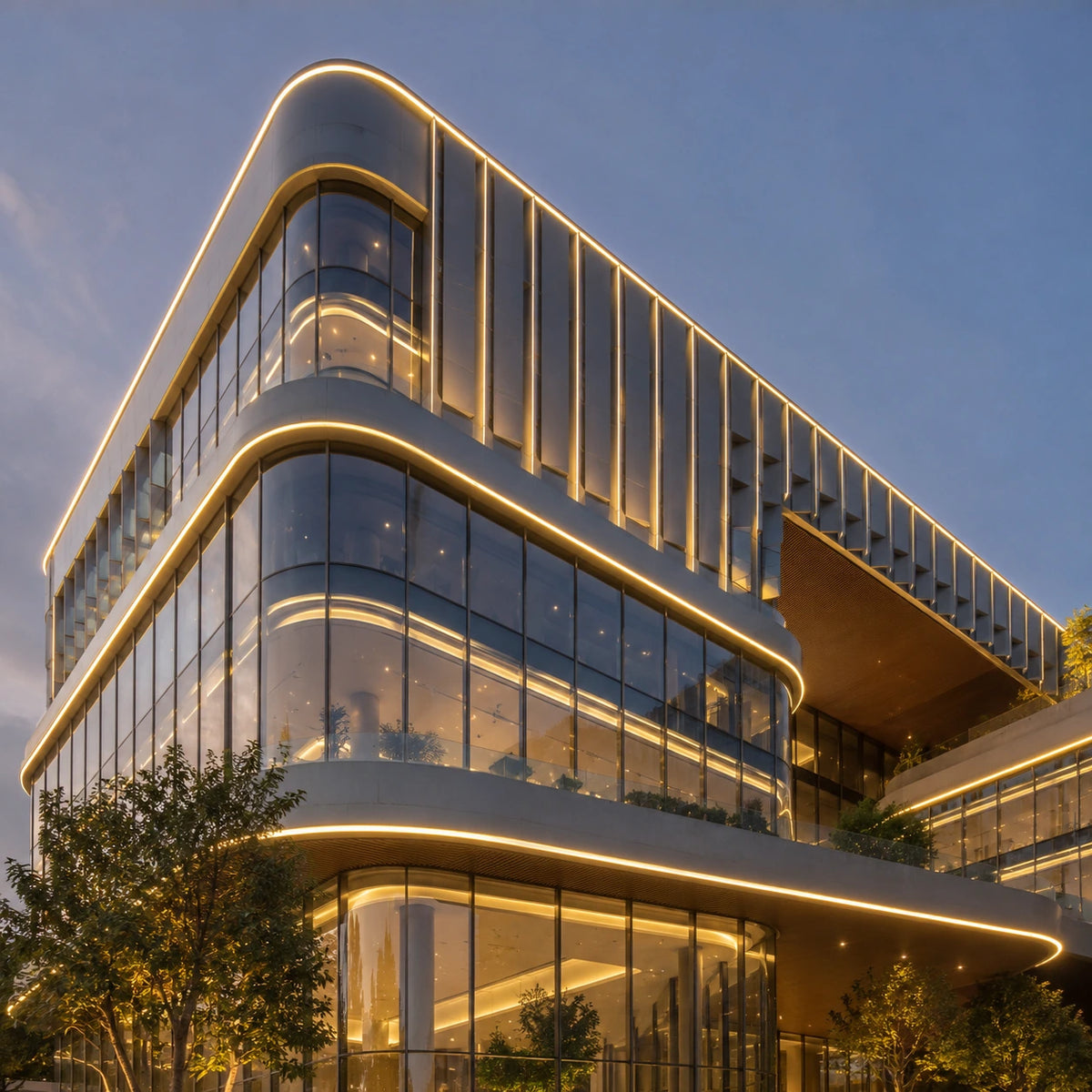

- Building outlines, parks, bridges, landscape lighting, and outdoor advertising
- Hotel, restaurant, terrace, garden, stage, and outdoor exhibition ambience
- Special environments such as cold storage, swimming-pool areas, and other protected-lighting projects
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote CCT or color mode, IP construction, cut length, cable, waterproof connector, mounting method, and packaging for project quantities.
Compliance
This product carries CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
