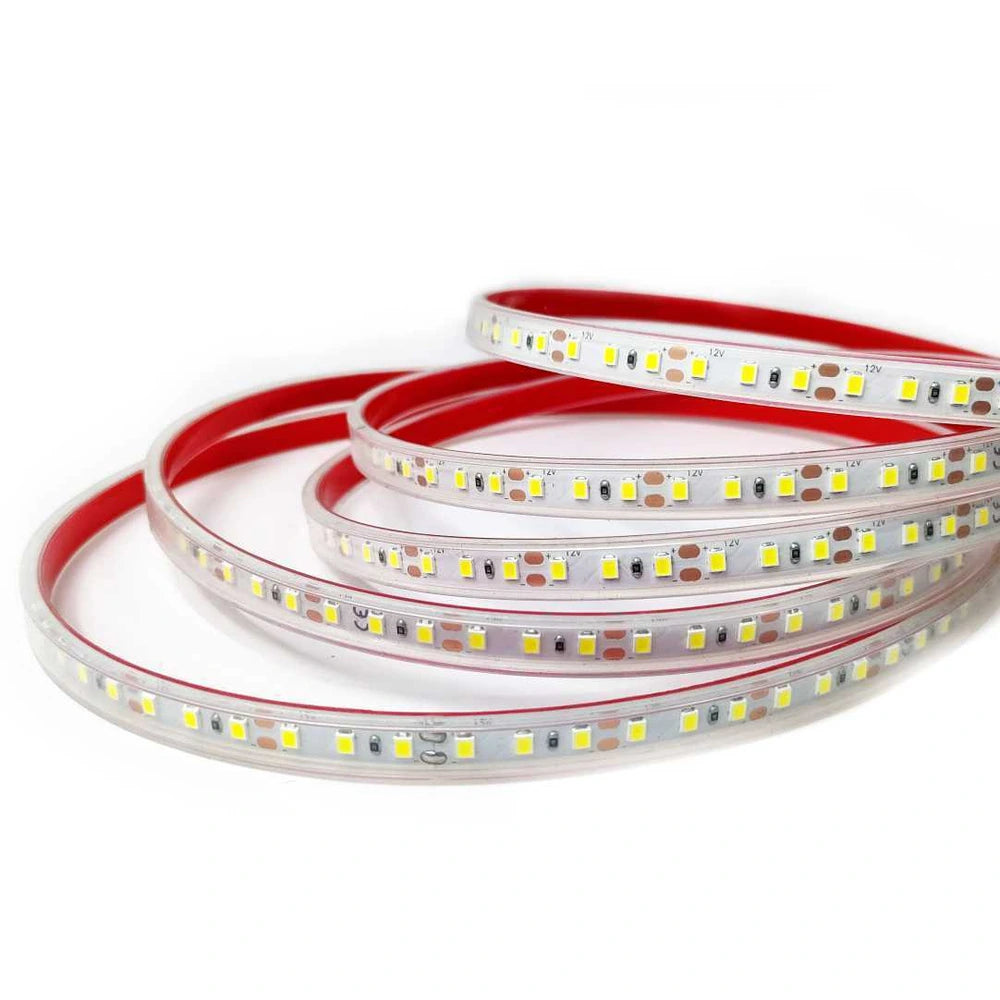

4x10mm SMD 2835 Waterproof White LED Strip Light, 120 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 4x10mm waterproof white LED strip comes fully encapsulated to IP67, so it can be used outdoors, under eaves, along decks and in bathrooms or kitchens where an open-PCB strip would fail. It runs on 12V DC with 120 SMD 2835 LEDs per metre, 9W/m, CRI 90, about 1,131 lm/m, in 3000K, 4000K and 6500K.
Why Choose These LED Strip Lights?
Dust- and water-resistant series
Built for environments that require more protection than standard indoor strips.
Outdoor-ready positioning
The catalog highlights weather, UV, and temperature resistance for demanding projects.
Flexible protected lighting
Suitable for curved installation and long-life decorative or landscape lighting.
LED density
120 LEDs/m LED layout for the catalog configuration.
Color rendering
CRI 90.
Power
9W/m.
Luminous output
1131lm/m.
Technical Specifications
| Catalog Model | 2835-120-4x10mm-12V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 4x10mm |
| Input Voltage | DC12V |
| Power | 9W/m |
| Luminous Output | 1131lm/m |
|---|---|
| Color Rendering | 90 |
| Color / CCT | 3000K, 4000K, 6500K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points. Reseal every cut, joint, and cable entry with a compatible waterproof termination before use in a wet or outdoor environment. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.
What This Strip Works With
| Power supply | 12V DC constant-voltage driver. A full 5m reel uses about 45W (3.8A), so choose a driver rated at least 55W (20% headroom) |
|---|---|
| Dimming & control | SP631E single-color dimmer (Bluetooth app + remote) or E2 Series (RF / WiFi / Zigbee smart-home control) |
| Max load per controller | 12V: SP631E 1 reel, E2 3 reels. Wire each reel back to the controller separately rather than chaining reels end to end |
| Wall dimmers | A 120V wall dimmer only works through a dimmable driver that matches it (TRIAC/ELV or 0–10V); it cannot dim the strip directly |
| Mounting | Aluminum channel with an inner width of at least 10mm; allow a little extra for the IP67 silicone coating |
Not Compatible With
- 120V AC mains — always power it through a low-voltage DC driver
- 24V drivers — a 12V strip on 24V will overheat and fail
- RGB, RGBW and addressable (SPI) controllers — this is a 2-wire single-color strip and needs a single-color dimmer
- Driver or connections left unprotected outdoors — the strip is IP67, but the driver and joints must be rated for the location too

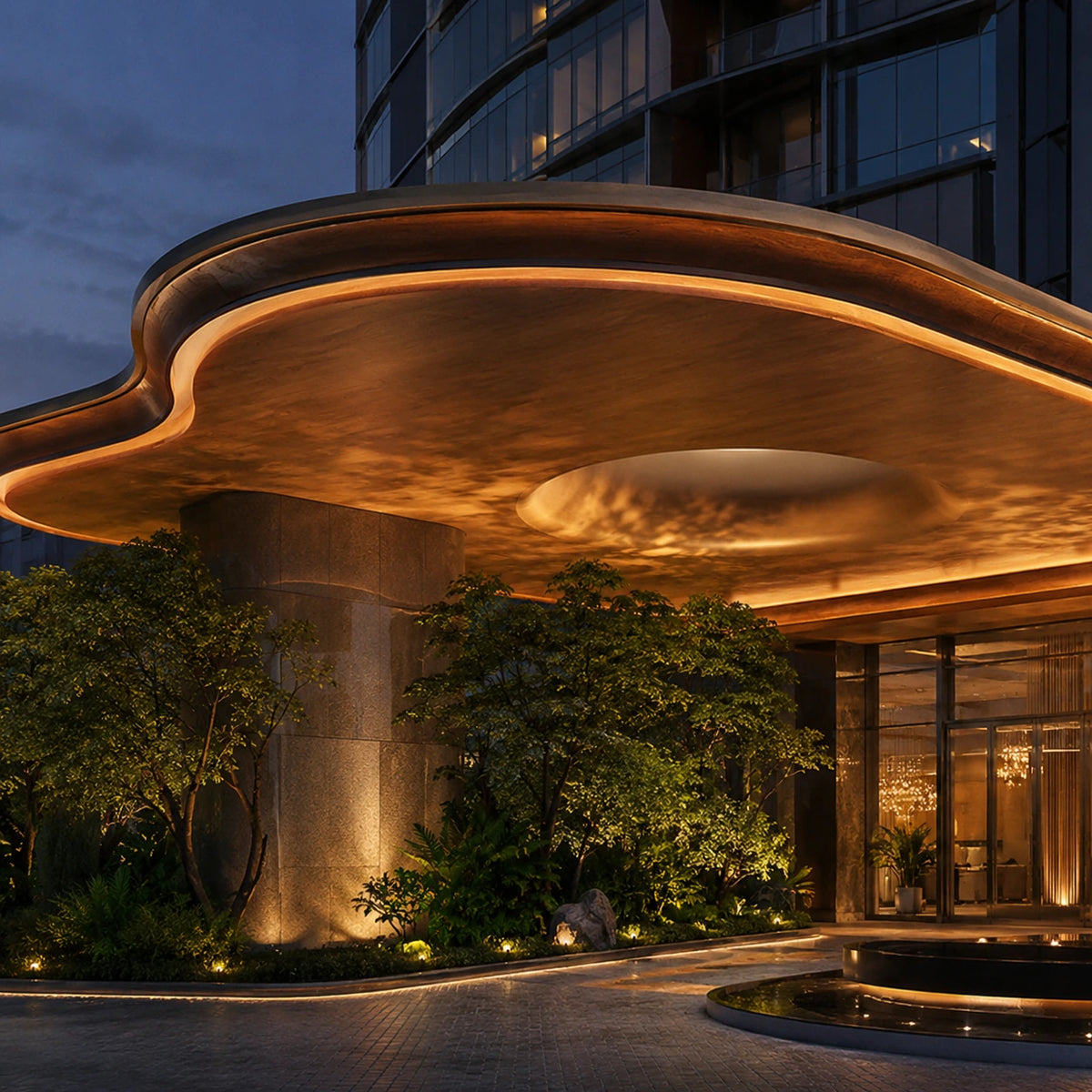

Recommended Applications
- Building outlines, parks, bridges, landscape lighting, and outdoor advertising
- Hotel, restaurant, terrace, garden, stage, and outdoor exhibition ambience
- Special environments such as cold storage, swimming-pool areas, and other protected-lighting projects
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote CCT or color mode, IP construction, cut length, cable, waterproof connector, mounting method, and packaging for project quantities.
Compliance
This product carries CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
