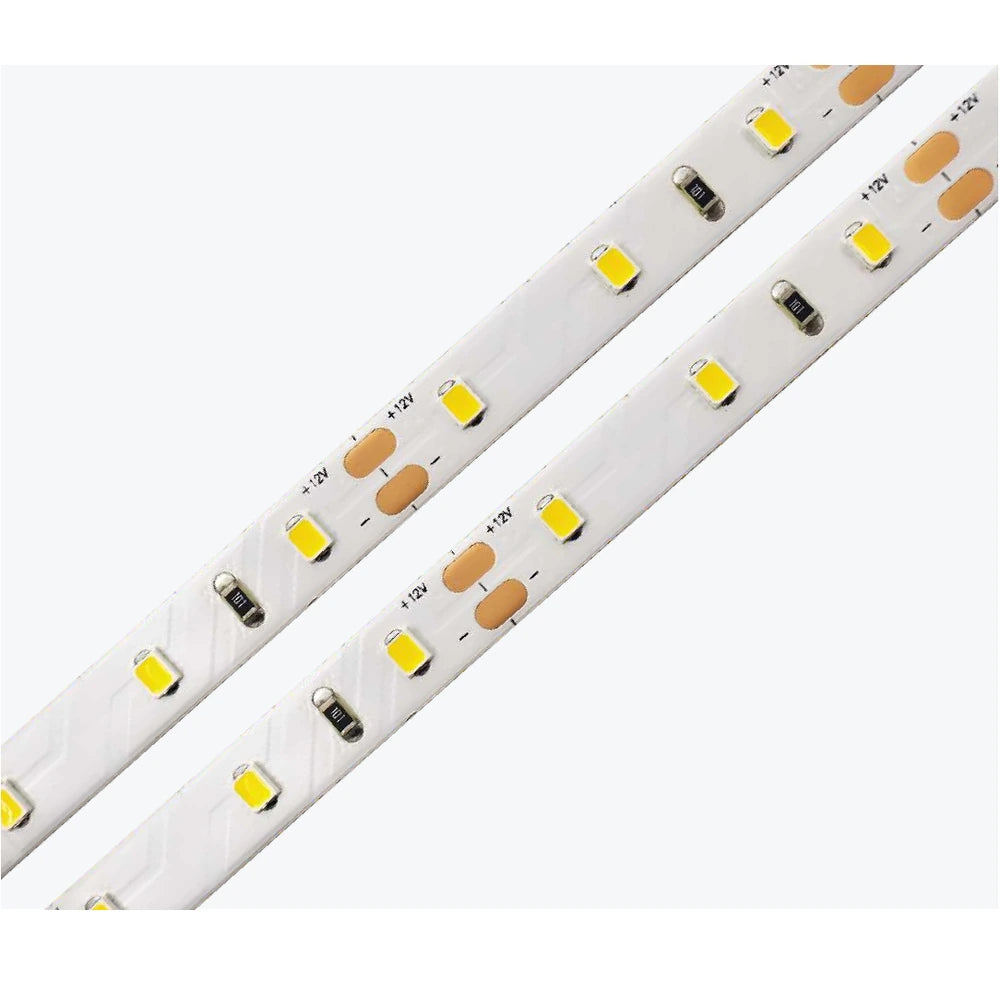

12V White LED Strip Lights – 8mm, 60 LEDs/m, 12V, SMD 2835
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 8mm, 60 LEDs/m white LED strip runs on 12V, the most common low-voltage supply in homes, RVs and furniture, with CRI 90 white light. It uses SMD 2835 LEDs at 4.8W/m (about 660 lm/m), in 2200K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K. Cut points fall every 50mm.
Why Choose These LED Strip Lights?
12V universal compatibility
12V DC constant-voltage input works with virtually any LED driver, transformer, or dimmer on the market.
8mm PCB width
The 8mm board fits standard aluminum channels and surface-mount extrusion profiles.
60 LEDs/m LED density
60 LEDs/m delivers smooth, even white-light coverage for general and accent lighting.
SMD 2835 chip technology
SMD 2835 LEDs provide consistent colour output and long operating life at 12V.
White-light CCT selection
Available from warm 2200K to cool daylight 6500K — choose the CCT for the application.
IP20 or IP67 options
Open PCB for dry interiors; encapsulated option for damp and humid environments.
Certified & compliant
CE, RoHS, CB, UKCA, PSE, and ErP compliance marks for professional projects.
Custom project supply
Custom CCT, length, connector, adhesive, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2835-60-8mm-12V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 60 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC12V |
| Power | 4.8 W/m |
| Luminous Output | 660 lm/m |
| Color Rendering | 90 |
|---|---|
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| LED Spacing | 16.7 mm (0.66 in) |
| Cutting Interval | 50 mm (1.97 in) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points. Pair with a 12V constant-voltage driver rated for the total strip wattage with at least 20% reserve. Add feed points on runs over 5m where voltage drop becomes visible.
What This Strip Works With
| Power supply | 12V DC constant-voltage driver. A full 5m reel uses about 24W (2A), so choose a driver rated at least 30W (20% headroom) |
|---|---|
| Dimming & control | SP631E single-color dimmer (Bluetooth app + remote) or E2 Series (RF / WiFi / Zigbee smart-home control) |
| Max load per controller | 12V: SP631E 3 reels, E2 6 reels. Wire each reel back to the controller separately rather than chaining reels end to end |
| Wall dimmers | A 120V wall dimmer only works through a dimmable driver that matches it (TRIAC/ELV or 0–10V); it cannot dim the strip directly |
| Mounting | Aluminum channel with an inner width of at least 8mm; allow a little extra for the IP67 silicone coating |
Not Compatible With
- 120V AC mains — always power it through a low-voltage DC driver
- 24V drivers — a 12V strip on 24V will overheat and fail
- RGB, RGBW and addressable (SPI) controllers — this is a 2-wire single-color strip and needs a single-color dimmer
- Outdoor or damp locations in the IP20 version — choose the IP67 option, and use a driver rated for the location

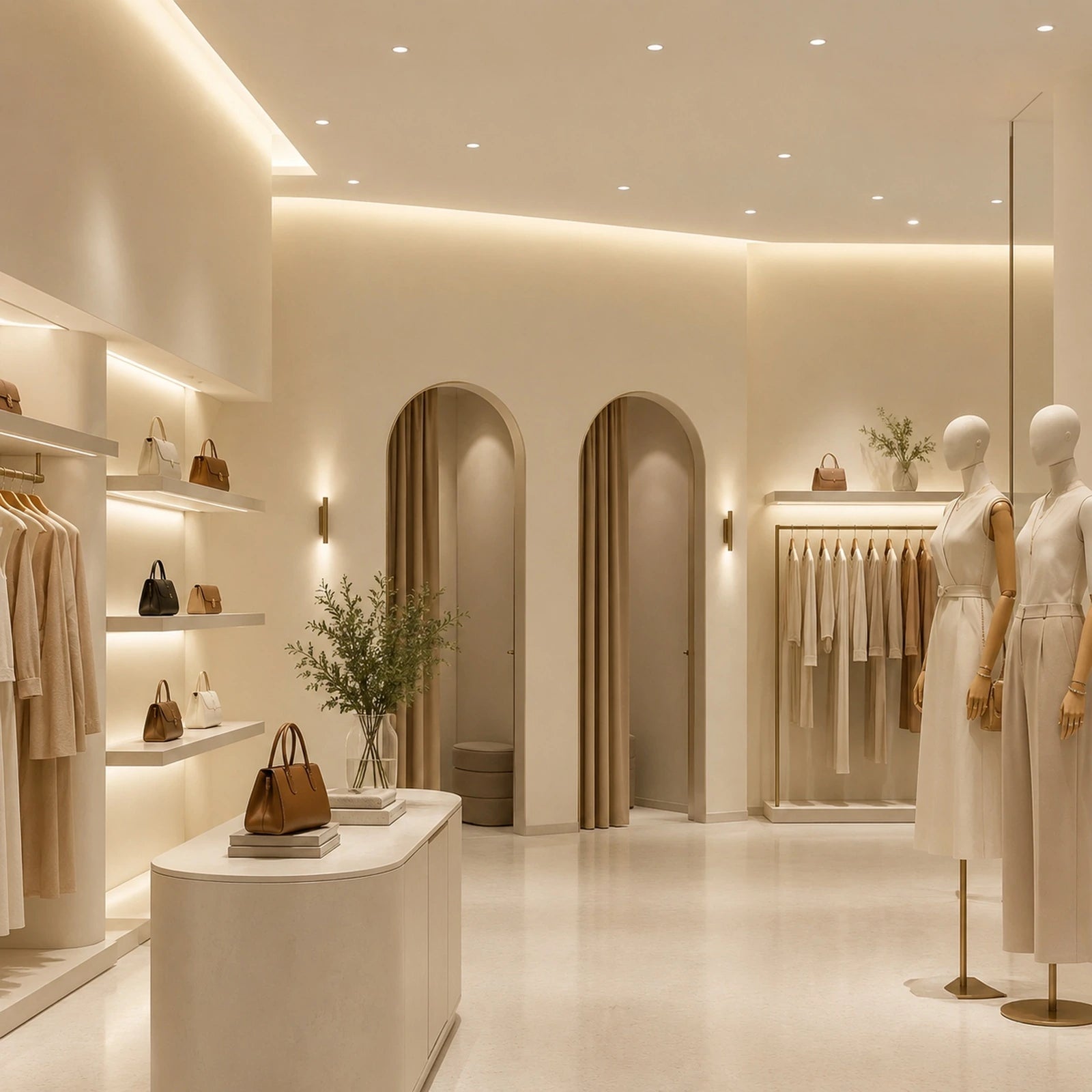

Recommended Applications
- Cabinet, wardrobe, shelving, and furniture lighting in residential interiors
- Under-counter, under-cabinet, and retail display lighting in kitchens and commercial environments
- Architectural accent, cove, and perimeter lighting compatible with 12V DC low-voltage systems
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
