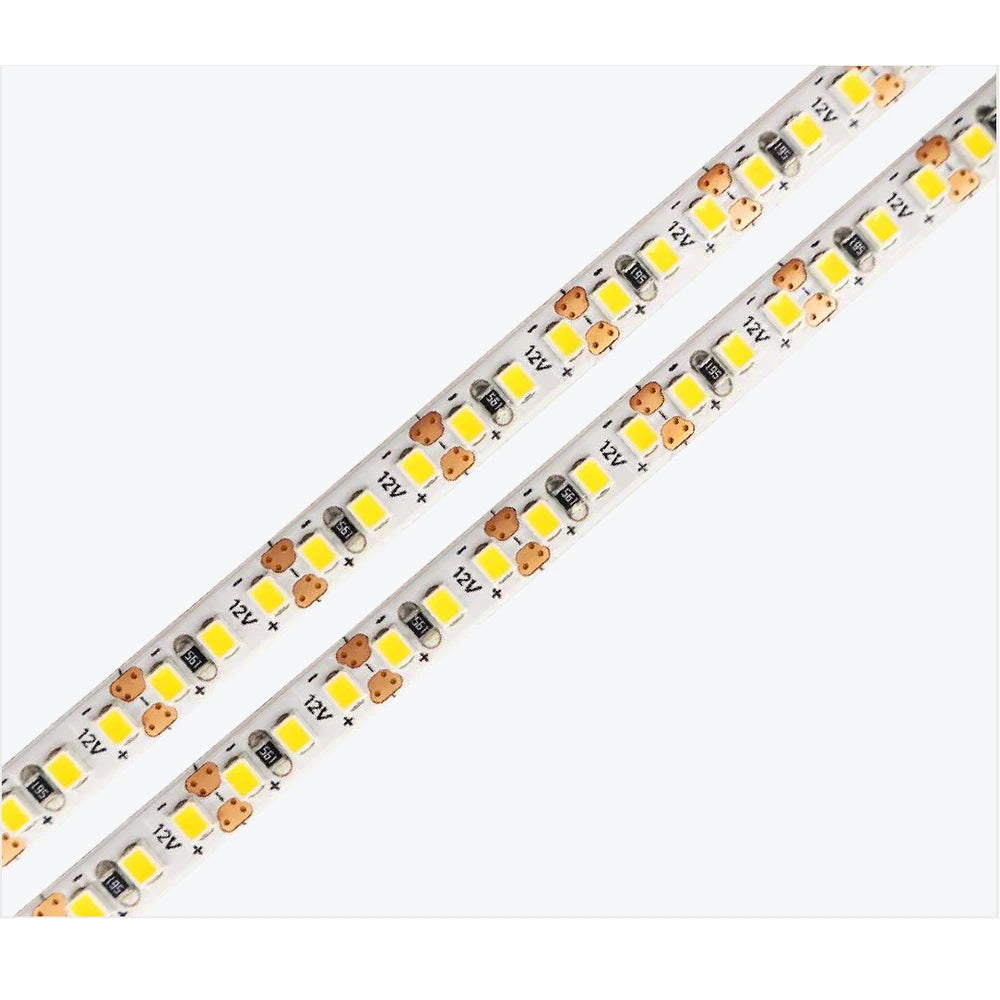

12V White LED Strip Lights – 5mm, 240 LEDs/m, 12V, SMD 2025
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
For kitchens, retail shelves and anywhere color accuracy matters, this 5mm white LED strip delivers high CRI 97 light from 240 LEDs per metre on 12V. It uses SMD 2025 LEDs at 6.5W/m (about 716 lm/m), in 2700K, 3000K, 3500K, 4000K and 6500K.
Why Choose These LED Strip Lights?
12V universal compatibility
12V DC constant-voltage input works with virtually any LED driver, transformer, or dimmer on the market.
5mm PCB width
The 5mm board fits standard aluminum channels and surface-mount extrusion profiles.
240 LEDs/m LED density
240 LEDs/m delivers smooth, even white-light coverage for general and accent lighting.
SMD 2025 chip technology
SMD 2025 LEDs provide consistent colour output and long operating life at 12V.
White-light CCT selection
Available from warm 2700K to cool daylight 6500K — choose the CCT for the application.
IP20 or IP67 options
Open PCB for dry interiors; encapsulated option for damp and humid environments.
Certified & compliant
CE, RoHS, CB, UKCA, PSE, and ErP compliance marks for professional projects.
Custom project supply
Custom CCT, length, connector, adhesive, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2025-240-5mm-12V-WHITE |
|---|---|
| LED Type | SMD 2025 |
| LED Density | 240 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC12V |
| Power | 6.5 W/m |
| Luminous Output | 716 lm/m |
|---|---|
| Color Rendering | 97 |
| Color / CCT | 2700K, 3000K, 3500K, 4000K, 6500K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points. Pair with a 12V constant-voltage driver rated for the total strip wattage with at least 20% reserve. Add feed points on runs over 5m where voltage drop becomes visible.
What This Strip Works With
| Power supply | 12V DC constant-voltage driver. A full 5m reel uses about 32.5W (2.7A), so choose a driver rated at least 40W (20% headroom) |
|---|---|
| Dimming & control | SP631E single-color dimmer (Bluetooth app + remote) or E2 Series (RF / WiFi / Zigbee smart-home control) |
| Max load per controller | 12V: SP631E 2 reels, E2 4 reels. Wire each reel back to the controller separately rather than chaining reels end to end |
| Wall dimmers | A 120V wall dimmer only works through a dimmable driver that matches it (TRIAC/ELV or 0–10V); it cannot dim the strip directly |
| Mounting | Aluminum channel with an inner width of at least 5mm; allow a little extra for the IP67 silicone coating |
Not Compatible With
- 120V AC mains — always power it through a low-voltage DC driver
- 24V drivers — a 12V strip on 24V will overheat and fail
- RGB, RGBW and addressable (SPI) controllers — this is a 2-wire single-color strip and needs a single-color dimmer
- Outdoor or damp locations in the IP20 version — choose the IP67 option, and use a driver rated for the location
Recommended Applications
- Cabinet, wardrobe, shelving, and furniture lighting in residential interiors
- Under-counter, under-cabinet, and retail display lighting in kitchens and commercial environments
- Architectural accent, cove, and perimeter lighting compatible with 12V DC low-voltage systems
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
