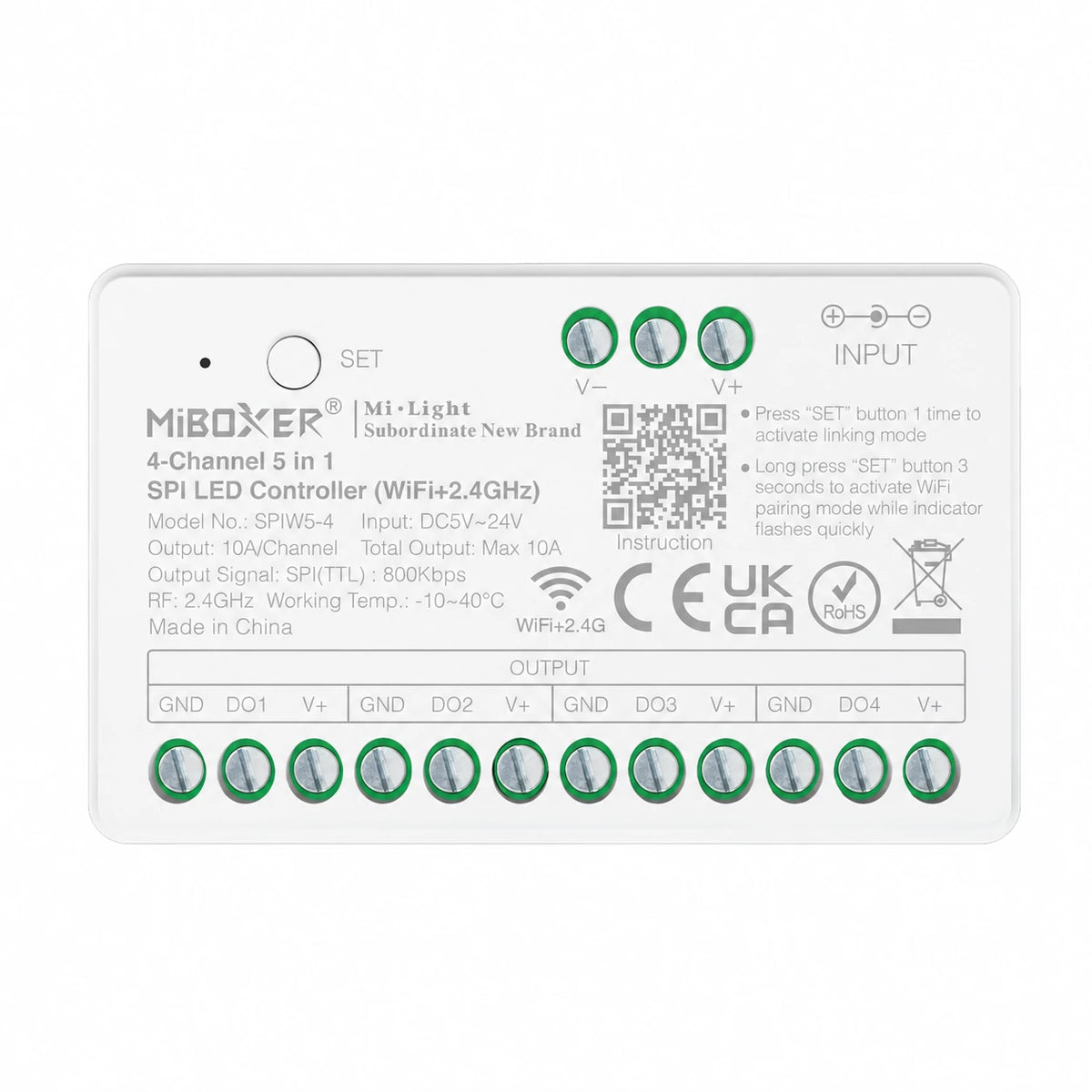

SPIW5-4 four-channel 5-in-1 SPI LED controller, top view

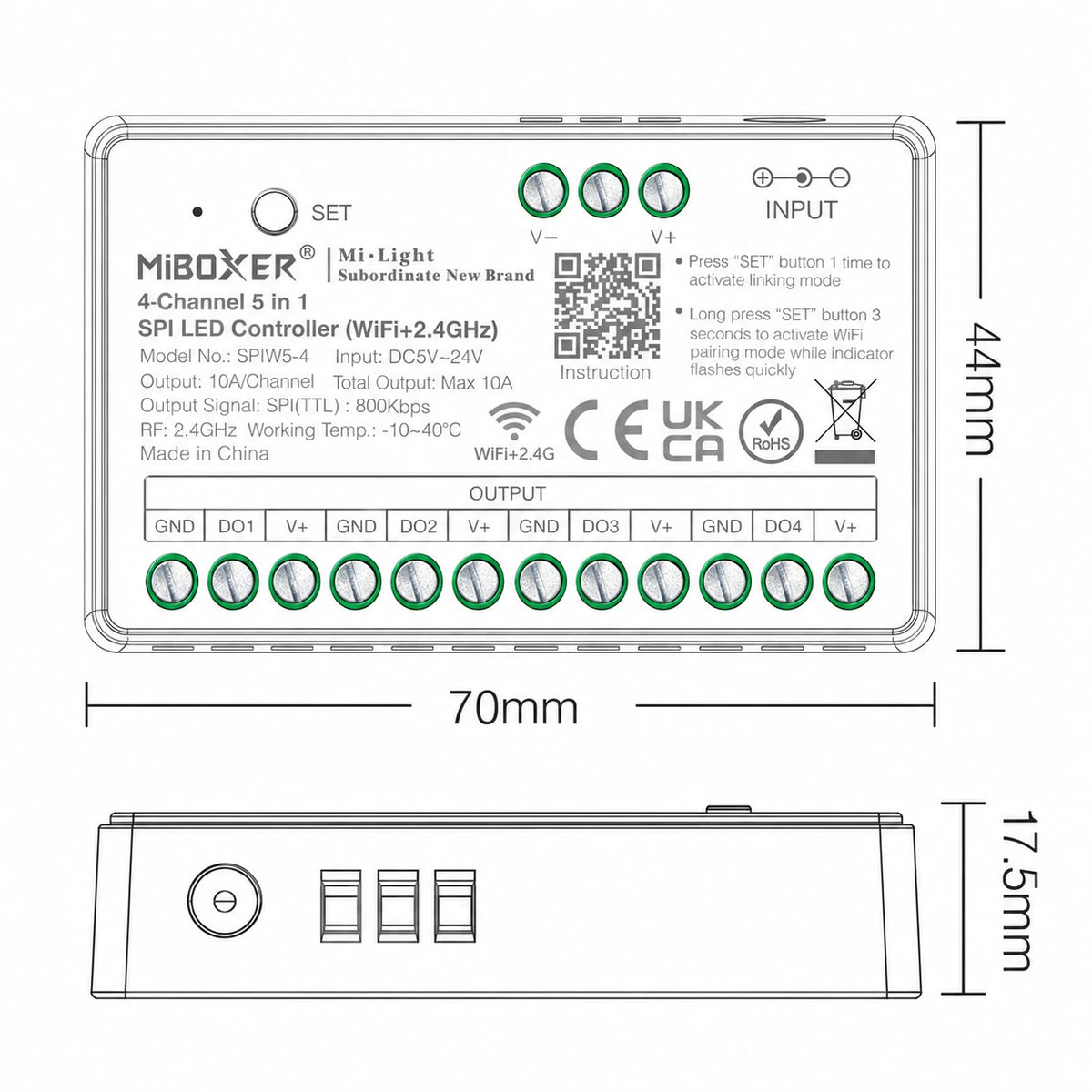

SPIW5-4 four-channel SPI LED controller dimension drawing, 70 mm housing

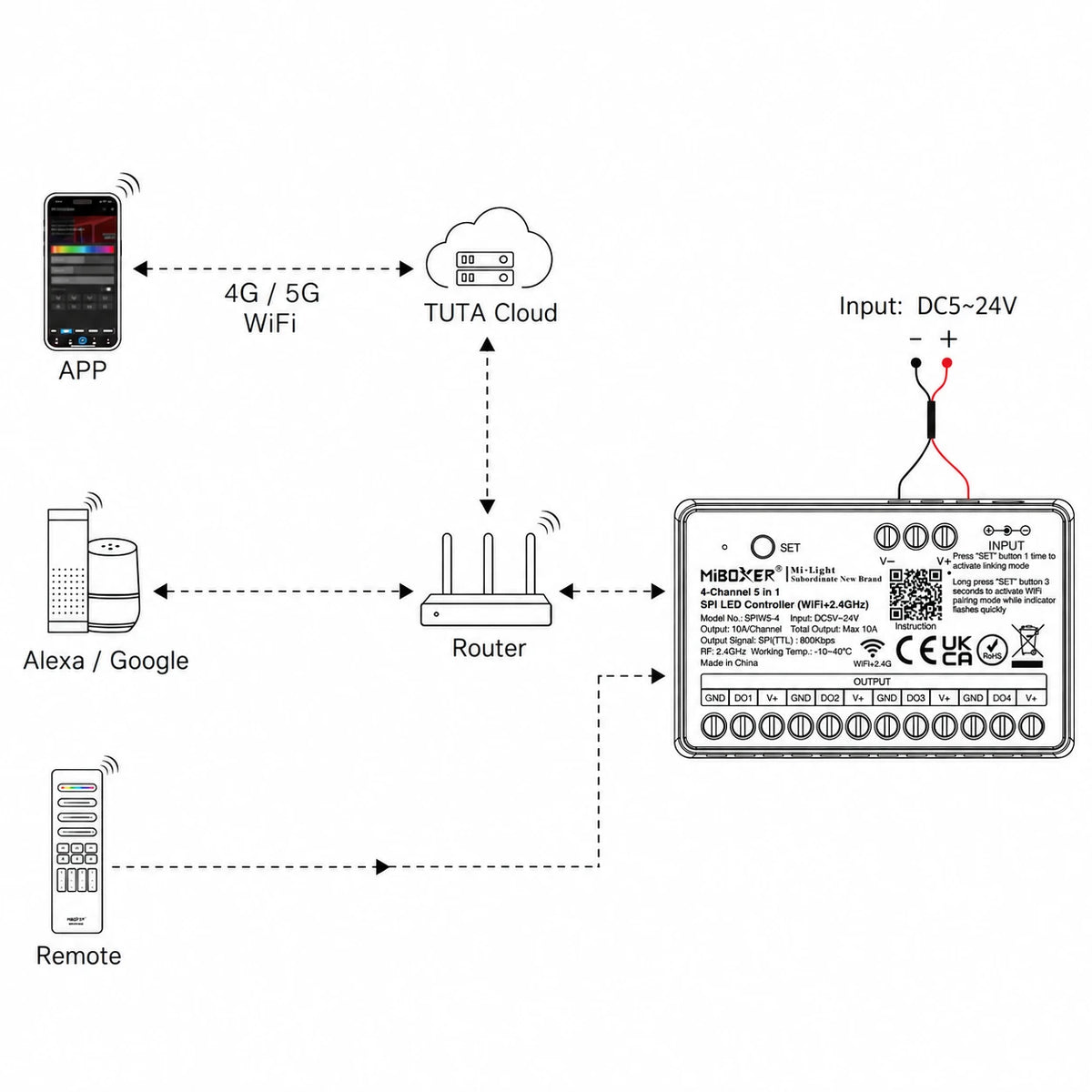

SPIW5-4 WiFi control diagram showing four independent LED strip zones

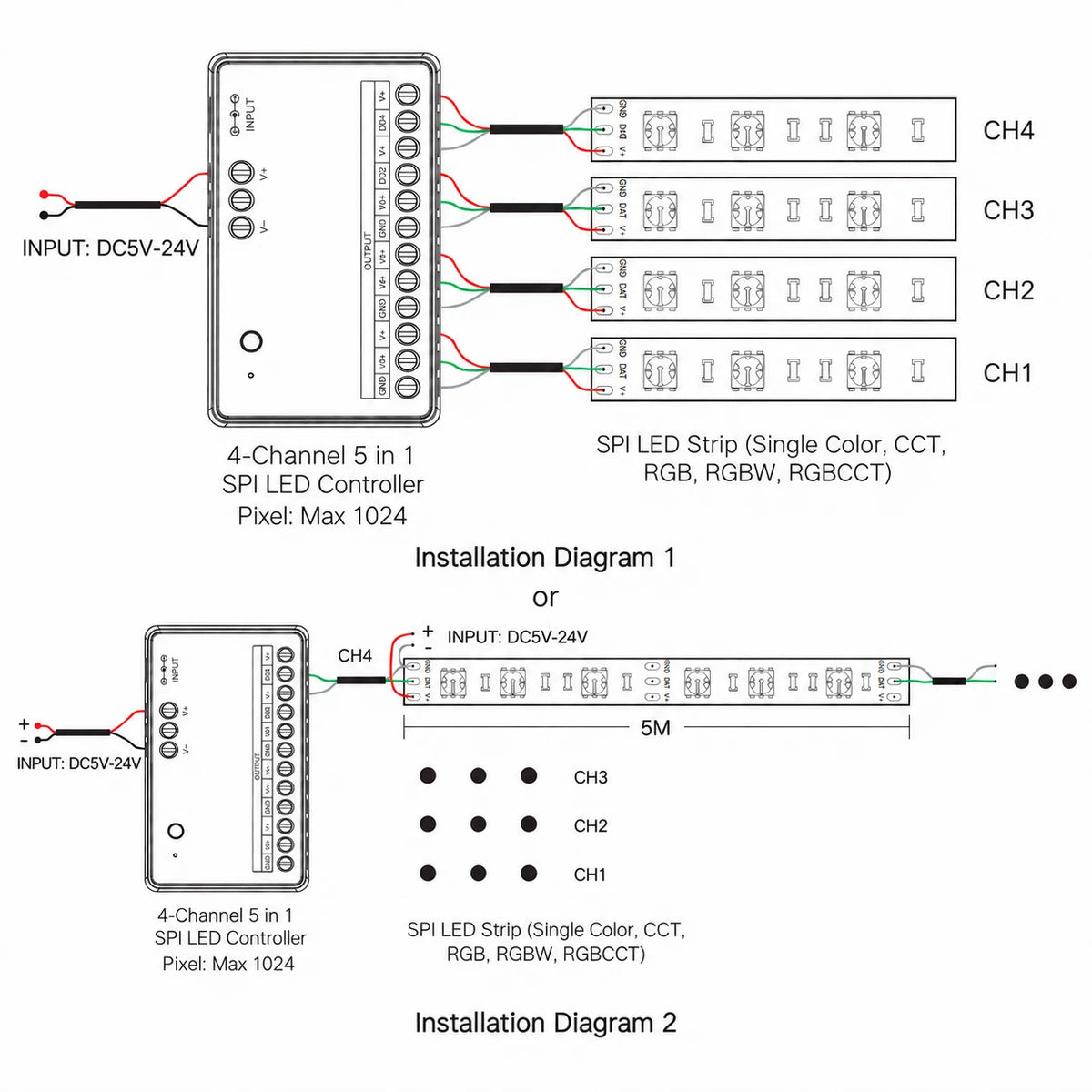

SPIW5-4 installation diagram wiring four addressable LED strip runs

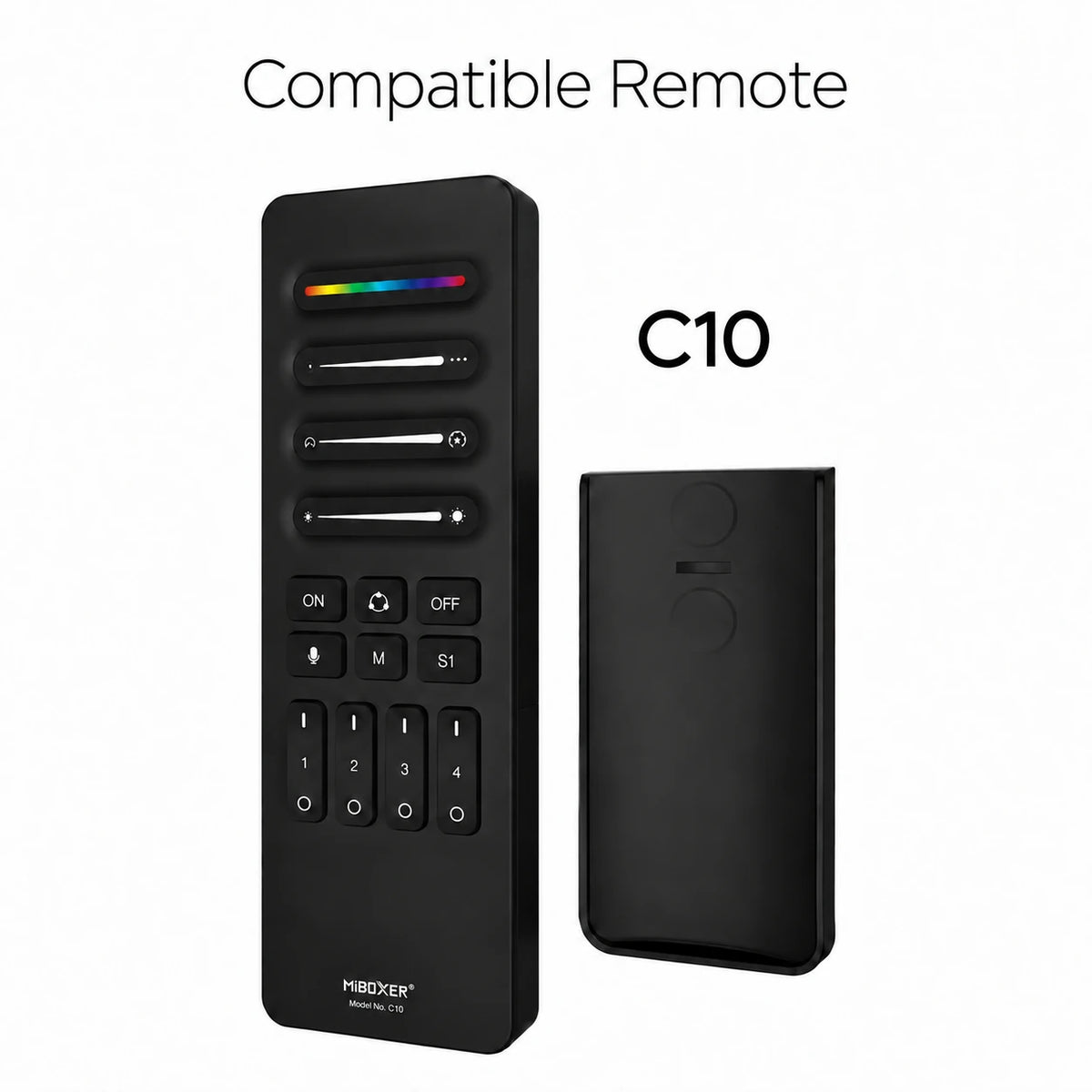

SPIW5-4 shown with the compatible C10 four-channel remote
SPIW5-4 four-channel 5-in-1 SPI LED controller, top view
SPIW5-4 four-channel SPI LED controller dimension drawing, 70 mm housing
SPIW5-4 WiFi control diagram showing four independent LED strip zones
SPIW5-4 installation diagram wiring four addressable LED strip runs
SPIW5-4 shown with the compatible C10 four-channel remote

SPIW5-4 4-Channel 5-in-1 SPI LED Controller, WiFi + 2.4GHz, DC5V-24V

$23.98
Tax included. Shipping calculated at checkout.
Package: Controller Only
  • Free International Shipping over $99
  • Free Returns Within 30 days
Payment & Security
  • PayPal

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
SPIW5-4 four-channel 5-in-1 SPI LED controller, top view

SPIW5-4 4-Channel 5-in-1 SPI LED Controller, WiFi + 2.4GHz, DC5V-24V

$23.98

The SPIW5-4 4-Channel 5-in-1 SPI LED Controller is a WiFi + 2.4GHz RF controller designed for multi-zone SPI LED strip control. It provides 4 independent output channels / 4 zones, supports Tuya Smart App control, and is compatible with Single Color, CCT, RGB, RGBW, and RGBCCT SPI LED strip lights.

Key Features

  • 4-channel / 4-zone control: Independently control up to 4 SPI LED strip zones.
  • 5-in-1 compatibility: Single Color / CCT / RGB / RGBW / RGBCCT SPI LED strip light.
  • WiFi + 2.4GHz RF: Works with Tuya Smart App and compatible 2.4GHz remotes.
  • SPI output: SPI (TTL) 800Kbps, up to 1024 pixels.
  • Dynamic and music modes: Supports 28 white-color modes, 80 colorful modes, and music functions.
  • Adjustable control: Color, pixel dots, speed, static and dynamic mode, brightness, and depth are adjustable.
  • Compatible remote: Works with C10 4-Channel SPI Remote.

Technical Specifications

Model SPIW5-4
Controller Type 4-Channel 5-in-1 SPI LED Controller
Supported Strip Types Single Color / CCT / RGB / RGBW / RGBCCT
Input Voltage DC5V-24V
Output Current Max 10A
Output Signal SPI (TTL) 800Kbps
Pixel Capacity Max 1024 Pixels
Channels / Zones 4 Channels / 4 Zones
Protocol WiFi + 2.4GHz RF
Control Distance RF: 30m
Standby Current 20mA
IP Rating IP20
Working Temperature -10°C to 40°C
Dimensions 70 × 44 × 17.5mm
Certification CE / EMC / LVD / RED
Warranty 5 Years

Compatible ICs

TM1809, TM1804, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, SK6812 (RGBW), WS2813 (RGBW), WS2814 (RGBW)

Package Options

  • Controller Only
  • Controller + C10 4-Channel Remote

Installation Notes

Use a regulated constant-voltage DC power supply matching the connected SPI LED strip. Do not exceed the controller's 10A maximum output current.
