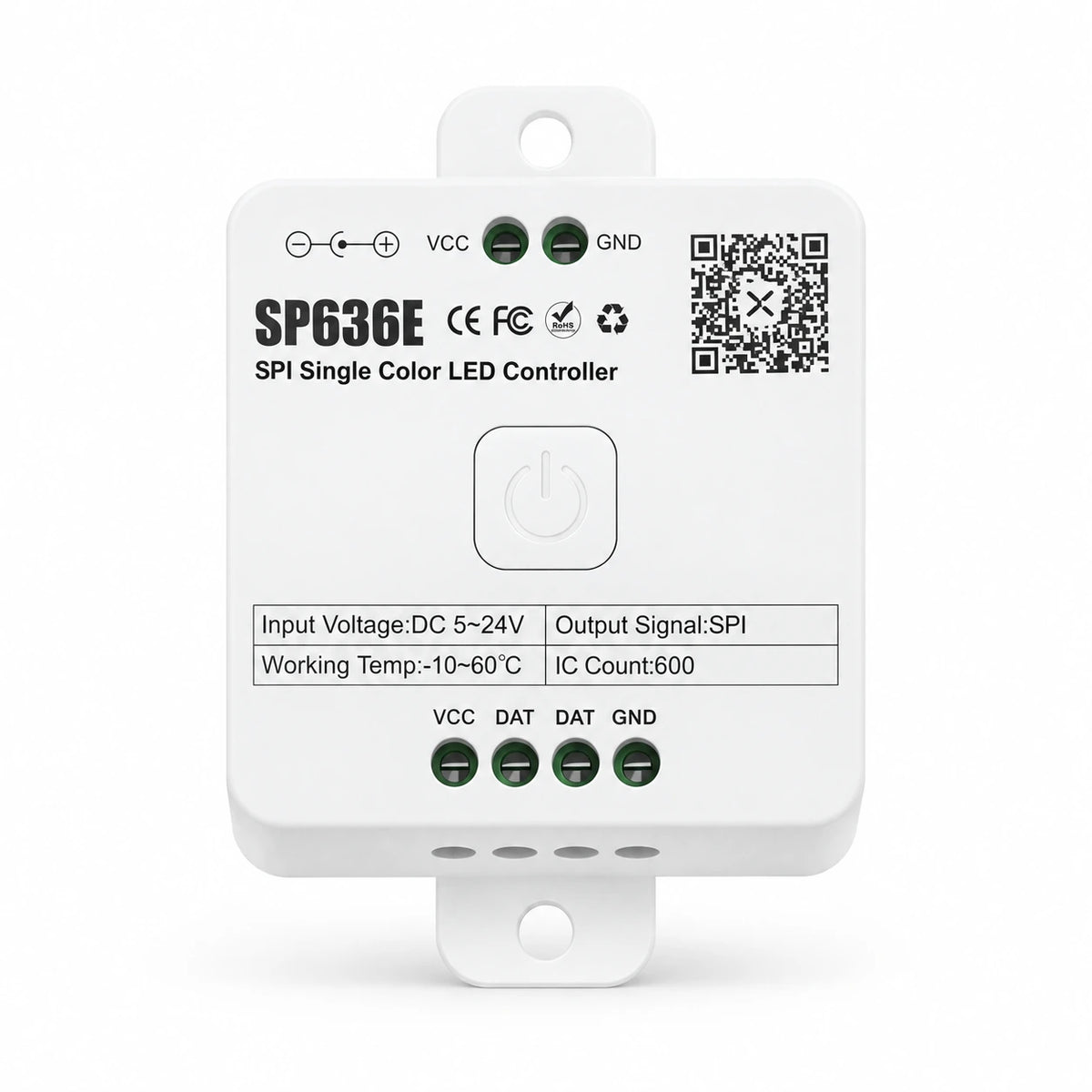

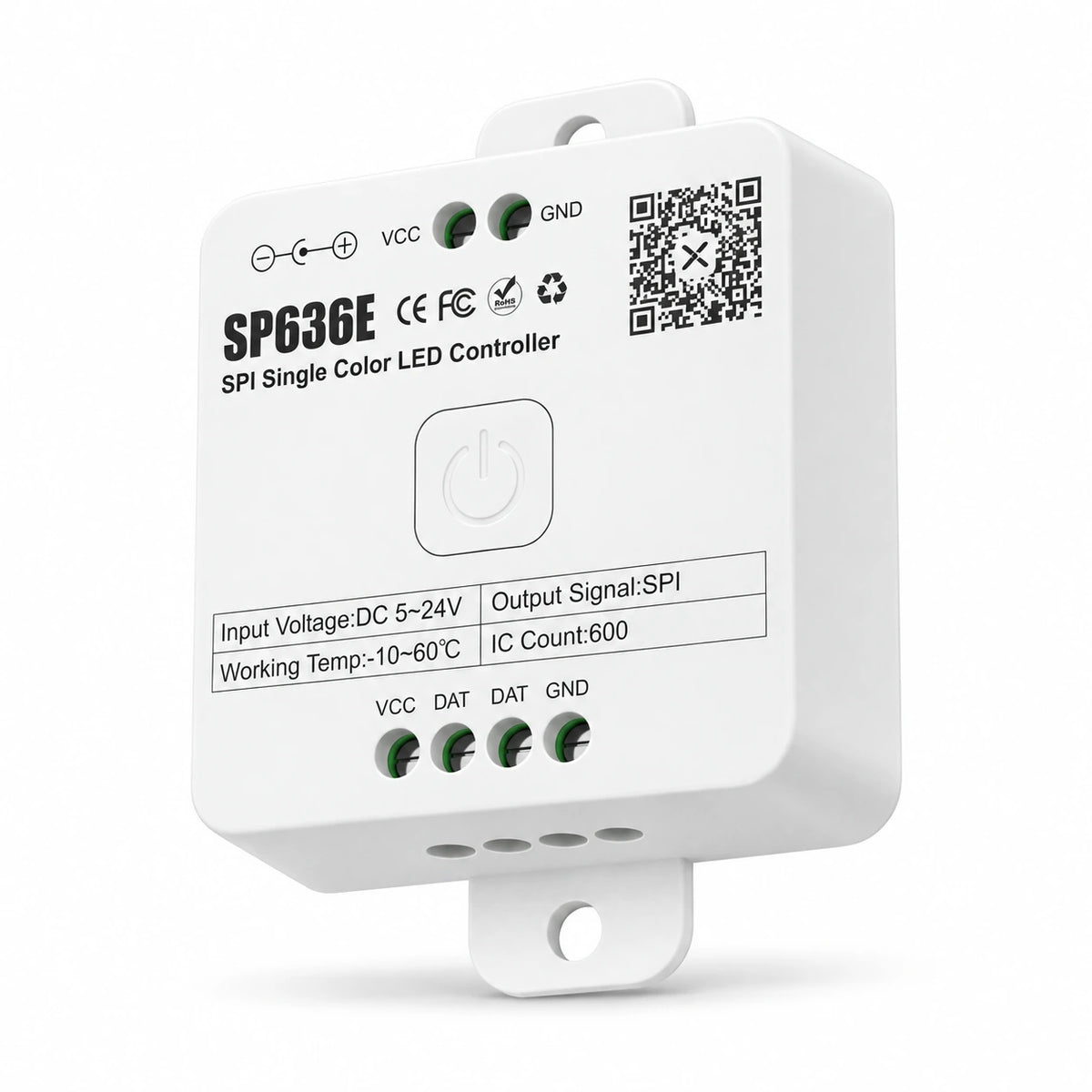

Addressable Single Color LED Strip Controller, SPI 5-24V, Bluetooth App – SP636E
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
The SP636E is a Bluetooth SPI controller for addressable single color LED strip on DC 5-24V. Unlike a plain dimmer, it addresses each segment individually — so a white or warm-white pixel run can chase, ripple and react to music instead of only fading up and down together.
What This Controller Works With
- Addressable single color strip using single-wire (RZ-coded) driver ICs, wired VCC / DAT / GND
- White and warm-white pixel tape, including SPI FCOB dim strip, at 5V, 12V or 24V
- Up to 1800 channels of single-wire driver ICs on one controller
Not compatible with: Plain 2-pin single color tape with no IC (use the SP631E instead) and clock-based two-wire ICs such as WS2801, APA102 and SK9822, which this controller does not drive.
Key Features
- SPI addressable single color control — segment-by-segment, not whole-strip
- Built-in pure-white dynamic and music-reactive effects with adjustable parameters
- Effect collection for saved scenes
- Three music capture modes: phone microphone, player streaming, or the onboard microphone
- Multiple ON/OFF animations plus ON/OFF timers
- OTA firmware updates

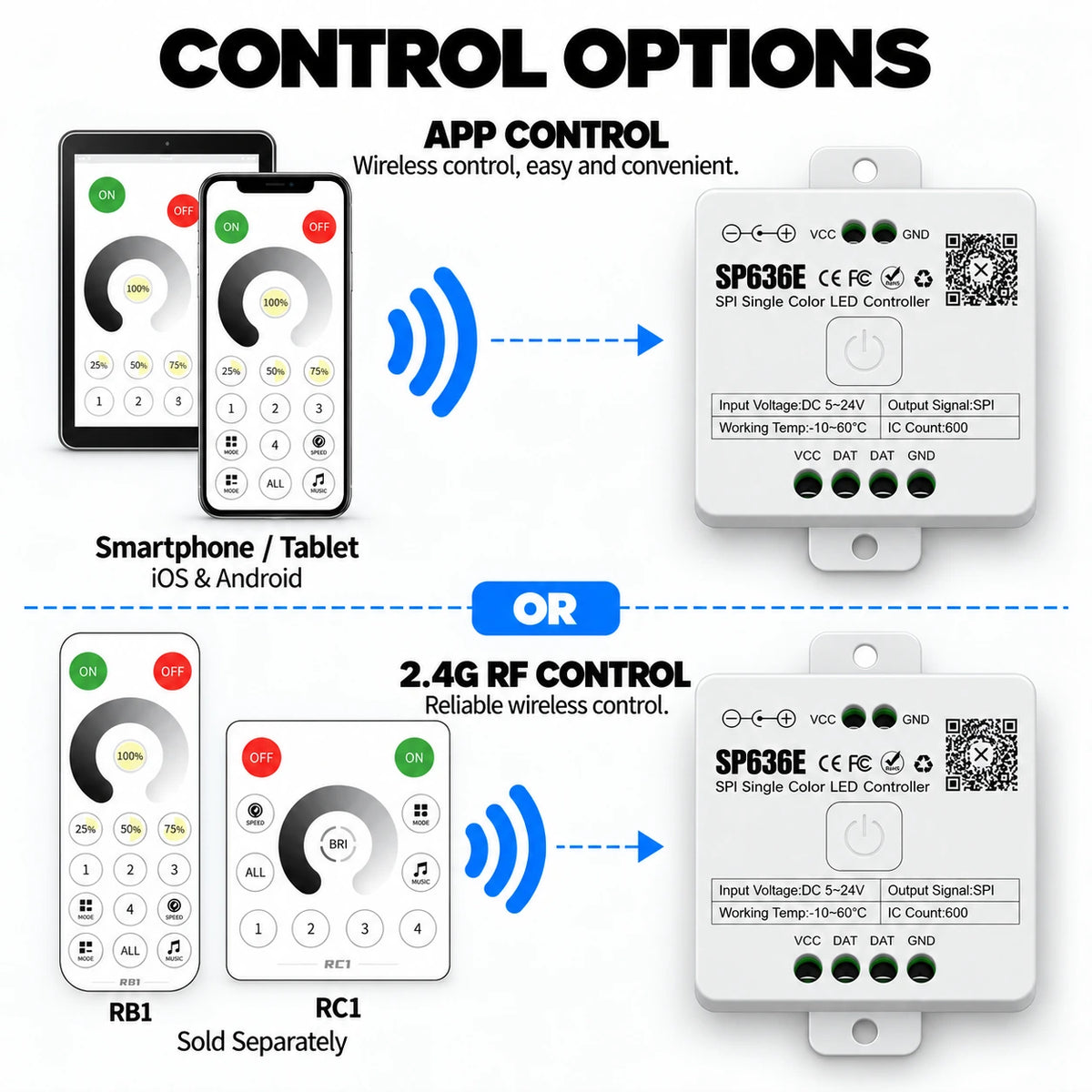

App and Remote Control
BanlanX Bluetooth App
BanlanX connects over Bluetooth with no WiFi or hub. Set the pixel count to match your run, then tune effect speed, direction and brightness from the app.
Optional 2.4G Touch Remote and Wall Panel
SP636E also pairs with the optional RB1 / RC1 2.4G touch remote and 86-type wall panel (sold separately). One remote can drive several controllers, each controller binds up to 5 remotes, and the system supports unified ALL control or 4-zone control.
Wiring and Installation

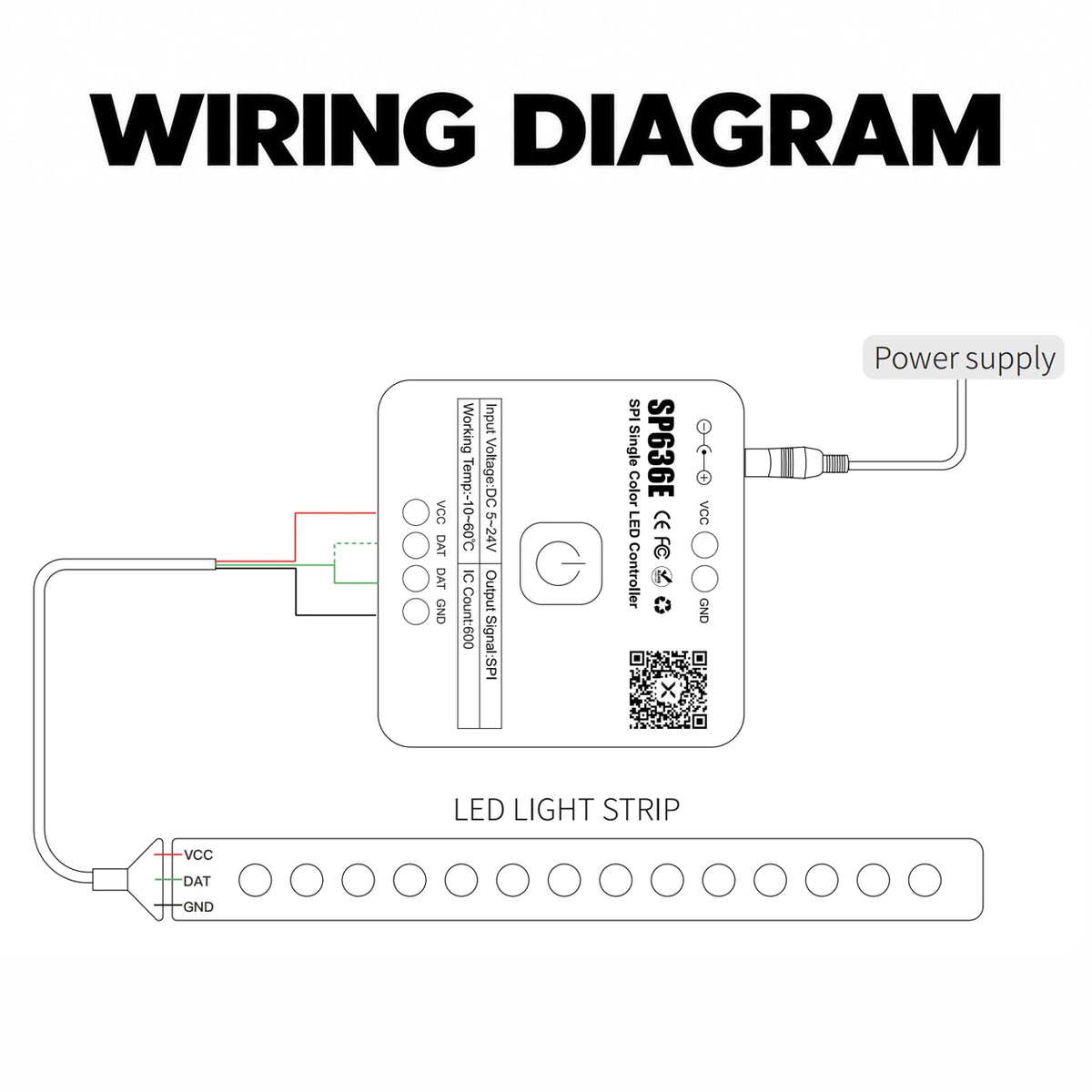

Feed a regulated DC 5-24V supply into the controller input, then wire the strip to the VCC / DAT / GND output terminals as shown on the wiring diagram. Data is directional — wire DAT to the arrow-in end of the strip, or nothing downstream will light.
- Match the supply voltage to the strip: a 24V strip on a 12V supply will look dim, and the reverse will damage it.
- Keep total load inside the controller rating, and add a second supply or a power repeater on long runs.
- Mount the controller somewhere ventilated and dry — the housing is IP20 and not for outdoor or damp use.
Technical Specifications
| Model | SP636E |
| Controller Type | SPI Single Color LED Controller |
| Compatible Lighting | Addressable single color SPI strip (single-wire RZ driver ICs) |
| Connection | Bluetooth LE 5.0 + optional 2.4G RF remote (no WiFi) |
| Working Voltage | DC 5-24V |
| Addressable Capacity | Up to 1800 channels of single-wire driver ICs |
| Working Current | 1mA-10mA |
| Working Temperature | -10°C to 60°C |
| Output Terminals | VCC / DAT / GND |
| Compatible Remotes | RB1 / RC1 (sold separately) |
| App | BanlanX (iOS 10.0+ / Android 4.4+) |
| Certifications | FCC ID 2ATV8SP63XE · CE (RED 2014/53/EU) · RoHS |
| IP Rating | IP20 — indoor, dry locations |

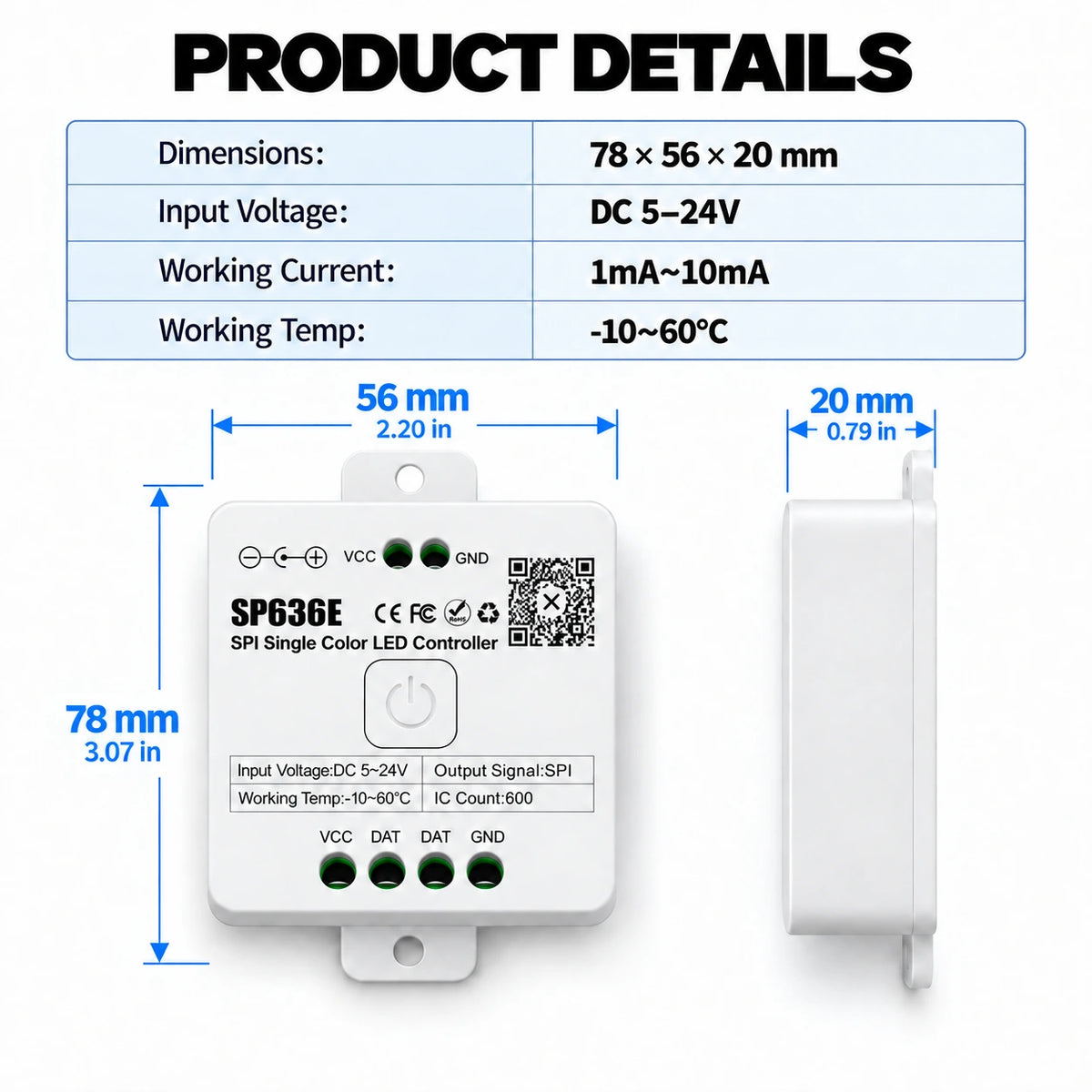

| Dimensions | 78 × 56 × 20 mm (3.07 × 2.20 × 0.79 in) |
Not Sure Which Model You Need?
The quickest check is to count the pads on the end of your strip and look for a chip marking. Two pads means single color, three means tunable white, four means RGB, five means RGBW and six means RGBCCT. A marking such as WS2812B, WS2811, SK6812 or WS2805 means the strip is addressable and needs an SPI model.
- Pick the SP631E Single Color Dimmer Controller if your white strip has no IC and only 2 pins.
- Pick the SP638E Addressable RGB Controller if your addressable strip is RGB.
- Pick the SP637E Addressable CCT Controller if your addressable strip is tunable white.
- Pick the SP630E All-in-One LED Strip Controller if you want one controller that covers every strip type.
Certifications and Support
Certified for the US and EU market: FCC ID 2ATV8SP63XE (Part 15C, 2402-2480 MHz), CE under the Radio Equipment Directive 2014/53/EU (EN 300 328, EN 301 489, EN 62368-1, EN 62479), and RoHS to 2011/65/EU with amendment (EU) 2015/863. The CE and RoHS attestations cover all thirteen SP63xE models. Copies of the certificates are available on request.
Each unit ships with a printed manual and the BanlanX QR code. If you want the wiring checked against a specific strip before you order, send us the strip spec and we will confirm the match.
