The SP635E is a Bluetooth RGBCCT LED strip controller for 6-pin 5-in-1 tape on DC 5-24V. Five PWM channels give you full RGB color and a separate warm-to-cool white mix on a single run — the usual pick for a cove or ceiling that has to work as both accent lighting and real room light.
What This Controller Works With
- RGBCCT / RGB+CCT LED strips with 6 pins (V+, R, G, B, WW, CW) at 5V, 12V or 24V
- 5-in-1 5050 tape and RGBCCT FCOB / COB strip
- Five PWM channels at 6A each, 12A total (up to 288W at 24V, 144W at 12V)
Not compatible with: 4-pin RGB and 5-pin RGBW tape (use the SP633E or SP634E) and addressable RGBCCT strip carrying a WS2805 style IC (use the SP63AE).
Key Features
- 5CH PWM RGBCCT control: RGB color and CCT white adjusted independently
- Dynamic, music-reactive and DIY effects across the RGB and CCT channels
- Effect collection for saved scenes
- Three music capture modes: phone microphone, player streaming, or the onboard microphone
- Sequential channel calibration and ON/OFF timers
- OTA firmware updates

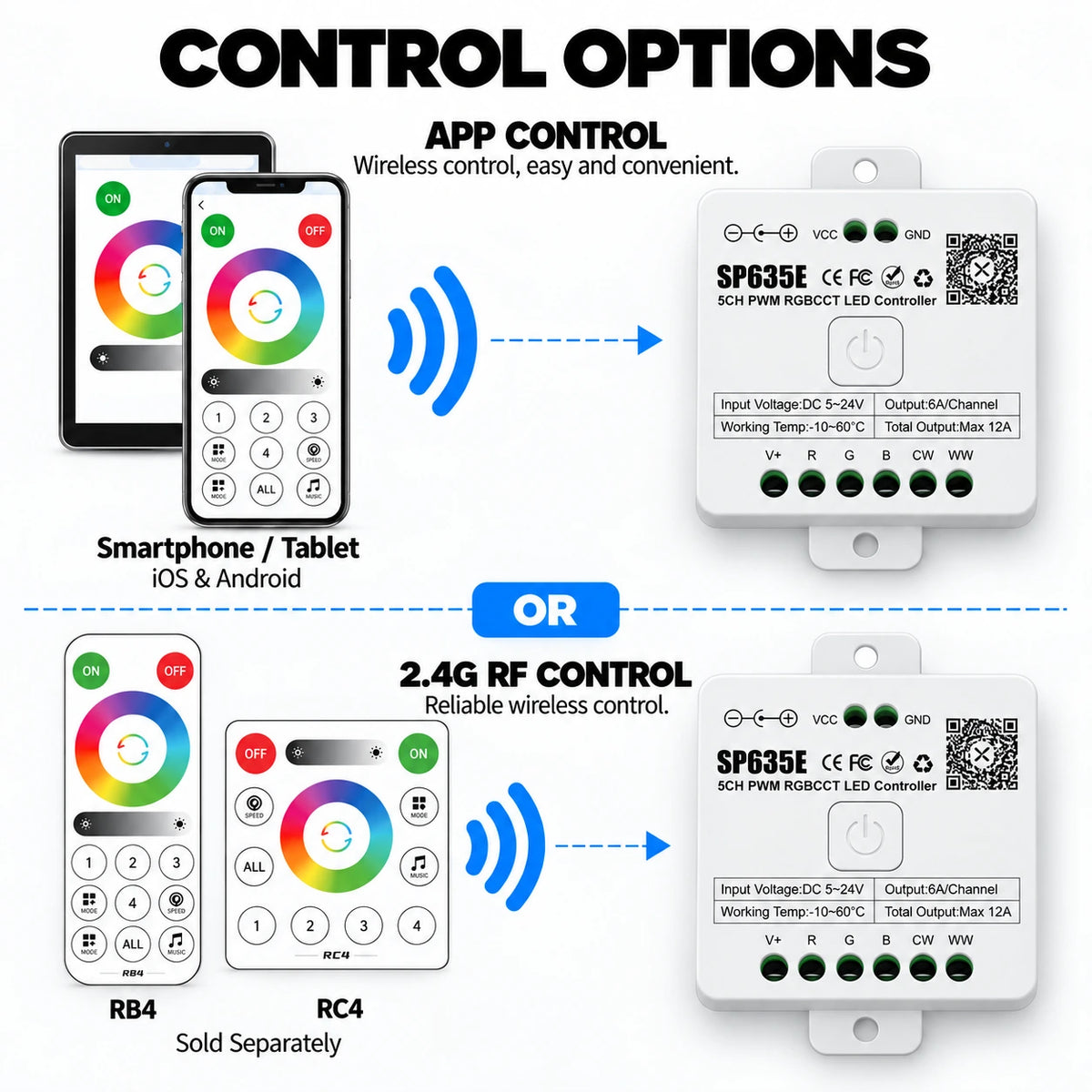

App and Remote Control
BanlanX Bluetooth App
BanlanX pairs over Bluetooth with no WiFi or hub. Because color and white are separate channels, you can keep a 3000K white scene for daily use and a color scene for evenings without rewiring anything.
Optional 2.4G Touch Remote and Wall Panel
SP635E also pairs with the optional RB4 / RC4 2.4G touch remote and 86-type wall panel (sold separately). One remote can drive several controllers, each controller binds up to 5 remotes, and the system supports unified ALL control or 4-zone control.
Wiring and Installation

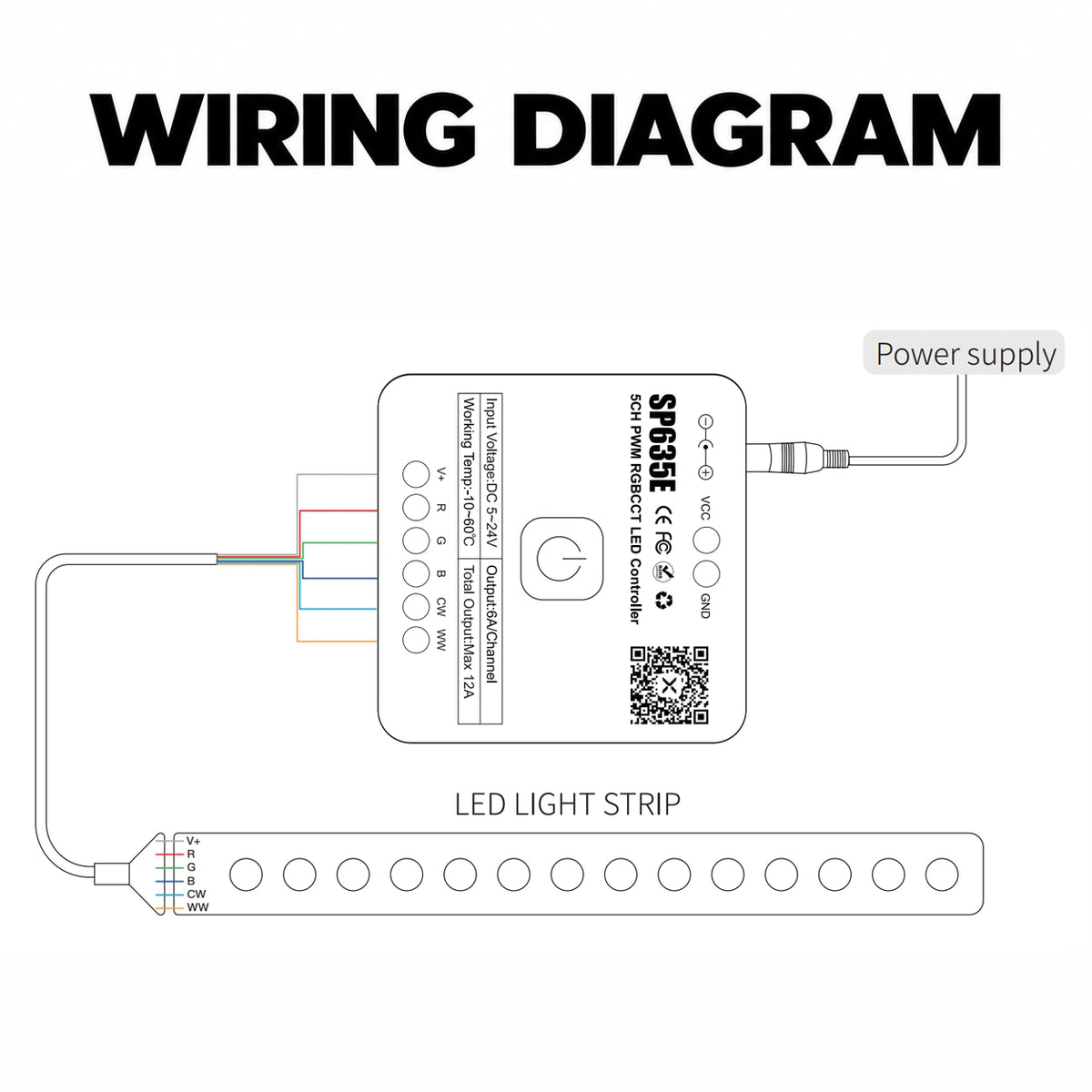

Feed a regulated DC 5-24V supply into the controller input, then wire the strip to the V+ / R / G / B / WW / CW output terminals as shown on the wiring diagram. Six-pin tape is easy to misread — check the printed pad labels on the strip before you tighten the terminals.
- Match the supply voltage to the strip: a 24V strip on a 12V supply will look dim, and the reverse will damage it.
- Keep total load inside the controller rating, and add a second supply or a power repeater on long runs.
- Mount the controller somewhere ventilated and dry — the housing is IP20 and not for outdoor or damp use.
Technical Specifications
| Model | SP635E |
| Controller Type | 5CH PWM RGBCCT LED Controller |
| Compatible Lighting | 6-pin RGBCCT (5-in-1) PWM LED strips |
| Connection | Bluetooth LE 5.0 + optional 2.4G RF remote (no WiFi) |
| Working Voltage | DC 5-24V |
| Single-Channel Max Output Current | 6A |
| Total Max Output Current | 12A |
| Max Load Power | 288W at 24V / 144W at 12V |
| Working Current | 1mA-10mA |
| Working Temperature | -10°C to 60°C |

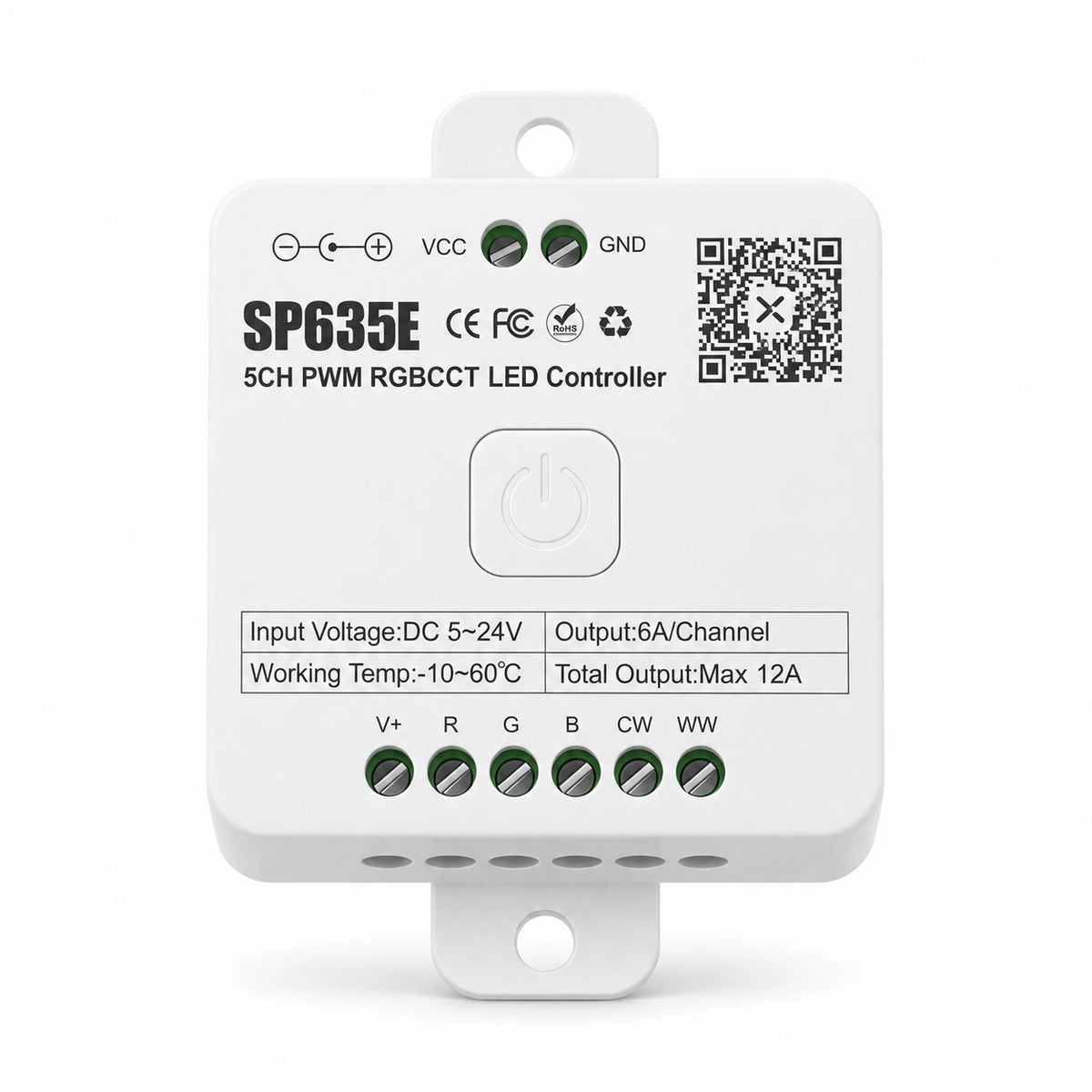

| Output Terminals | V+ / R / G / B / WW / CW |
| Compatible Remotes | RB4 / RC4 (sold separately) |
| App | BanlanX (iOS 10.0+ / Android 4.4+) |
| Certifications | FCC ID 2ATV8SP63XE · CE (RED 2014/53/EU) · RoHS |
| IP Rating | IP20 — indoor, dry locations |

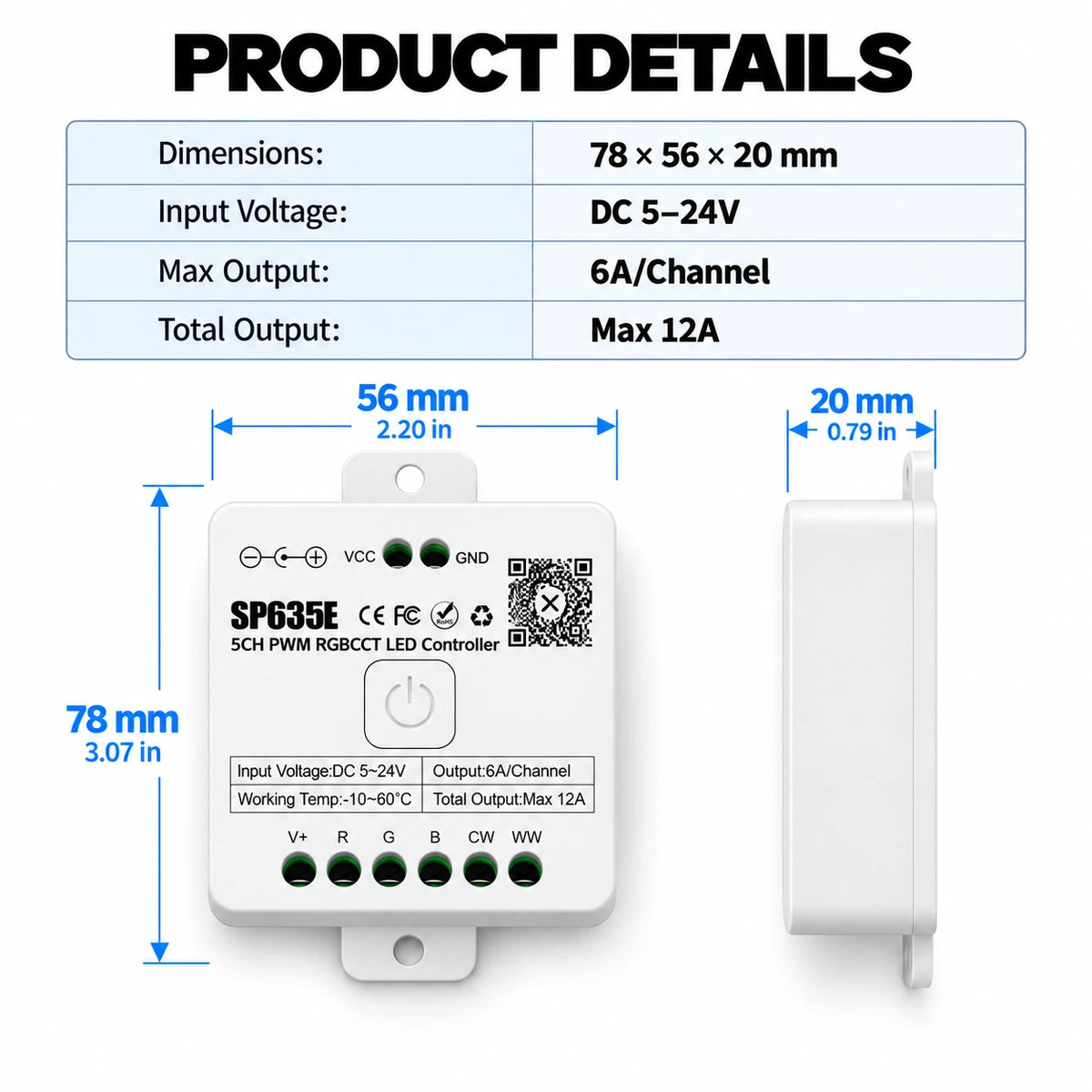

| Dimensions | 78 × 56 × 20 mm (3.07 × 2.20 × 0.79 in) |
Not Sure Which Model You Need?
The quickest check is to count the pads on the end of your strip and look for a chip marking. Two pads means single color, three means tunable white, four means RGB, five means RGBW and six means RGBCCT. A marking such as WS2812B, WS2811, SK6812 or WS2805 means the strip is addressable and needs an SPI model.
- Pick the SP634E RGBW LED Strip Controller if your strip has 5 pins (RGB plus one white).
- Pick the SP632E CCT / Tunable White Controller if your strip is tunable white only.
- Pick the SP63AE Addressable RGBCCT Controller if your RGBCCT strip is addressable.
- Pick the SP630E All-in-One LED Strip Controller if you want one controller that covers every strip type.
Certifications and Support
Certified for the US and EU market: FCC ID 2ATV8SP63XE (Part 15C, 2402-2480 MHz), CE under the Radio Equipment Directive 2014/53/EU (EN 300 328, EN 301 489, EN 62368-1, EN 62479), and RoHS to 2011/65/EU with amendment (EU) 2015/863. The CE and RoHS attestations cover all thirteen SP63xE models. Copies of the certificates are available on request.
Each unit ships with a printed manual and the BanlanX QR code. If you want the wiring checked against a specific strip before you order, send us the strip spec and we will confirm the match.
