6mm S-Shaped SMD 2835 Single Color LED Strip Light, 120 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

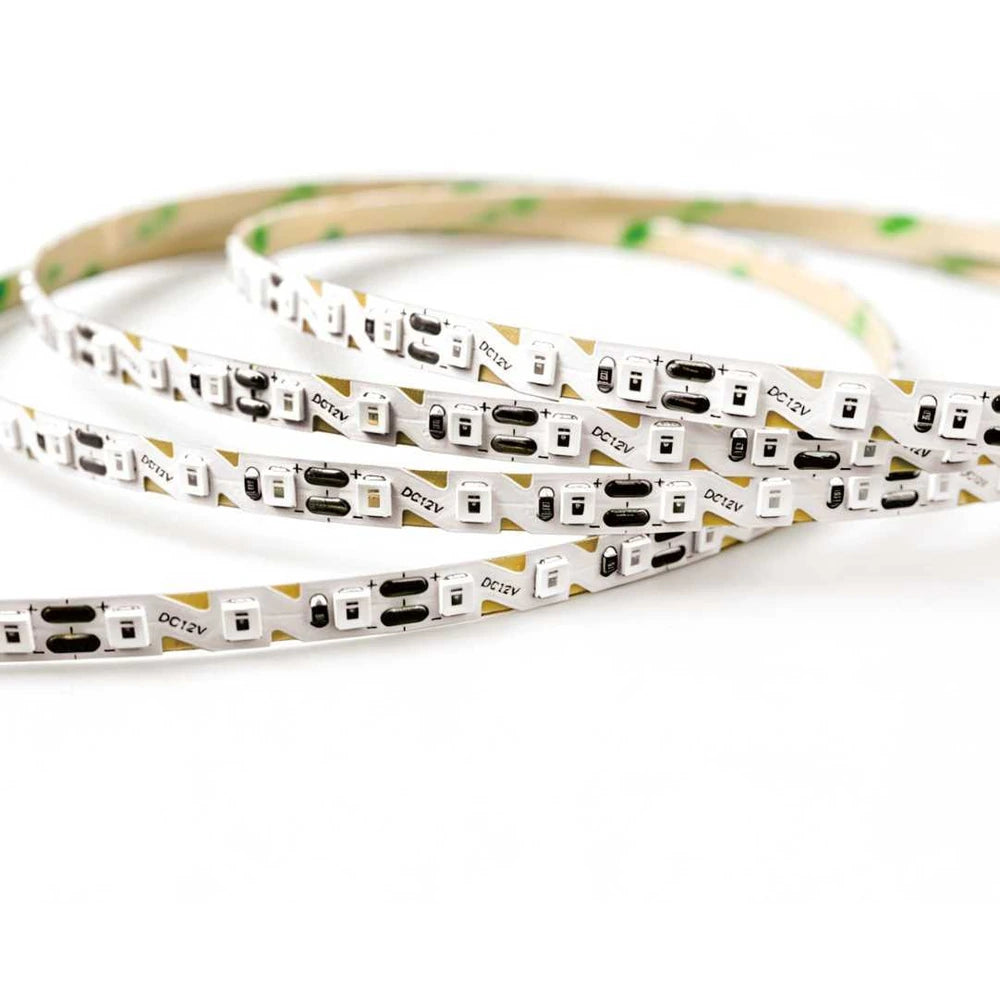

This 6mm S-shaped SMD 2835 single-color LED strip uses 120 LEDs/m on a 12V flexible PCB. Its serpentine S-shaped board is designed for lateral bending and curved layouts, making it suitable for signs, lettering, display contours, cabinets, and other installations where a standard straight PCB cannot follow the required shape.
Why Choose These LED Strip Lights?

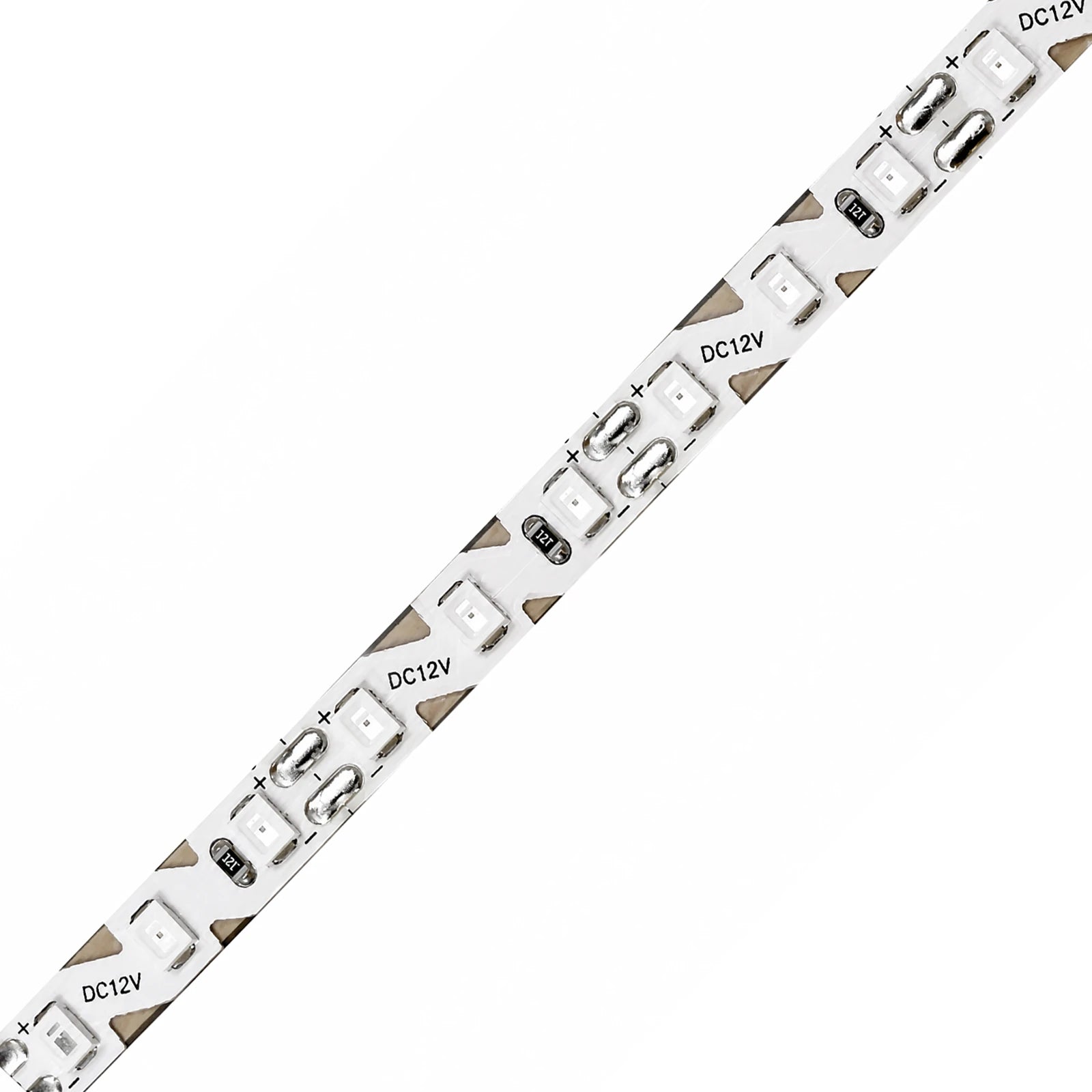

- S-shaped bendable PCB: Flexible serpentine construction follows curves and irregular outlines more easily than a standard straight strip.
- 6mm PCB width: The 6mm board fits standard aluminum channels and surface-mount profiles.
- 120 LEDs/m LED density: 120 LEDs/m delivers even, consistent colour across the full strip length without visible hot spots.
- 12V constant-voltage input: Standard 12V DC operation — compatible with common low-voltage drivers and PWM dimmers.
- Color options: Red, Blue, Green, Amber, Pink, Purple, White: Select the required colour at order — all colour variants share the same electrical and mechanical specifications.
- IP20 or IP67 options: Open PCB for dry locations; encapsulated construction for damp or humid environments.
- Certified & compliant: UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial applications.
- Custom project supply: Custom colour, length, connector, adhesive backing, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2835-120-6mm-12V-COLOR |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 6mm |
| Structure | S-Shaped / Bendable |
| Input Voltage | DC12V |
| Power | Up to 8.7W/m |
| Luminous Output | 810 lm/m |
| Color Rendering | 80 |
| Light Color Options | 3000K, 4000K, 6500K, Red, Green, Blue |
| LED Pitch | 8.3mm |
| Cutting Interval | 25mm / 0.98in, 3 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points (25mm / 0.98in, 3 LEDs per cut). Observe polarity — single-colour strips will not illuminate if connected in reverse. Use a 12V constant-voltage driver with PWM output for dimming. Size the driver with at least 20% reserve capacity.

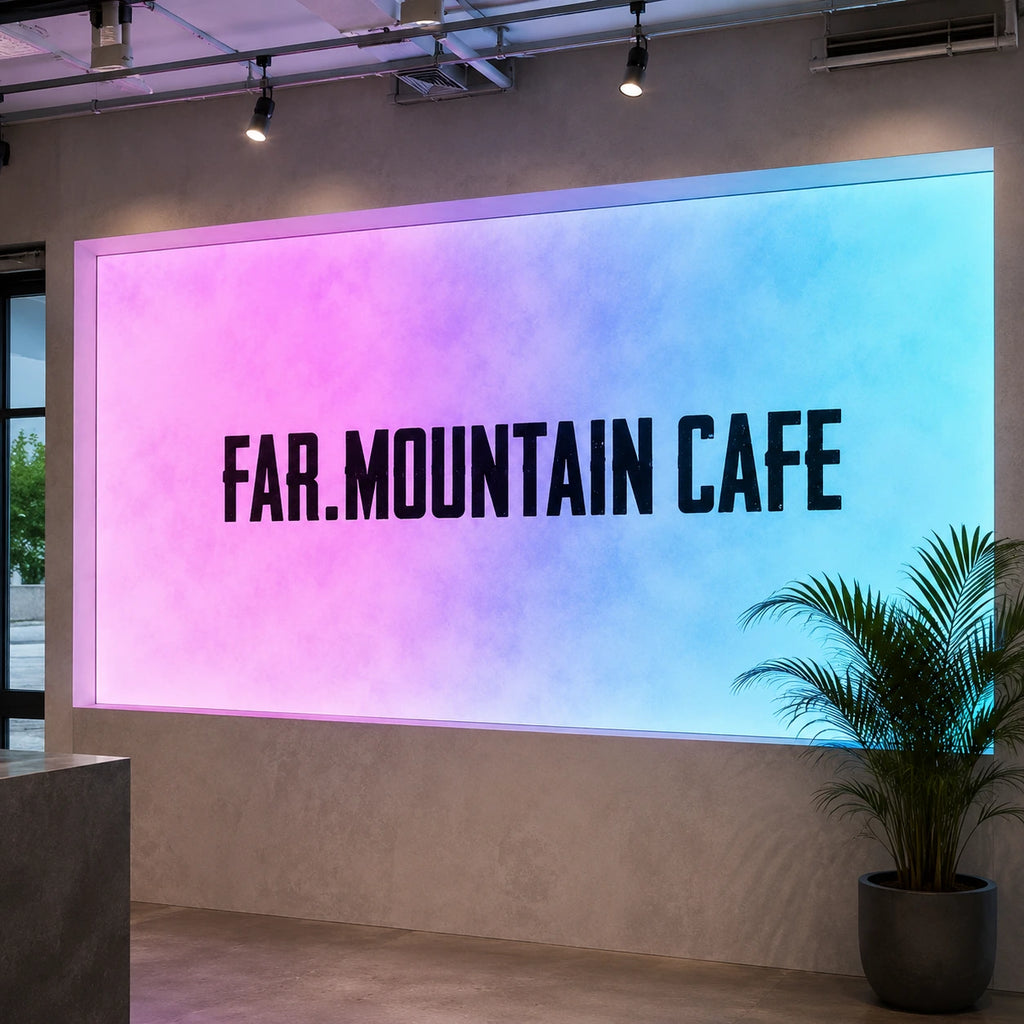

Recommended Applications
- Decorative accent lighting, feature walls, and colour-themed retail or hospitality environments
- Red or blue single-colour applications in photography, horticulture, and specialty display lighting
- Residential colour accent lighting in media rooms, bedrooms, and entertainment spaces
Purchase Options and Customization
Select the required light color (3000K, 4000K, 6500K, Red, Green, Blue) and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom length, color, power, adhesive backing, cable, connector, and packaging for project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
