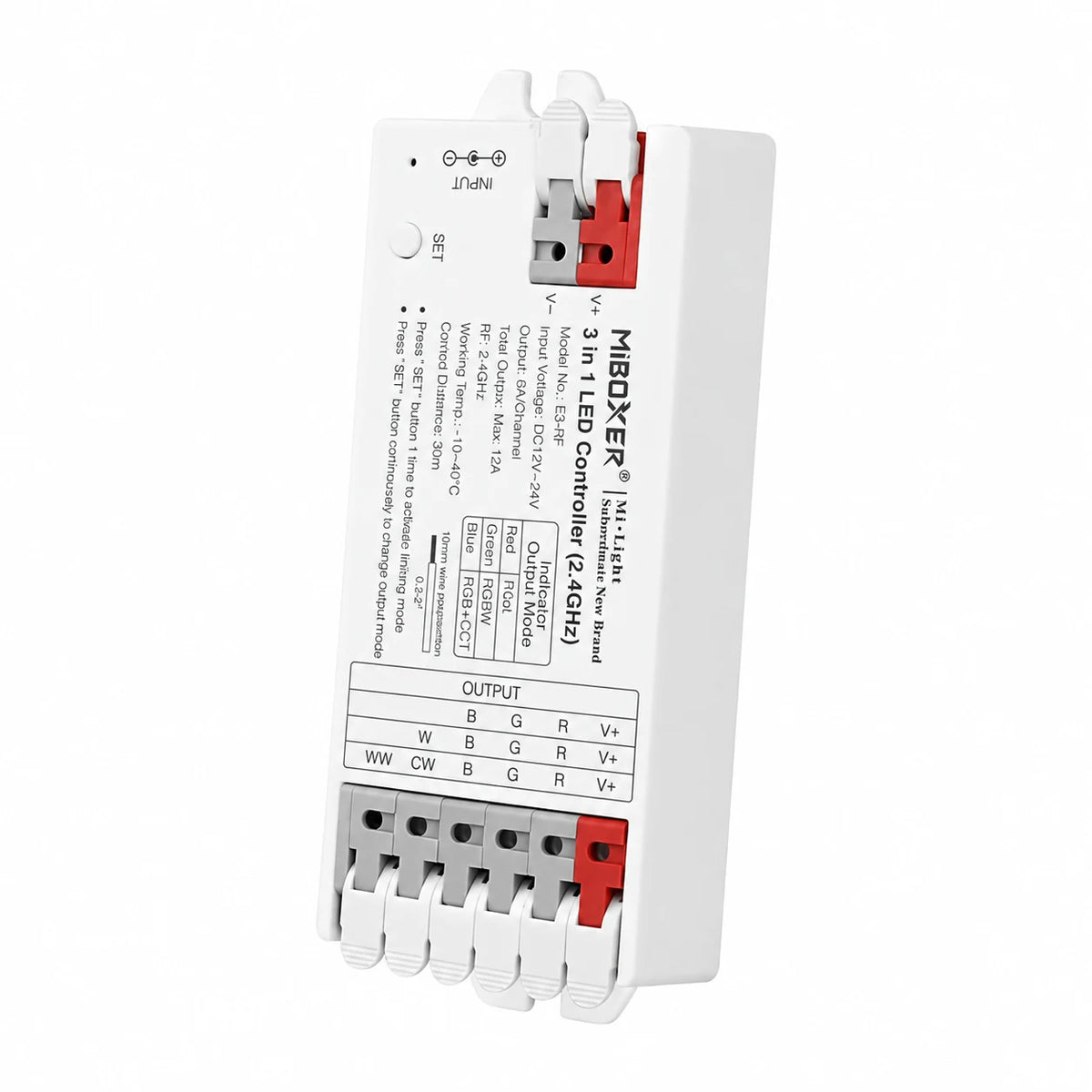

E3-RF 3-in-1 RGB RGBW RGBCCT LED controller, front view

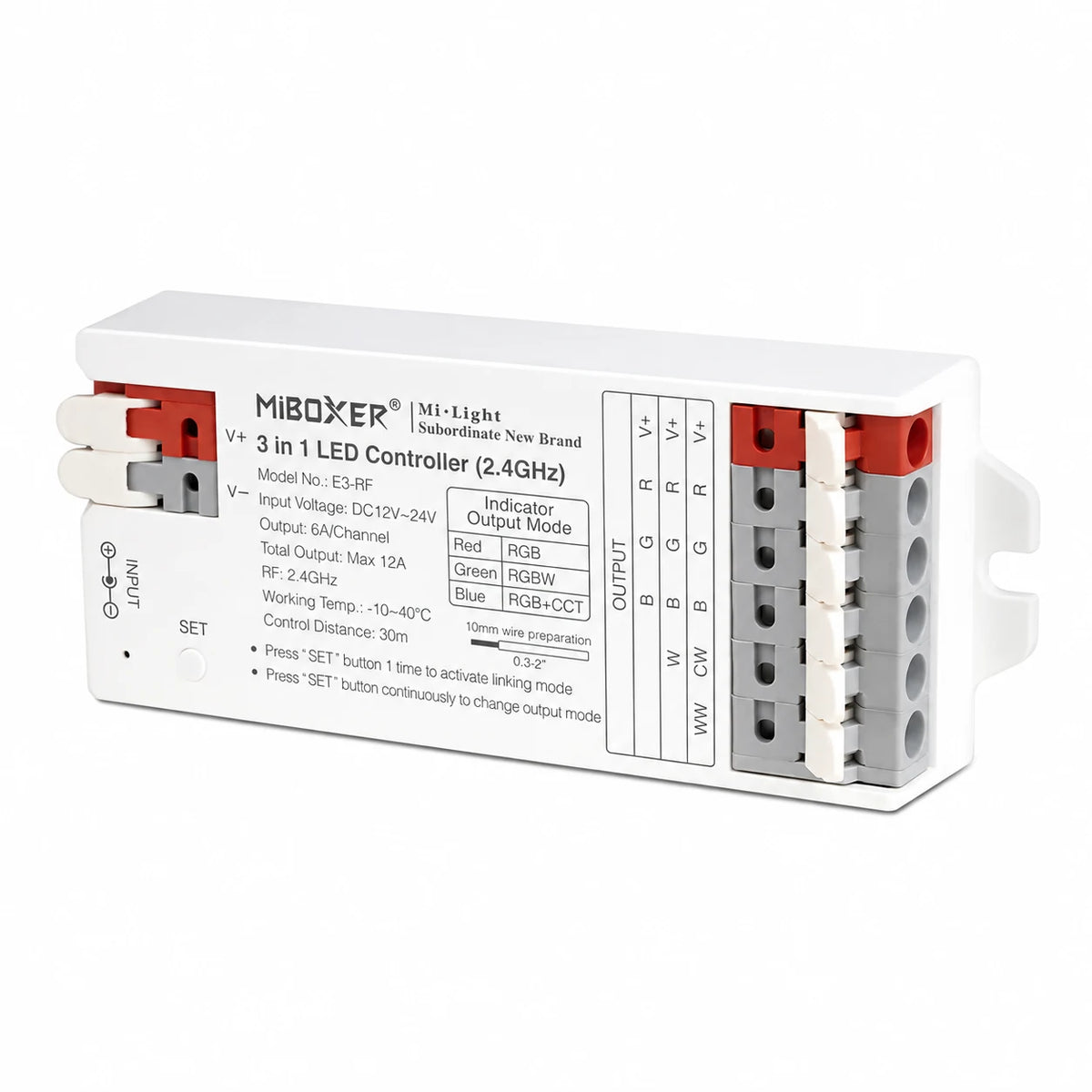

E3-RF LED controller tool-free push-fit wiring terminals

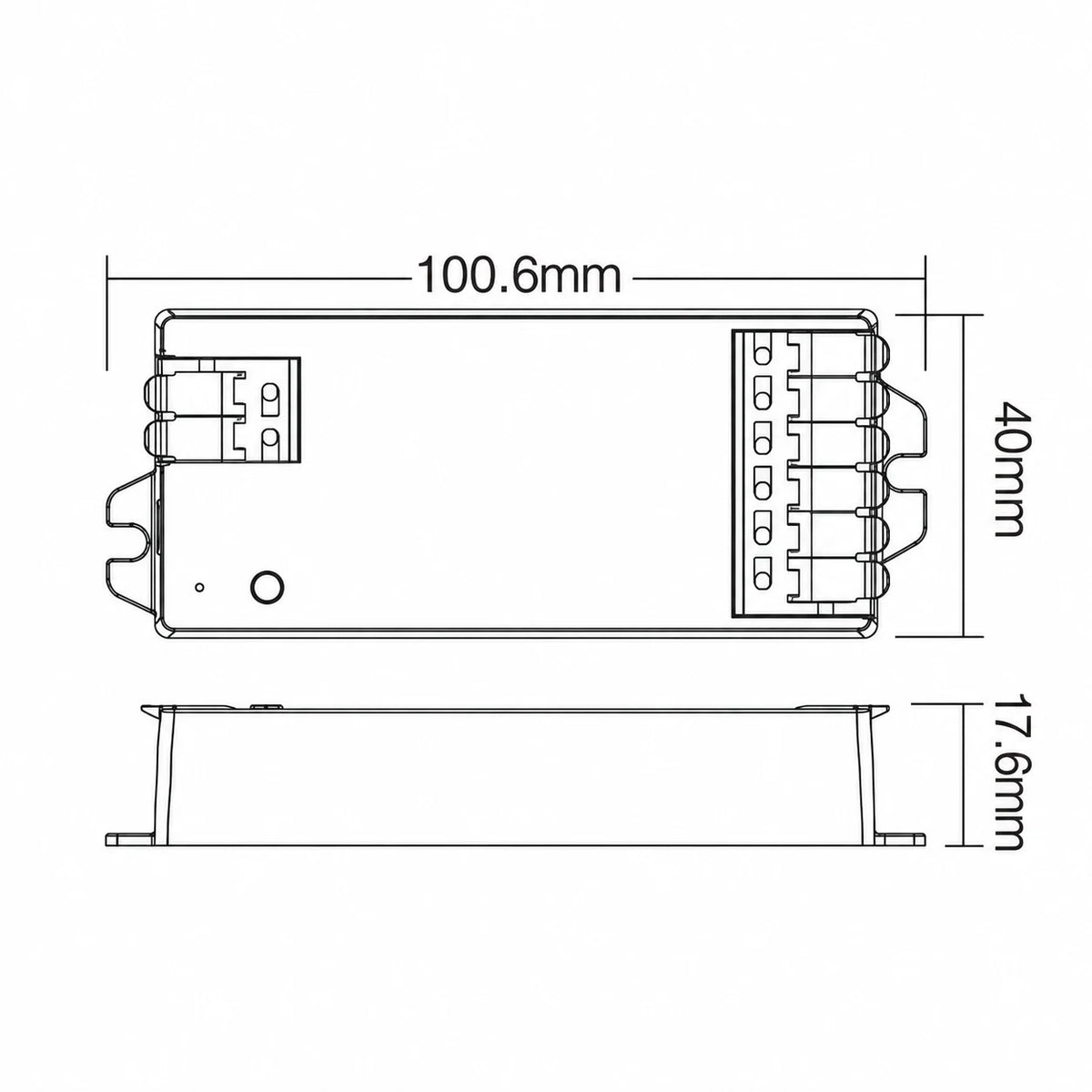

E3-RF LED controller dimension drawing, 100.6 mm housing
E3-RF LED controller and RGB remote controlling bedroom strip lighting

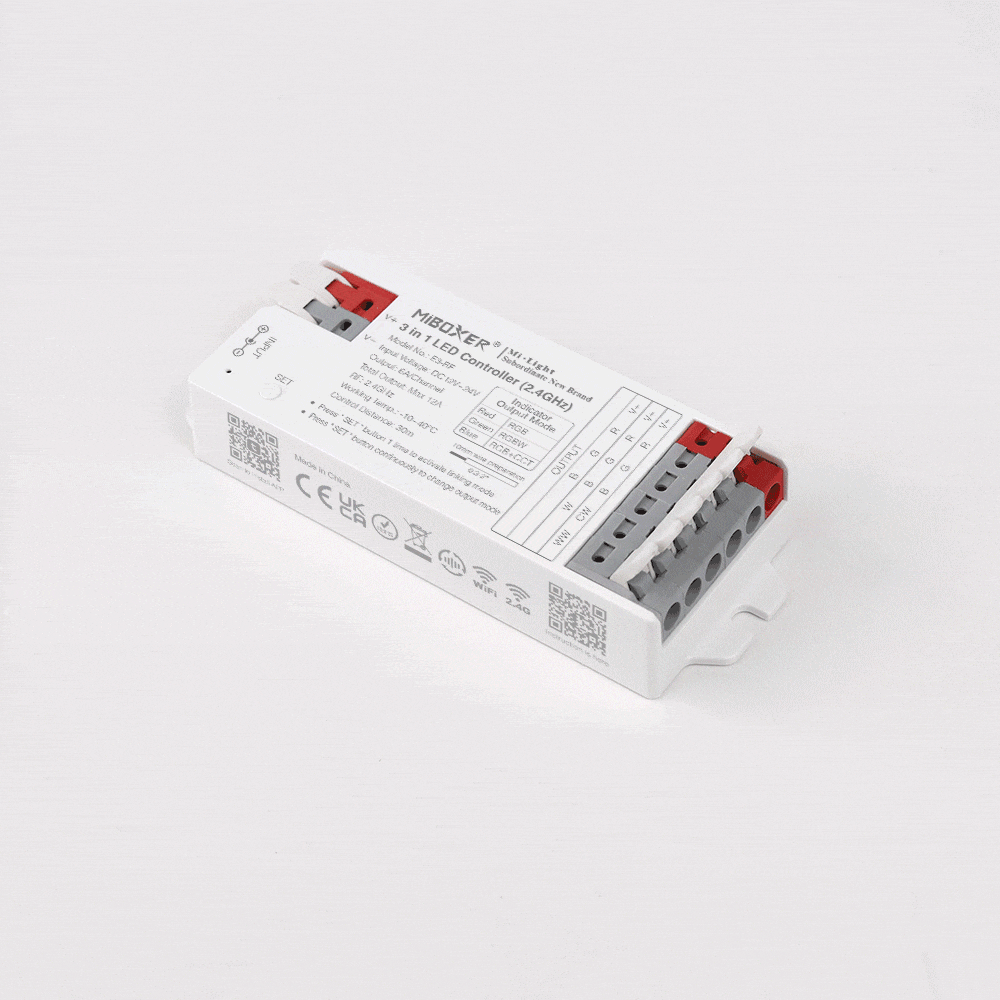

E3-RF LED controller changing an RGB strip through its colour modes
E3-RF 3-in-1 RGB RGBW RGBCCT LED controller, front view
E3-RF LED controller tool-free push-fit wiring terminals
E3-RF LED controller dimension drawing, 100.6 mm housing
E3-RF LED controller and RGB remote controlling bedroom strip lighting
E3-RF LED controller changing an RGB strip through its colour modes

E3-RF 3-in-1 RGB/RGBW/RGBCCT LED Controller, Tool-Free Wiring, 2.4GHz RF, 12-24V

$19.90
Tax included. Shipping calculated at checkout.
  • Free International Shipping over $99
  • Free Returns Within 30 days
Payment & Security
  • PayPal

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
E3-RF 3-in-1 RGB RGBW RGBCCT LED controller, front view

E3-RF 3-in-1 RGB/RGBW/RGBCCT LED Controller, Tool-Free Wiring, 2.4GHz RF, 12-24V

$19.90

The E3-RF 3-in-1 LED Controller is designed for RGB, RGBW, and RGB+CCT constant-voltage LED strips. It combines tool-free instant wiring, 2.4GHz RF control, adjustable brightness/saturation/color temperature, and multiple output modes in one compact controller.

Key Features

  • 3-in-1 output: RGB / RGBW / RGB+CCT.
  • Tool-free instant wiring: Fast connection without traditional screw-terminal wiring.
  • 2.4GHz RF control: Compatible with Mi-Light / MiBoxer 2.4GHz remotes.
  • 30m control distance: RF remote range up to 30m in suitable conditions.
  • 16 million colors: Adjustable color, brightness, saturation, and color temperature.
  • SET button output switching: Red indicator = RGB, green = RGBW, blue = RGB+CCT.
  • PWM frequency switching: 16kHz high-frequency or 250Hz low-frequency mode via compatible remote.
  • Auto-transmitting & synchronization: Linked controllers can relay RF signals and synchronize dynamic modes.
  • App / voice control: Available through a compatible 2.4GHz gateway.
  • DMX512 control: Supported only in RGB+CCT output mode with a compatible DMX512 LED transmitter.

Technical Specifications

Model E3-RF
Controller Type 3-in-1 RGB / RGBW / RGB+CCT LED Controller
Input Voltage DC12V-24V
Output 6A / Channel
Total Output Max 12A
Wireless Control 2.4GHz RF
Control Distance 30m
Output Connection Common Anode
Working Temperature -10°C to 40°C
PWM Frequency 16kHz / 250Hz switchable
DMX512 RGB+CCT mode only; compatible DMX512 LED transmitter required

Output Mode Indicator

Indicator Output Mode
Red RGB
Green RGBW
Blue RGB+CCT

Compatible 2.4GHz RF Remotes

B4 / B4-B / T4, B3 / B3-B / T3, FUT089 / FUT089-B, FUT092 / FUT092-B, FUT088, FUT096 / FUT096-B, B8, B0 / B0-B, S2-B / S2-W / S2-G, FUTD01, FUT100, FUT089S

Installation Notes

Use a regulated DC12V-24V constant-voltage power supply and select the correct output mode before connecting the LED strip. Do not exceed 6A per channel or 12A total output.
