This 5mm addressable RGB COB LED strip combines an ultra-slim PCB with programmable chasing, flowing, and dynamic RGB effects. The built-in IC design supports single-point control, while the high-density COB construction creates a smooth, continuous-looking light line for gaming, TV backlighting, entertainment spaces, indoor decorative lighting, landscape accents, and architectural lighting.
Why Choose This 5mm Addressable RGB COB LED Strip?
5mm narrow PCB
Fits slim channels, narrow grooves, cabinets, displays, and other space-limited installations.
Individually addressable

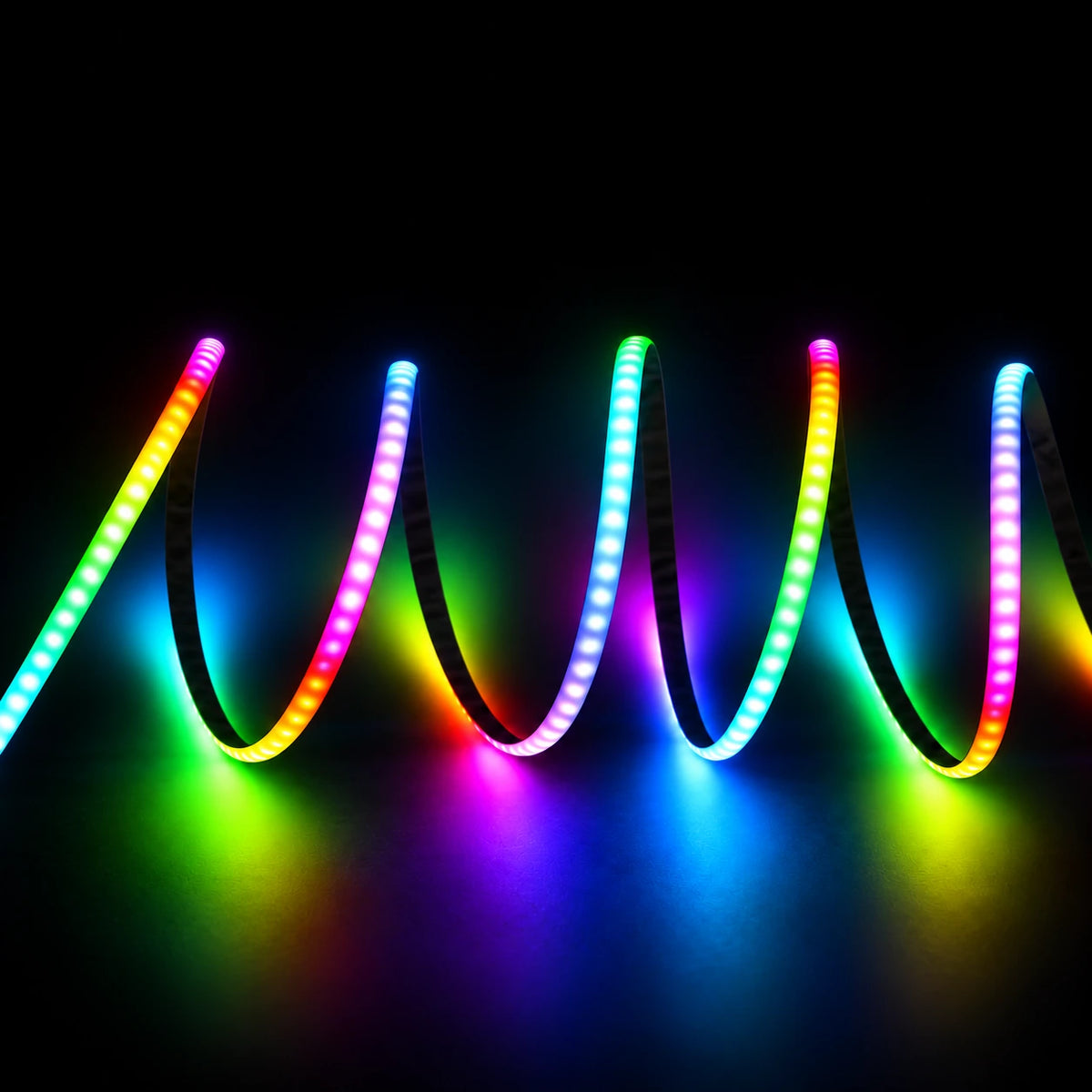

Single-point control supports programmable chasing, flowing, and dynamic RGB effects.
Built-in IC
Integrated WS2812B IC, compatible with SPI LED controllers, for programmable lighting effects.
100 LEDs/m
High-density COB construction for a smooth, continuous-looking RGB light line.
10mm cutting interval
Cut only at the marked cutting points for project-specific lengths.
Low-voltage design
Available in DC5V configuration for compatible addressable RGB controllers and DC power supplies.
Technical Specifications
| Catalog Model | ADDR-RGB-COB-100-5MM |
|---|---|
| LED Type | COB |
| Color | Addressable RGB |
| Input Voltage | DC5V |
| Power | 3.75W/m / 7.5W/m |
| LED Density | 100 LEDs/m |
| PCB Width | 5mm |
| LED Strip Height | 2.5mm |
| Control | Individually Addressable / 1 LED = 1 Pixel |
| Built-in IC | Yes |
| IC Type | WS2812B |
| IC Quantity | 100 IC/m |
| Control Protocol | WS2812 IC, SPI Controller Compatible |
| Recommended Controller | Compatible SPI LED Controller |
| Programmable | Yes |
| Cutting Interval | 10mm / 0.39in |
|---|---|
| Beam Angle | 180° |
| Dimmable | Yes |
| CRI | 90 |
| Luminous Flux | 2–3 lm/LED |
| Power Factor | 0.9 |
| Voltage Drop | For 5V strips, inject power every 1–2m; noticeable voltage drop over a 5m run |
| Waterproof Rating | IP20 (Non-Waterproof) |
| LED Chip Brand | Sanan Optoelectronics |

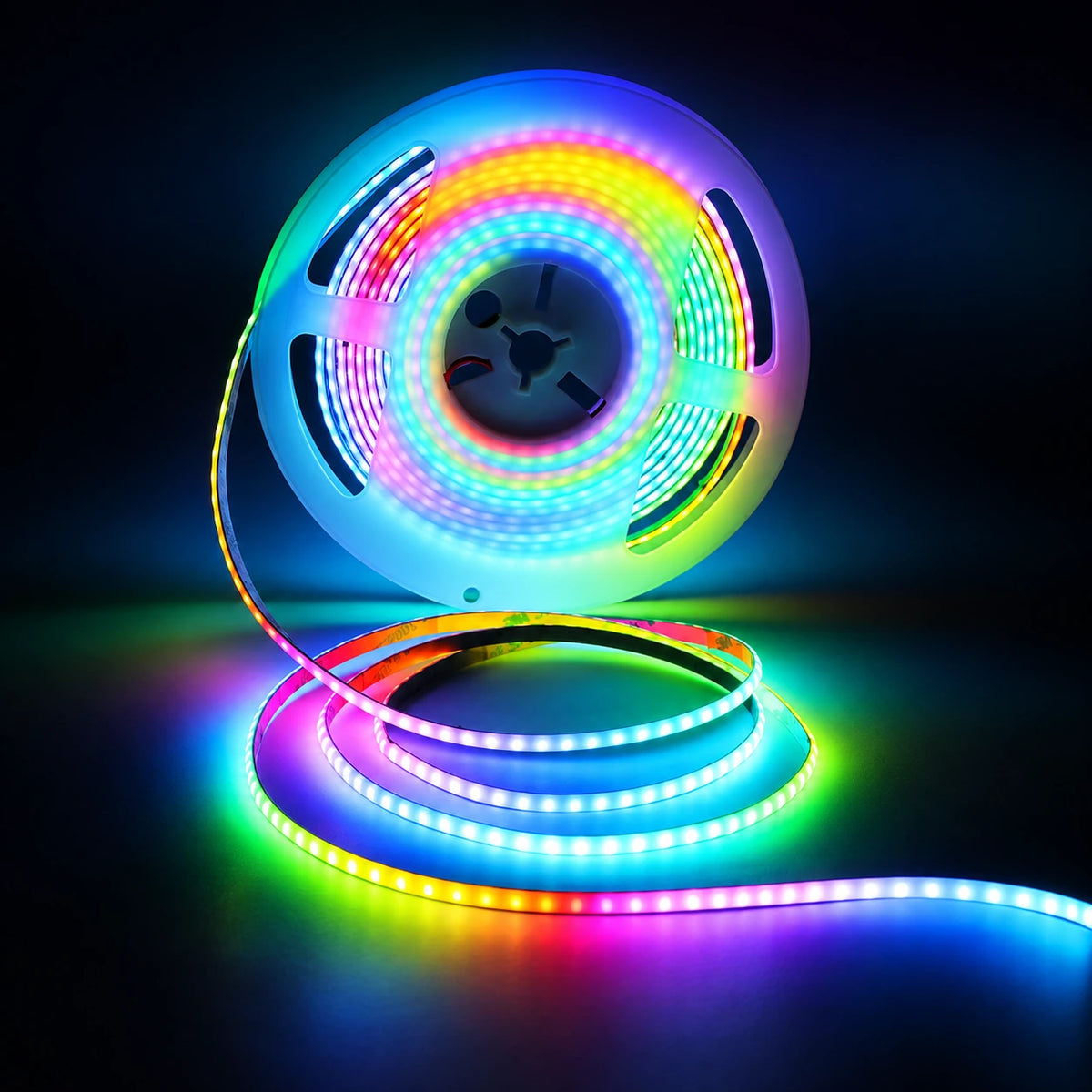

| Standard Length | 5m Reel / 16.4ft |
| Working Temperature | -20°C ~ 50°C |
| Storage Temperature | -40°C ~ 80°C |
| Rated Life | 50,000 Hours |
| Compliance | CE / FCC / RoHS |
| Warranty | 3 Years |

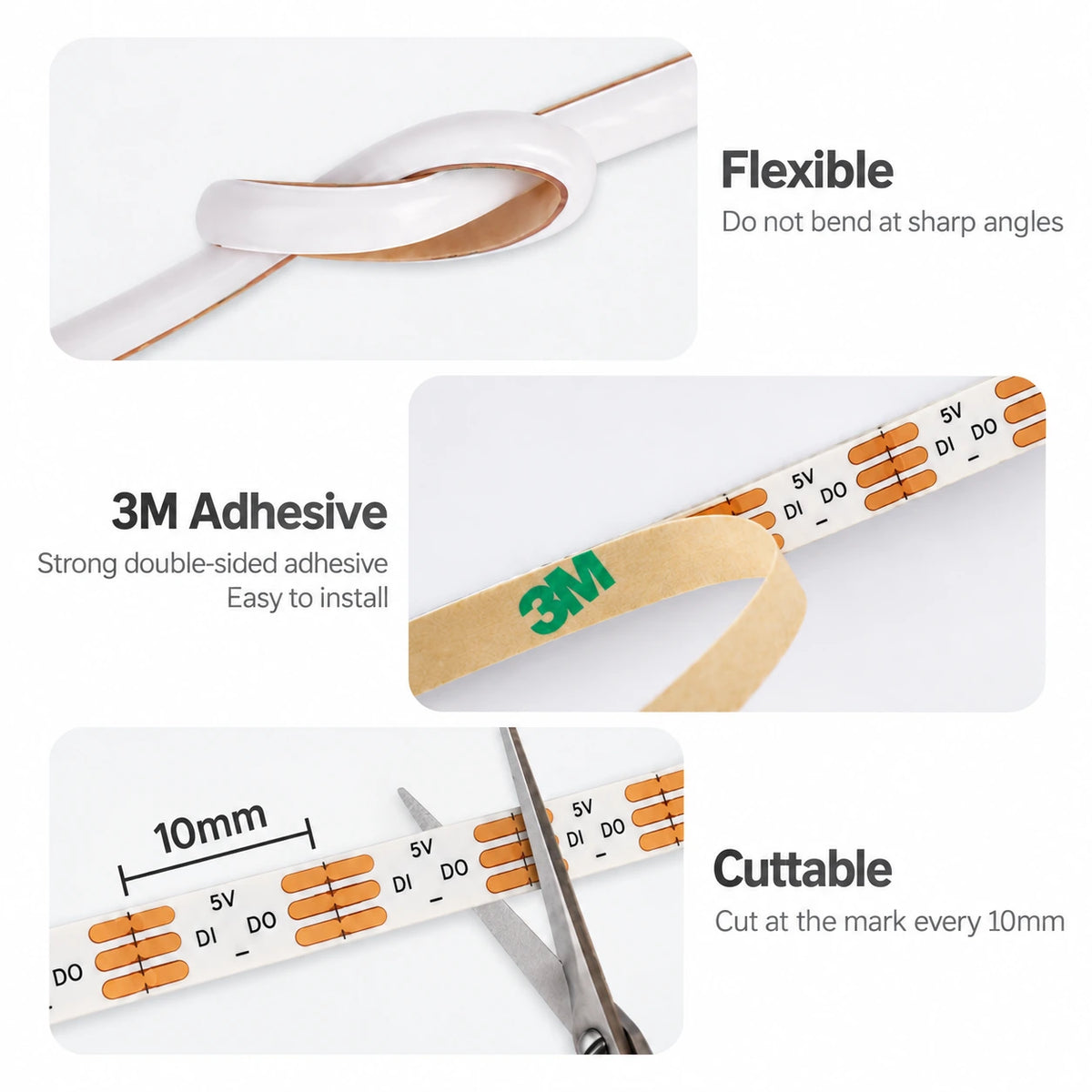

Cutting and Installation
Cut only at the marked 10mm cutting points. Use a compatible addressable RGB controller and the correct regulated DC power supply for the selected voltage. Size the power supply and wiring according to the total installation length and load. On 5V strips, inject power every 1–2m, as voltage drop becomes noticeable over a full 5m run. This non-waterproof version is intended for dry indoor environments.
Recommended Applications
- Gaming rooms and TV background lighting
- Entertainment spaces and indoor ambience
- Cabinets, shelves, displays, and narrow grooves
- Landscape and architectural decorative lighting
- Programmable chasing and flowing RGB projects
Purchase Information
Standard length is 5m Reel / 16.4ft. Available as the strip only, or as a kit with a compatible SPI LED controller (+$10).
Certifications & Warranty
CE, FCC and RoHS compliant, rated for 50,000 hours, and backed by a 3-year warranty.
