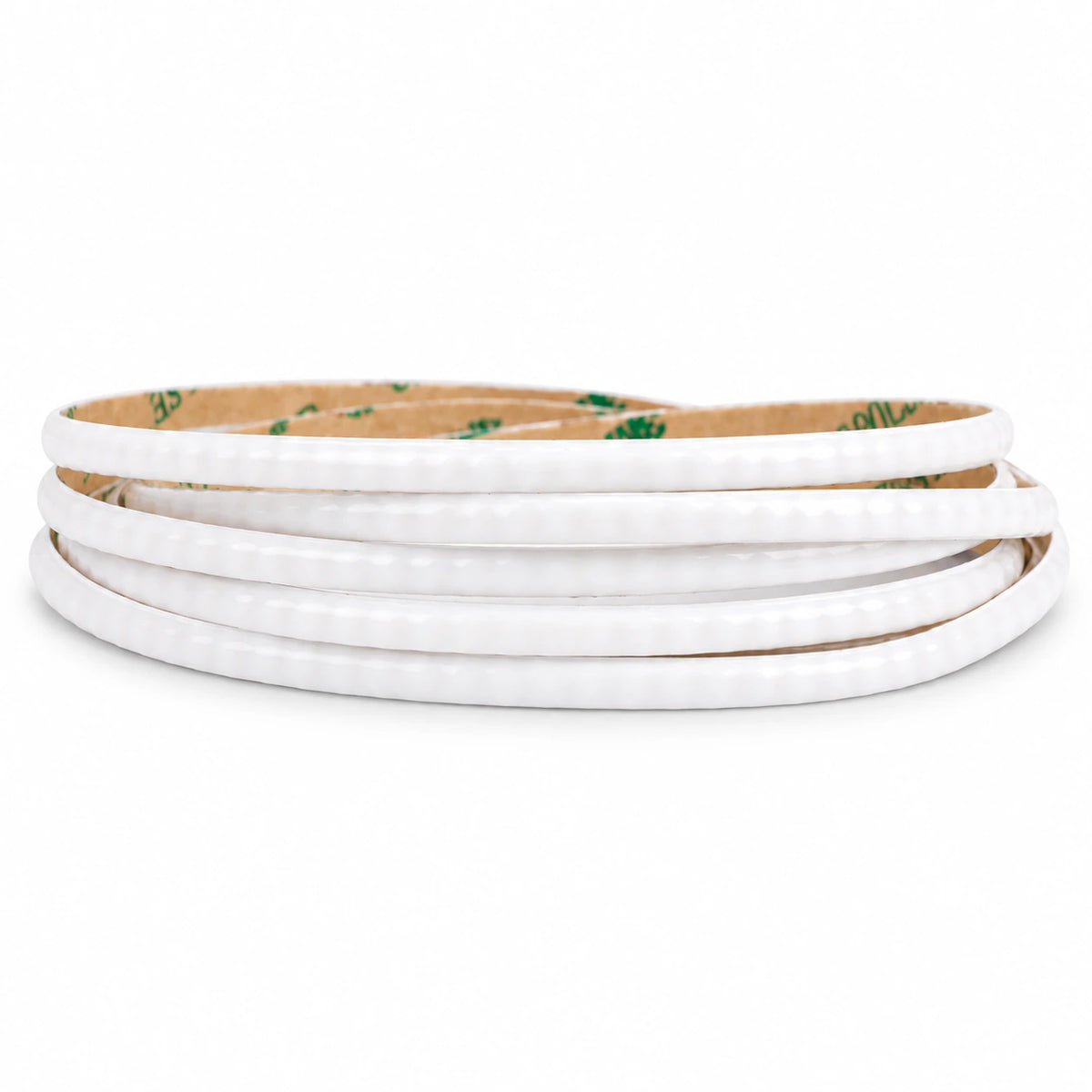

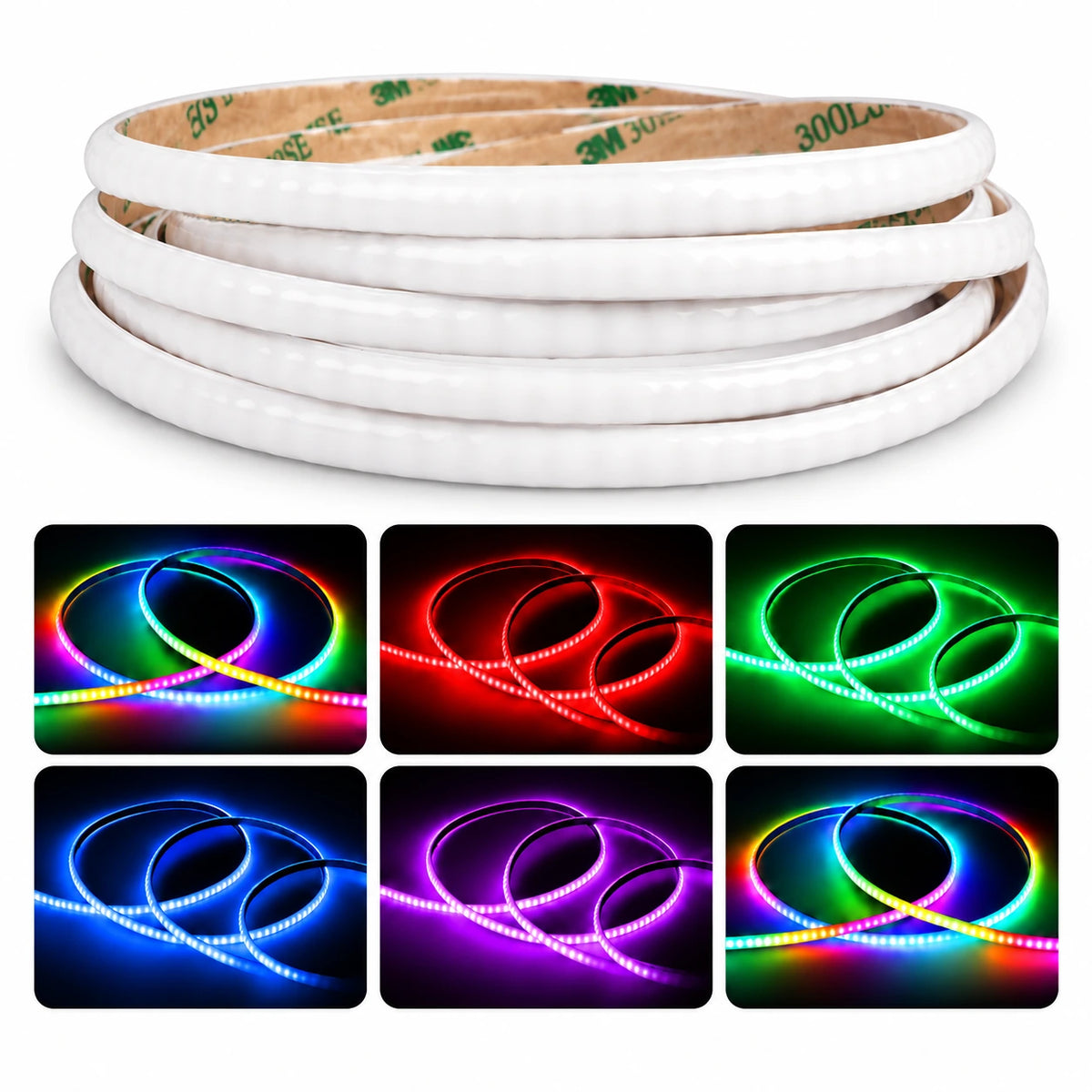

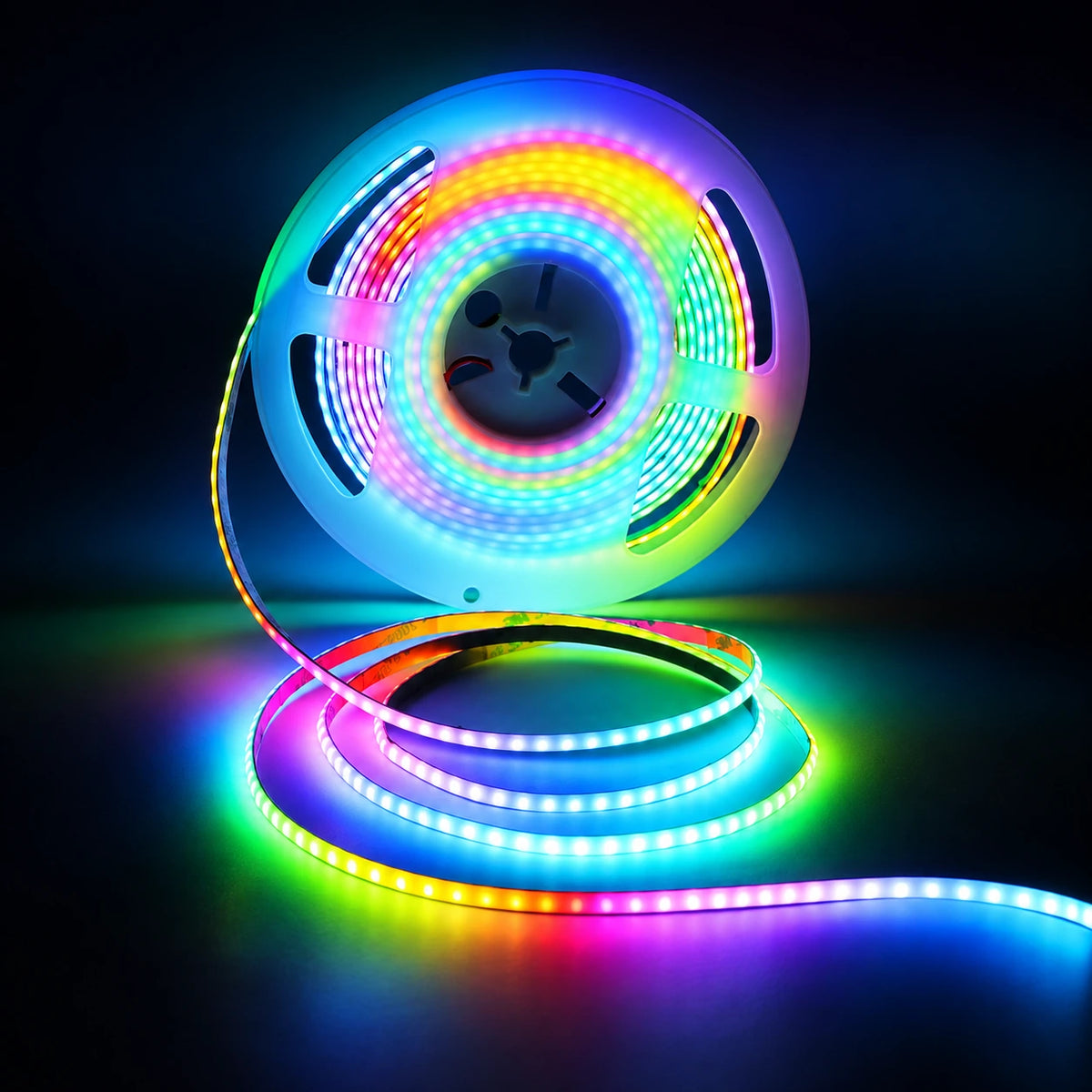

5mm 12V Addressable RGB COB LED Strip Lights, 240 LEDs/m
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 5mm addressable RGB COB LED strip combines an ultra-slim PCB with programmable chasing, flowing, and dynamic RGB effects. The built-in IC design supports single-point control, while the high-density COB construction creates a smooth, continuous-looking light line for gaming, TV backlighting, entertainment spaces, indoor decorative lighting, landscape accents, and architectural lighting.
Why Choose This 5mm Addressable RGB COB LED Strip?
- 5mm narrow PCB: Fits slim channels, narrow grooves, cabinets, displays, and other space-limited installations.
- Individually addressable: Single-point control supports programmable chasing, flowing, and dynamic RGB effects.
- Built-in IC: Integrated addressable control design for programmable lighting effects.
- 240 LEDs/m: High-density COB construction for a smooth, continuous-looking RGB light line.
- 12.5mm cutting interval: Cut only at the marked cutting points for project-specific lengths.
- Low-voltage design: Available in DC12V configuration for compatible addressable RGB controllers and DC power supplies.
Technical Specifications
| Catalog Model | ADDR-RGB-COB-240-5MM |
|---|---|
| LED Type | COB |
| Color | Addressable RGB |
| Input Voltage | DC12V |
| Power | 7.5W/m |
| LED Density | 240 LEDs/m |
| PCB Width | 5mm |
| Control | Individually Addressable / Single-Point Control |
| Built-in IC | Yes |
| Programmable | Yes |
| Cutting Interval | 12.5mm / 0.49in |
| Beam Angle | 180° |
| Dimmable | Yes |
| CRI | 90 |
| Power Factor | 0.9 |
| Waterproof Rating | Non-Waterproof |
| LED Chip Brand | Sanan Optoelectronics |
| Standard Length | 5m Reel / 16.4ft |
| Rated Life | 50,000 Hours |
| Compliance | RoHS |

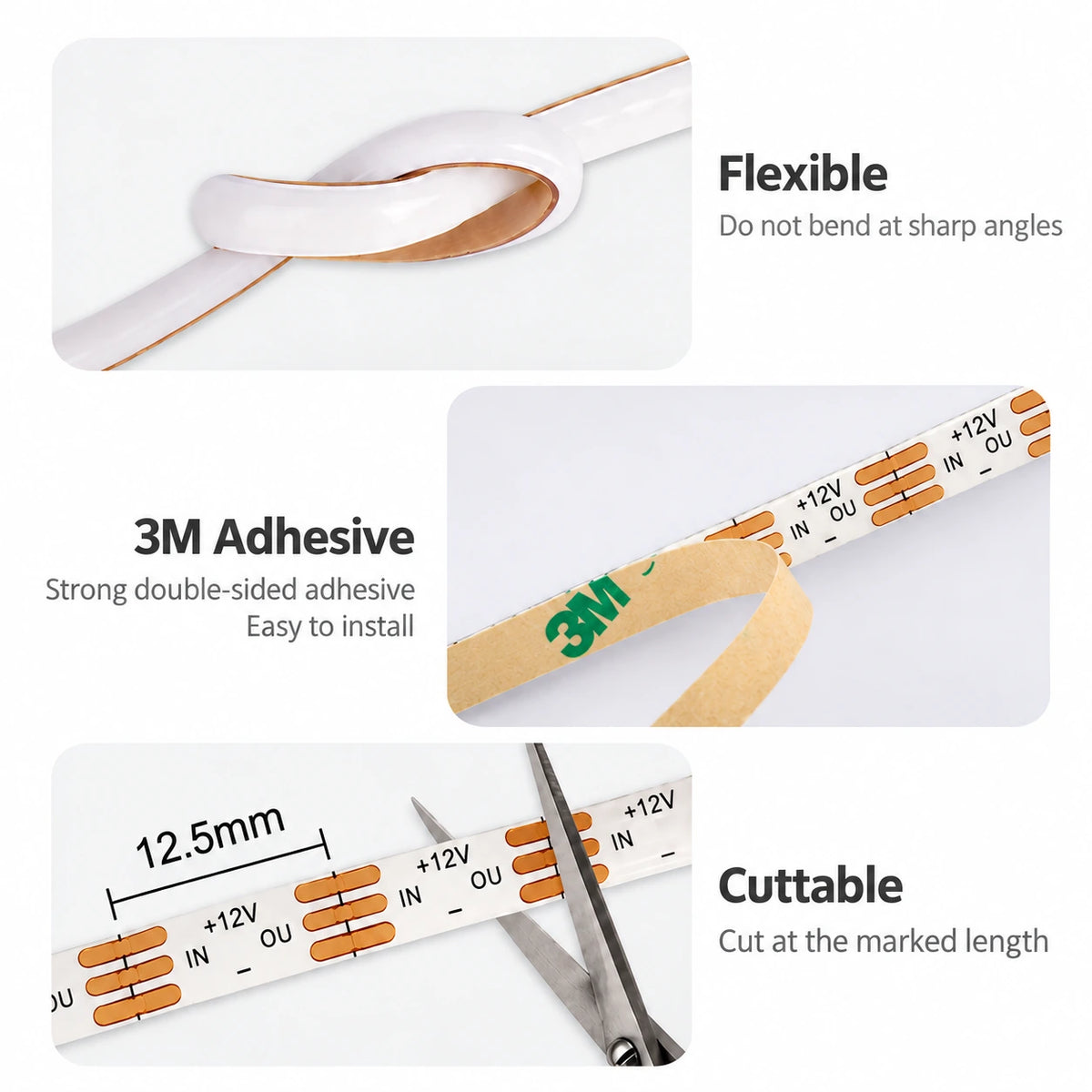

Cutting and Installation
Cut only at the marked 12.5mm cutting points. Use a compatible addressable RGB controller and the correct regulated DC power supply for the selected voltage. Size the power supply and wiring according to the total installation length and load. This non-waterproof version is intended for dry indoor environments.

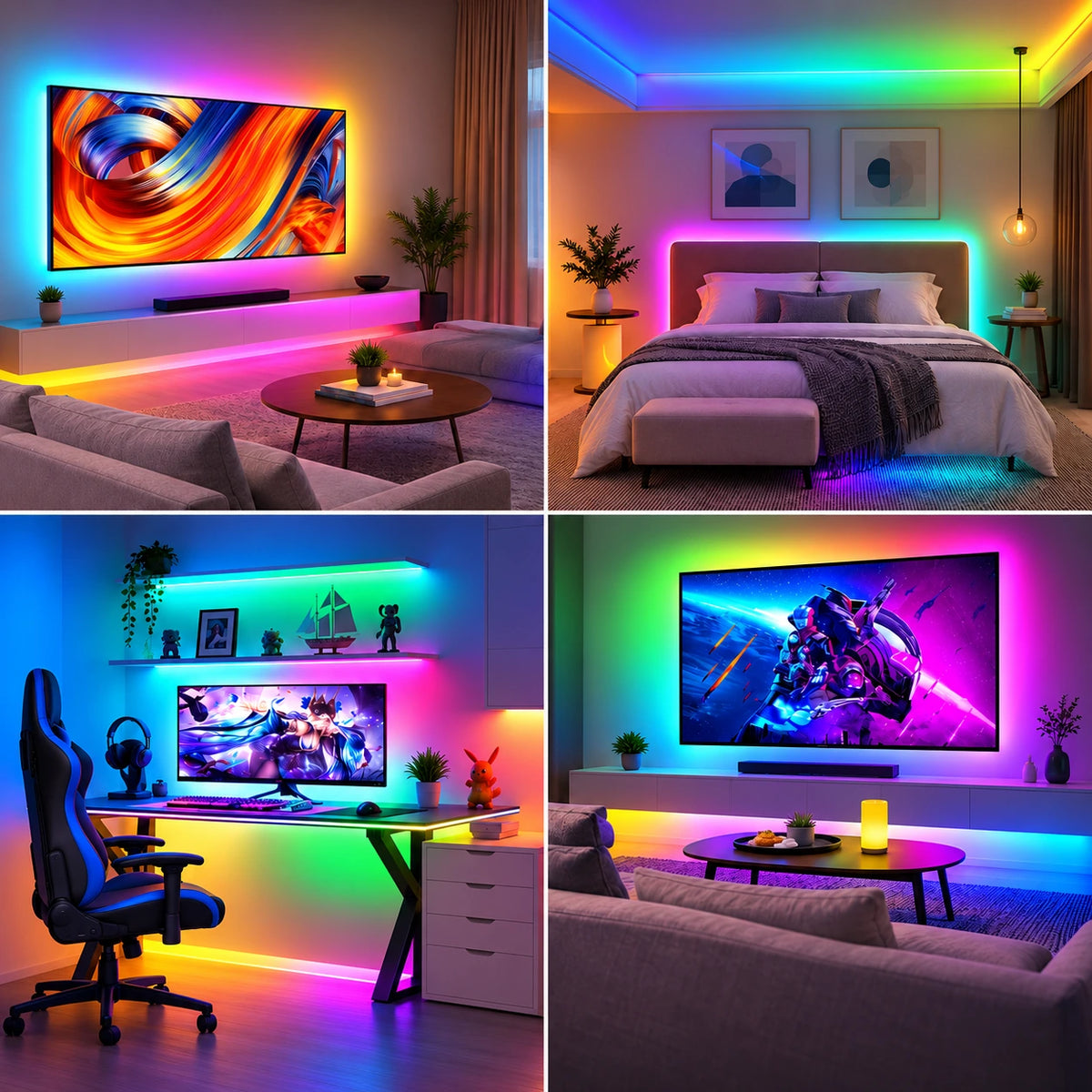

Recommended Applications
- Gaming rooms and TV background lighting
- Entertainment spaces and indoor ambience
- Cabinets, shelves, displays, and narrow grooves
- Landscape and architectural decorative lighting
- Programmable chasing and flowing RGB projects
Purchase Information
Standard length is 5m Reel / 16.4ft.
Compliance
RoHS compliant.
