3x6mm Side Emitting WS2812B Addressable RGB LED Strip, IP65 Silicone, 160 LEDs/m, 5V/12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

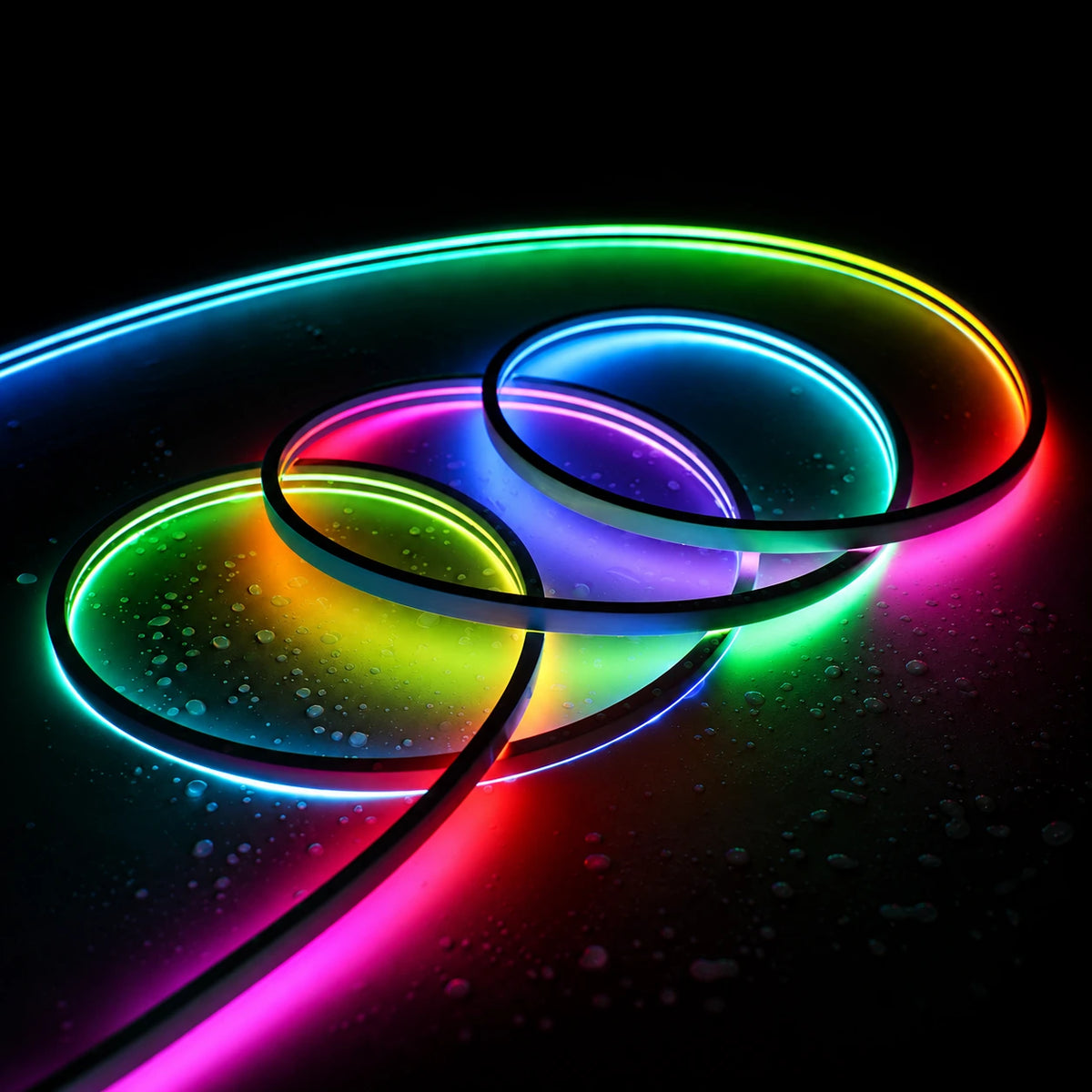

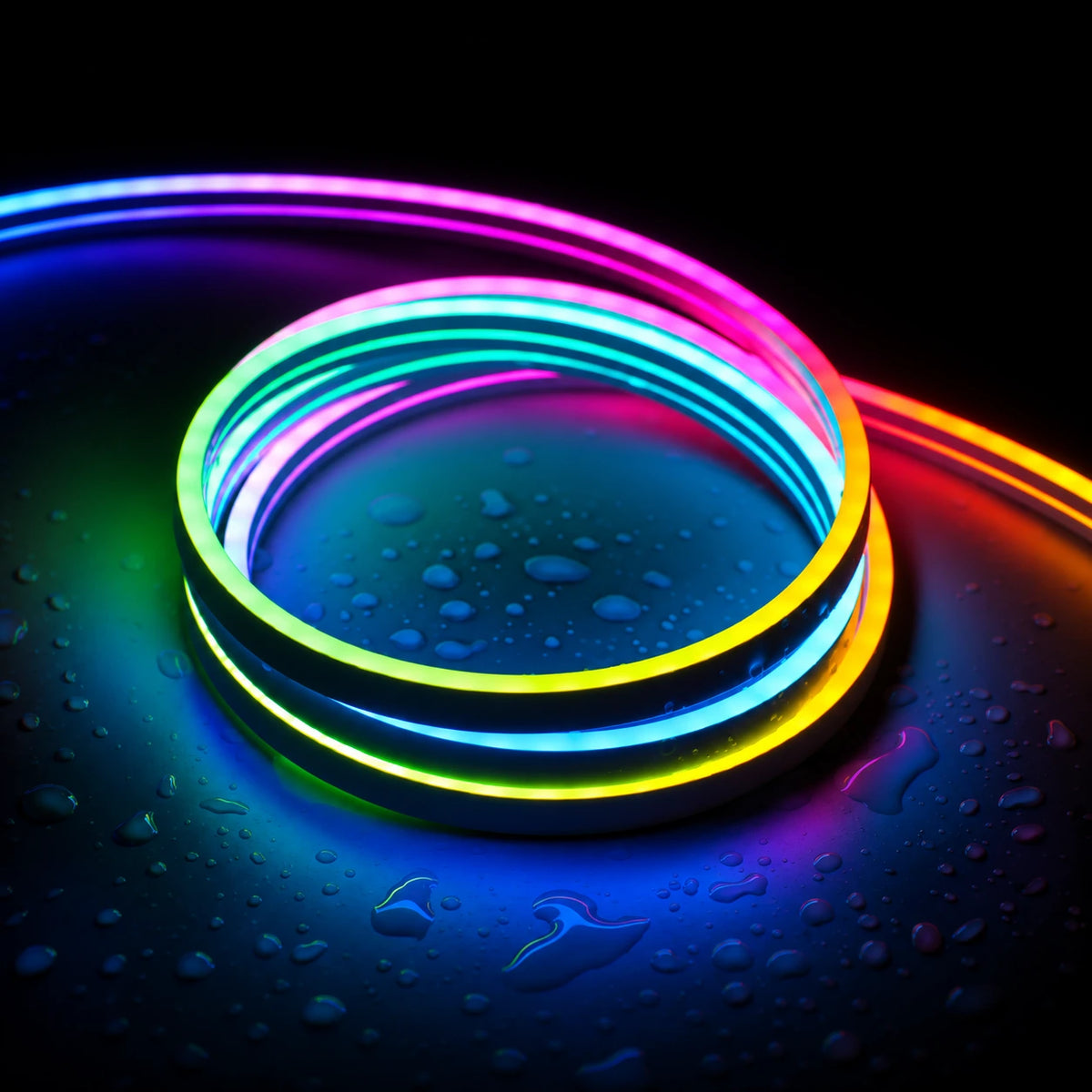

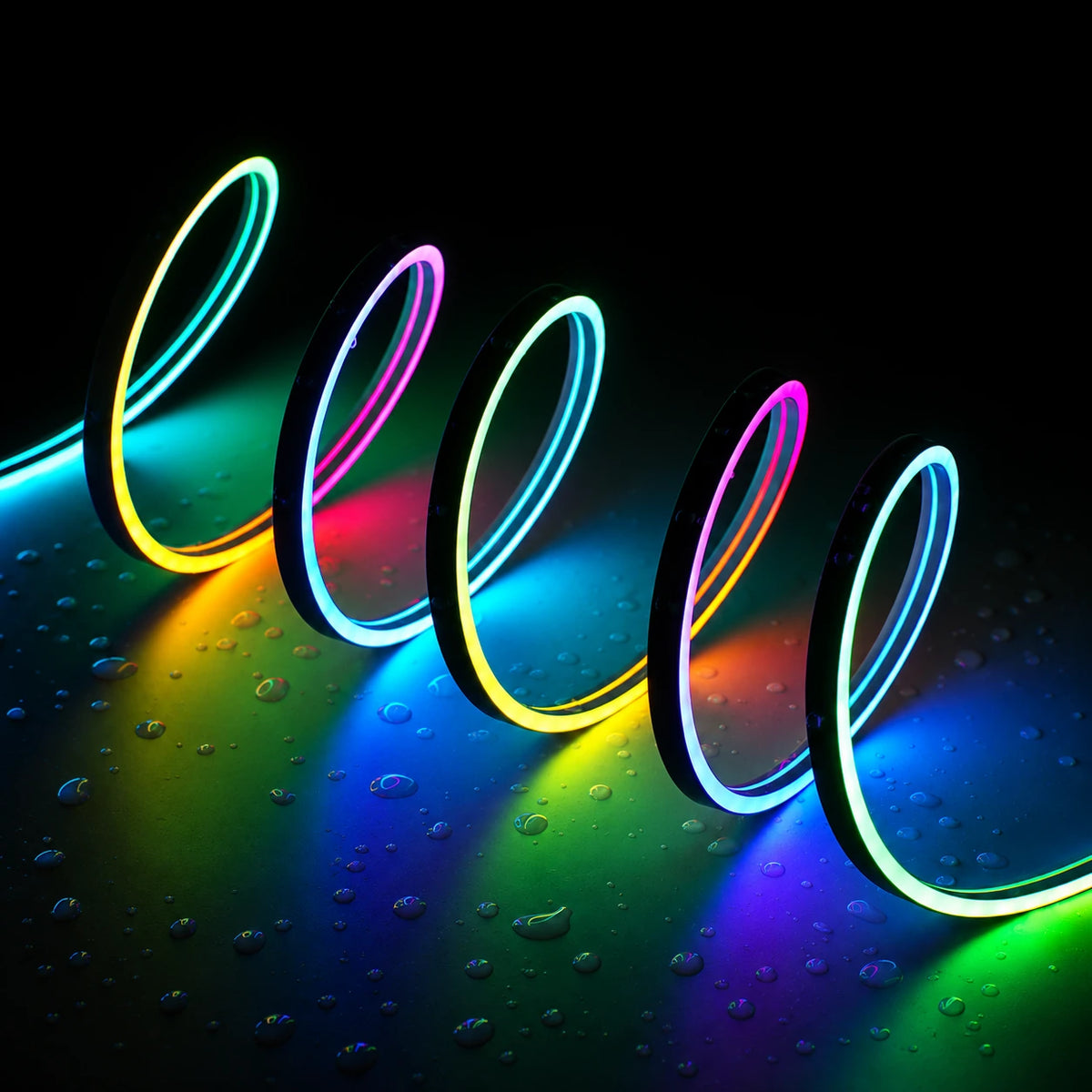

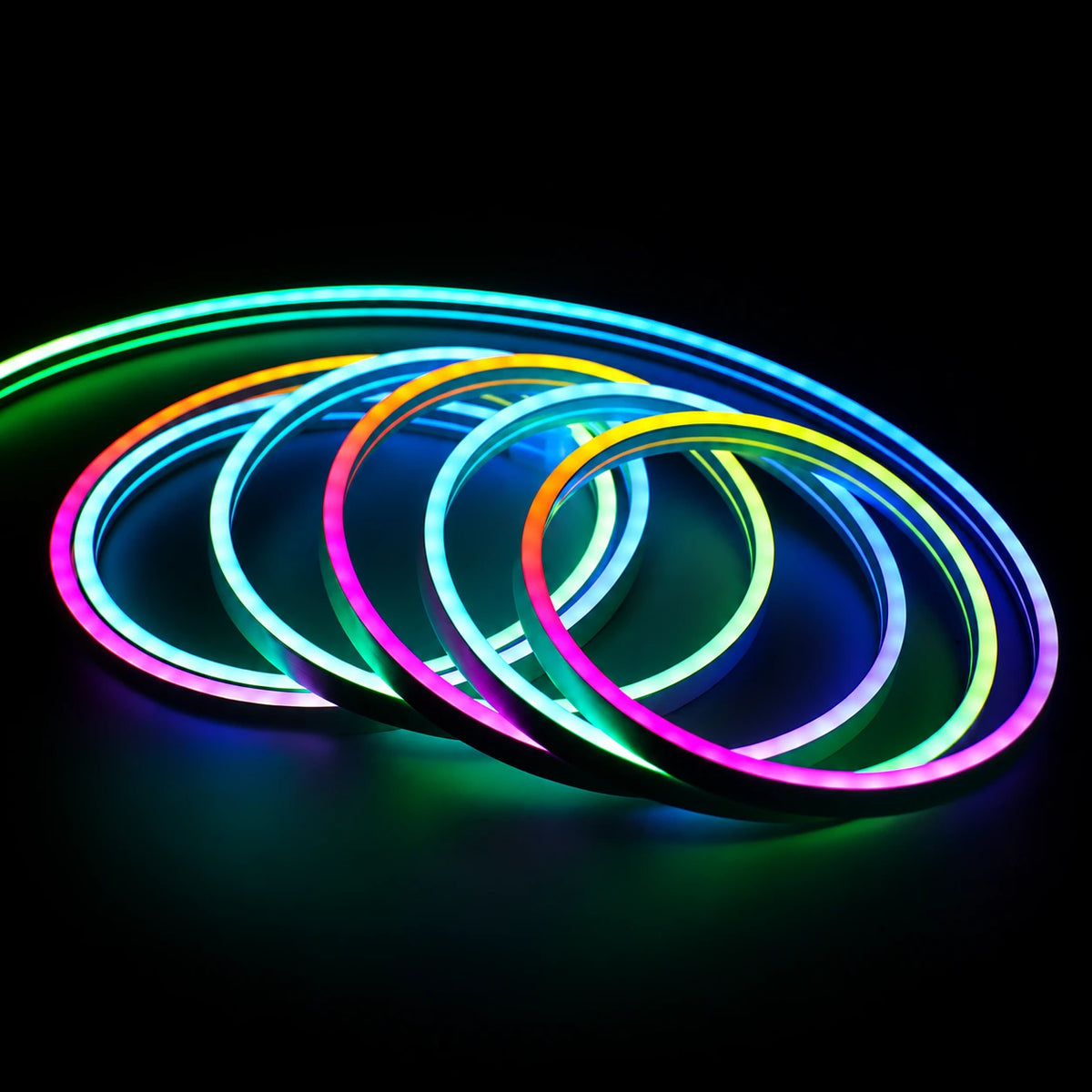

This 3x6mm side emitting addressable RGB LED strip packs 160 individually addressable WS2812B LEDs per meter into an IP65 silicone jacket. Light exits the narrow 3mm face and the strip bends sideways, so it lies flat on a wall, sign board or acrylic panel and curves into neon-style letters, logos and outlines, with every LED under its own control. Available in 5V and 12V on 5m reels, as the strip alone or as a ready-to-run kit with the SP538E WiFi controller and a matched power supply.
Why Choose This Side Emitting Addressable LED Strip?
Side Emitting, Side Bend
Light leaves the narrow 3mm face while the strip bends sideways, so it stays flat against the mounting surface and follows letters, logos and curves down to a 20mm (0.8in) radius.
160 Pixels per Meter

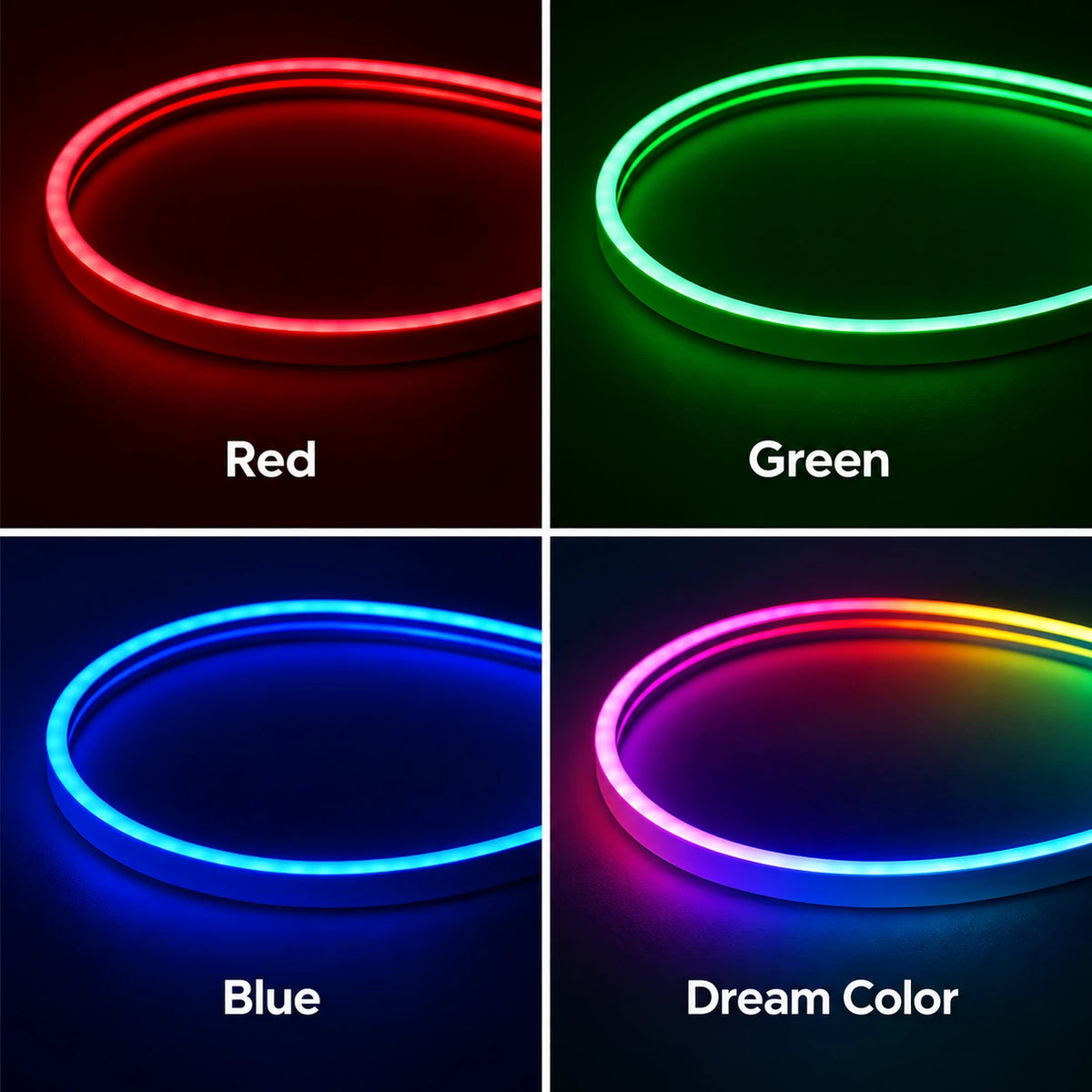

Every LED has its own WS2812B IC on both the 5V and 12V versions. Many addressable neon strips group 3 to 6 LEDs per pixel; here each LED is its own pixel, for smoother chasing, rainbow and music-sync RGBIC effects.
IP65 Silicone Jacket
Dust-tight and protected against water jets, for kitchens, bathrooms, covered patios and other damp spots. The slim silicone gives a neon-style line of color, with individual LED points visible up close.
5V or 12V
Both versions control every LED and have power leads at the tail end. Choose 5V for signs, letters and props, or 12V for long runs with lower current and less voltage drop.
Custom Lengths Available
Need exact runs for a sign or fixture? We supply custom lengths with factory-sealed ends and lead wires, so there is nothing to cut or reseal on site.
Sanan LED Chips
Sanan Optoelectronics chips with a 50,000-hour rated life, backed by a 3-year warranty. CE, FCC and RoHS certified.
Technical Specifications
| Product Type | Side Emitting Addressable RGB LED Strip |
|---|---|
| IC | WS2812B (built into each LED) |
| LED Package | 0807 side-view |
| LED Density | 160 LEDs/m |
| Pixels per Meter | 160 (1 LED per pixel) |
| LED Spacing | 6.25mm |
| Light Color | Full-color RGB, individually addressable |
| Input Voltage | DC5V / DC12V |
| Power | 6W/m (5V) / 5W/m (12V) |
| Power per 5m Reel | 30W (5V) / 25W (12V) |
| Certifications | CE, FCC, RoHS |
| Silicone Profile | 3mm W x 6mm H (light exits the 3mm face) |
|---|---|
| Light Direction | Side emitting |
| Bend Direction | Side bend |
| Min. Bend Radius | 20mm / 0.8in |
| Beam Angle | 120° |
| Waterproof Rating | IP65 |
| LED Chip | Sanan Optoelectronics |
| Reel Length | 5m / 16.4ft (custom lengths available) |
| Field Cutting | Not recommended |
| Rated Life | 50,000 hours |
| Warranty | 3 years |
5V or 12V: Which Version to Choose
| 5V | 12V | |
|---|---|---|
| Control | Every LED individually (160 pixels/m) | Every LED individually (160 pixels/m) |
| Power | 6W/m; 30W per 5m reel (about 6A) | 5W/m; 25W per 5m reel (about 2.1A) |
| Power supply per reel | 5V, 8A (40W); included in the full kit | 12V, 3A (36W); included in the full kit |
| Full 5m reel | Connect the tail power leads too, feeding both ends for even color | Can be fed from the input end alone; tail leads help on long cable runs |
| Best for | Signs, letters, props and shorter runs | Long runs and simpler wiring with less voltage drop |
Wiring & Installation
| End | Wire | Function |
|---|---|---|
| Input (JST SM 3-pin) | Red | V+ (5V or 12V) |
| Green | Data in (DIN) | |
| White | Ground (GND) | |
| Tail | Red | V+ (power injection) |
| Black | Ground (power injection) |
- Connect a WS2812B-compatible controller, such as the SP538E, to the 3-pin input lead. Data runs one way, from the input end.
- Using the SP538E: in the BanlanX app, choose WS2812B (RGB) as the IC type and set the pixel count to 800 for a full 5m reel. If colors look swapped, fix them with the color-order setting instead of rewiring.
- The tail leads carry power only, with no data output. To run more than one reel, connect each reel to its own controller output, or contact us about a custom length.
- Use a regulated power supply sized for your version (see the table above). On 5V, wire the tail leads to the same supply for a full 5m reel.
- Shorter run? Set the LED count on your controller to match the length you need. LEDs past that point stay off, and the extra length can be coiled or tucked out of sight.
- The silicone jacket covers the cut marks, so field cutting is not recommended. If you do shorten a reel, seal both open ends with the spare end caps and neutral-cure silicone.
- Fix the strip with the included clips about every 25cm (10in), and closer together on curves. Silicone does not bond well to standard tape.
- Keep the factory-sealed ends intact and protect all wire connections from water to maintain IP65 protection.
Not sure IP65 is enough for your space? See our guide: LED Strip Waterproof Ratings: IP65 vs IP67 vs IP68.
What’s in the Box
Every package includes:

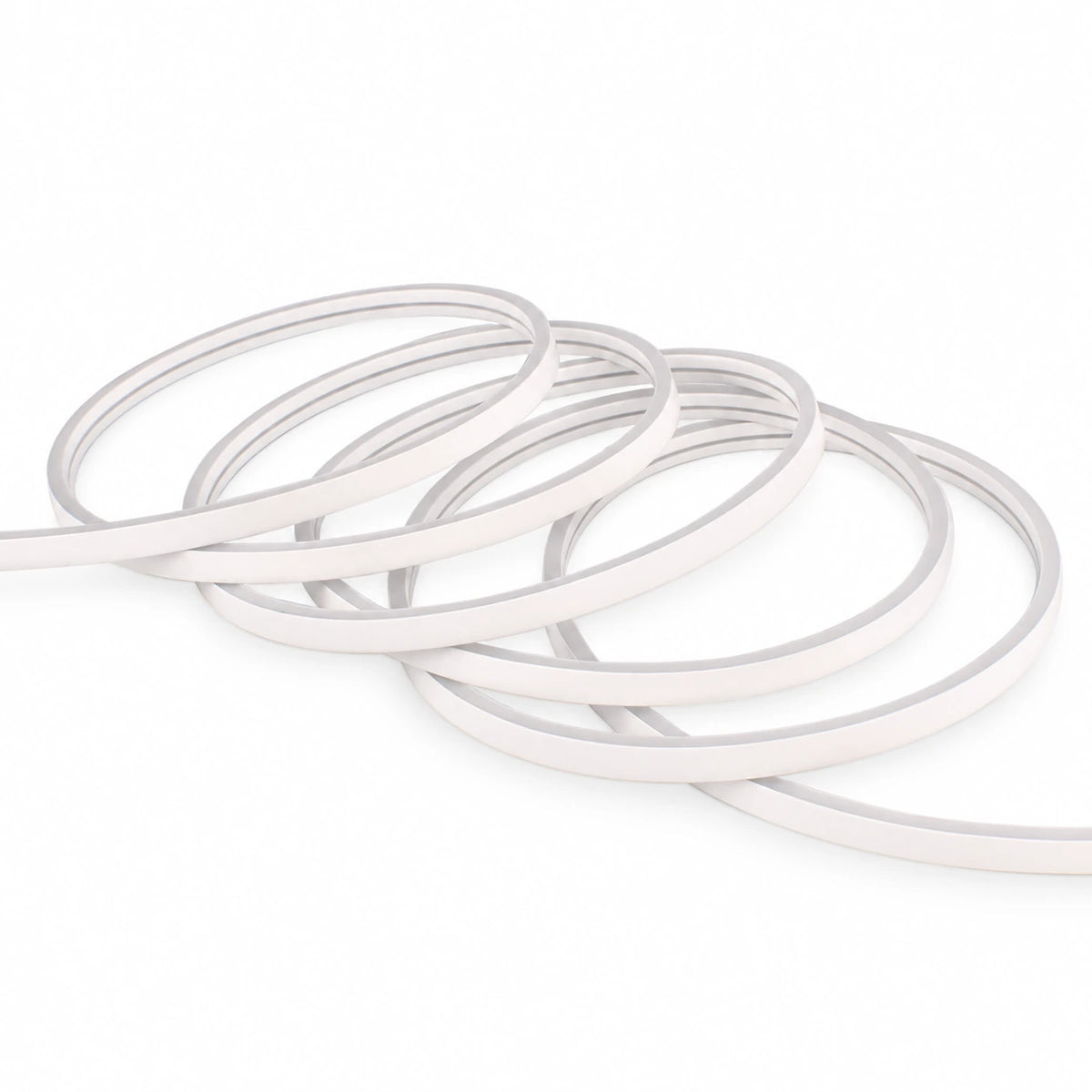

- 1 x 5m (16.4ft) reel, factory-sealed at both ends
- Input lead with JST SM 3-pin connector (red, green, white)
- Tail power leads (red, black)
- 2 x spare end caps
- 20 x mounting clips with screws
| Package | Adds |
|---|---|
| Strip Only | Nothing else; bring your own controller and power supply |
| Strip + SP538E | SP538E WiFi addressable RGB controller (app, voice and music control) |
| Strip + SP538E + Power Supply | SP538E controller plus a matched plug-in power adapter: 5V 8A (40W) for the 5V version, 12V 3A (36W) for the 12V version, with the plug for your country |
Recommended Applications
- Signs, letters & logos
- Edge-lit acrylic panels
- Storefronts & window displays
- Shelf & cabinet edges
- Narrow coves & grooves
- Bars, lounges & game rooms
- Gaming setups & props
- Event & party decor
- Covered patios & eaves
Purchase Information
Sold per 5m (16.4ft) reel in 5V or 12V, in three packages: the strip only, the strip with the SP538E controller, or a complete kit with the SP538E and a matched power supply, ready to plug in. The SP538E drives up to 1,200 pixels, enough for a full 800-pixel reel, with app, WiFi and voice control.
Need exact lengths for a project? We make custom lengths with factory-sealed ends and lead wires; contact us for a quote. For multi-reel projects we can also supply enclosed power supplies. Wholesale orders start at 10 reels per version, and we reply to quote requests within 12 hours.
See the SP538E controller, explore more addressable LED strip lights or browse our outdoor & waterproof LED strips.
