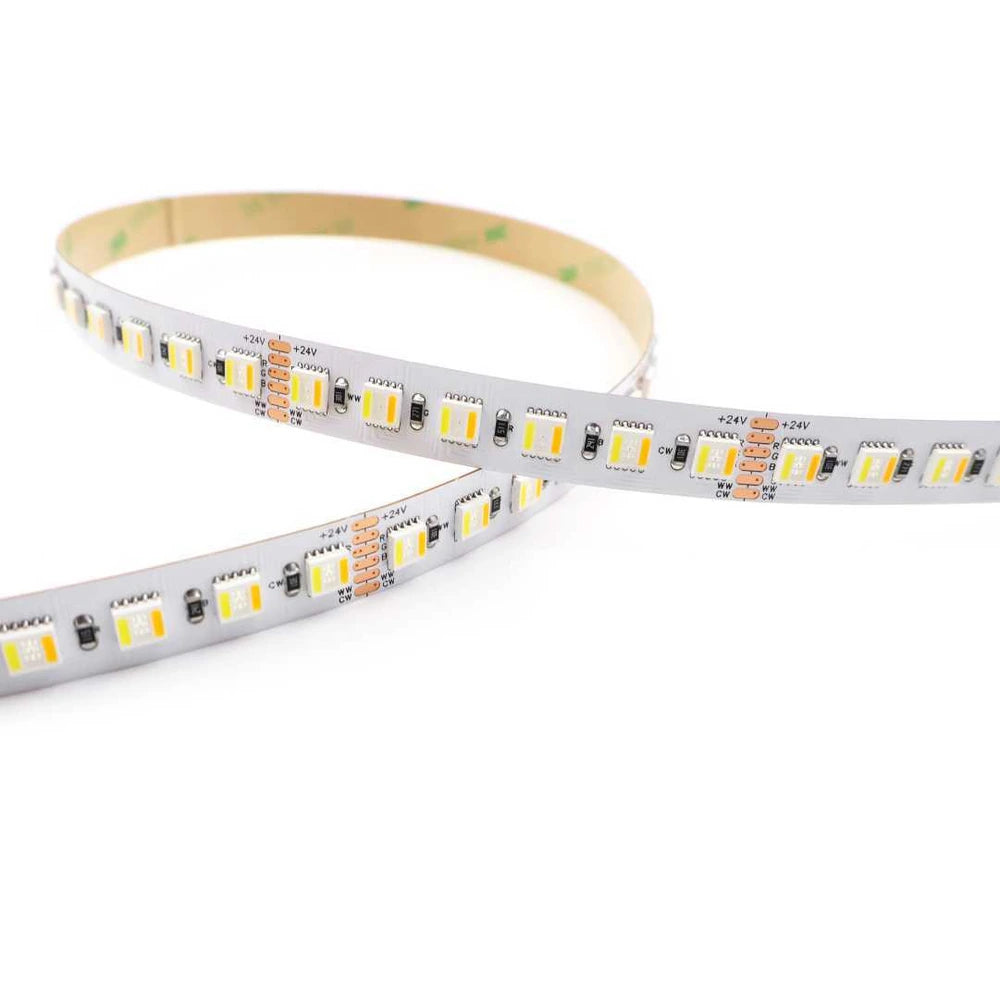

12mm SMD 5050 RGBCW LED Strip Light, 96 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
These 24V RGBW LED strip lights step up to a 5-in-1 RGBCW 5050 platform: red, green, blue, plus warm white and cool white on every segment, at 96 LEDs/m. That means full color scenes and fully tunable white (warm to cool) from a single strip - the most flexible option in our led strip rgbw range. Running on 24V for longer runs, this 24v led strip rgbw comes in IP20 or IP67 waterproof construction on a 5m reel.
Why Choose This 24V RGBCW LED Strip?
- 5-in-1 RGBCW: RGB color plus dedicated warm and cool white - dim and tune white from ~2700K to ~6500K without swapping strips.
- Color + tunable white: One strip covers party color scenes and everyday adjustable white light.
- 24V for long runs: Lower voltage drop and fewer feed points across long installs.

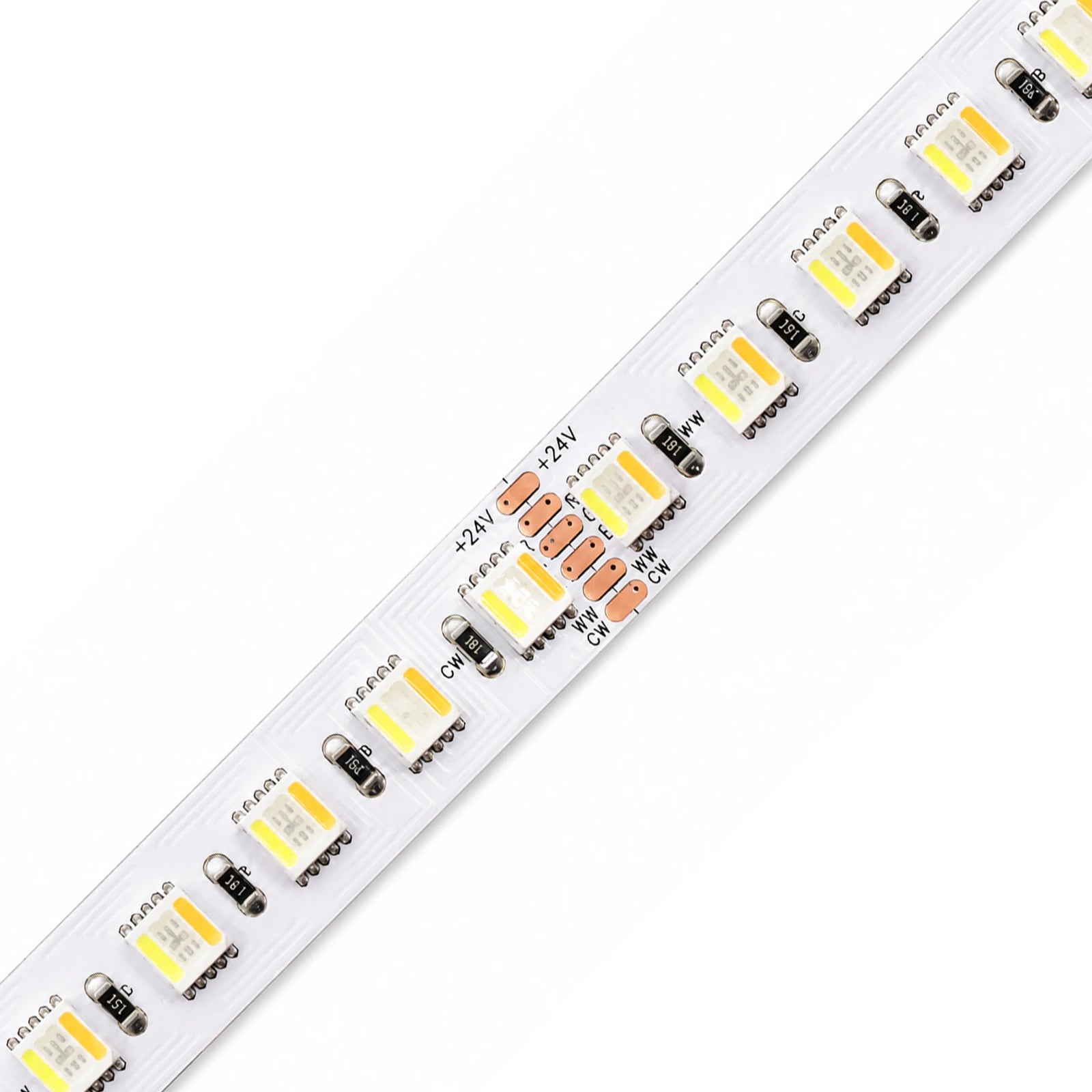

- 5050 platform: Bright, well-mixed output at 96 LEDs/m on a 12mm PCB.
- IP20 or IP67: Pick IP67 for damp locations.
- 5m reel: Cut-to-fit at marked points.
Technical Specifications
| Catalog Model | 5050-96-12mm-24V-RGBCW |
|---|---|
| LED Type | SMD 5050 (RGBCW 5-in-1) |
| LED Density | 96 LEDs/m |
| PCB Width | 12mm |
| Input Voltage | DC24V |
| Color | RGBCW (RGB + Warm White + Cool White) |
| Control | Compatible 24V RGBCW / 5-channel controller (sold separately) |
| Power | Up to 7.5W/m |
| LED Pitch | 10.4mm |
| Cutting Interval | 62.5mm / 2.46in, 6 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points (62.5mm / 2.46in, 6 LEDs per cut). Connect to a compatible 24V RGBCW (5-channel) controller and a 24V constant-voltage power supply, matching all channel markings. The 24V design supports longer single runs; size the supply with at least 20% reserve. Mount on a clean surface or into a 12mm aluminum channel.

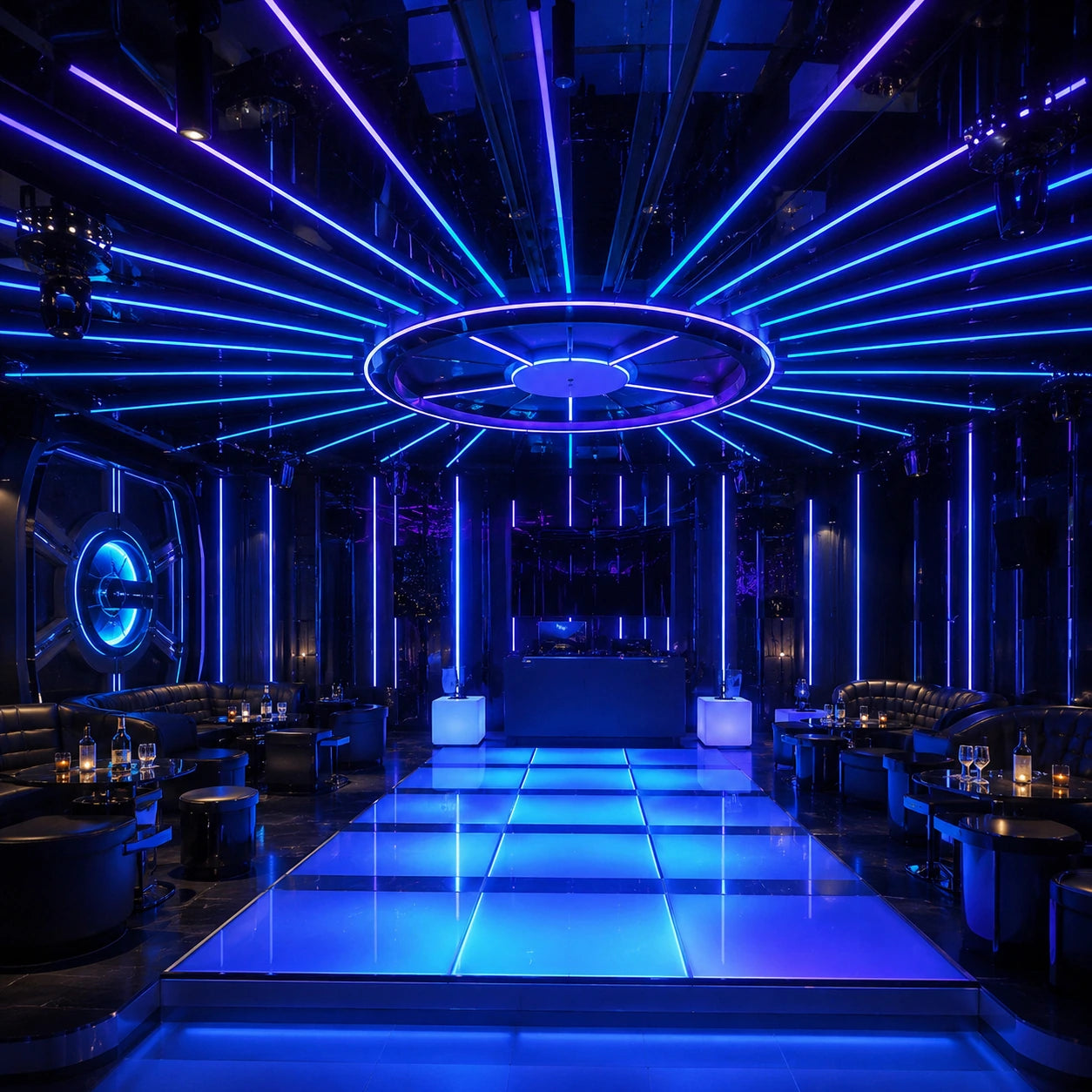

Recommended Applications
- Whole-room lighting that needs both tunable white and full-color scenes
- Media rooms, bedrooms, and living spaces wanting one strip for work and mood light
- Retail, hospitality, and events switching between white and dynamic color
Purchase Options and Customization
Standard length is a 5m reel (16.4ft). We can quote RGBCW controller, voltage, cable, connector, IP20/IP67 construction, and packaging for project volumes.
Compliance
Manufactured to CE, RoHS, UKCA, and additional international compliance standards. Contact us for the full certification package (including UL where applicable to your SKU) or project-specific support.
