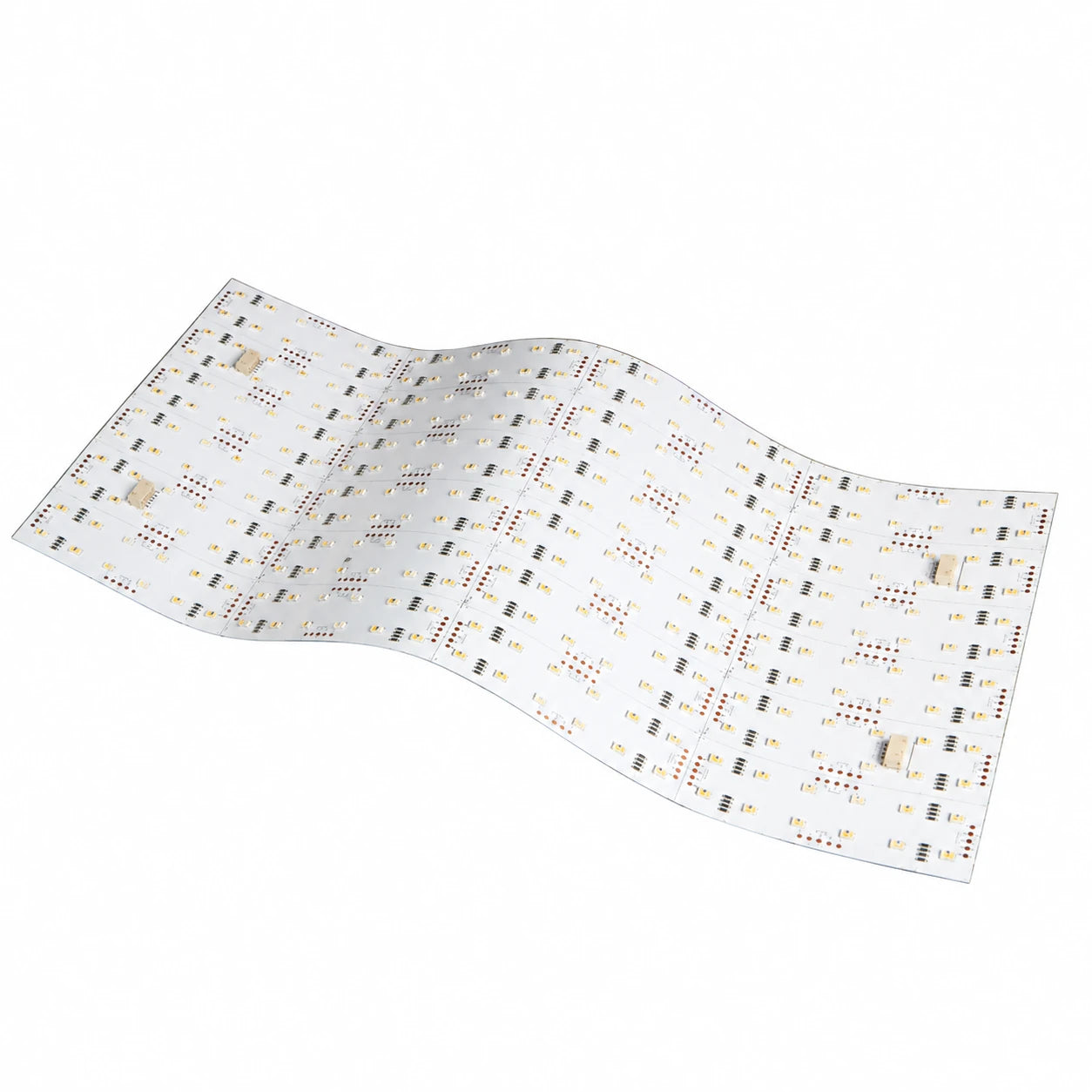

480x240mm SMD 5050 Diamond Backlight RGB LED Strip Light, 288 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
These 5050 RGB LED strip lights ship as a 480x240mm diamond-backlight panel running on 24V with 288 LEDs/m. As a color-changing RGB module, this waterproof-capable 24V RGB LED strip lights panel is built to backlight illuminated stone, feature walls, countertops, and display surfaces with even, edge-to-edge color. It's the diamond-grid variant of our rgb led strip lights range, offered in IP20 or IP67 construction on a 5m reel.
Why Choose These 5050 RGB LED Strip Lights?
- Diamond-backlight grid: The 480x240mm layout spreads light evenly behind stone, resin, and translucent panels - no hot spots or dark bands.
- True color-changing RGB: Full rgb 5050 led strip mixing for millions of colors and dynamic scenes via any compatible RGB controller.
- 24V for large surfaces: Lower current draw and longer runs than 12V, ideal for wide backlit installations.
- IP20 or IP67 waterproof: Choose the IP67 build for damp or splash-prone areas as waterproof rgb led strip lights.
- High density: 288 LEDs/m keeps the lit surface bright and continuous.
- Ready to install: Ships on a 5m reel, cut at marked points to fit the panel run.
Technical Specifications
| Catalog Model | 5050-288-480x240mm-24V-RGB |
|---|---|
| LED Type | SMD 5050 |
| LED Density | 288 LEDs/m |
| Format | 480x240mm Diamond Backlight Panel |
| Input Voltage | DC24V |
| Color | RGB Color Changing |
| Control | Compatible RGB controller (sold separately) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points. Connect to a compatible RGB controller and a constant-voltage 24V power supply, matching the R/G/B channel markings. Mount to a clean, flat backing surface or behind translucent stone, glass, or resin panels. Size the 24V power supply with at least 20% reserve capacity.
Recommended Applications
- Backlit stone, marble, onyx, and quartz feature walls and countertops
- Illuminated bar fronts, reception desks, and retail display surfaces
- Signage, translucent panels, and architectural accent lighting
Purchase Options and Customization
The standard length is a 5m reel (16.4ft). For projects we can quote RGB controller, voltage, cable length, connector type, IP20/IP67 construction, and packaging in volume.
Compliance
Manufactured to CE, RoHS, UKCA, and additional international compliance standards. Contact us for the full certification package (including UL where applicable to your SKU) or project-specific compliance support.
