500x240mm SMD 2835 Diamond Backlight White LED Strip Light, 300 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

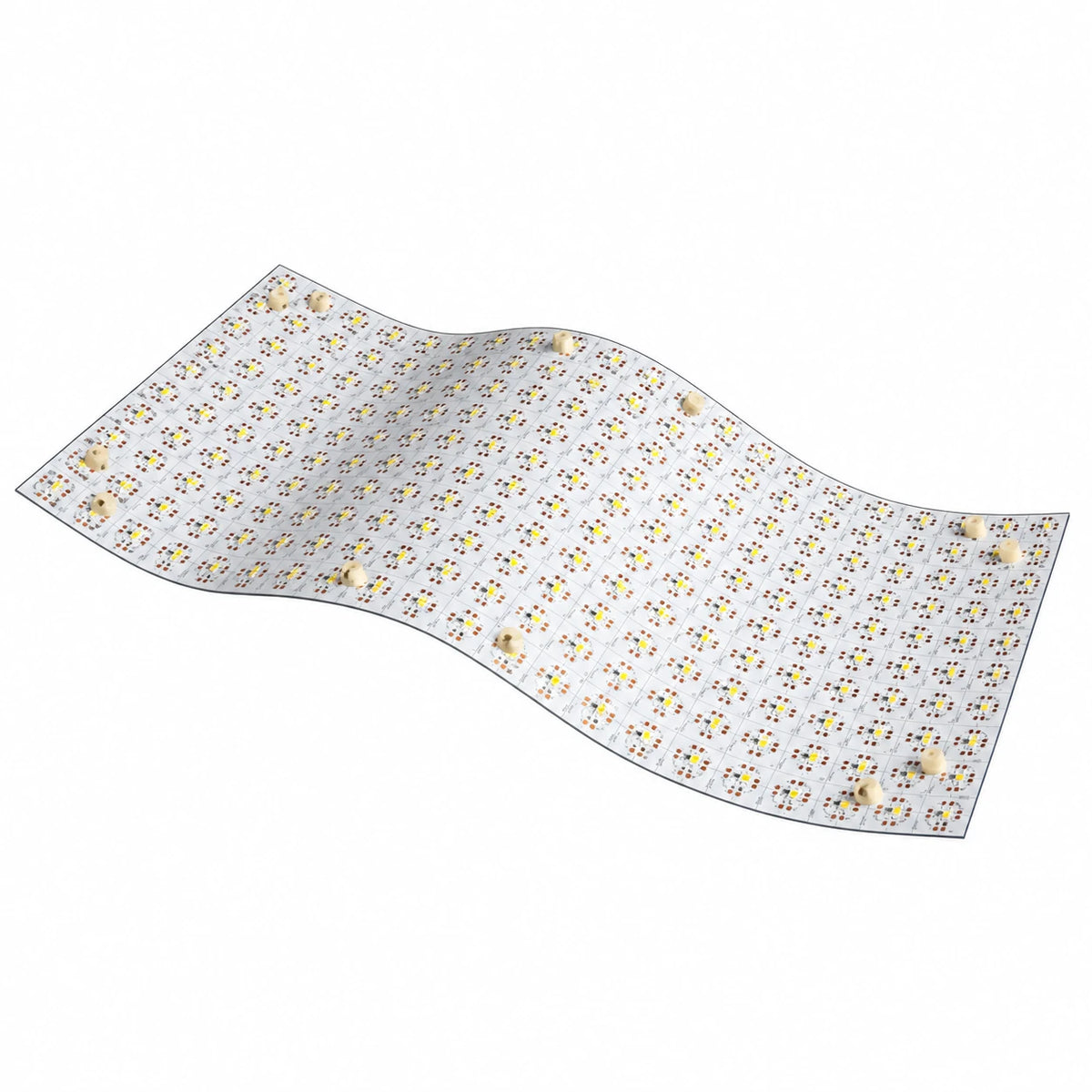

This 500x240mm 2835 LED backlight module uses diamond-lens optics and 300 LEDs/m on 24V to spread light wide and evenly across large surfaces — a modular, tileable panel for backlighting lightboxes, signage, and illuminated displays with CRI 90 color.
Why Choose This LED Strip?
- Diamond-lens optics: wide, even beam spread for streak-free backlighting.
- Modular 500x240mm panel: tile multiple modules to cover large surfaces.
- CRI 90 color: clean, accurate white behind graphics and signage.
- 24V circuit: stable output across tiled backlight arrays.
Technical Specifications
| Catalog Model | 2835-300-500x240mm-24V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 300 LEDs/m |
| PCB / Product Width | 500x240mm |
| Input Voltage | DC24V |
| Power | 24W |
| Luminous Output | Output varies by color temperature and configuration |
| Color Rendering | 90 |
| Color / CCT | 3000K, 4000K, 6500K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting & Installation
This is a modular backlight panel, not a linear strip. Space the modules evenly behind the surface to be lit, following the recommended depth for uniform coverage, and wire them to a matched 24V constant-voltage supply with at least 20% reserve. Tile additional modules to scale up to larger graphics.
Recommended Applications

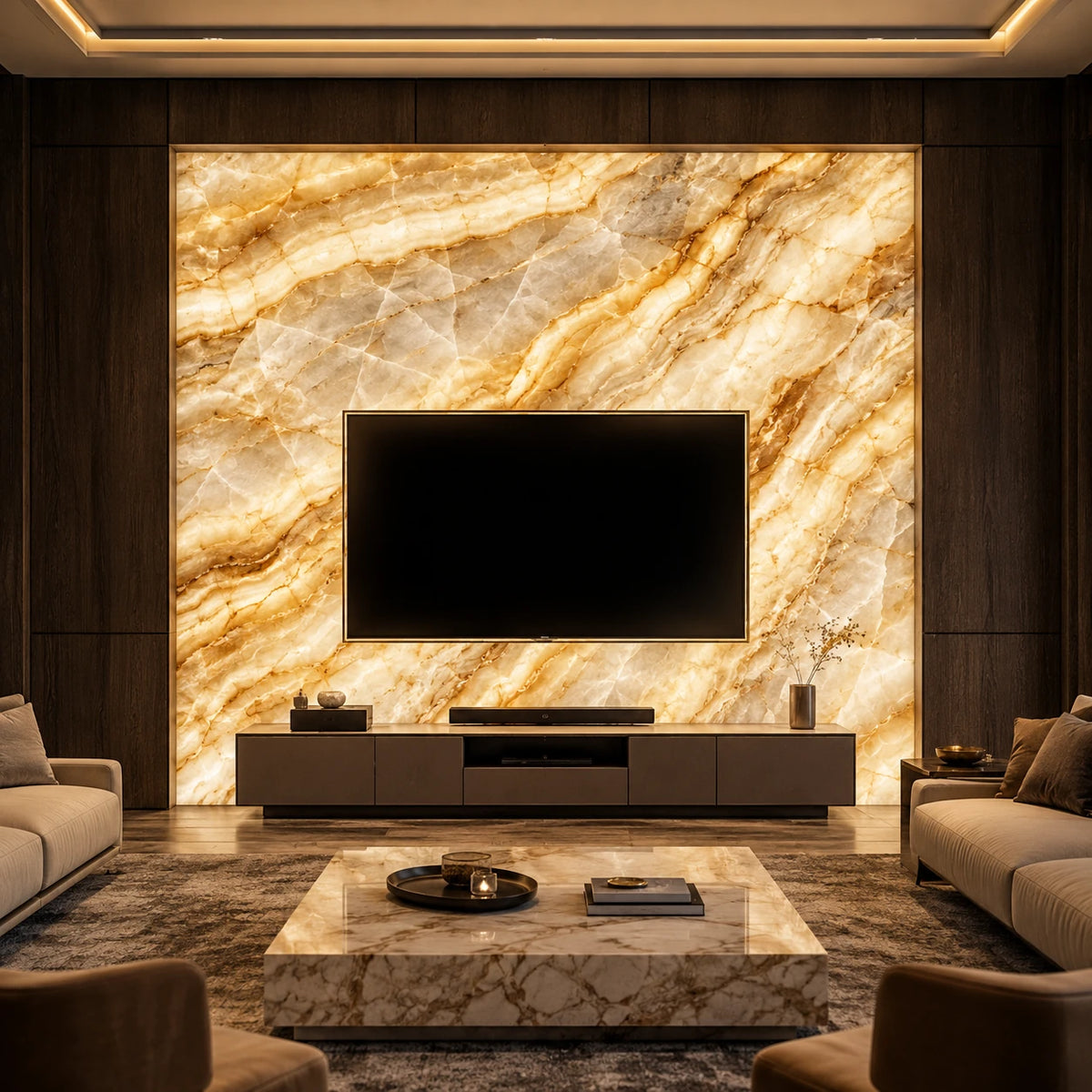

- Lightbox and signage backlighting
- Illuminated display and menu boards
- Large backlit graphic panels
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
