5mm SMD 2835 Horizontal-Mount White LED Strip Light for Light Guide Panels, 168 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

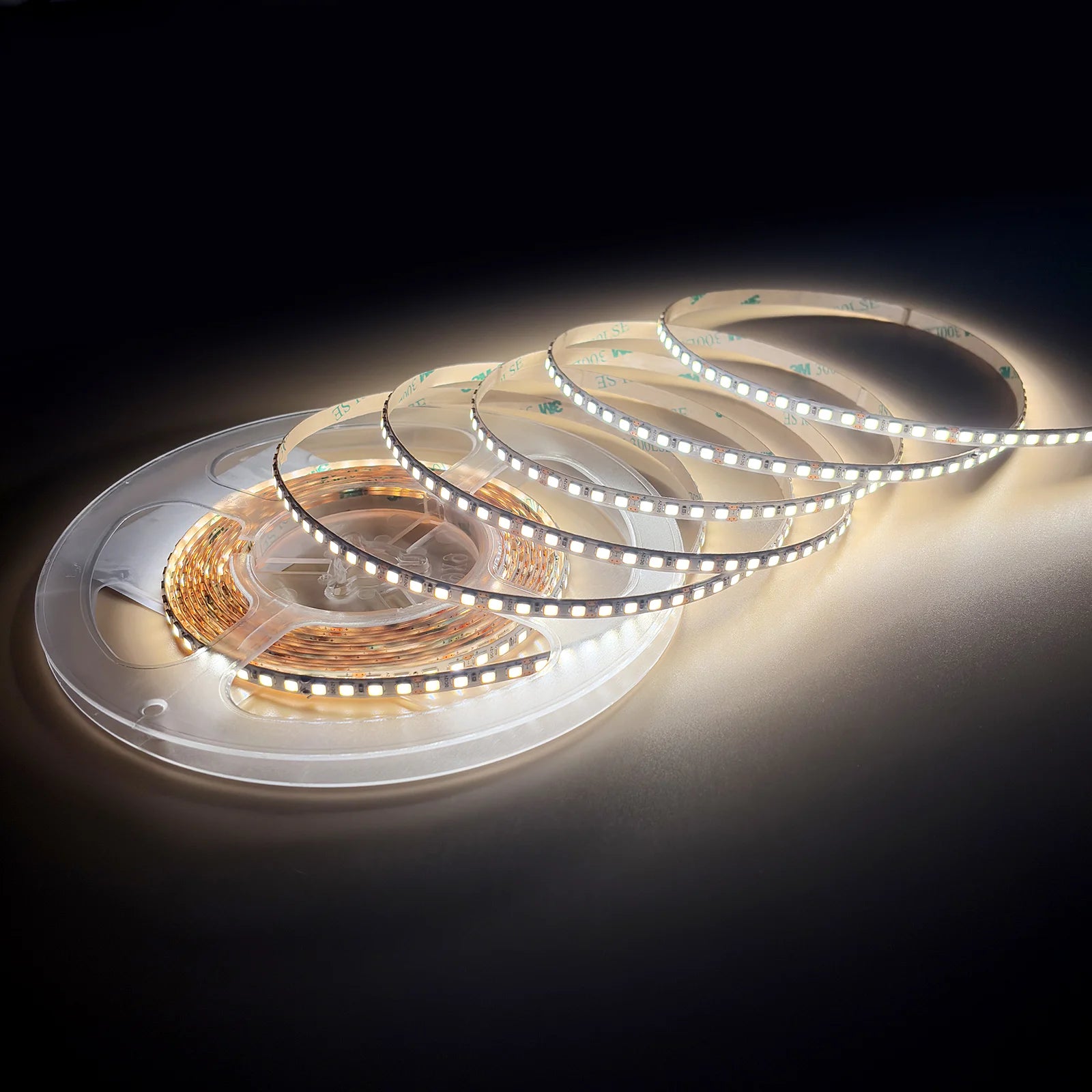

This 5mm SMD 2835 LED strip uses a horizontal-mount LED layout and is designed for even, high-quality illumination in acrylic light guide panels and backlit displays on a 12V circuit, with up to CRI 95.
Why Choose This LED Strip?
- Horizontal-mount LED layout: optimized for compact 5mm light guide and backlighting applications.
- Even LGP backlighting: streak-free glow across acrylic panels.
- Up to CRI 95: premium color for high-end illuminated signage.
- Dense 168 LEDs/m: bright, uniform coupling on a slim 5mm board.
Technical Specifications
| Catalog Model | 2835-168-5mm-12V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 168 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC12V |
| Power | 8.5W/m |
| Luminous Output | 1224lm/m |
| Color Rendering | 95 |
| Color / CCT | 2200K, 2700K, 3000K, 4000K, 5000K, 6500K |
| LED Spacing | 5.9 mm (0.23 in) |

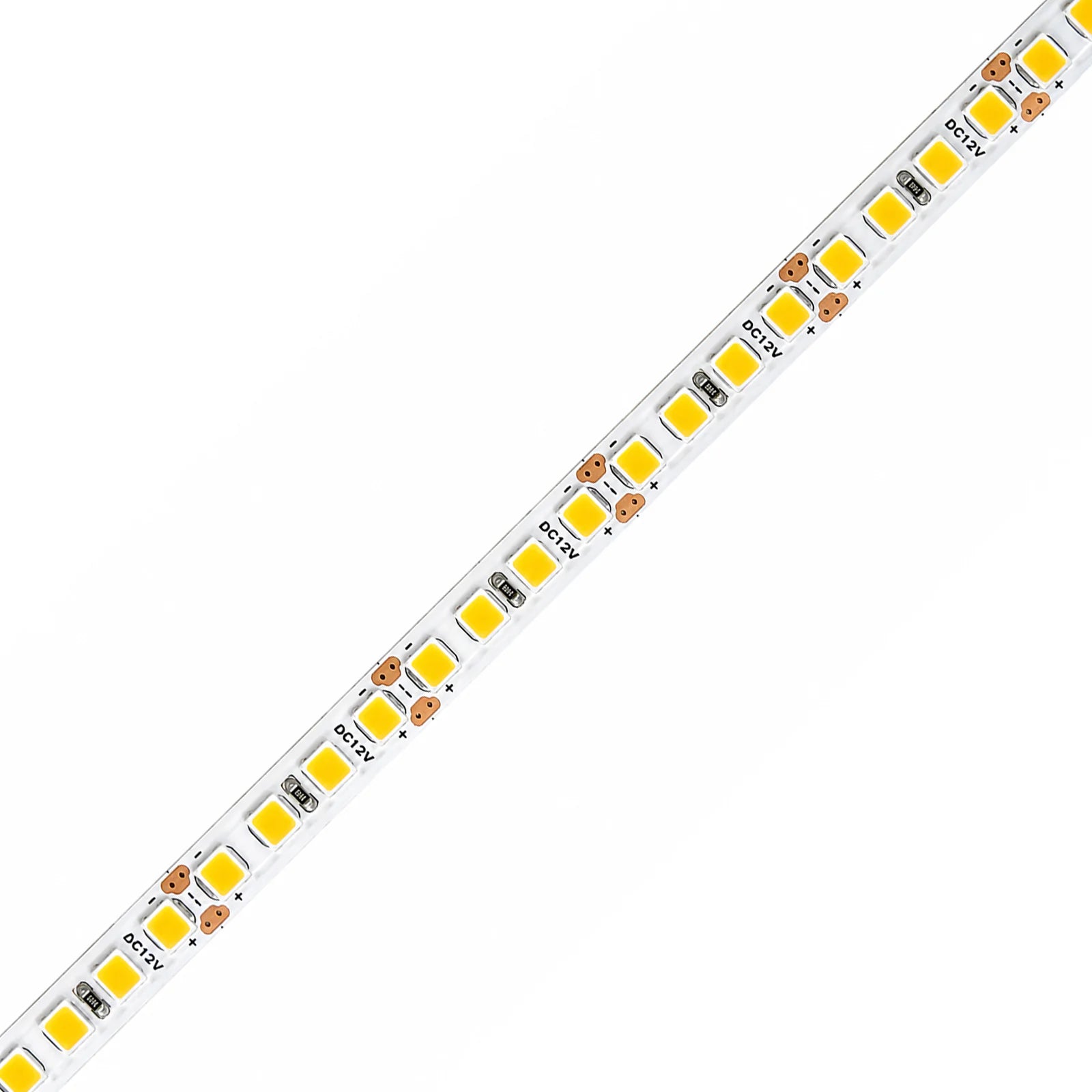

| Cutting Interval | 23.8 mm (0.94 in) |

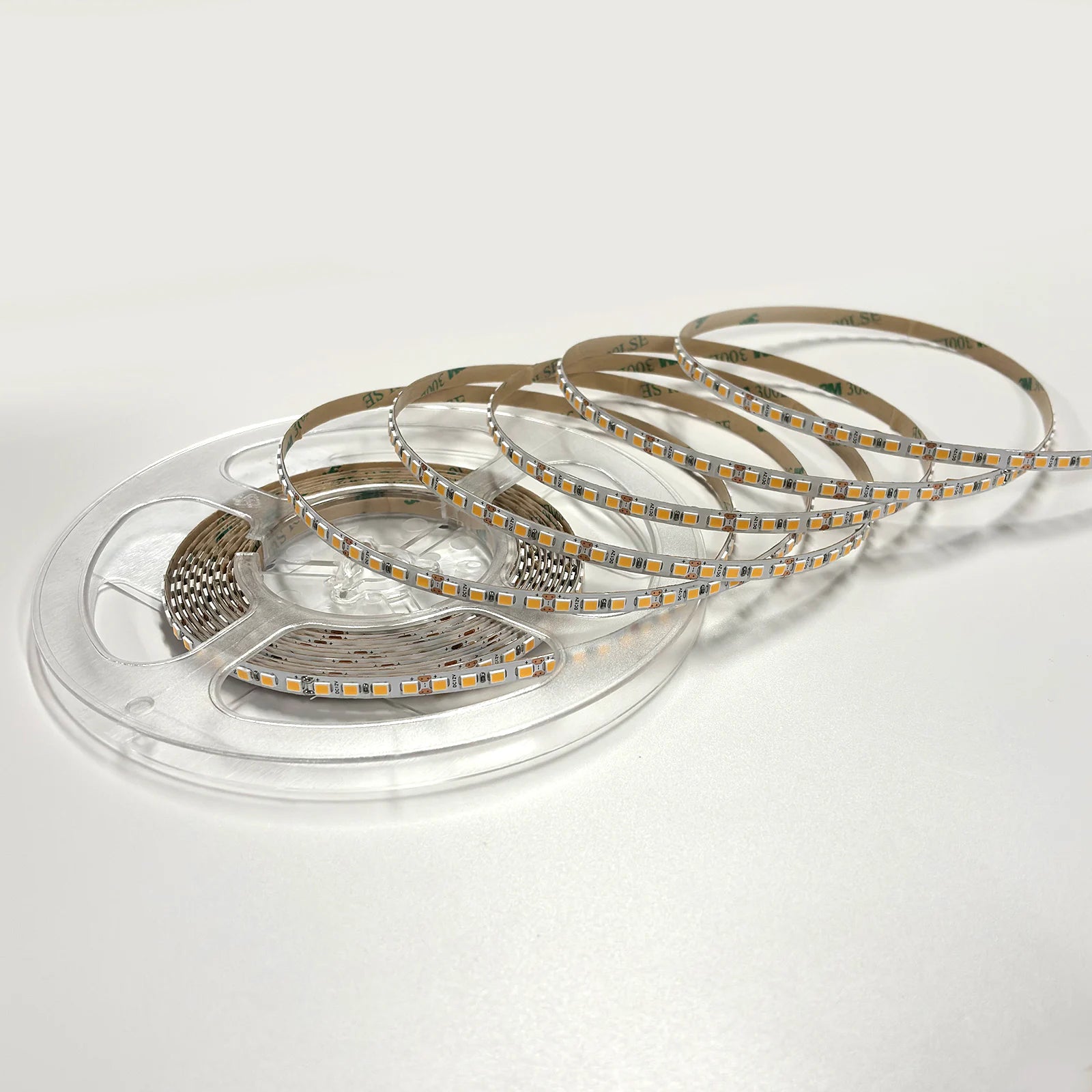

| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting & Installation
Install the strip according to the light guide panel design so light couples evenly into the panel. Cut only at the marked points, observe polarity, and use a matched constant-voltage supply with at least 20% reserve. Keep the mounting surface clean and the strip properly aligned for even illumination.
Recommended Applications

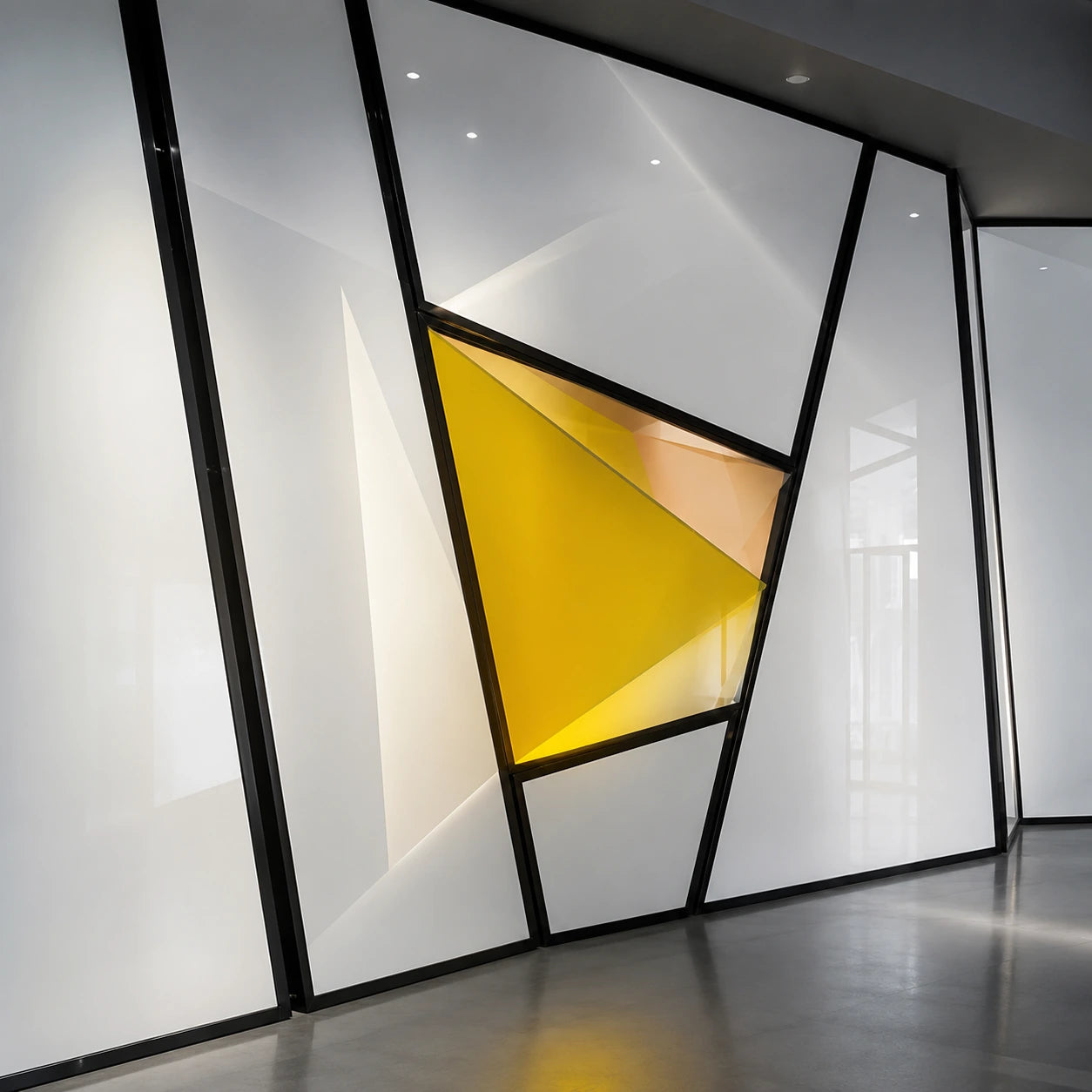

- Edge-lit acrylic light guide panels
- Premium backlit signage and displays
- Slim lightboxes needing even glow
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
