5mm SMD 2835 2-LED Cuttable Light Guide Panel White LED Strip Light, 168 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 5mm 2835 white LED strip pairs a dense 168 LEDs per meter with a 24V circuit and CRI 90 color, injecting bright, even light into acrylic light guide panels — the 24V option for larger panels and longer edge runs with minimal fall-off.
Why Choose This LED Strip?
- 24V for long edges: less voltage drop across larger panels.
- Dense 168 LEDs/m: bright, uniform panel backlighting.
- CRI 90 color: clean, accurate white for signage and retail.
- Light guide optimized: designed to couple light into acrylic LGP.
Technical Specifications
| Catalog Model | 2835-168-5mm-24V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 168 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC24V |
| Power | Up to 10W/m |
| Luminous Output | 1065lm/m |
| Color Rendering | 90 |
| Color / CCT | 2200K, 2700K, 3000K, 4000K, 5000K, 6500K |
| LED Pitch | 5.9mm |
| Cutting Interval | 11.9mm / 0.47in, 2 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting & Installation

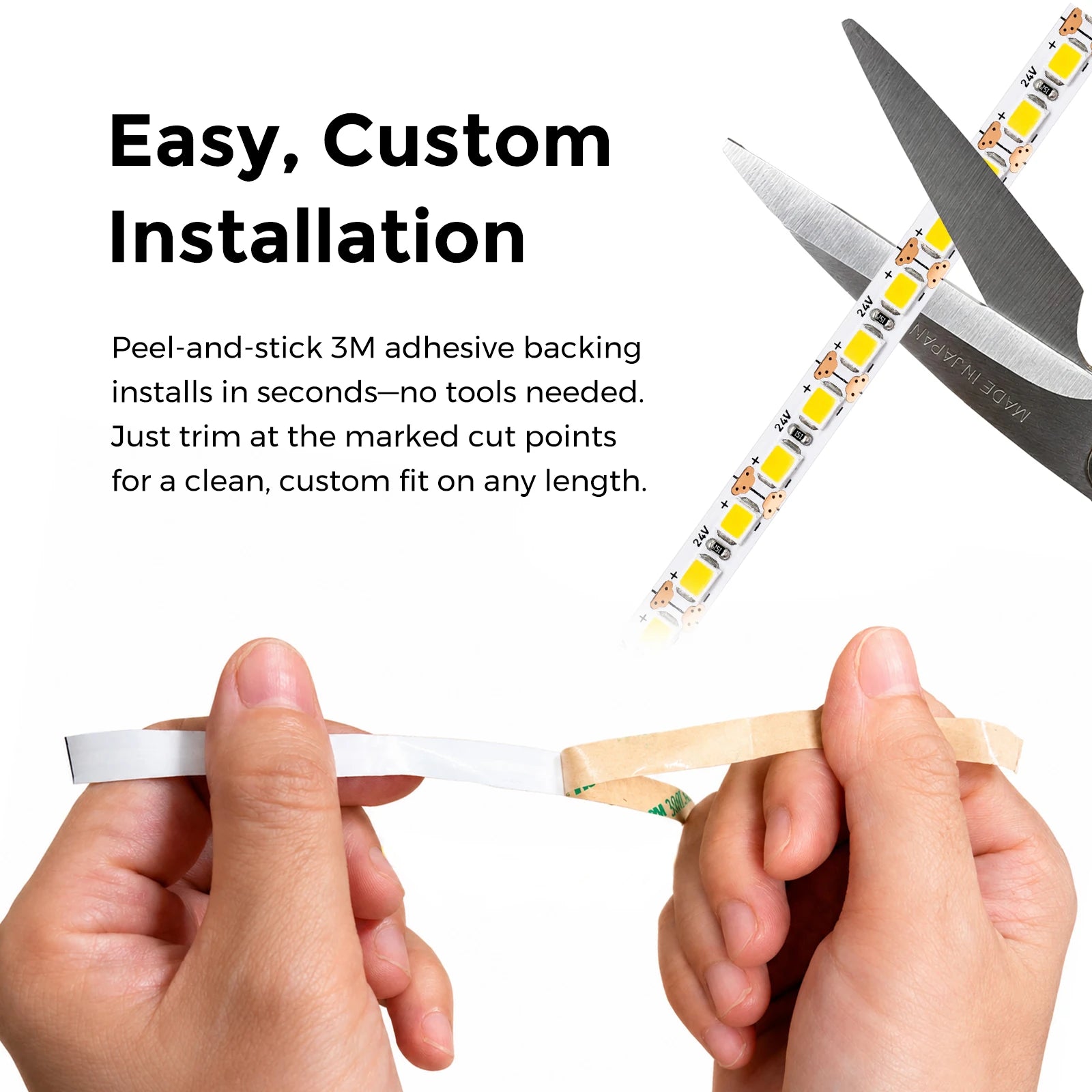

Handle as an edge-light source: seat the strip along the acrylic light guide panel edge so light couples evenly into the panel. Cut only at the marked points (11.9mm / 0.47in, 2 LEDs per cut), observe polarity, and use a matched constant-voltage supply with at least 20% reserve. Keep the emitting edge clean and flush against the panel for a streak-free glow.
Recommended Applications

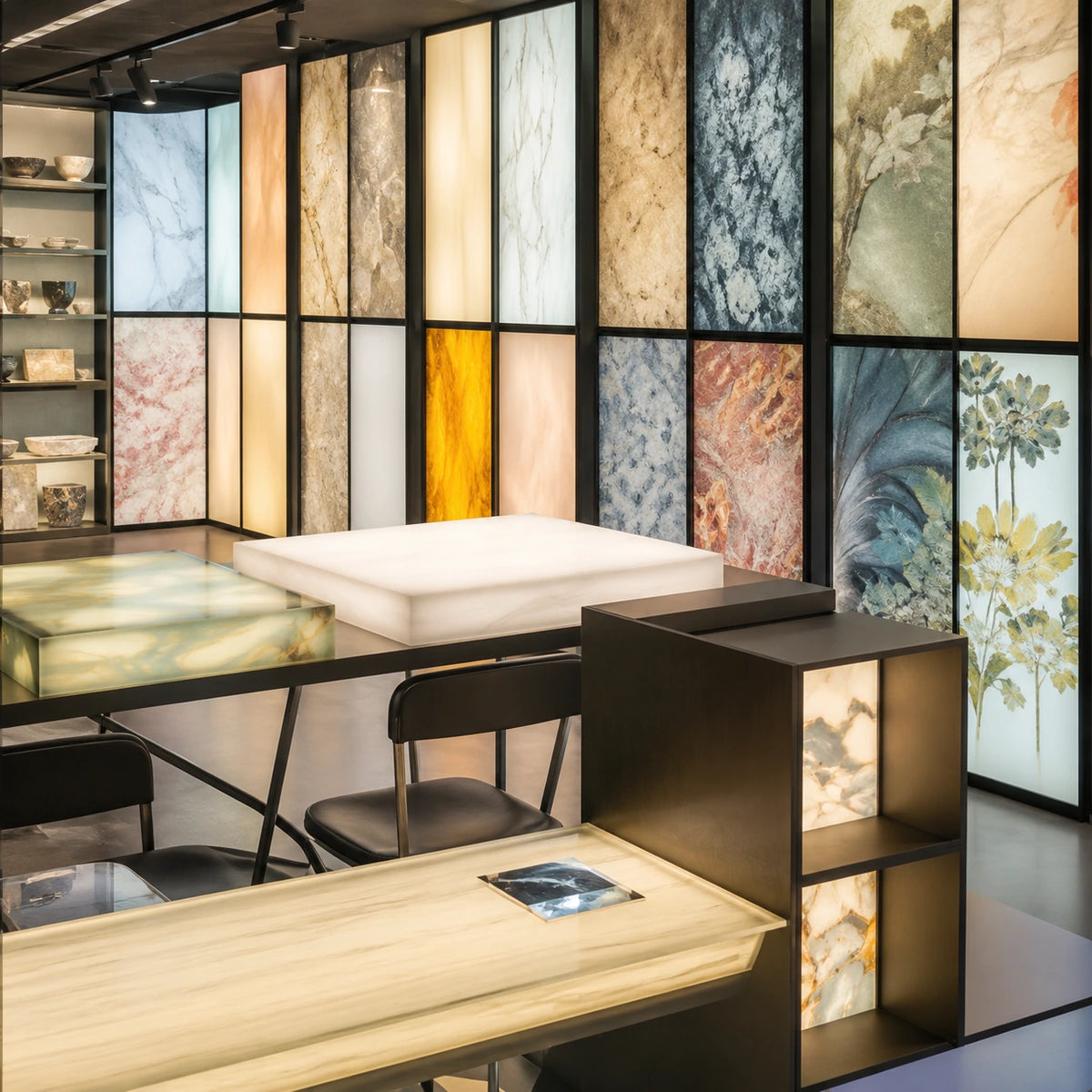

- Larger edge-lit acrylic panels
- Long-run illuminated signage
- Backlit retail and display walls
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
