4.5mm SMD 2835 Light Guide Panel White LED Strip Light, 168 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

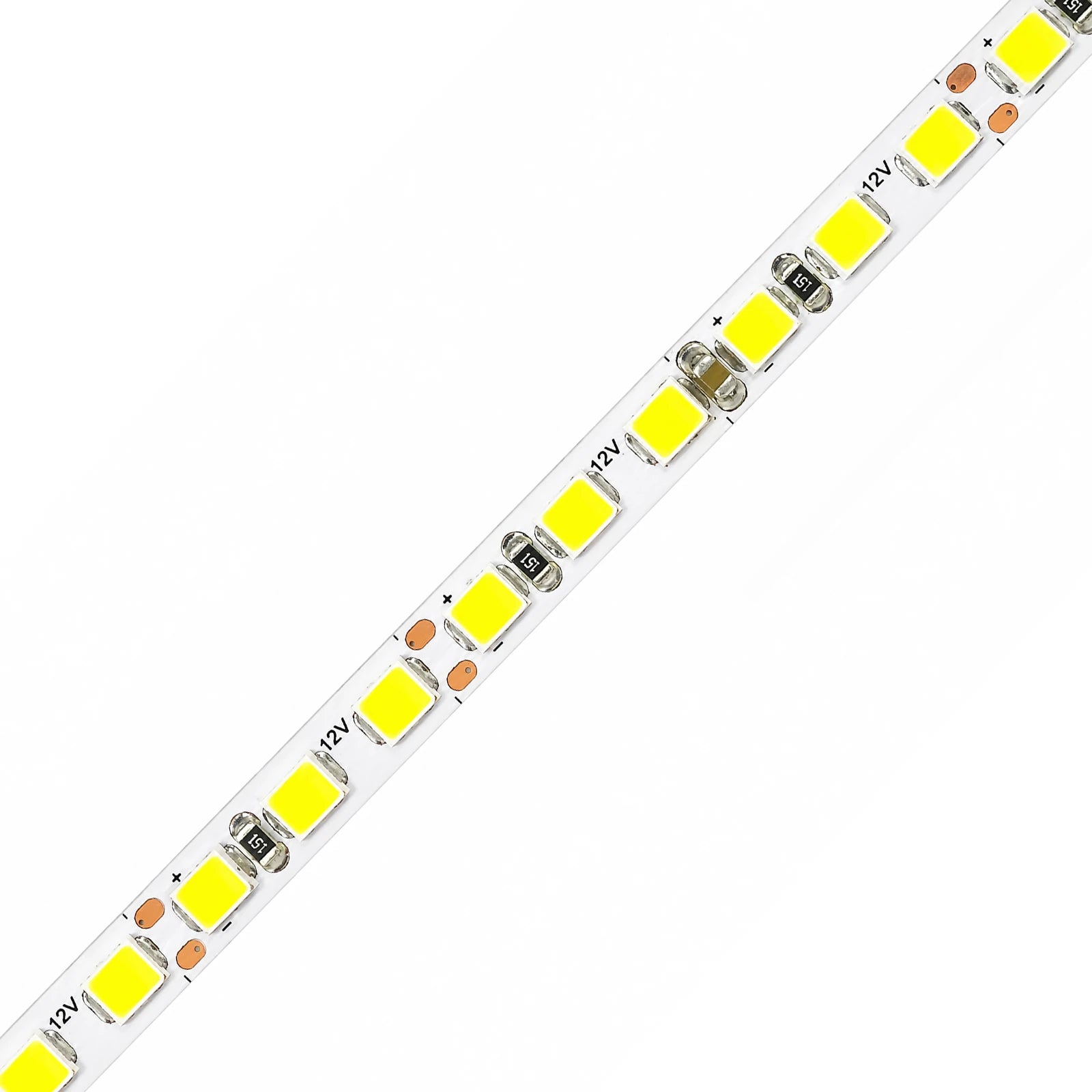

This slim 4.5mm 2835 white LED strip runs a dense 168 LEDs per meter on 12V to inject bright, even light into acrylic light guide panels — the higher-density edge-lighting choice for larger or brighter backlit signs and displays.
Why Choose This LED Strip?
- Dense 168 LEDs/m: more light injected for brighter, larger panels.
- Slim 4.5mm board: fits tight LGP frames while boosting output.
- Even edge coupling: uniform glow with no visible streaks.
- 12V circuit: simple wiring for signage and display builds.
Technical Specifications
| Catalog Model | 2835-168-4.5mm-12V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 168 LEDs/m |
| PCB / Product Width | 4.5mm |
| Input Voltage | DC12V |
| Power | Up to 13.5W/m |
| Luminous Output | 1463lm/m |
| Color Rendering | 80 |
| Color / CCT | 2200K, 2700K, 3000K, 4000K, 5000K, 6500K |
| LED Pitch | 5.9mm |
| Cutting Interval | 17.8mm / 0.70in, 3 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting & Installation
Handle as an edge-light source: seat the strip along the acrylic light guide panel edge so light couples evenly into the panel. Cut only at the marked points (17.8mm / 0.70in, 3 LEDs per cut), observe polarity, and use a matched constant-voltage supply with at least 20% reserve. Keep the emitting edge clean and flush against the panel for a streak-free glow.
Recommended Applications

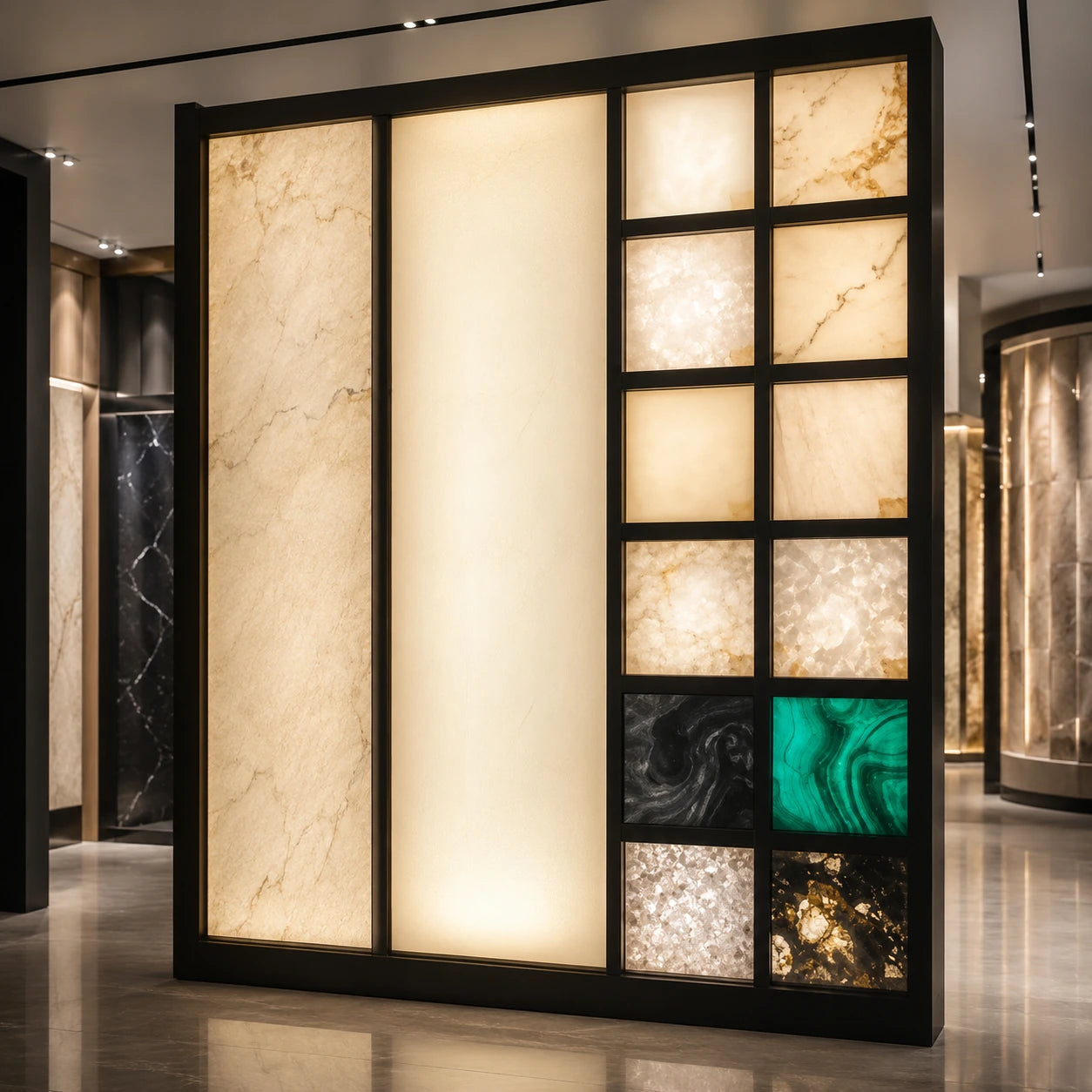

- Larger or brighter edge-lit panels
- Illuminated signage and menu boards
- Backlit retail and display surfaces
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
