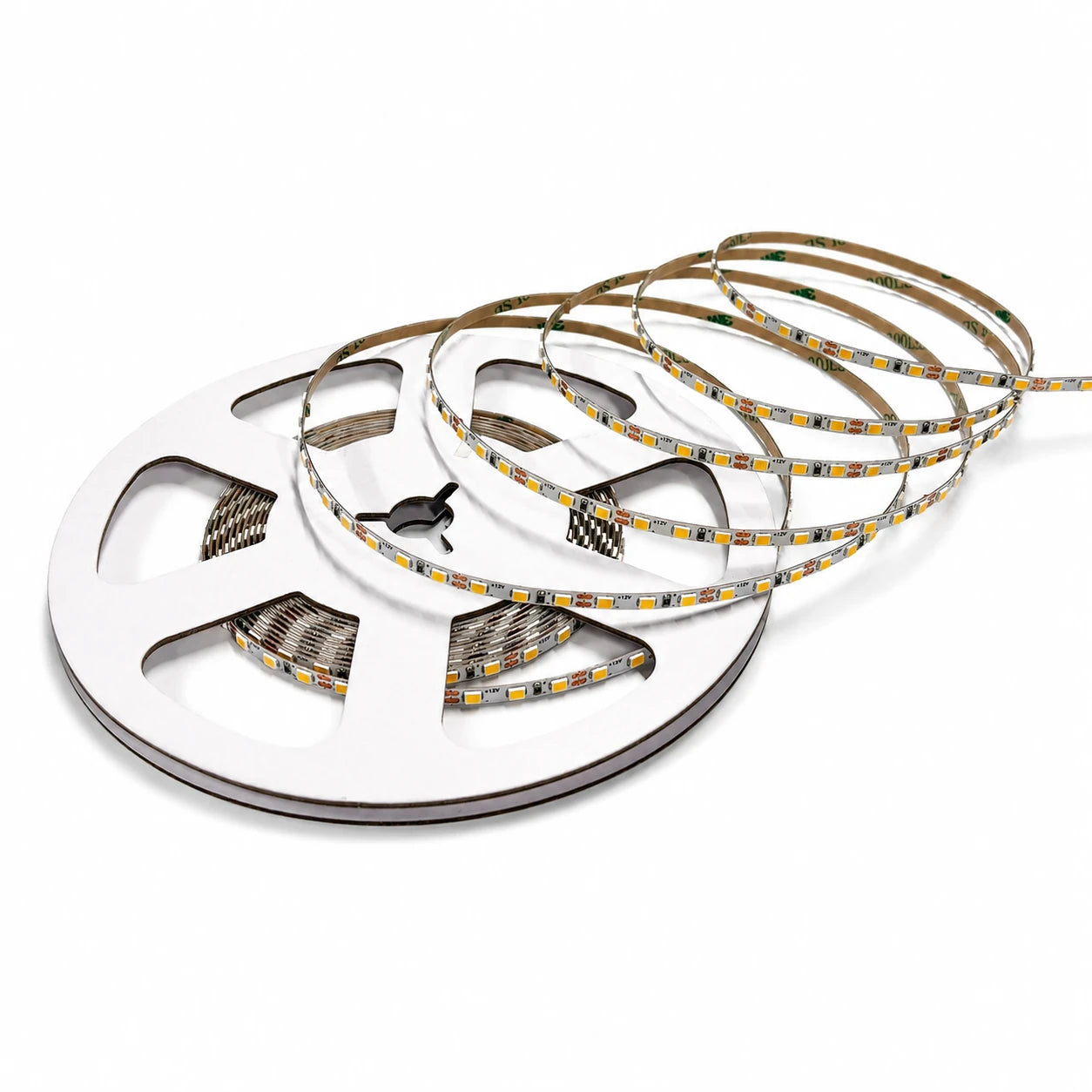

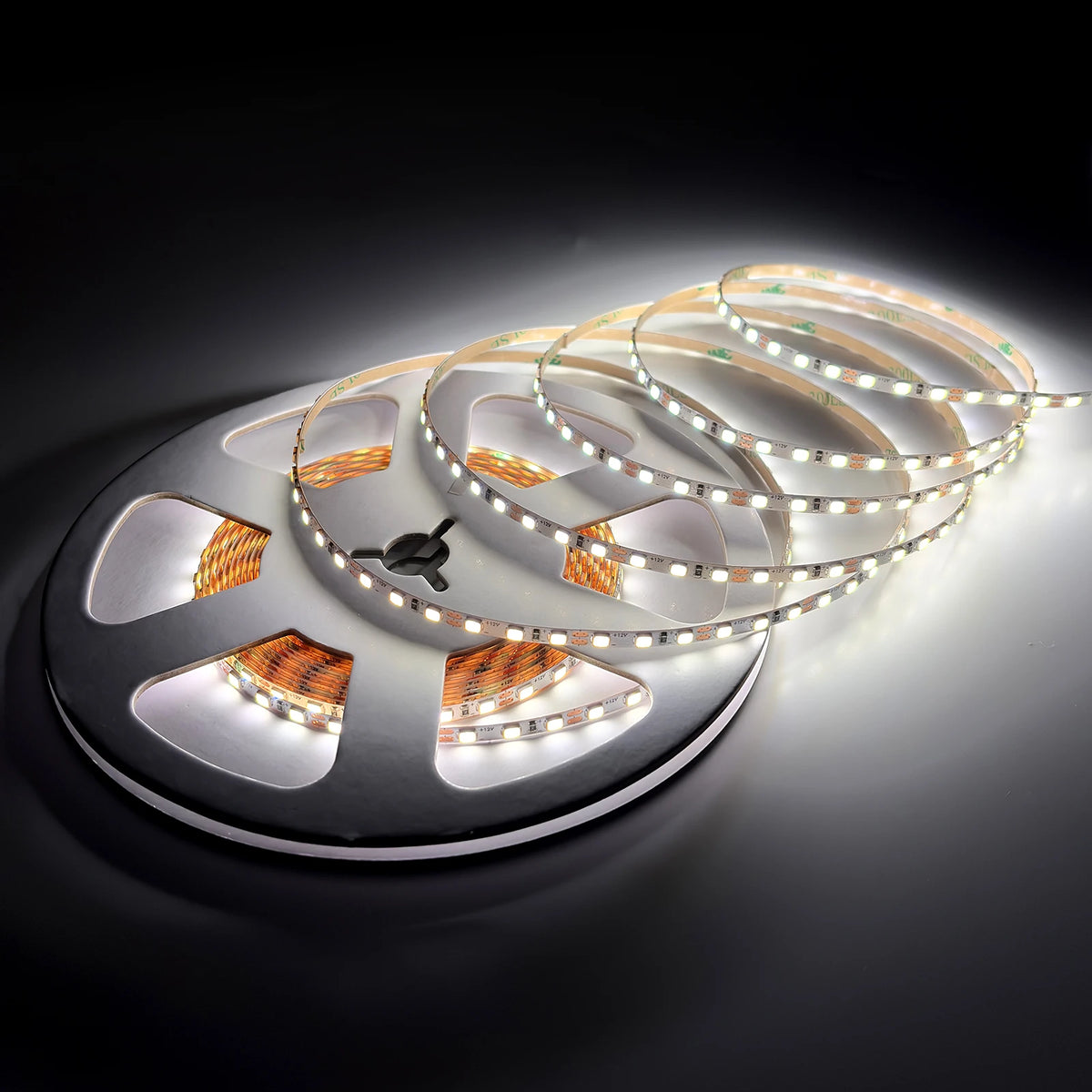

4mm SMD 2835 Light Guide Panel White LED Strip Light, 120 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
At just 4mm wide, this 2835 white LED strip is built to edge-light thin acrylic light guide panels on a 12V circuit — the ultra-slim option for the slimmest illuminated signs, panel backlights, and space-constrained display frames.
Why Choose This LED Strip?
- Ultra-slim 4mm board: fits the thinnest LGP frames and edges.
- Panel-injection design: couples even light into acrylic light guides.
- 12V simplicity: easy to drive in compact signage builds.
- Streak-free glow: uniform edge lighting for clean backlit surfaces.
Technical Specifications
| Catalog Model | 2835-120-4mm-12V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 4mm |
| Input Voltage | DC12V |
| Power | 10W/m |
| Luminous Output | 1377lm/m |
| Color Rendering | 90 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |

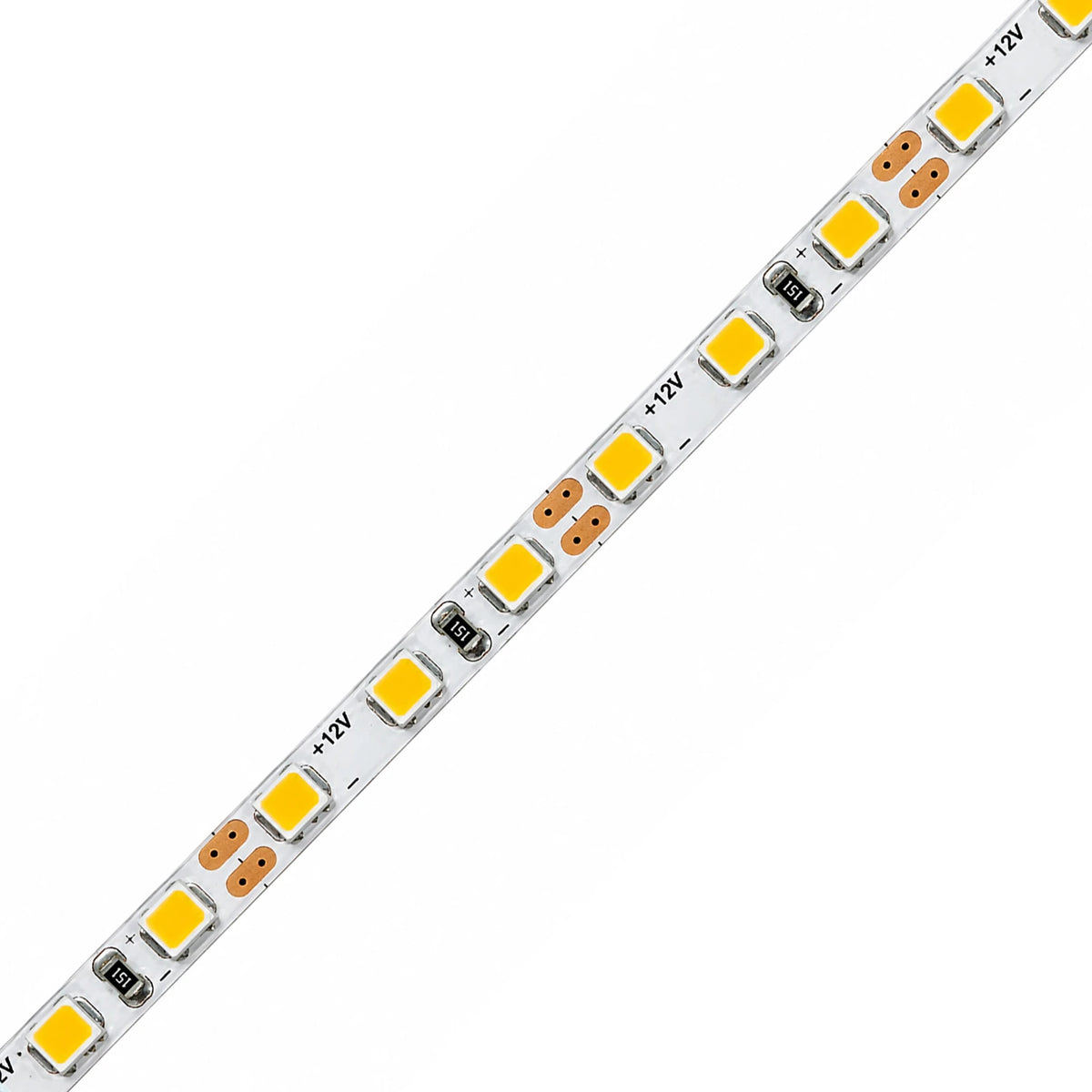

| LED Spacing | 8.3 mm (0.33 in) |
| Cutting Interval | 25 mm (0.98 in) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting & Installation
Handle as an edge-light source: seat the strip along the acrylic light guide panel edge so light couples evenly into the panel. Cut only at the marked points, observe polarity, and use a matched constant-voltage supply with at least 20% reserve. Keep the emitting edge clean and flush against the panel for a streak-free glow.

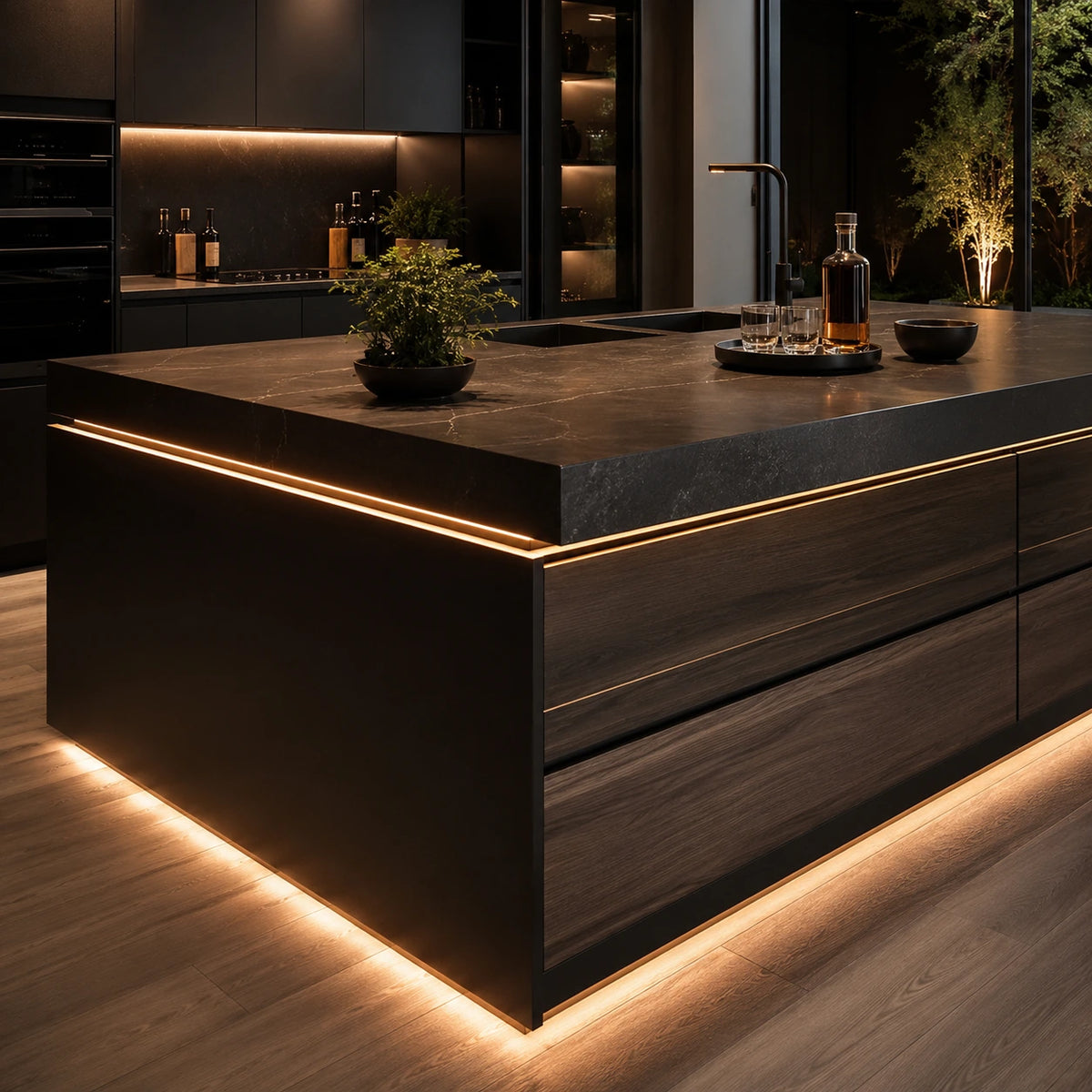

Recommended Applications
- Thin edge-lit acrylic panels
- Ultra-slim illuminated signage
- Compact backlit displays and frames
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
