5mm SMD 2835 Single-LED Cuttable Light Guide Panel White LED Strip Light, 120 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

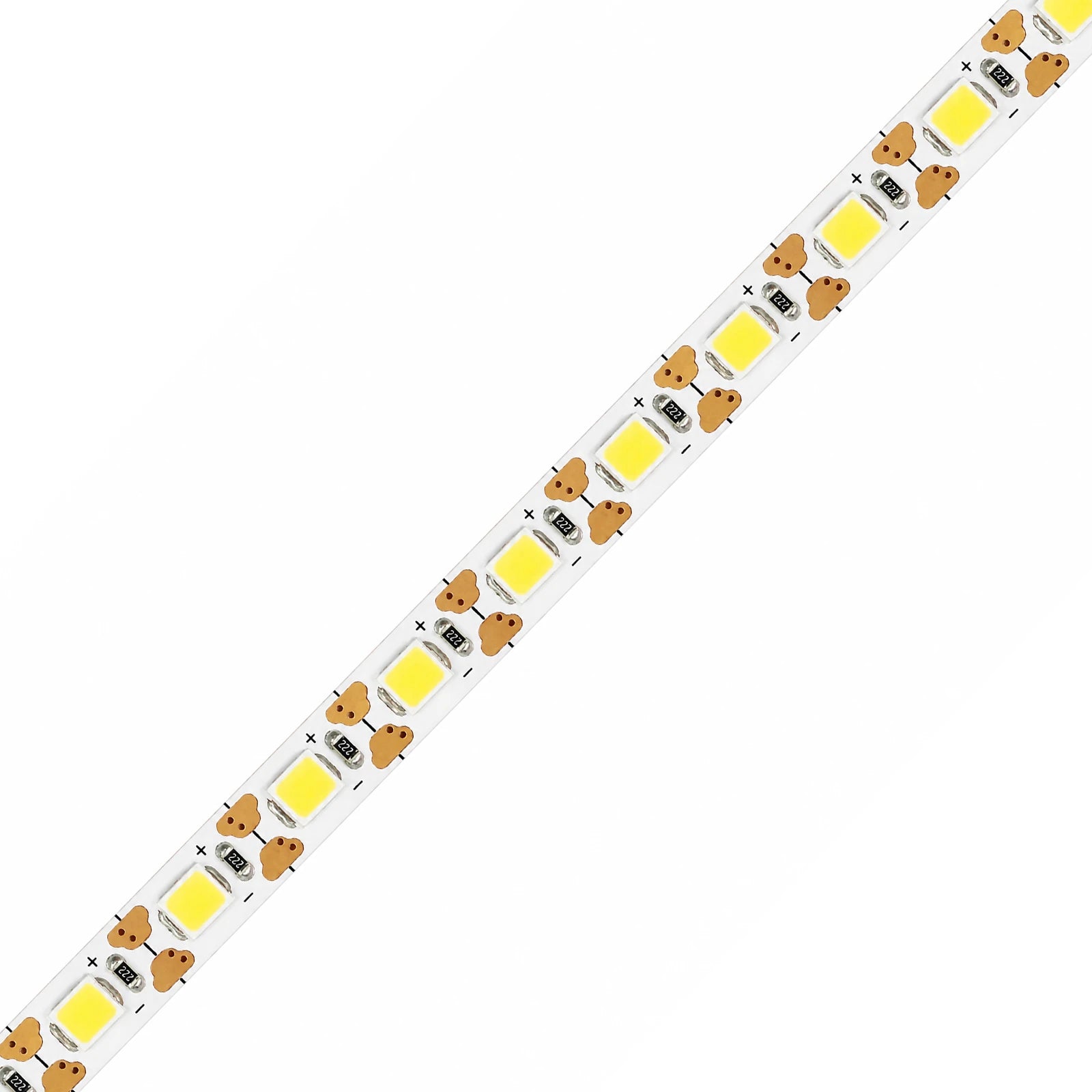

This 5mm 2835 white LED strip is designed to edge-light acrylic light guide panels (LGP), coupling bright, even light into the panel edge on a 24V circuit — the building block for slim illuminated signs, menu boards, and backlit displays.
Why Choose This LED Strip?
- Made for light guide panels: optimized to inject light into acrylic LGP edges.
- Even panel glow: uniform coupling for streak-free backlit surfaces.
- 24V circuit: supports longer panel edges without visible fall-off.
- Slim 5mm board: fits the thin frames used in edge-lit signage.
Technical Specifications
| Catalog Model | 2835-120-5mm-24V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC24V |
| Power | Up to 10W/m |
| Luminous Output | 1153lm/m |
| Color Rendering | 95 |
| Color / CCT | 2200K, 2700K, 3000K, 4000K, 5000K, 6500K |
| LED Pitch | 8.3mm |
| Cutting Interval | 8.3mm / 0.33in, 1 LED per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

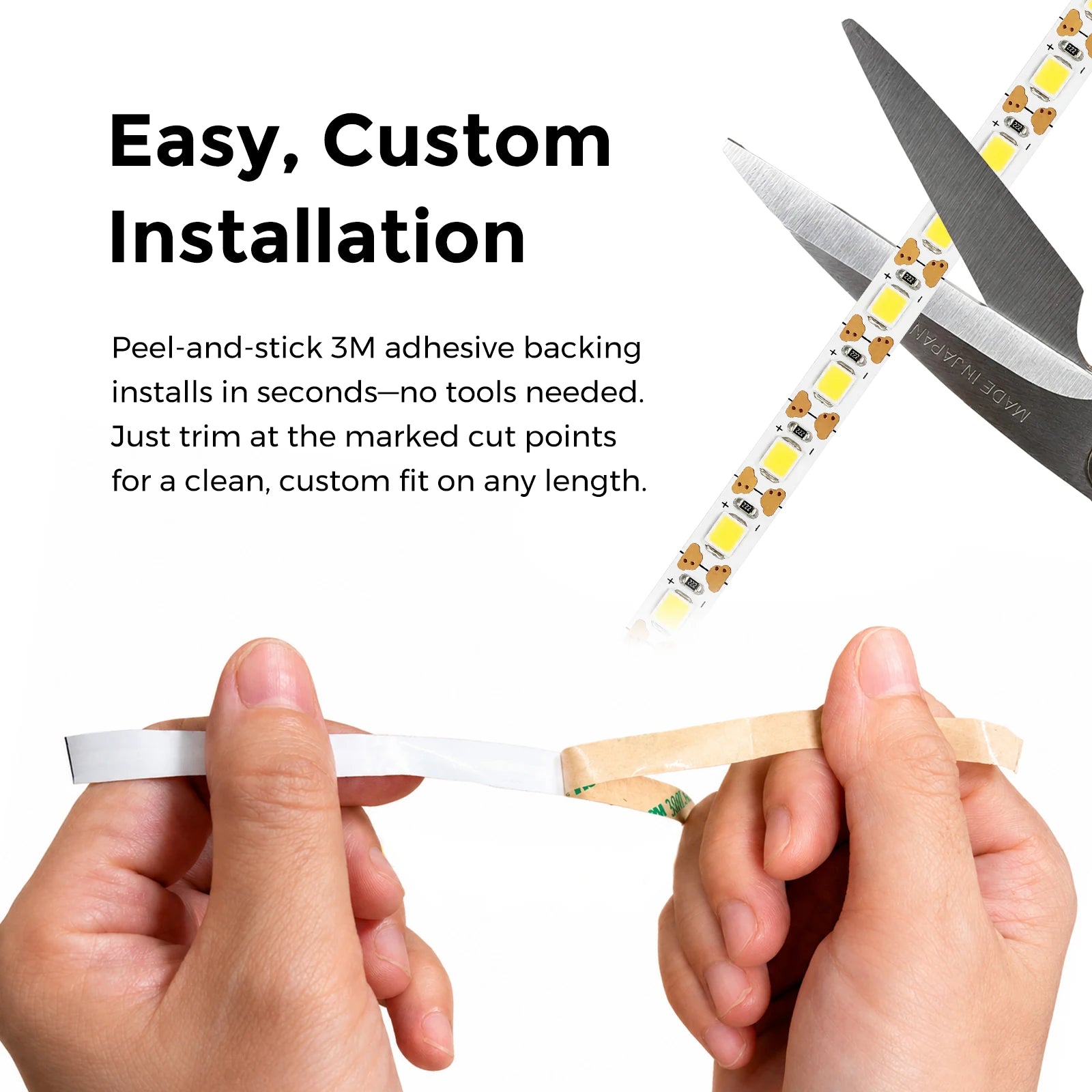

Cutting & Installation
Handle as an edge-light source: seat the strip along the acrylic light guide panel edge so light couples evenly into the panel. Cut only at the marked points (8.3mm / 0.33in, 1 LED per cut), observe polarity, and use a matched constant-voltage supply with at least 20% reserve. Keep the emitting edge clean and flush against the panel for a streak-free glow.
Recommended Applications
- Edge-lit acrylic light guide panels
- Slim illuminated signage and menu boards
- Backlit displays and lightboxes
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
