8mm SMD 2835 Dual-White LED Strip Light, 120 LEDs/m, 5V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

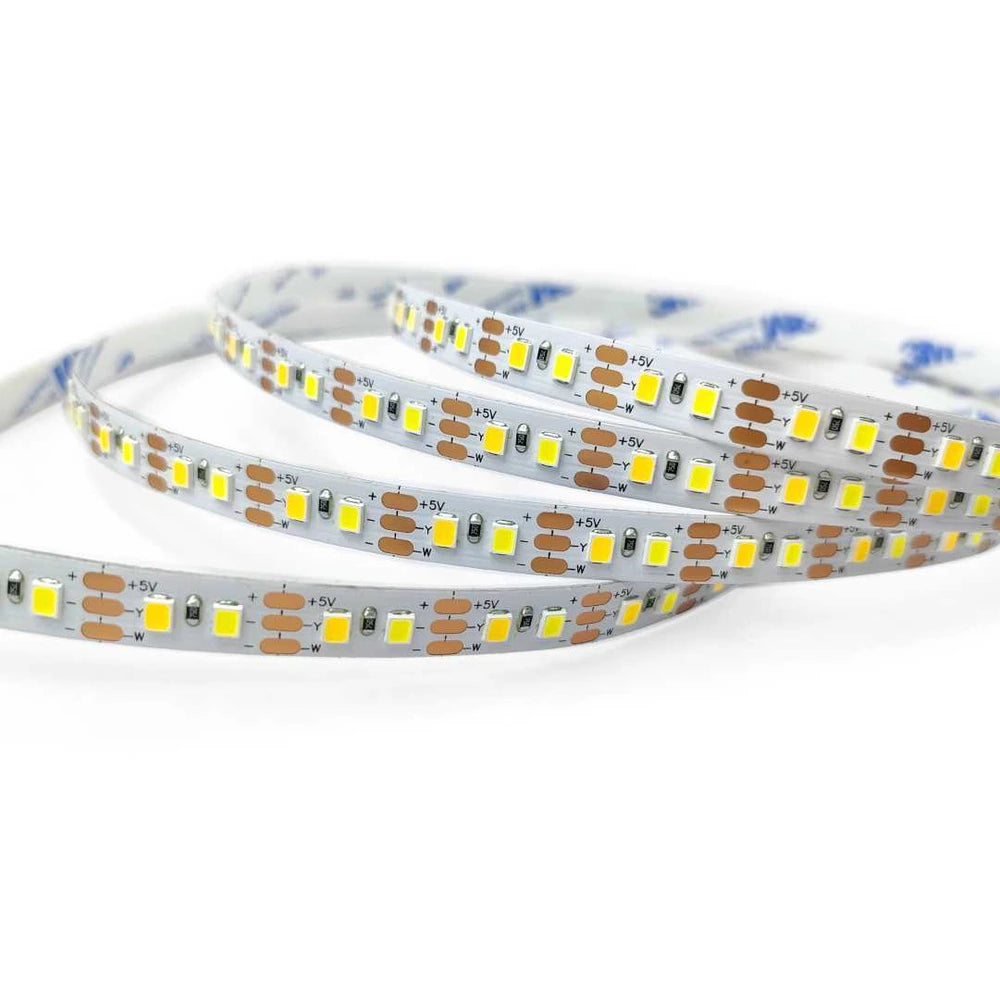

This dual-white LED strip light pairs warm and cool channels on a 8mm 2835 board at 120 LEDs/m, tuned from warm 3000K to crisp 6500K. Running on 5V constant voltage, it blends warm and cool white with a compatible dual-white controller — a practical pick for kitchen led strip lights, under cabinet led strip lighting, and accent runs throughout the home.
Why Choose These LED Strip Lights?
- Dual-white channels: Independent warm and cool white channels let you blend any color temperature between 3000K and 6500K.
- 8mm width: The 8mm 2835 board balances output and a low-profile footprint for clean, hidden installs.
- 120 LEDs/m layout: A 120 LEDs/m spacing gives smooth coverage for general and accent lighting.
- 5V operation: Constant-voltage 5V input works with standard 5V drivers, dimmers, and low-voltage lighting systems.
- Certified & compliant: Carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- IP20 or IP67 options: Choose open IP20 for dry interiors or IP67 encapsulation for damp and wet locations.
- Custom CCT & lengths: Order custom color temperature, length, power, connectors, and adhesive backing for project quantities.
Technical Specifications
| Catalog Model | 2835-120-8mm-5V-DUAL-WHITE |
|---|---|
| LED Type | 2835 |
| Wiring | 3-Wire |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC5V |
| Power | Up to 9W/m |
| Luminous Output | 1218/1245lm/m |
| Color Rendering | 90 |
| Color / CCT | 3000K + 6500K Dual White |
| LED Pitch | 8.3mm |
| Cutting Interval | 16.7mm / 0.66in, 2 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points (16.7mm / 0.66in, 2 LEDs per cut). Connect the strip to a compatible CCT controller and the specified constant-voltage power supply, observing the channel and polarity markings. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.
Recommended Applications
- Kitchen led strip lights, under cabinet led strip lighting, and led strip lighting for under kitchen cabinets
- Led strip lights for kitchen counter
- Residential and commercial interiors needing adjustable warm-to-cool white light
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote CCT range, mirror lead and connector arrangement, reel length, adhesive backing, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
