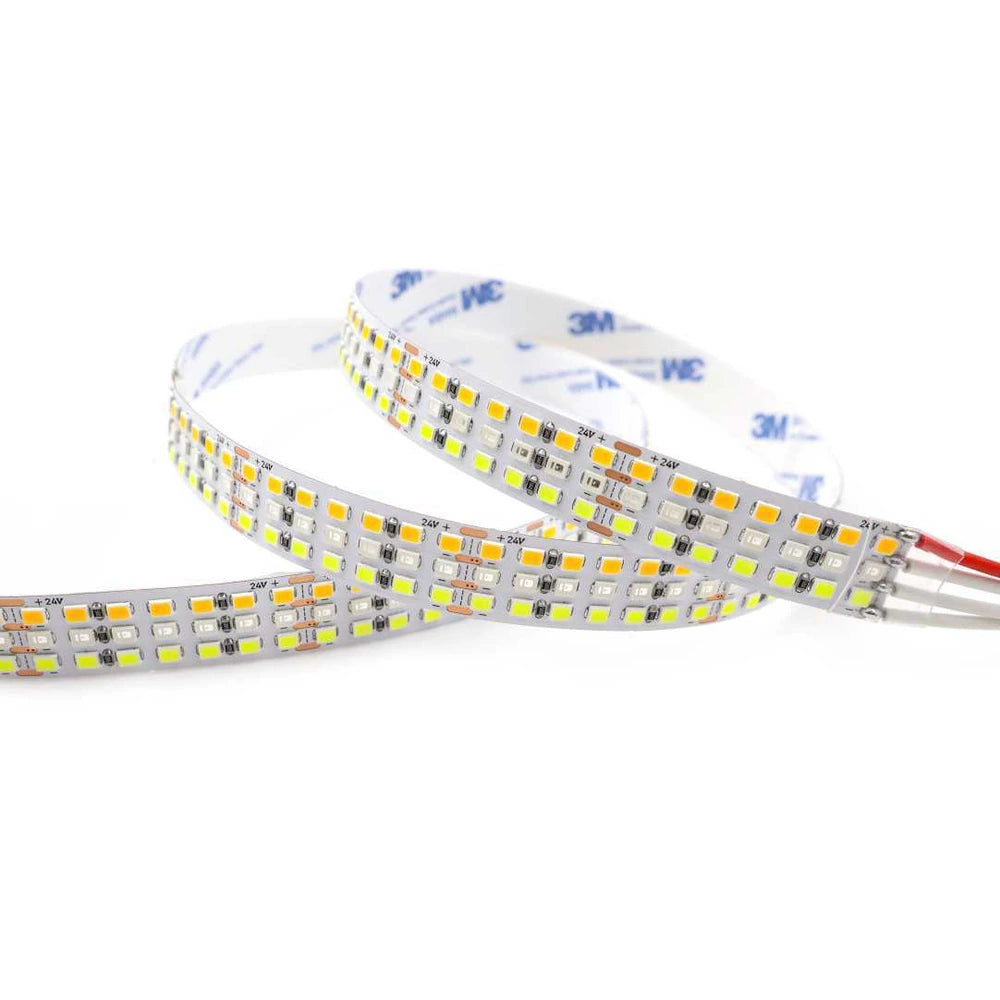

15mm SMD 2835 Tri-Row 3-Color LED Strip Light, 504 LEDs/m, 24V – 2200K + 10000K + Blue
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 15mm SMD 2835 tri-row LED strip combines 2200K warm white, 10000K cool white, and blue LEDs on one 24V board at 504 LEDs/m, creating a fixed three-color lighting effect for decorative panels, feature walls, displays, and backlighting.
Why Choose This LED Strip?

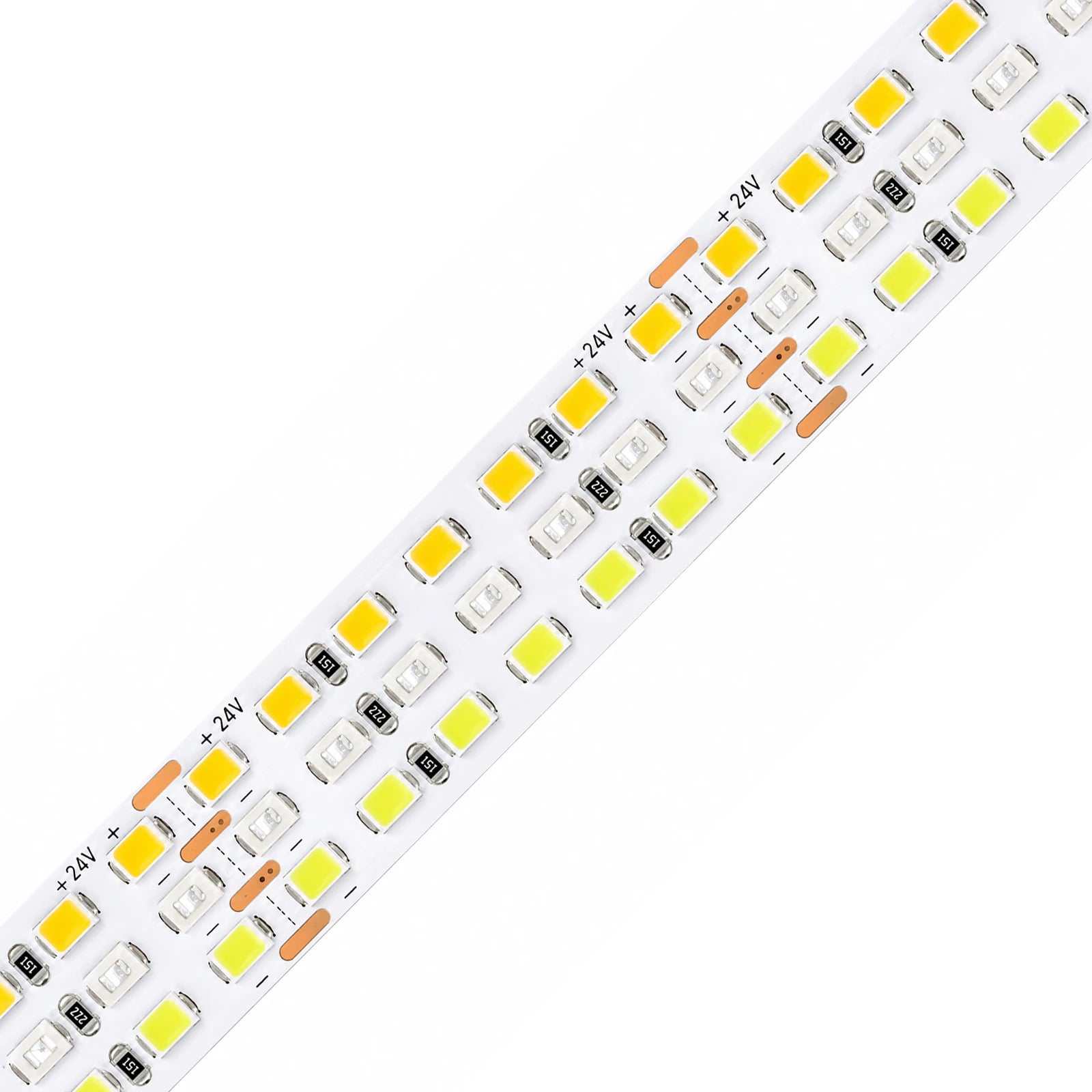

- Tri-row 3-color design: 2200K + 10000K + Blue on one 15mm PCB.
- 504 LEDs/m: three dense LED rows create smooth, high-density illumination.
- Wide 15mm board: supports the multi-row layout and improves heat dissipation.
- 24V operation: suitable for longer decorative and backlighting runs.
Technical Specifications
| Catalog Model | 2835-504-15mm-24V-2200K-10000K-BLUE |
|---|---|
| LED Type | 2835 |
| LED Density | 504 LEDs/m |
| PCB / Product Width | 15mm |
| Input Voltage | DC24V |
| Power | Up to 15W/m |
| Luminous Efficacy | 122 lm/W |
| Color Rendering | 90 |
| Color Combination | 2200K + 10000K + Blue |
| LED Pitch | 5.9mm per row |
| Cutting Interval | 41.6mm / 1.64in, 21 LEDs per cut (7 LEDs × 3 rows) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

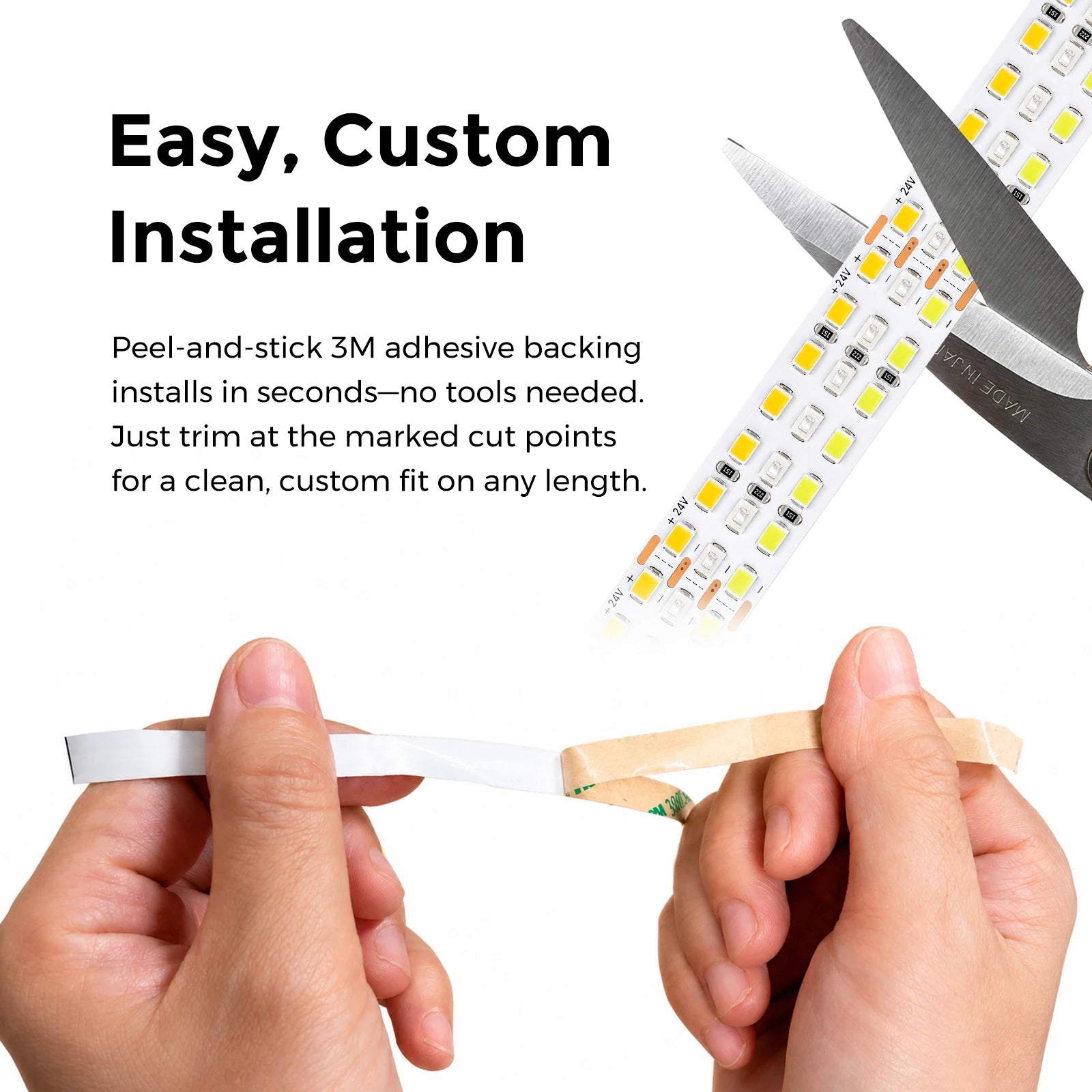

Cutting & Installation
Cut only at the marked cut points (41.6mm / 1.64in, 21 LEDs per cut — 7 LEDs × 3 rows) and observe polarity. Use a constant-voltage power supply matched to the strip and size it with at least 20% reserve. On long runs, add feed points where voltage drop becomes visible, and mount to a clean surface or aluminum channel for heat dissipation.
Recommended Applications

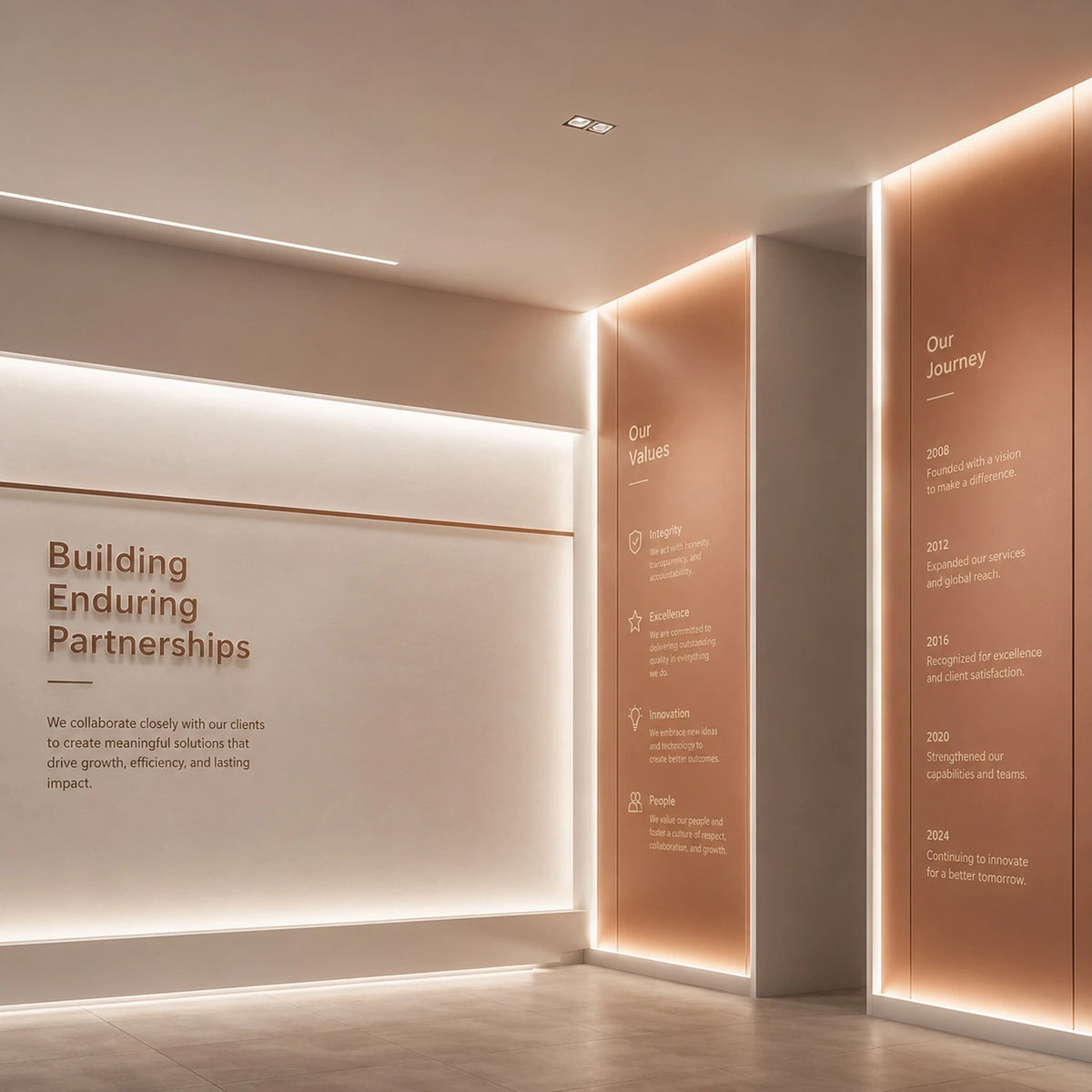

- Decorative backlit panels and feature walls
- Retail displays, art installations, and themed interiors
- Multi-color lightboxes and architectural accent lighting
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
