5mm SMD 1515 High-Efficacy White LED Strip Light, 288 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Built on tiny 1515 LEDs at 288 per meter, this 5mm 12V white strip delivers an exceptionally fine, seamless line of light with no visible dots — the fine-pitch choice for shallow diffusers, edge lighting, and premium display work.
Why Choose This LED Strip?
- Fine-pitch 1515 LEDs: 288 LEDs/m for a genuinely dotless, continuous line.
- Premium color: up to CRI 95 for retail and gallery-grade lighting.
- Slim 5mm board: disappears into narrow channels and reveals.
- Even in shallow diffusers: ideal where LEDs sit close to the lens.
Technical Specifications
| Catalog Model | 1515-288-5mm-12V-WHITE |
|---|---|
| LED Type | 1515 |
| LED Density | 288 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC12V |
| Power | Up to 6.3W/m |
| Luminous Efficacy | 143 lm/W |
| Color Rendering | 95 |
| Color / CCT | 2700K, 3000K, 3500K, 4000K, 6500K |
| LED Pitch | 3.5mm |
| Cutting Interval | 13.8mm / 0.54in, 4 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting & Installation
Cut only at the marked cut points (13.8mm / 0.54in, 4 LEDs per cut) and observe polarity. Use a constant-voltage power supply matched to the strip and size it with at least 20% reserve. On long runs, add feed points where voltage drop becomes visible, and mount to a clean surface or aluminum channel for heat dissipation.
Recommended Applications

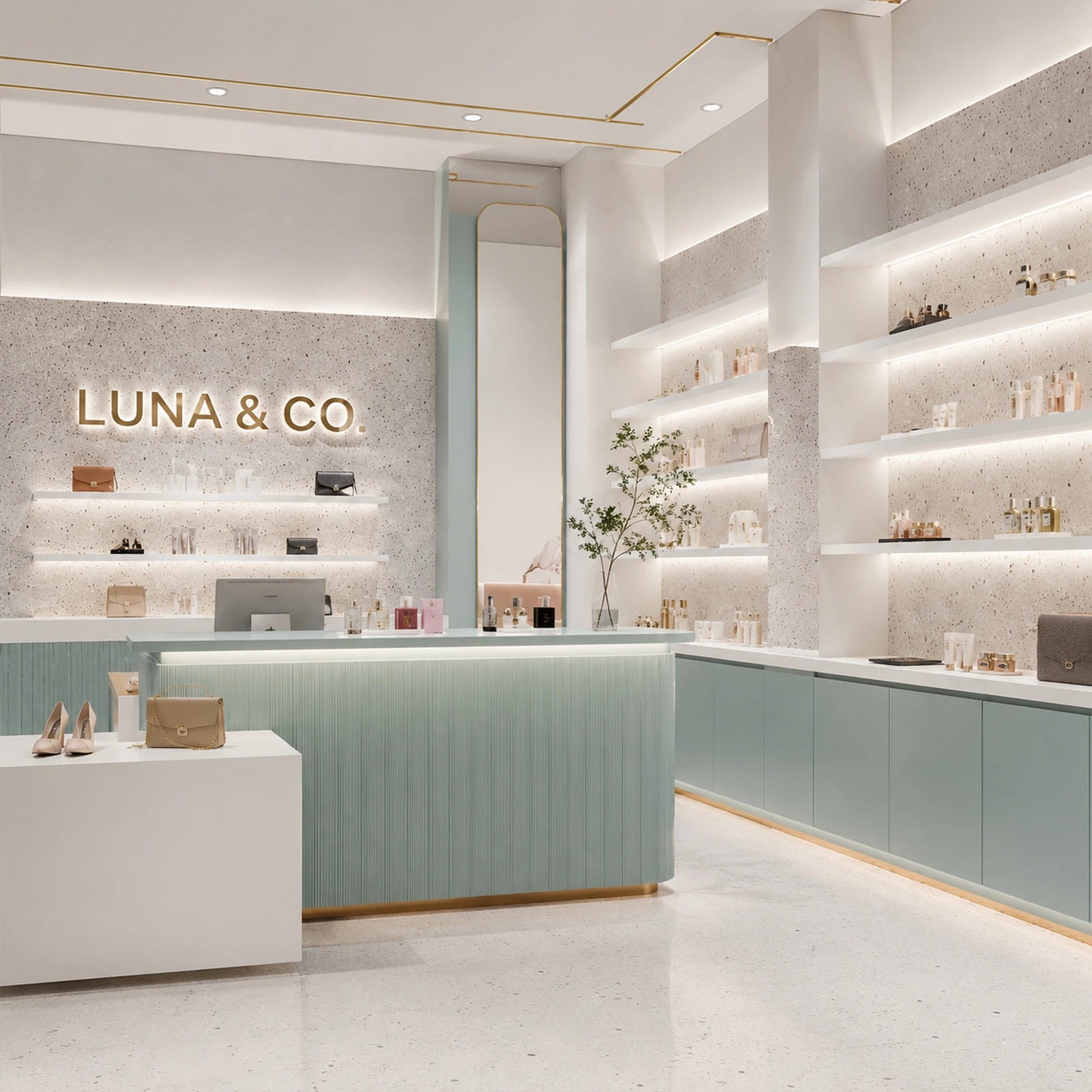

- Premium retail and gallery displays
- Shallow-diffuser cove and edge lighting
- High-end residential and hospitality accents
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
