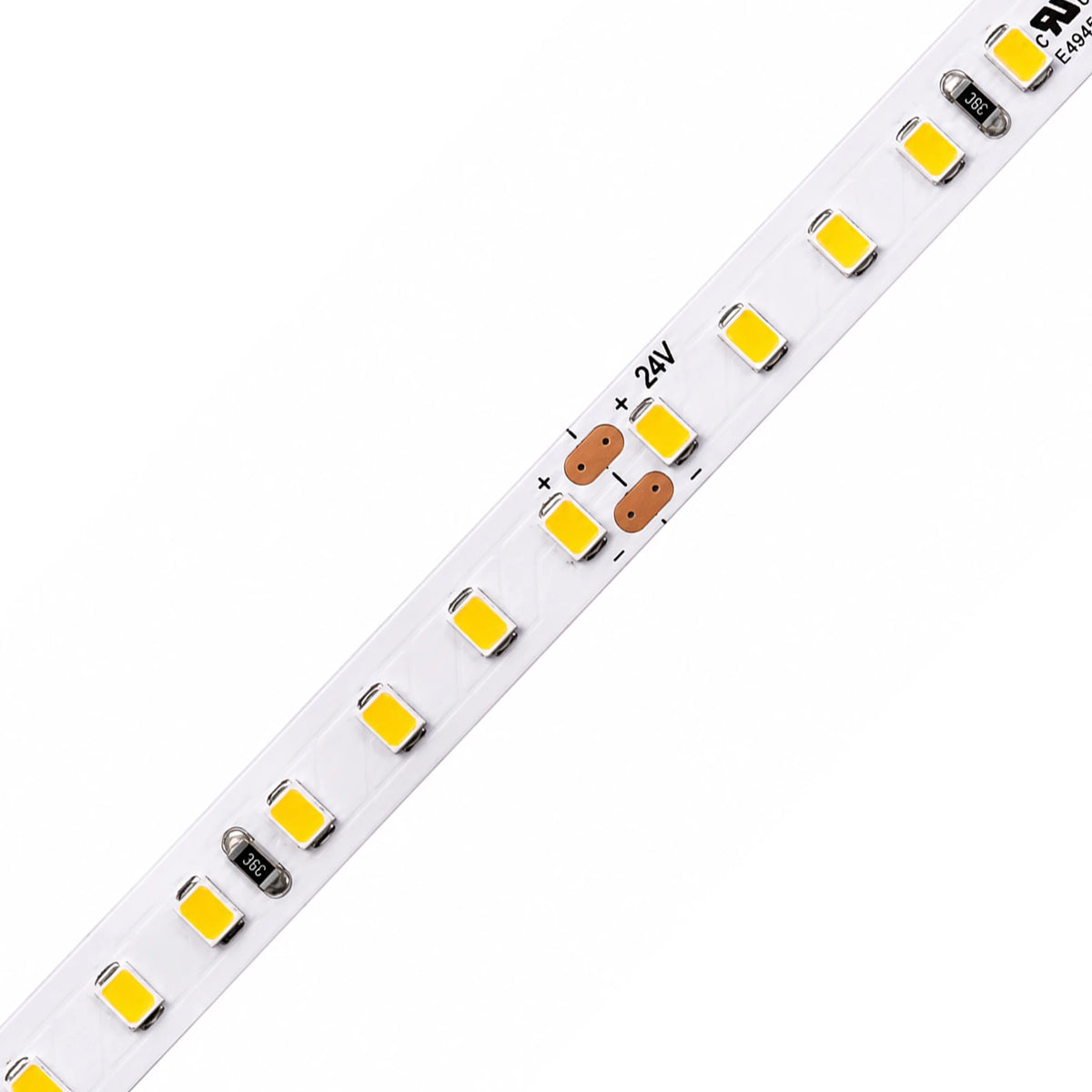

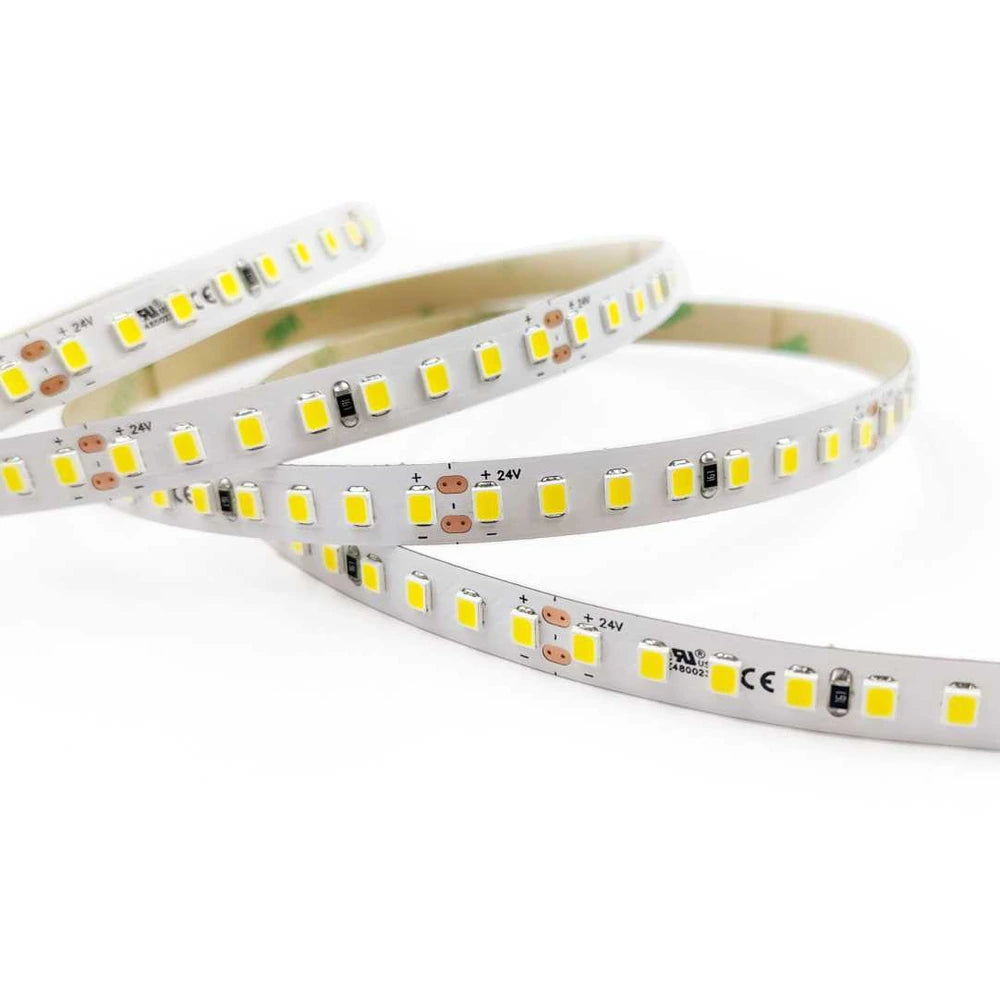

8mm SMD 2835 High-Efficacy White LED Strip Light, 160 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 8mm 2835 white LED strip runs 160 LEDs per meter on 24V while drawing only 6W per meter, pairing dense, dotless light with strong energy efficiency — a smart choice for long-hours commercial and architectural runs.
Why Choose This LED Strip?
- Energy-efficient: up to 190 lm/W at only 6W/m for lower running cost.
- Dense 160 LEDs/m: smooth, dotless output on a wider 8mm board.
- 24V long runs: less voltage drop across extended lengths.
- Built for hours: efficient 2835 chips suited to daily commercial use.
Technical Specifications
| Catalog Model | 2835-160-8mm-24V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 160 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC24V |
| Power | Up to 6W/m |
| Luminous Efficacy | 150–190 lm/W |
| Color Rendering | 90 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 6500K |
| LED Pitch | 6.2mm |
| Cutting Interval | 50mm / 1.97in, 8 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

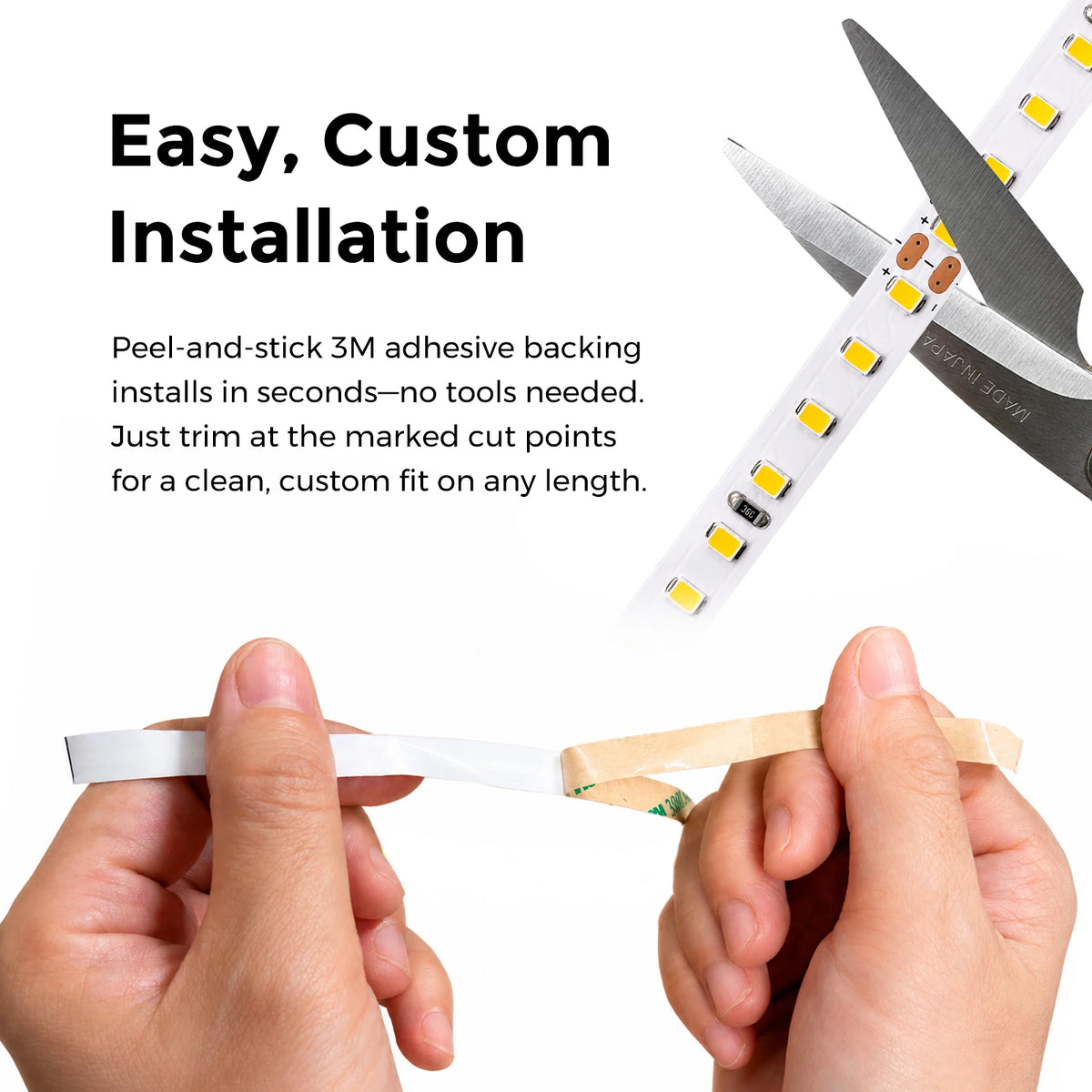

Cutting & Installation
Cut only at the marked cut points (50mm / 1.97in, 8 LEDs per cut) and observe polarity. Use a constant-voltage power supply matched to the strip and size it with at least 20% reserve. On long runs, add feed points where voltage drop becomes visible, and mount to a clean surface or aluminum channel for heat dissipation.

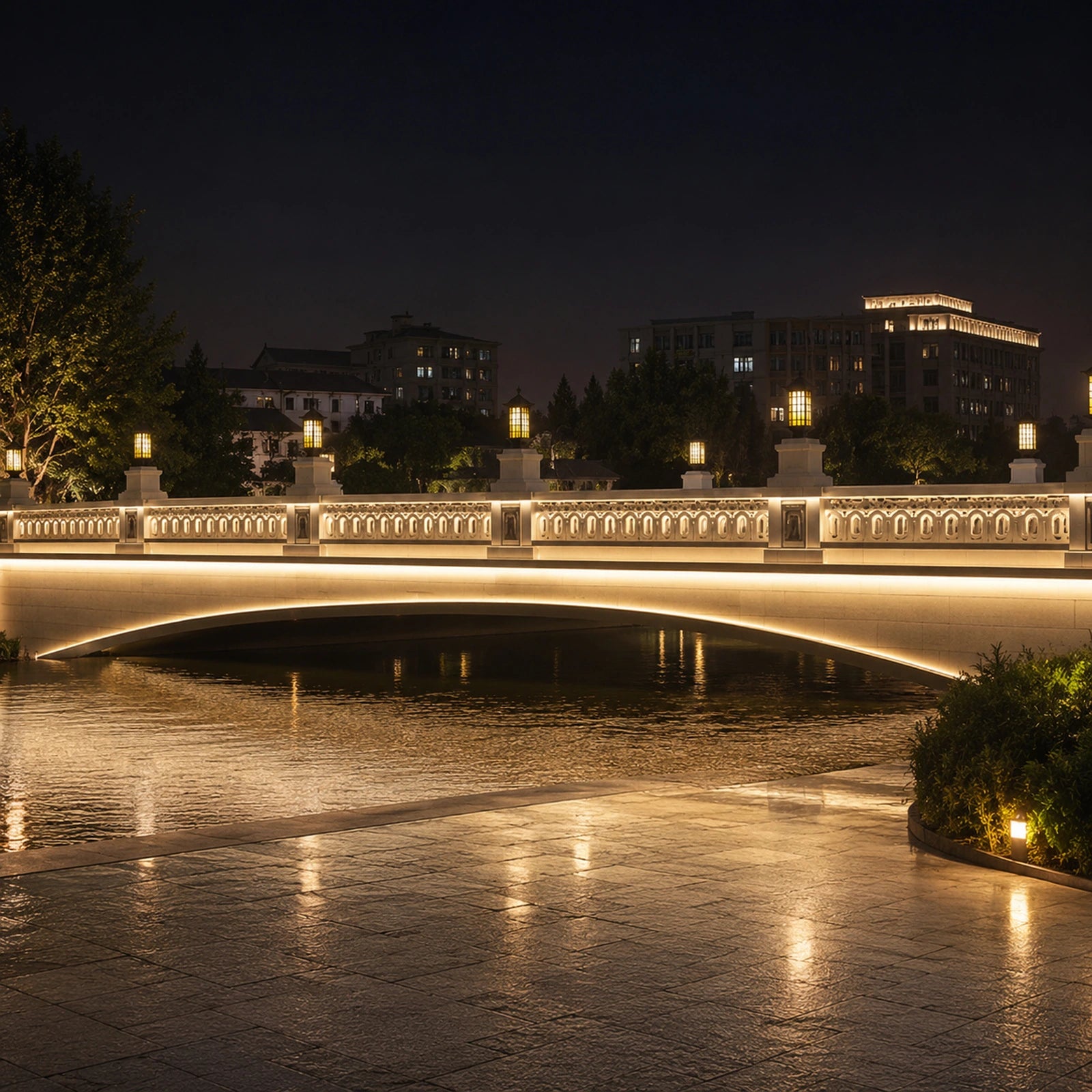

Recommended Applications
- Long architectural cove runs
- Retail and hospitality perimeter lighting
- Energy-conscious commercial accent lighting
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
