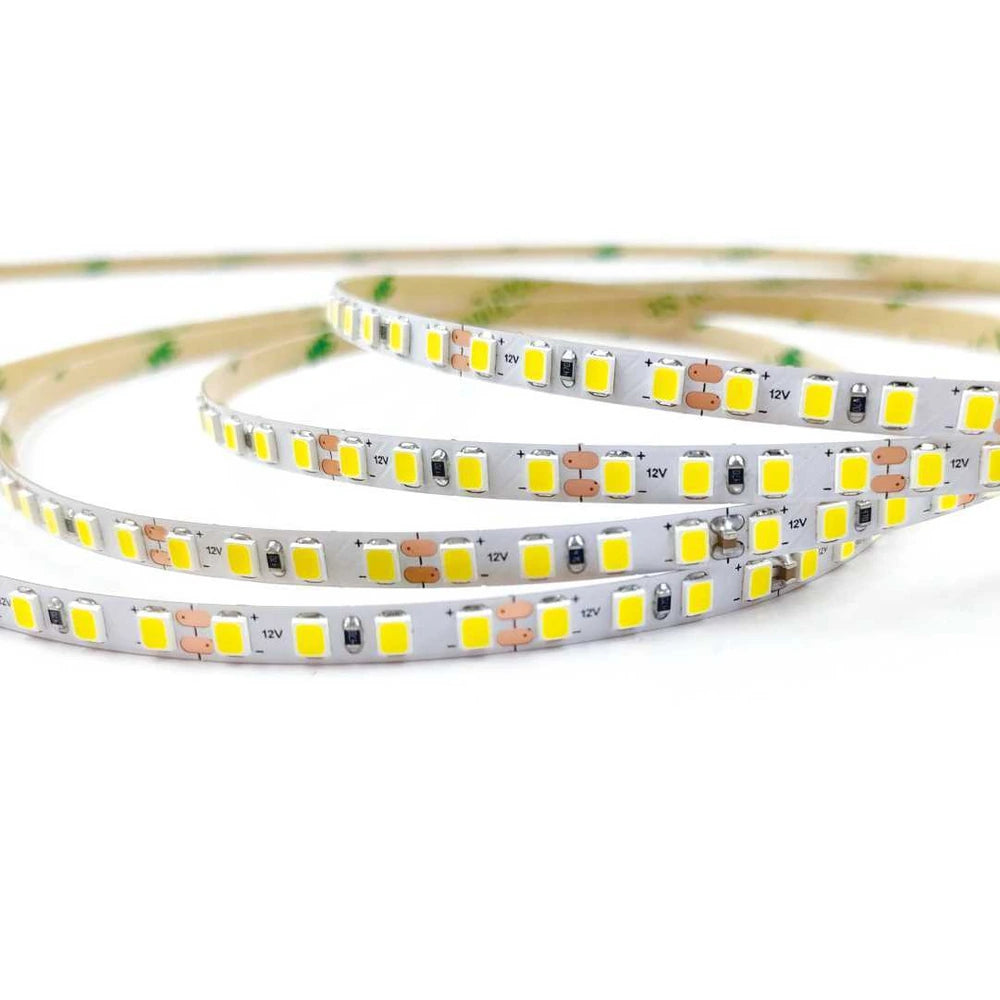

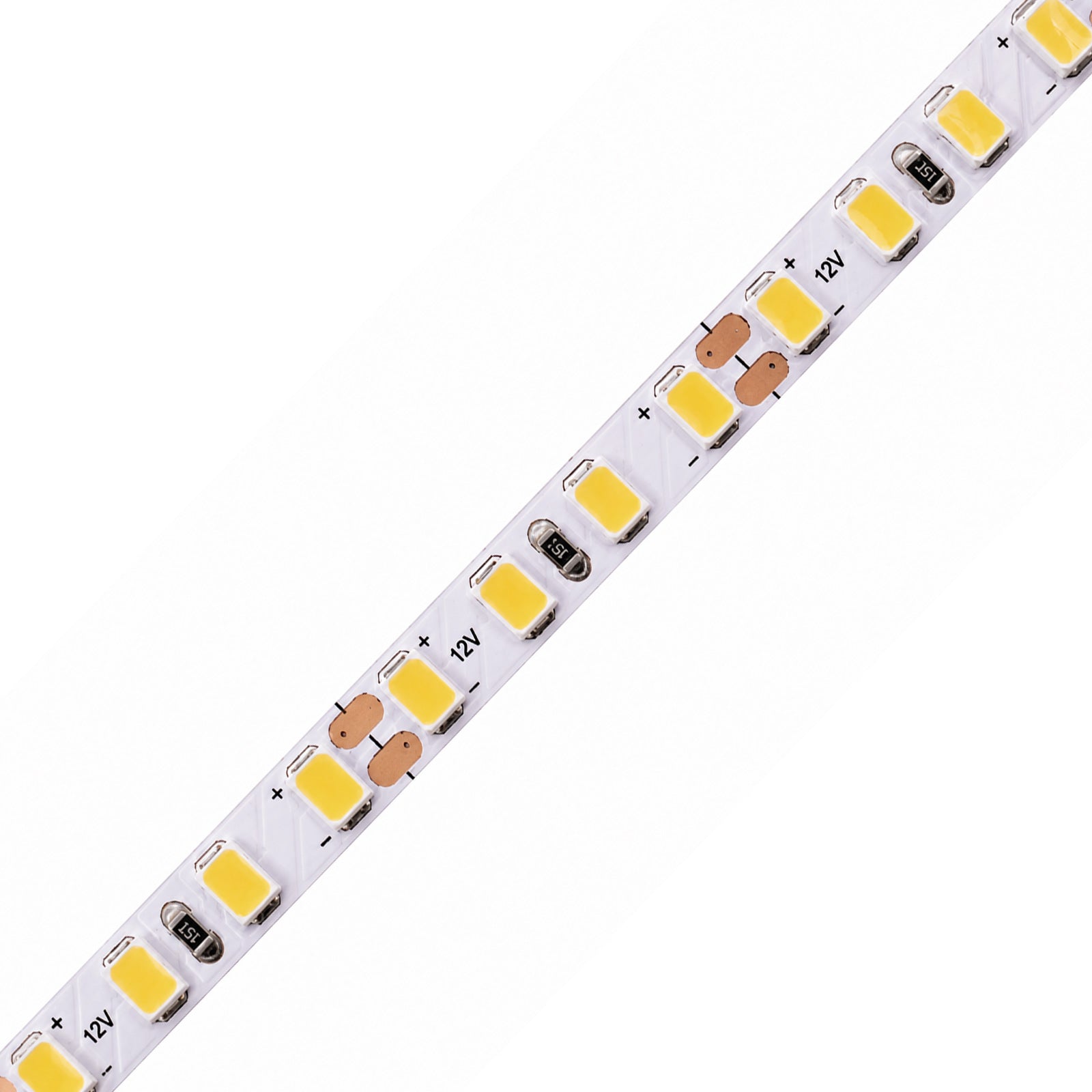

5mm SMD 2835 High-Efficacy White LED Strip Light, 160 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
With 160 LEDs per meter on a slim 5mm 12V board, this high-density 2835 white strip pushes LED spacing even tighter for an almost seamless line of light — ideal where diffusers are shallow and dots must disappear.
Why Choose This LED Strip?
- 160 LEDs/m density: near-seamless light with no visible dots up close.
- 5mm slim board: designed for narrow channels and cabinetry.
- High luminous efficacy: 140–185 lm/W with CRI 80/90 options.
- 12V power: straightforward wiring for accent-length runs.
Technical Specifications
| Catalog Model | 2835-160-5mm-12V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 160 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC12V |
| Power | Up to 7.5W/m |
| Luminous Efficacy | 140–185 lm/W |
| Color Rendering | 90 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 6500K |
| LED Pitch | 6.2mm |
| Cutting Interval | 25mm / 0.98in, 4 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting & Installation
Cut only at the marked cut points (25mm / 0.98in, 4 LEDs per cut) and observe polarity. Use a constant-voltage power supply matched to the strip and size it with at least 20% reserve. On long runs, add feed points where voltage drop becomes visible, and mount to a clean surface or aluminum channel for heat dissipation.
Recommended Applications

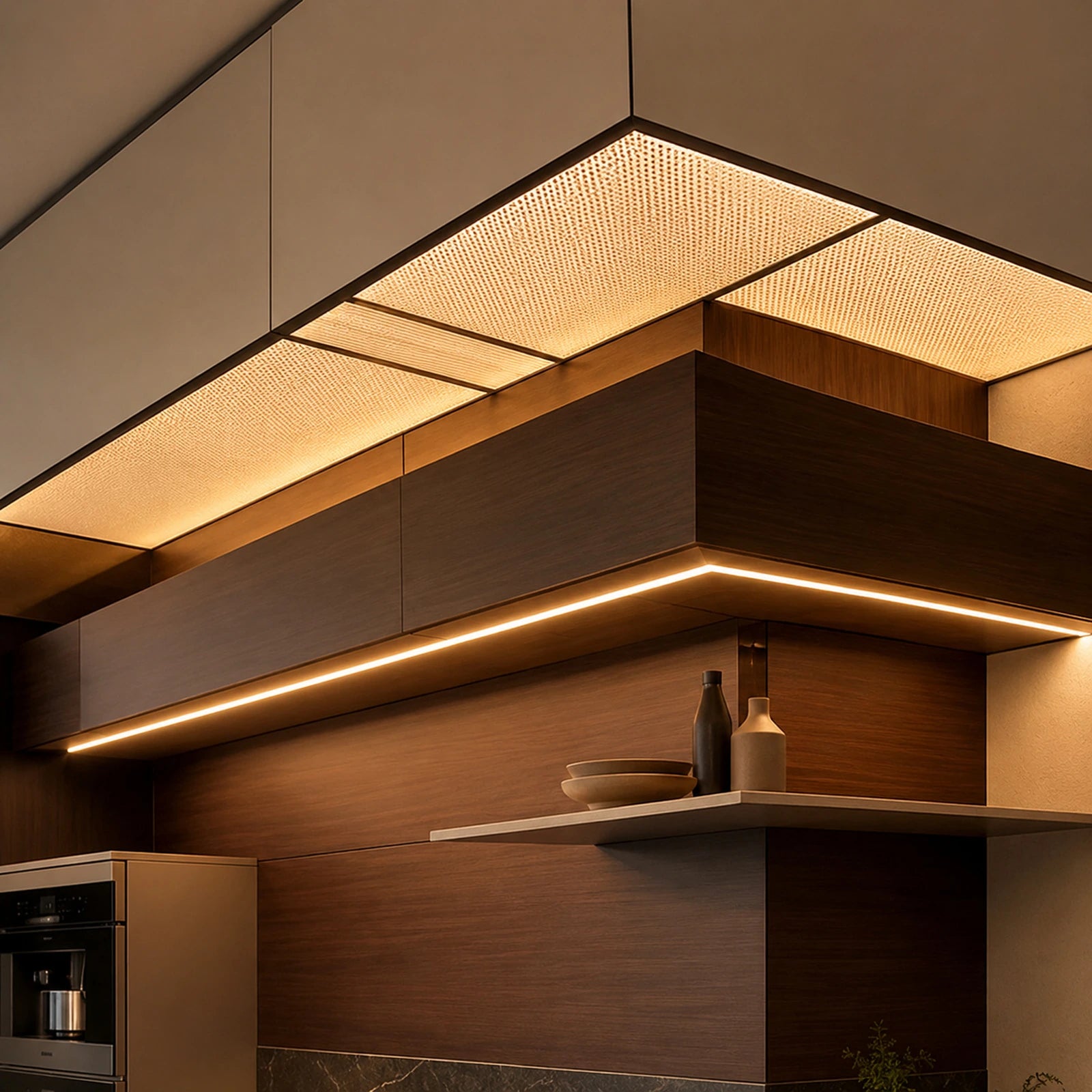

- Shallow-diffuser cove and shelf lighting
- Retail showcase and cabinet accents
- Mirror, vanity, and millwork lighting
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
