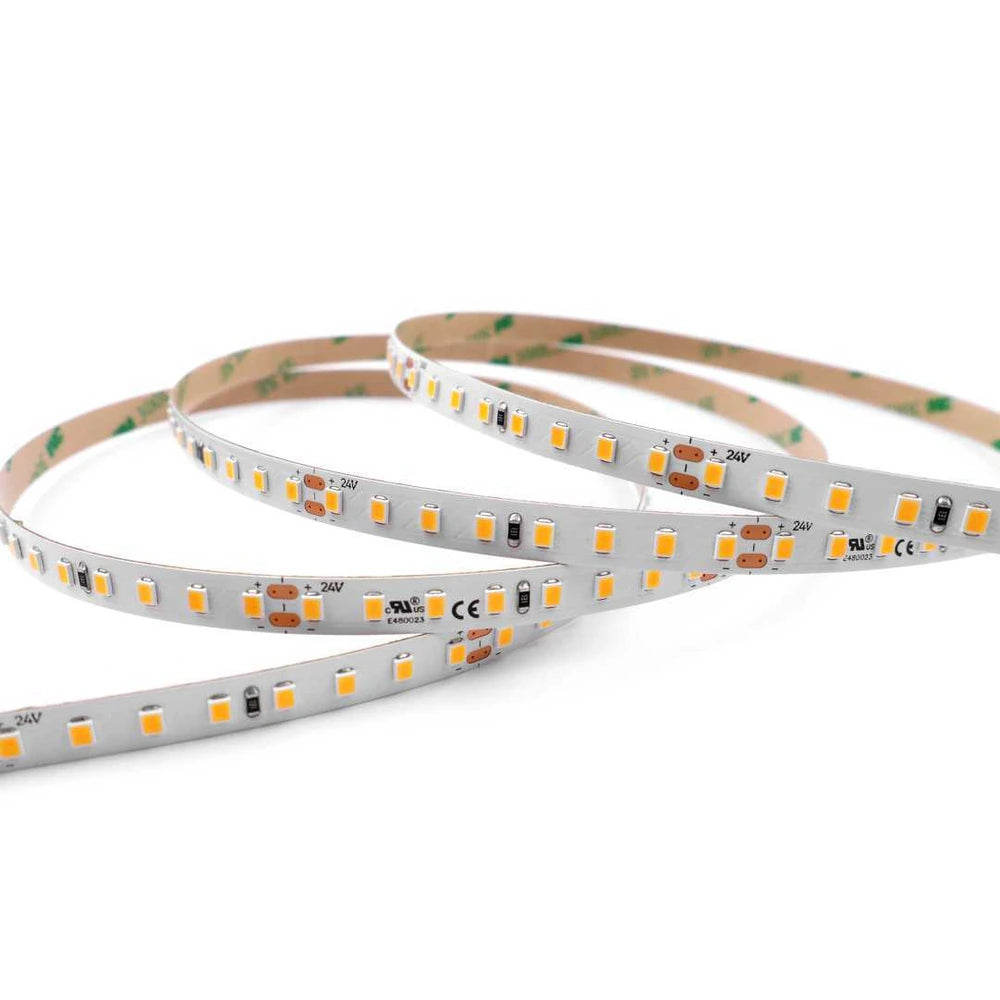

8mm SMD 2835 High-Efficacy White LED Strip Light, 128 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Available in an 8mm or 8mm width, this 2835 white LED strip runs 128 LEDs per meter on 24V — the wider PCB spreads heat and supports strong, up-to-200 lm/W efficacy for demanding commercial and architectural runs.
Why Choose This LED Strip?
8mm or 8mm width
pick the wider PCB for better heat dissipation and durability.
Bright 2835 output
up to 200 lm/W for high-visibility commercial spaces.
24V long runs
stable brightness over longer continuous lengths.
Dotless uniformity
128 LEDs/m keeps the line smooth in diffusers.
Technical Specifications
| Catalog Model | 2835-128-8mm-24V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 128 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC24V |
| Power | Up to 10W/m |
| Luminous Efficacy | 140–200 lm/W |
| Color Rendering | 90 |
|---|---|
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 6500K |
| LED Pitch | 7.8mm |
| Cutting Interval | 62.5mm / 2.46in, 8 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting & Installation
Cut only at the marked cut points (62.5mm / 2.46in, 8 LEDs per cut) and observe polarity. Use a constant-voltage power supply matched to the strip and size it with at least 20% reserve. On long runs, add feed points where voltage drop becomes visible, and mount to a clean surface or aluminum channel for heat dissipation.
Recommended Applications

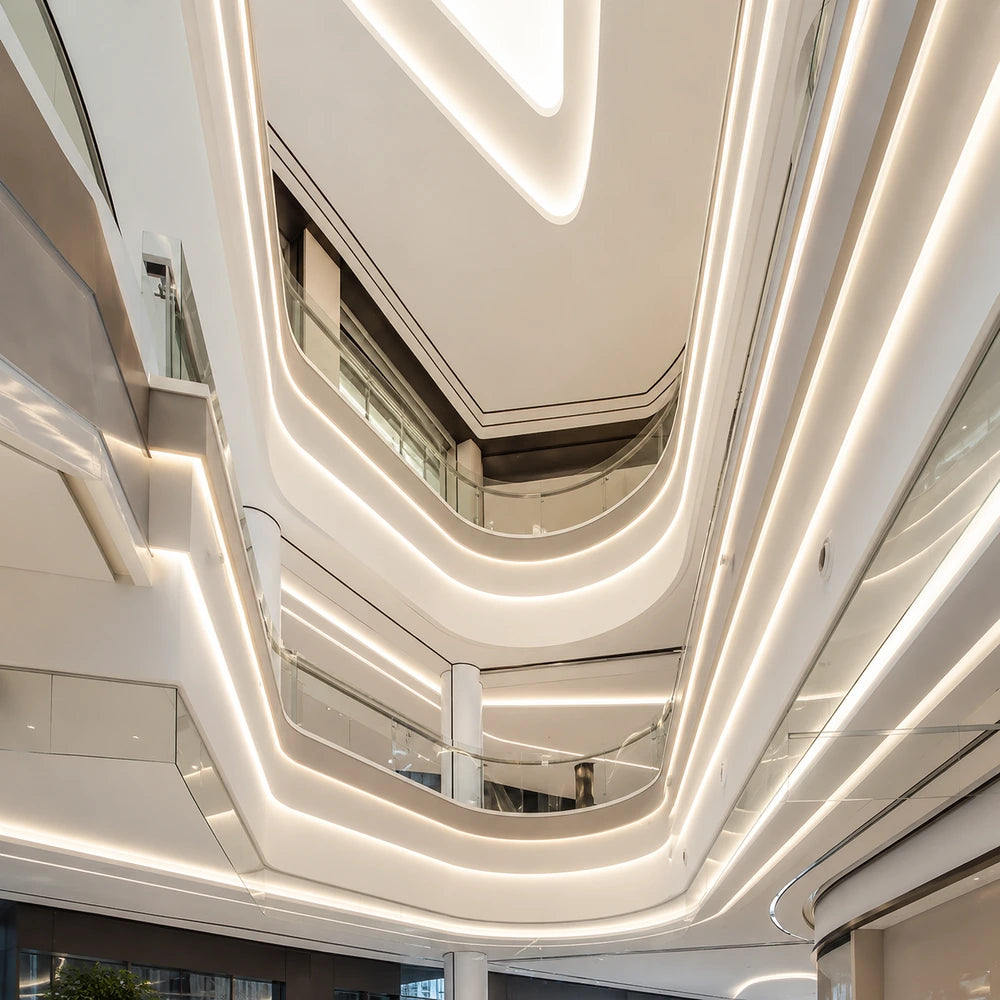

- High-output cove and perimeter lighting
- Commercial signage and lightbox backlighting
- Warehouse, retail, and hospitality accents
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards. Request certification details for your specific configuration.
