8mm SMD 2835 High-Efficacy White LED Strip Light, 140 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

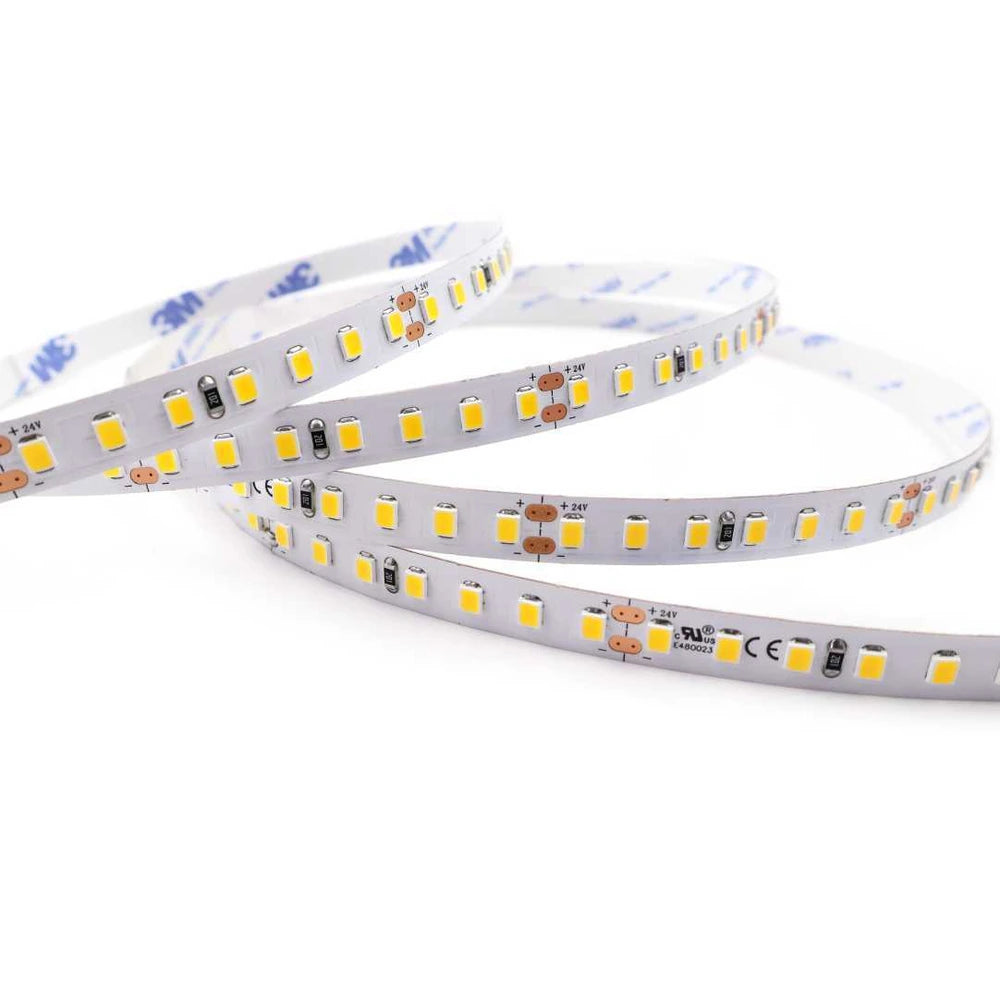

This 8mm-wide 2835 white LED strip pairs 140 LEDs per meter with a 24V circuit and up to 200 lm/W, giving you a brighter output tier than 5mm strips while keeping smooth, dotless illumination for architectural and commercial installs.
Why Choose This LED Strip?
Higher output
up to 200 lm/W for spaces that need more punch than a slim 5mm strip.
Efficient 2835 chips
strong brightness-per-watt for all-day commercial operation.
24V circuit
longer continuous runs with reduced voltage drop.
Even, dotless line
140 LEDs/m spacing avoids visible hot spots.
Technical Specifications
| Catalog Model | 2835-140-8mm-24V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 140 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC24V |
| Power | Up to 10W/m |
| Luminous Efficacy | 140–200 lm/W |
| Color Rendering | 90 |
|---|---|
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 6500K |
| LED Pitch | 7.1mm |

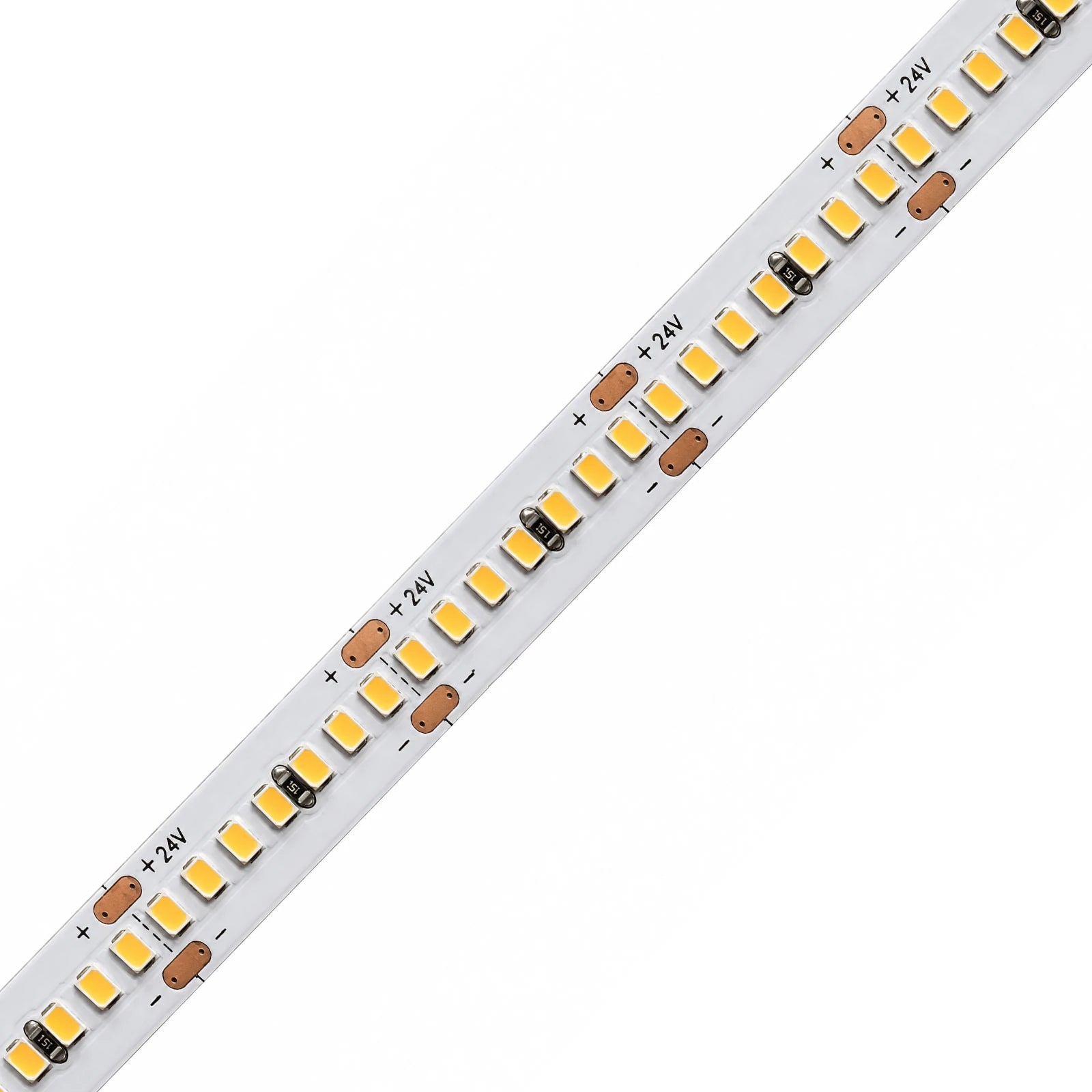

| Cutting Interval | 50mm / 1.97in, 7 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

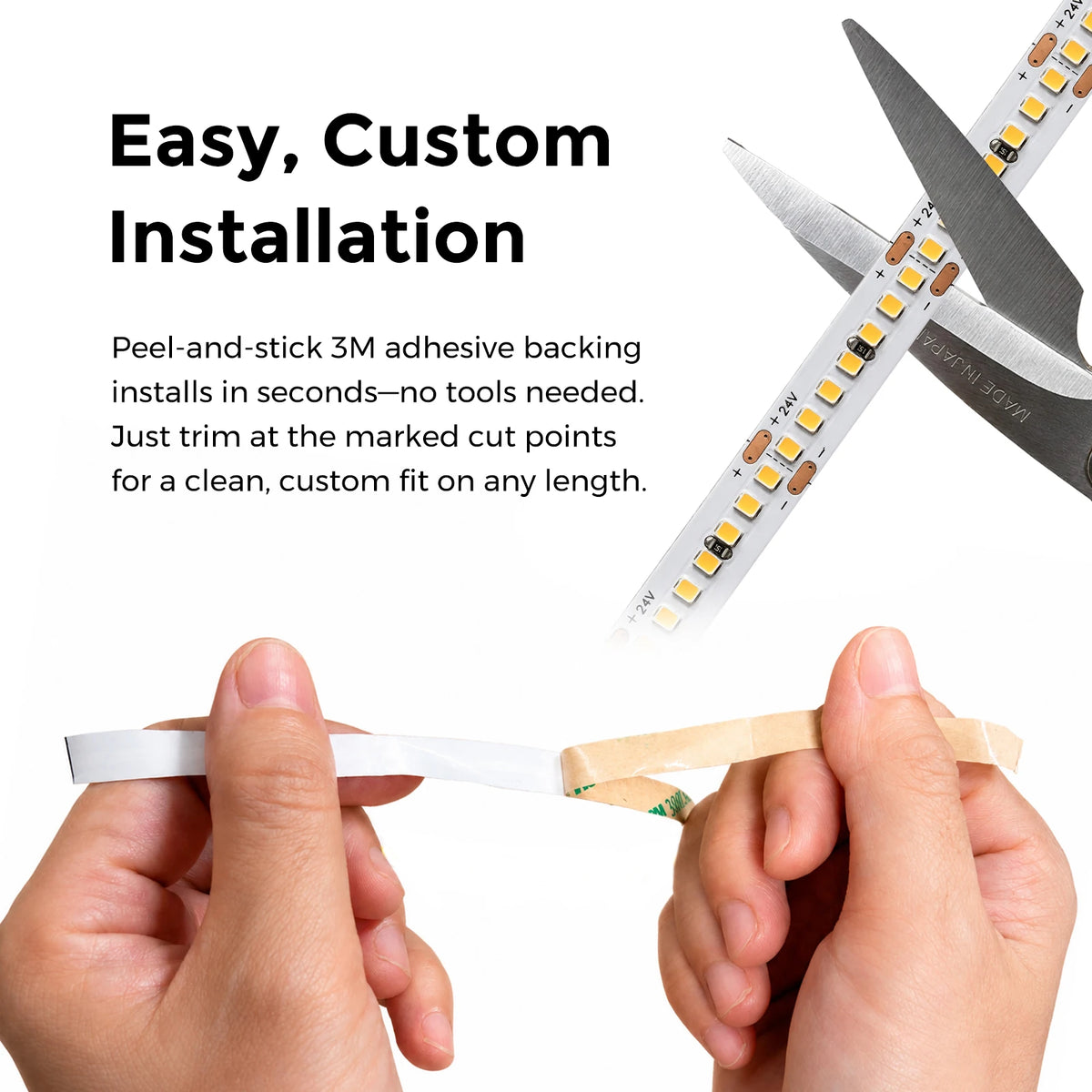

Cutting & Installation
Cut only at the marked cut points (50mm / 1.97in, 7 LEDs per cut) and observe polarity. Use a constant-voltage power supply matched to the strip and size it with at least 20% reserve. On long runs, add feed points where voltage drop becomes visible, and mount to a clean surface or aluminum channel for heat dissipation.
Recommended Applications

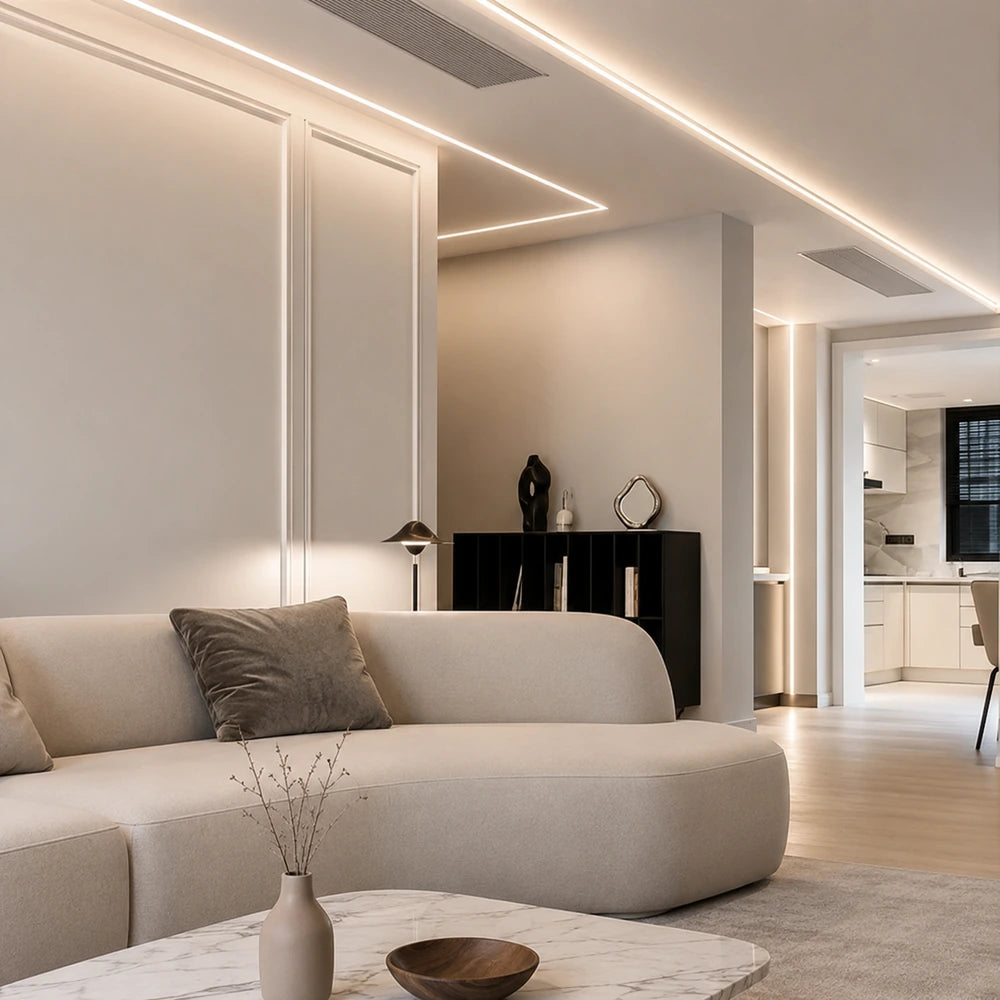

- Architectural cove and perimeter lighting
- Retail, hotel, and lobby accent runs
- Signage and display backlighting
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards. Request certification details for your specific configuration.
