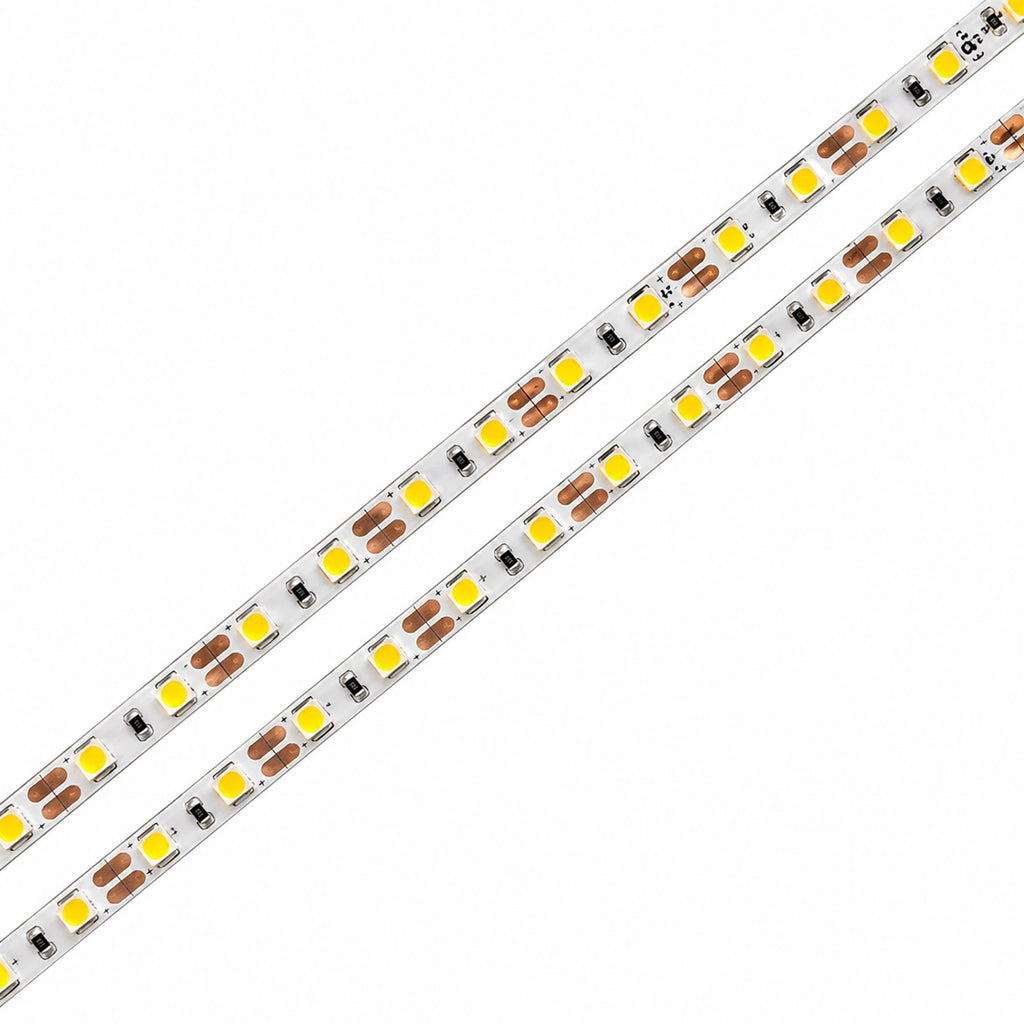

The 1515-216-2.6mm-12V-WHITE is a PCB width under 5mm — engineered for slim aluminum extrusions, recessed micro-channels, and display details where a standard 8–10mm strip simply will not fit. With 216 LEDs/m SMD 1515 LEDs on a 2.6mm PCB and 12V constant-voltage input, it is well-suited to cabinet, display, furniture, and architectural accent lighting, available in 3000K, 3500K, 4000K, 6500K.
Why Choose These LED Strip Lights?
- 2.6mm ultra-narrow PCB: The 2.6mm board fits micro-channels and narrow extrusions that wider strips cannot enter.
- 216 LEDs/m LED density: 216 LEDs/m delivers even coverage without visible hot spots across the narrow beam path.
- 12V constant-voltage input: Runs on 12V DC — compatible with standard low-voltage drivers and dimmers.
- SMD 1515 chip technology: SMD 1515 LEDs concentrate output on a minimal footprint for high efficiency in a slim profile.
- White-light CCT selection: Multiple CCT options from 3000K to 6500K to match the visual requirements of the space.
- IP20 or IP67 options: Choose open PCB for dry locations or encapsulated for damp environments.
- Certified & compliant: UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks support residential and commercial installs.
- Custom project supply: Available in custom lengths, CCT, adhesive, connector, and packaging for project quantities.
Technical Specifications
| Catalog Model | 1515-216-2.6mm-12V-WHITE |
|---|---|
| LED Type | SMD 1515 |
| LED Density | 216 LEDs/m |
| PCB / Product Width | 2.6mm |
| Input Voltage | DC12V |
| Power | 5 W/m |
| Luminous Output | 532 lm/m |
| Color Rendering | 97 |
| Color / CCT | 3000K, 3500K, 4000K, 6500K |
| LED Spacing | 4.6 mm (0.18 in) |
| Cutting Interval | 13.8 mm (0.54 in) |

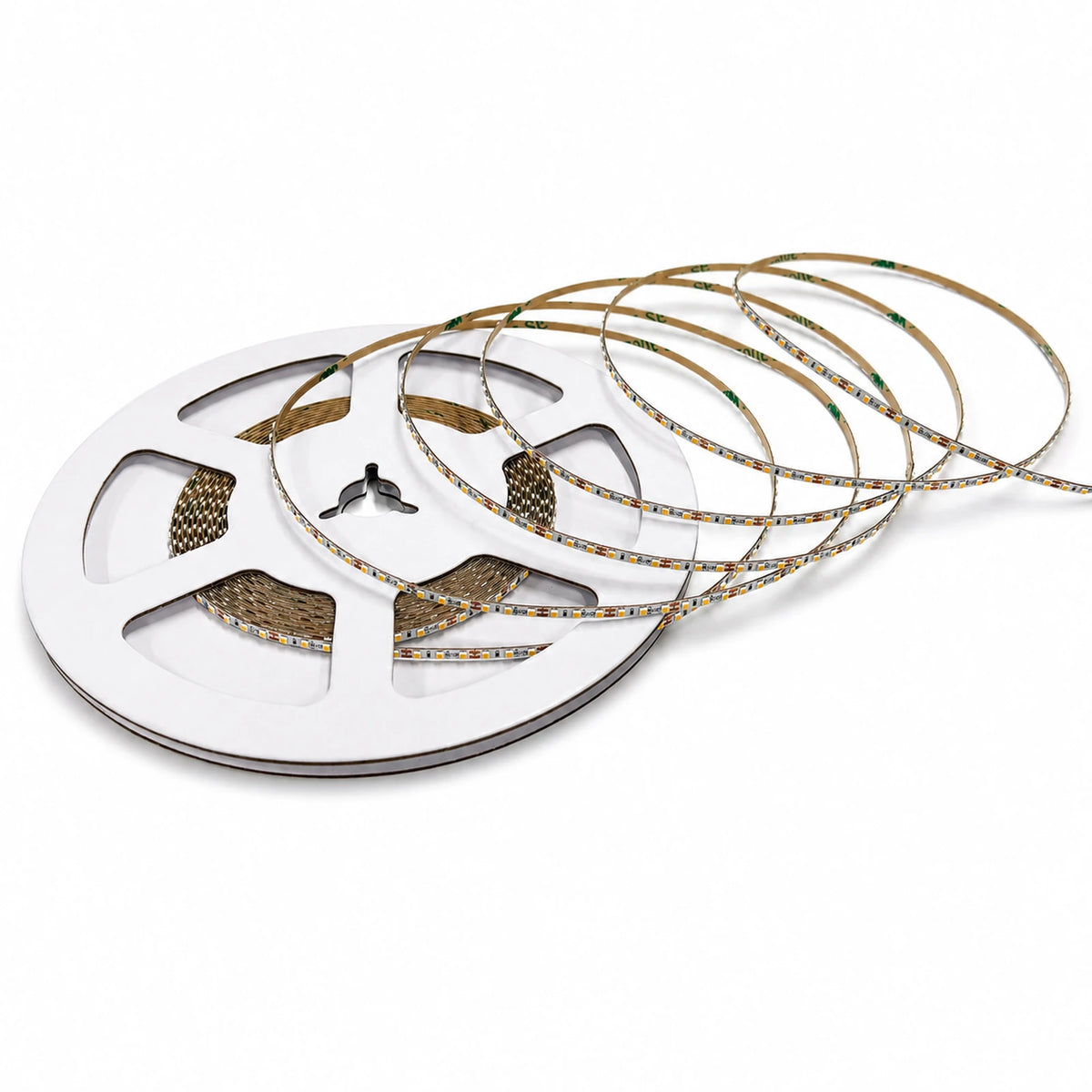

| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points. The narrow PCB is compatible with micro-channel extrusions — verify channel inner width before ordering. Use a constant-voltage driver rated to the specified input voltage and size it with at least 20% headroom.

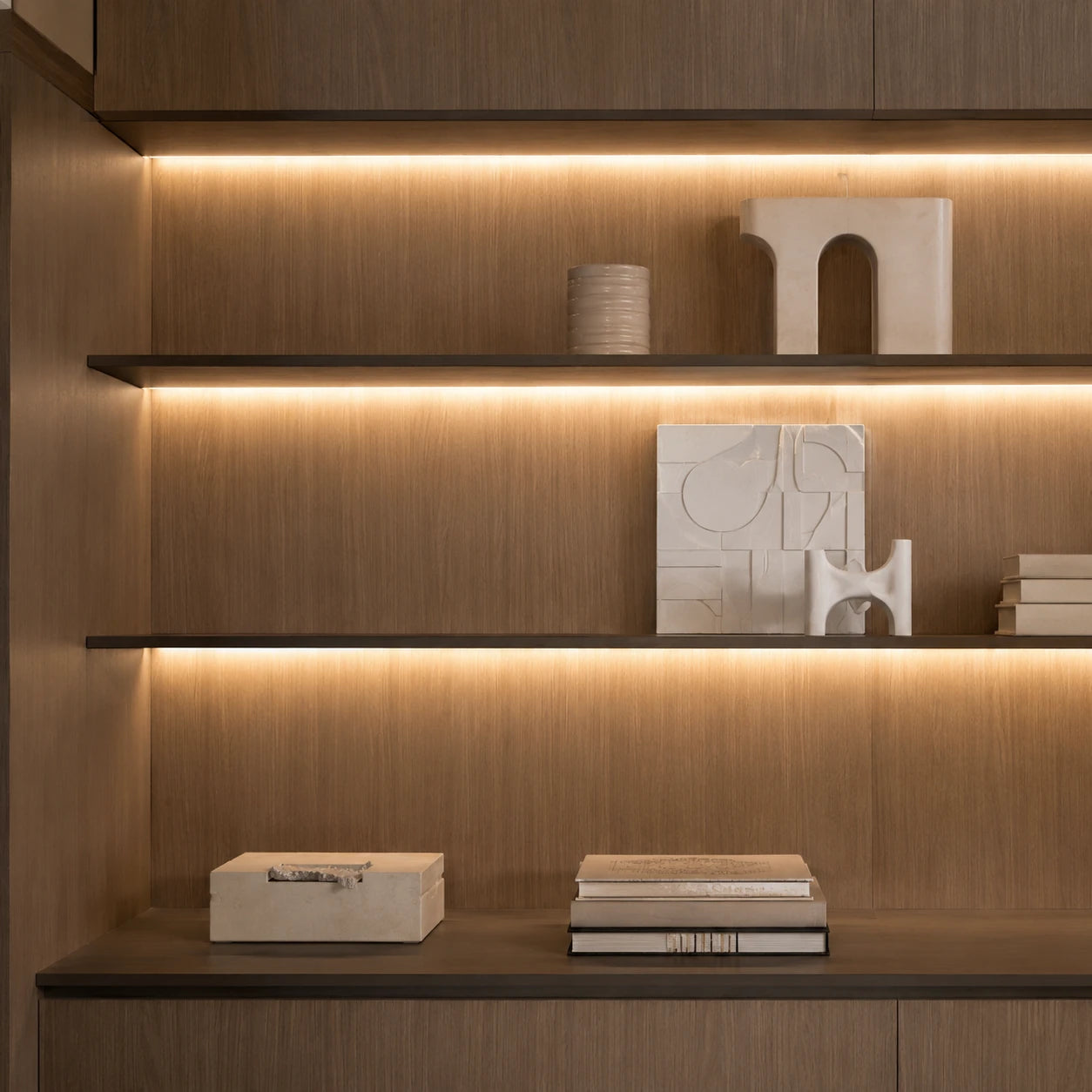

Recommended Applications
- Micro-channel extrusions, slim recessed profiles, and narrow display frames
- Furniture edge lighting, toe-kick details, and mirror perimeters where strip width is constrained
- Exhibition, retail, and hospitality display cases requiring discreet, low-profile illumination
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
