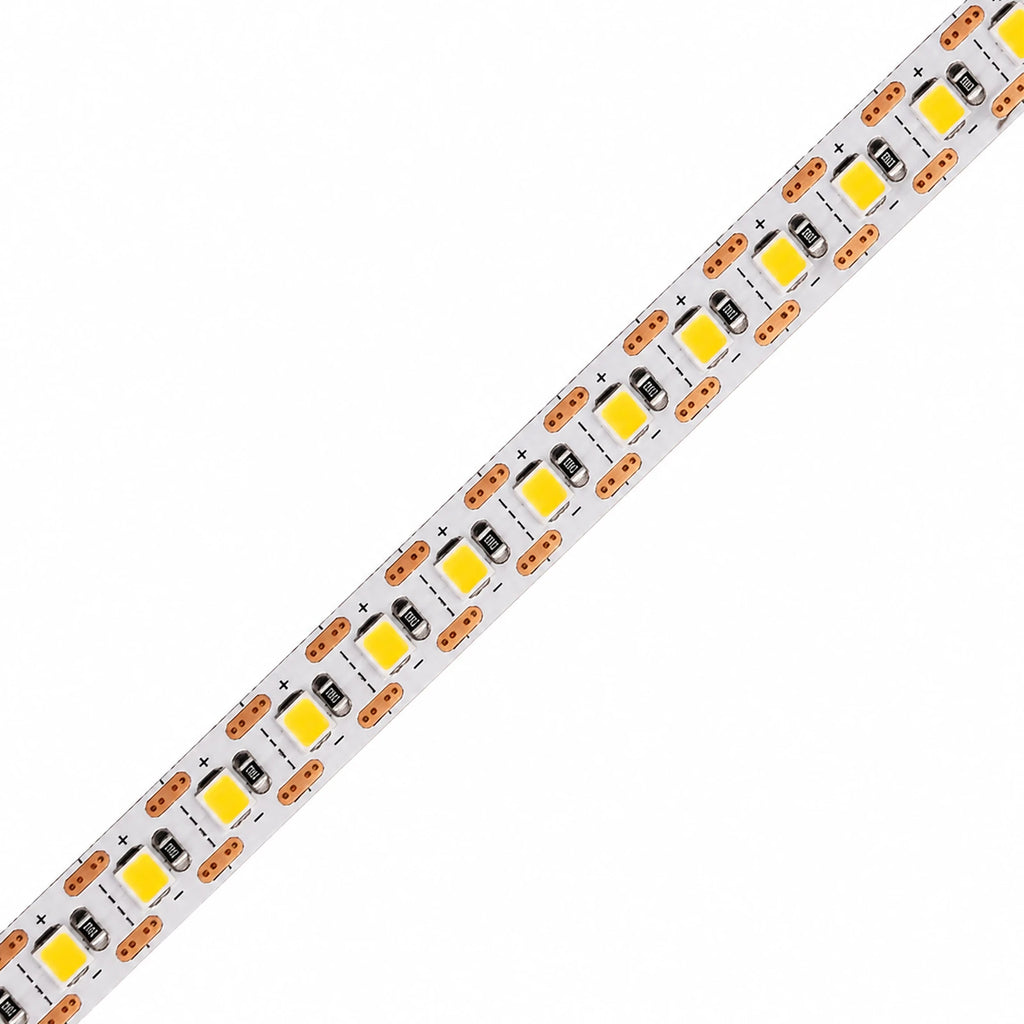

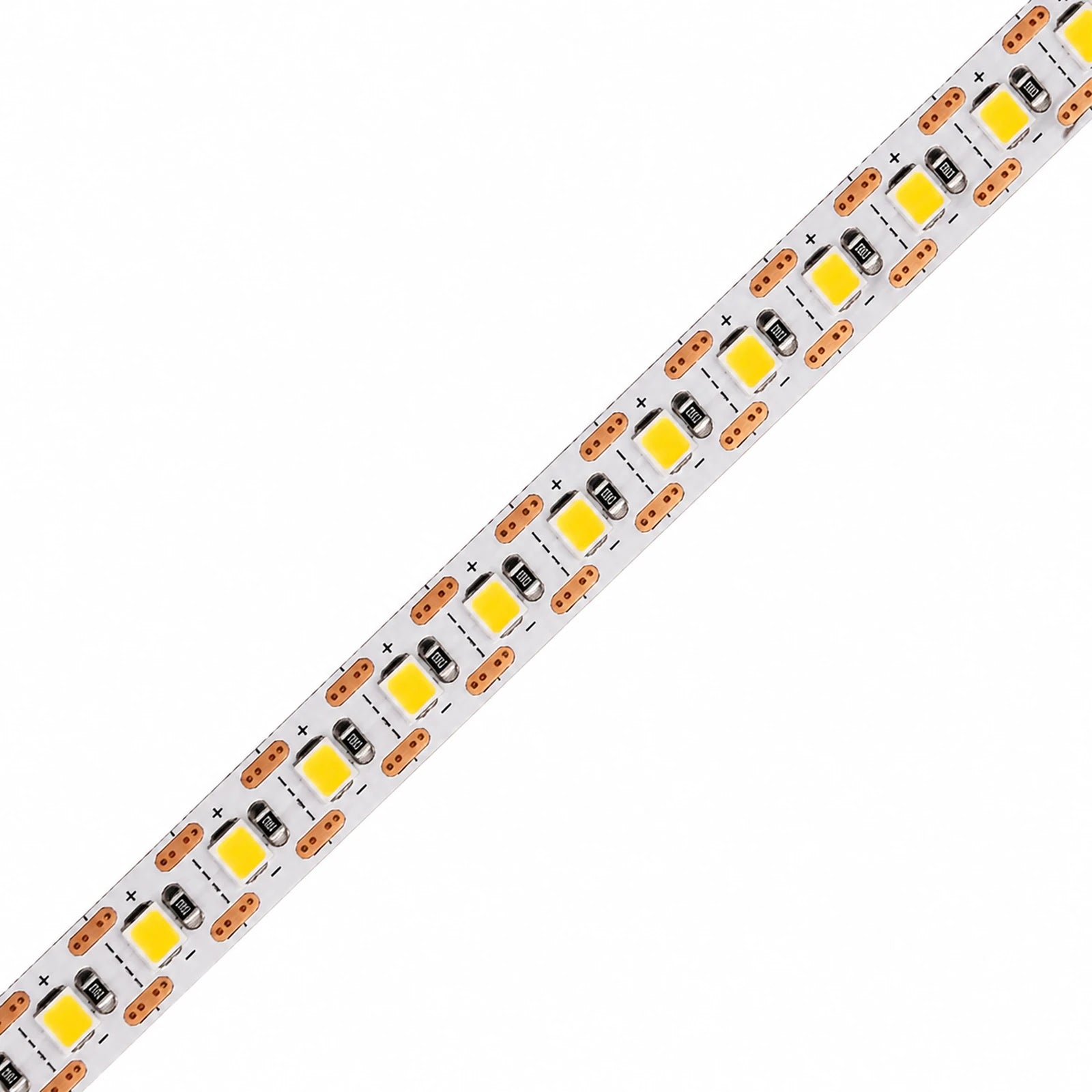

The 2835-144-8mm-5V/12V/24V-WHITE is a single-LED cutting point between every chip — precisely the right length for any cabinet, niche, or display recess without wasted strip. With 144 LEDs/m SMD 2835 LEDs on a 8mm PCB and 5V/12V/24V constant-voltage input, it is well-suited to cabinet, display, furniture, and architectural accent lighting, available in 2200K, 2700K, 3000K, 4000K, 5000K, 6500K.
Why Choose These LED Strip Lights?
- Single-LED cutting precision: A cut point between every LED lets you trim to the exact millimeter, eliminating guesswork on short custom-length runs.
- 8mm PCB width: The slim 8mm board fits standard aluminum channels and tight mounting slots without modification.
- 144 LEDs/m LED density: At 144 LEDs/m, spacing is tight enough for smooth, shadow-free illumination across shelves and display faces.
- 5V/12V/24V multi-voltage input: Compatible with 5V/12V/24V constant-voltage drivers — one SKU spans USB, 12V, and 24V systems.
- White-light CCT options: Available from warm 2200K to daylight 6500K; choose the CCT that suits the application.
- IP20 or IP67 construction: Open PCB for dry interiors; full encapsulation for damp or humid locations.
- Certified & compliant: Carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial projects.
- Custom lengths & options: Project quantities can be quoted with custom cut length, CCT, connectors, adhesive, and packaging.
Technical Specifications
| Catalog Model | 2835-144-8mm-5V/12V/24V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 144 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC5V/12V/24V |
| Power | 8.3 W/m |
| Luminous Output | 895 lm/W |
| Color Rendering | 90 |
| Color / CCT | 2200K, 2700K, 3000K, 4000K, 5000K, 6500K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
This single-LED cuttable design allows cuts at every LED position — no minimum cut interval. Observe polarity, match the driver to the specified voltage, and test before final mounting. Add feed points on runs over 5m to avoid visible voltage drop.

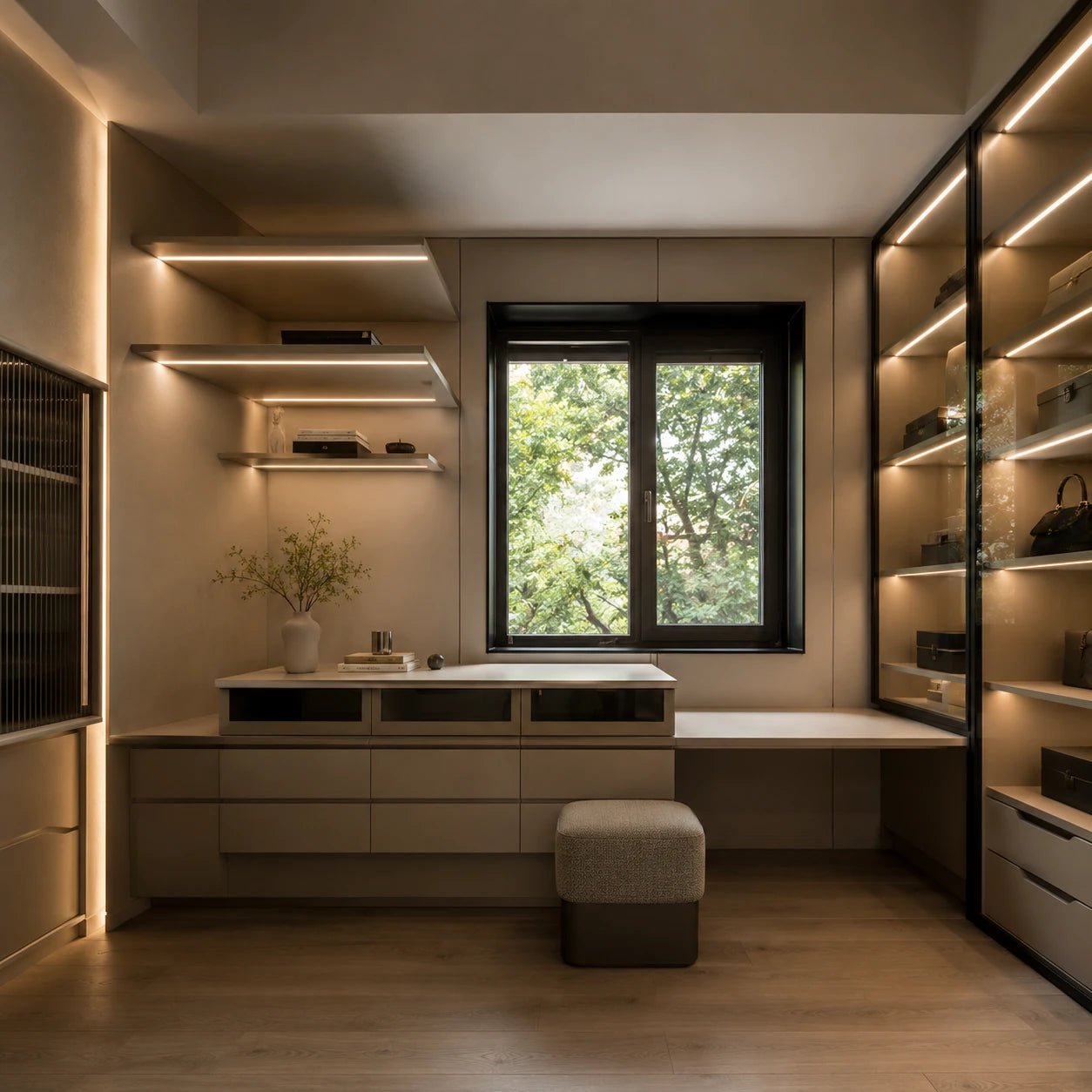

Recommended Applications
- Cabinet interiors, shelving, wardrobes, and furniture recesses requiring precise cut lengths
- Display cases, retail fixtures, and museum vitrines where standard reel lengths would leave excess strip
- Residential and hospitality accent lighting in alcoves, toe-kicks, and cove details
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
