Horizontal-Mount White LED Strip Lights – 4mm, 120 LEDs/m, 12V, SMD 2835
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

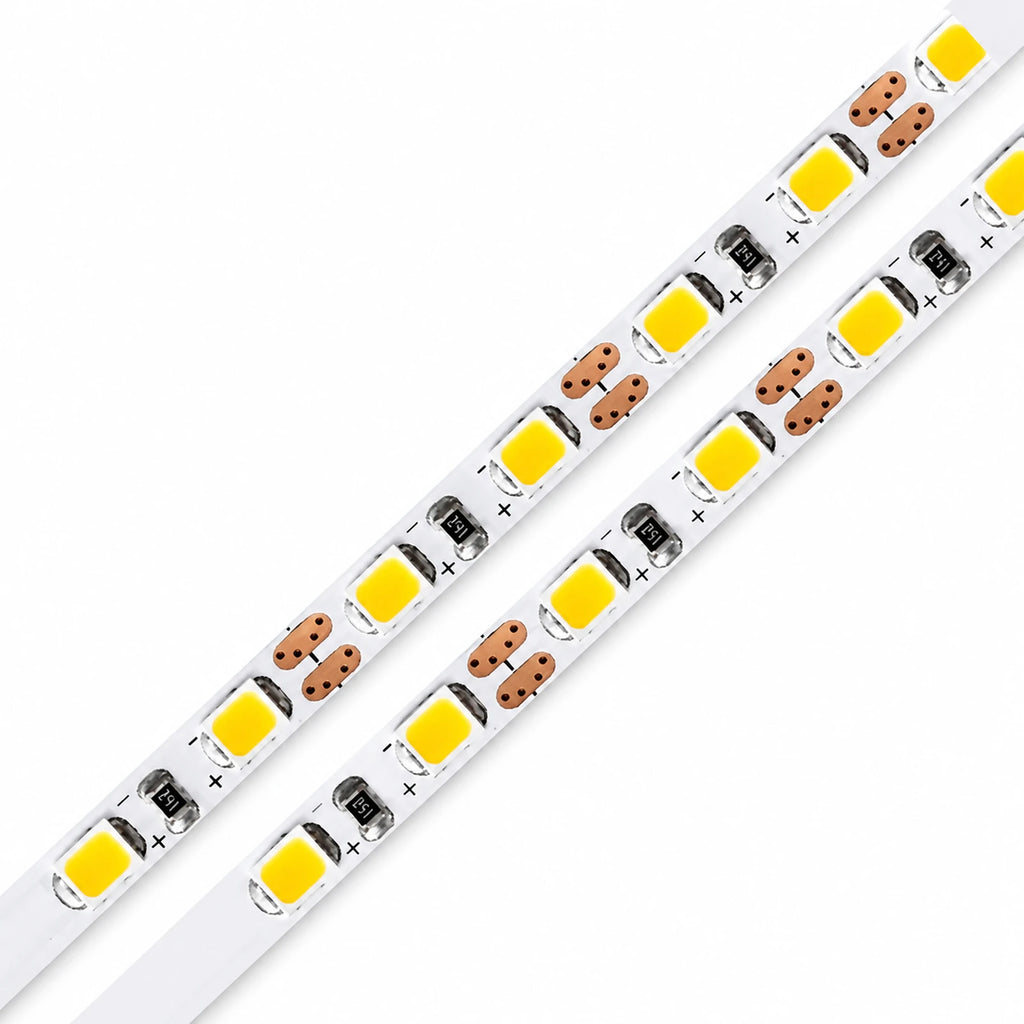

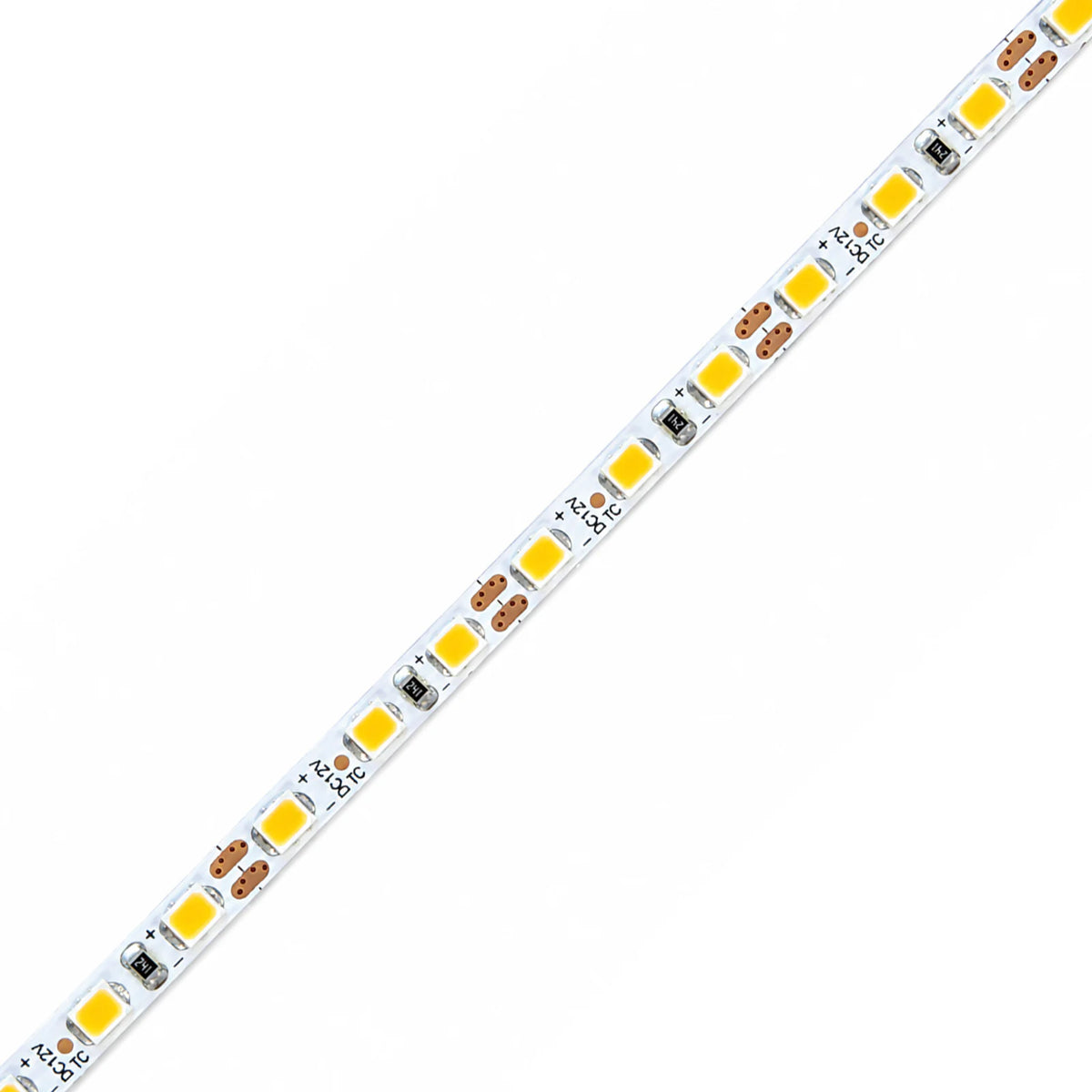

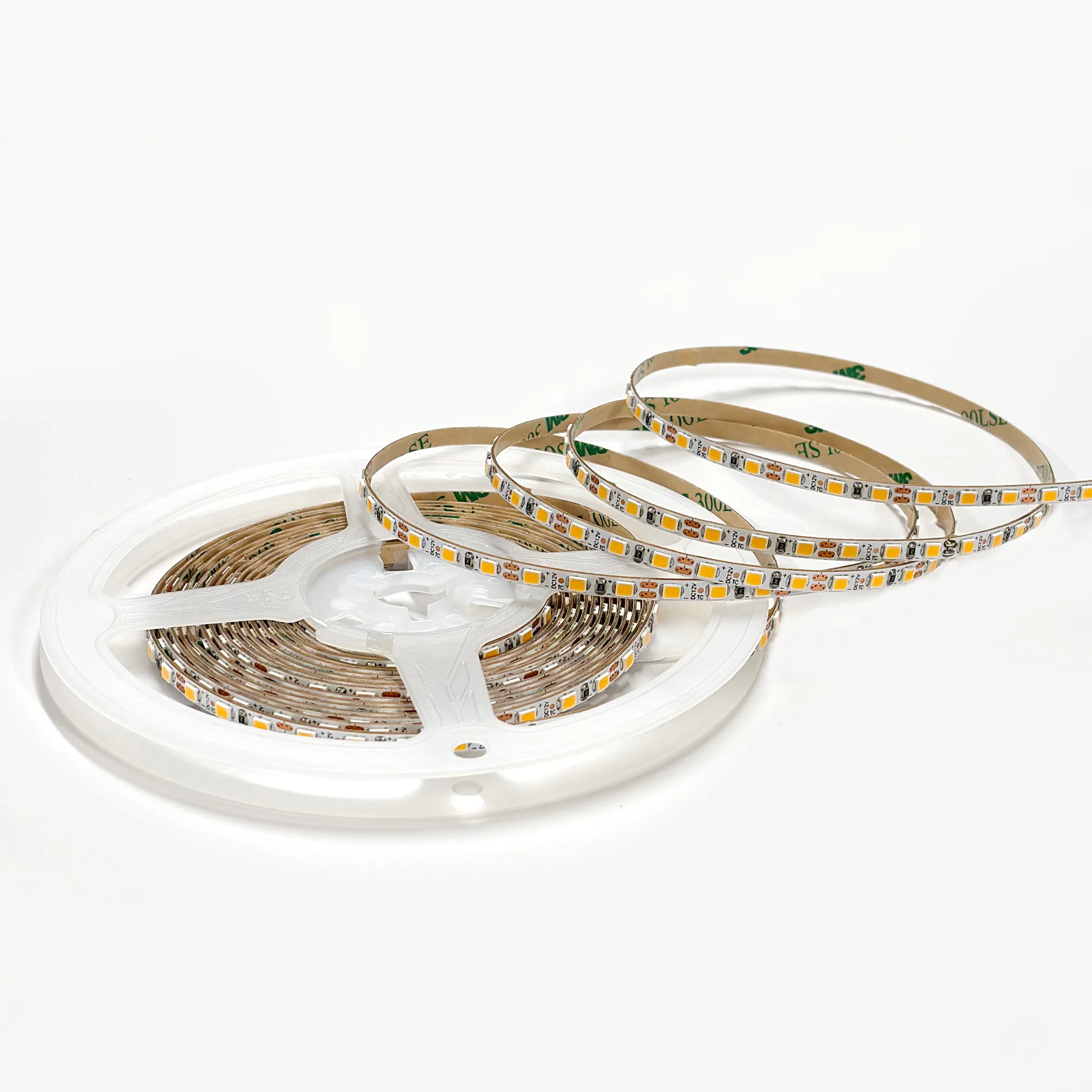

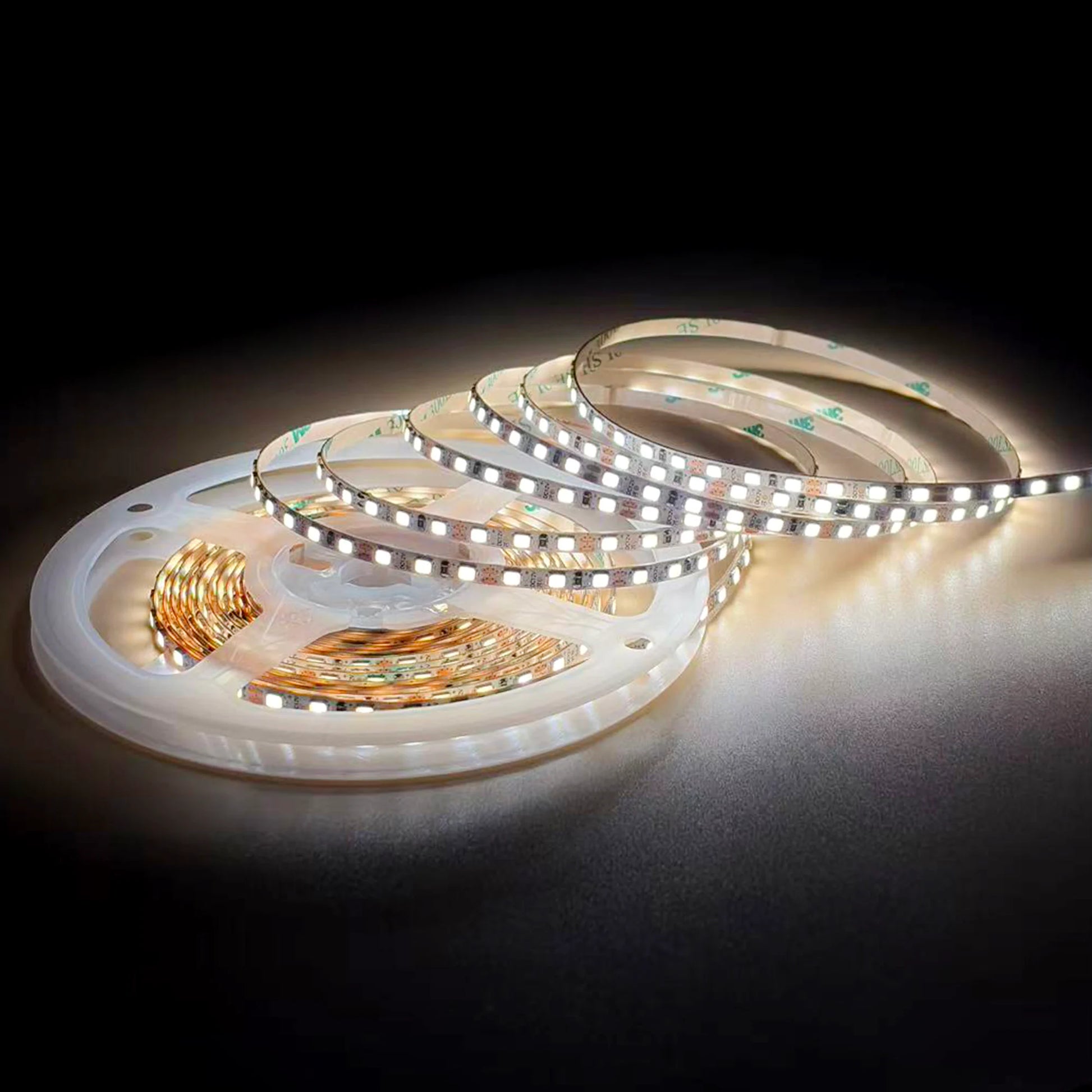

The 2835-120-4mm-12V-WHITE uses horizontally mounted SMD 2835 LEDs on the PCB. With 120 LEDs/m SMD 2835 LEDs on a 4mm PCB and 12V constant-voltage input, it is well-suited to cabinet, display, furniture, and architectural accent lighting, available in 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K.
Why Choose These LED Strip Lights?
- Horizontal-mount LED layout: The SMD 2835 LEDs are mounted across the width of the 4mm PCB and emit light from the top surface.
- 4mm ultra-narrow PCB: The 4mm board fits micro-channels and narrow extrusion channels where wider strips cannot fit.
- 120 LEDs/m LED density: 120 LEDs/m provides even illumination along the strip with reduced visible hot spots.
- 12V constant-voltage input: Standard 12V DC constant-voltage operation with compatible drivers and dimmers.
- CRI 80 / 90 / 97 colour rendering: Accurate CRI for retail, display, and architectural applications where colour quality matters.
- IP20 or IP67 options: Open PCB for dry interiors; encapsulated option available for damp environments.
- Certified & compliant: UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks for professional projects.
- Custom project supply: Custom CCT, length, connectors, adhesive, and packaging available for project quantities.
Technical Specifications
| Catalog Model | 2835-120-4mm-12V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 4mm |
| Input Voltage | DC12V |
| Power | 7.2 W/m |
| Luminous Output | 720 lm/m |
| Color Rendering | 97 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points. Verify the channel inner width accommodates the 4mm PCB. Use a 12V constant-voltage driver sized with at least 20% reserve.
Recommended Applications

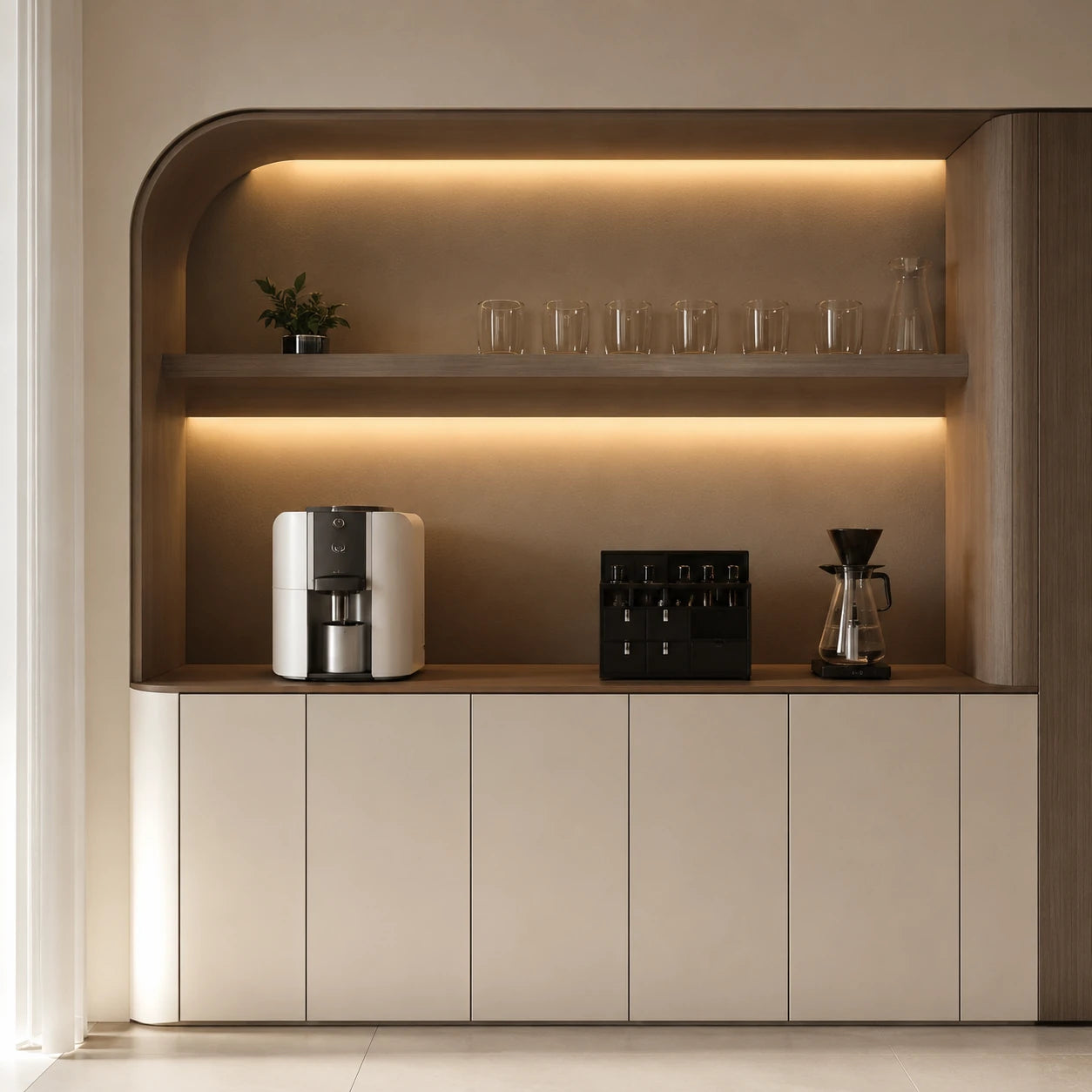

- Display cabinets and illuminated shelving
- Cabinet and furniture accent lighting in narrow spaces
- Indoor decorative lighting where a 4mm ultra-narrow strip is required
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
