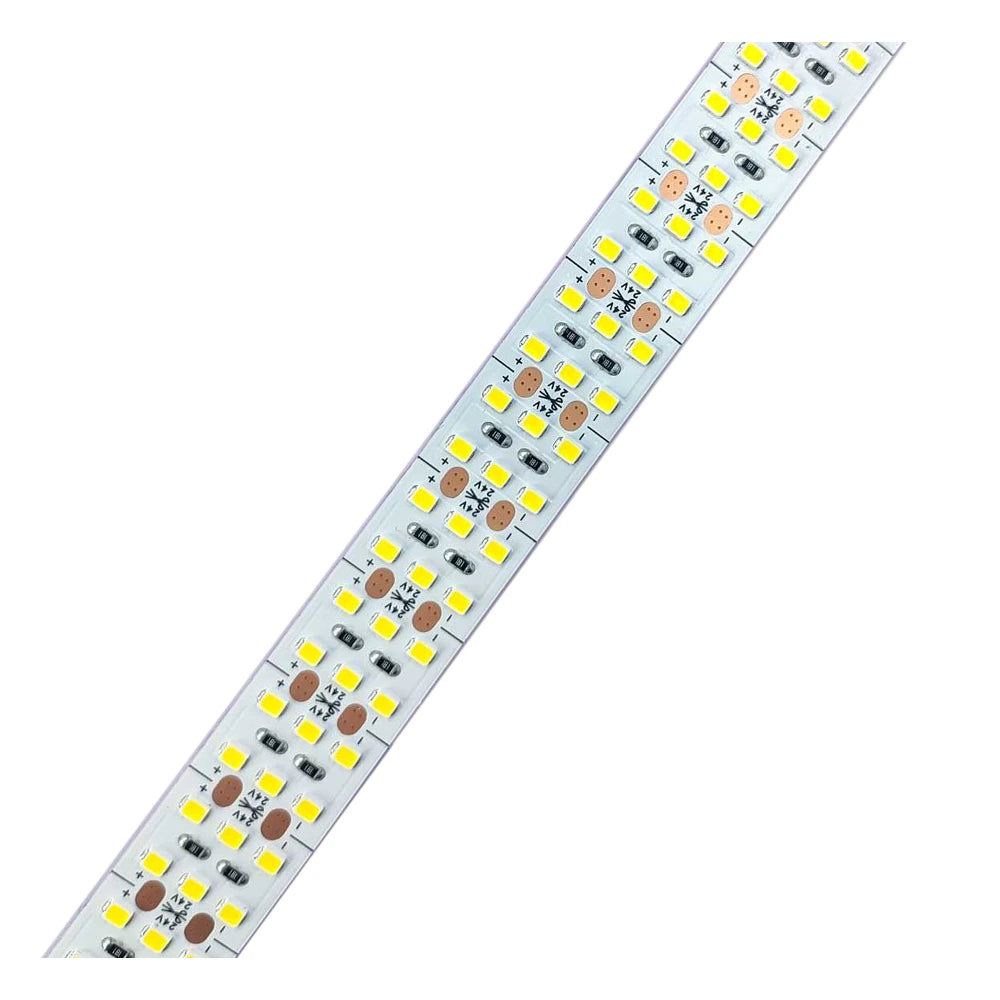

High-Density White LED Strip Lights – 20mm, 360 LEDs/m, 24V, SMD 2835
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
The 2835-360-20mm-24V-WHITE is a high LED count per metre — producing smooth, hotspot-free white light suited to commercial displays, high-end retail, and any application where standard-density strips show visible LED spacing. With 360 LEDs/m SMD 2835 LEDs on a 20mm PCB and 24V constant-voltage input, it is well-suited to cabinet, display, furniture, and architectural accent lighting, available in 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K.
Why Choose These LED Strip Lights?

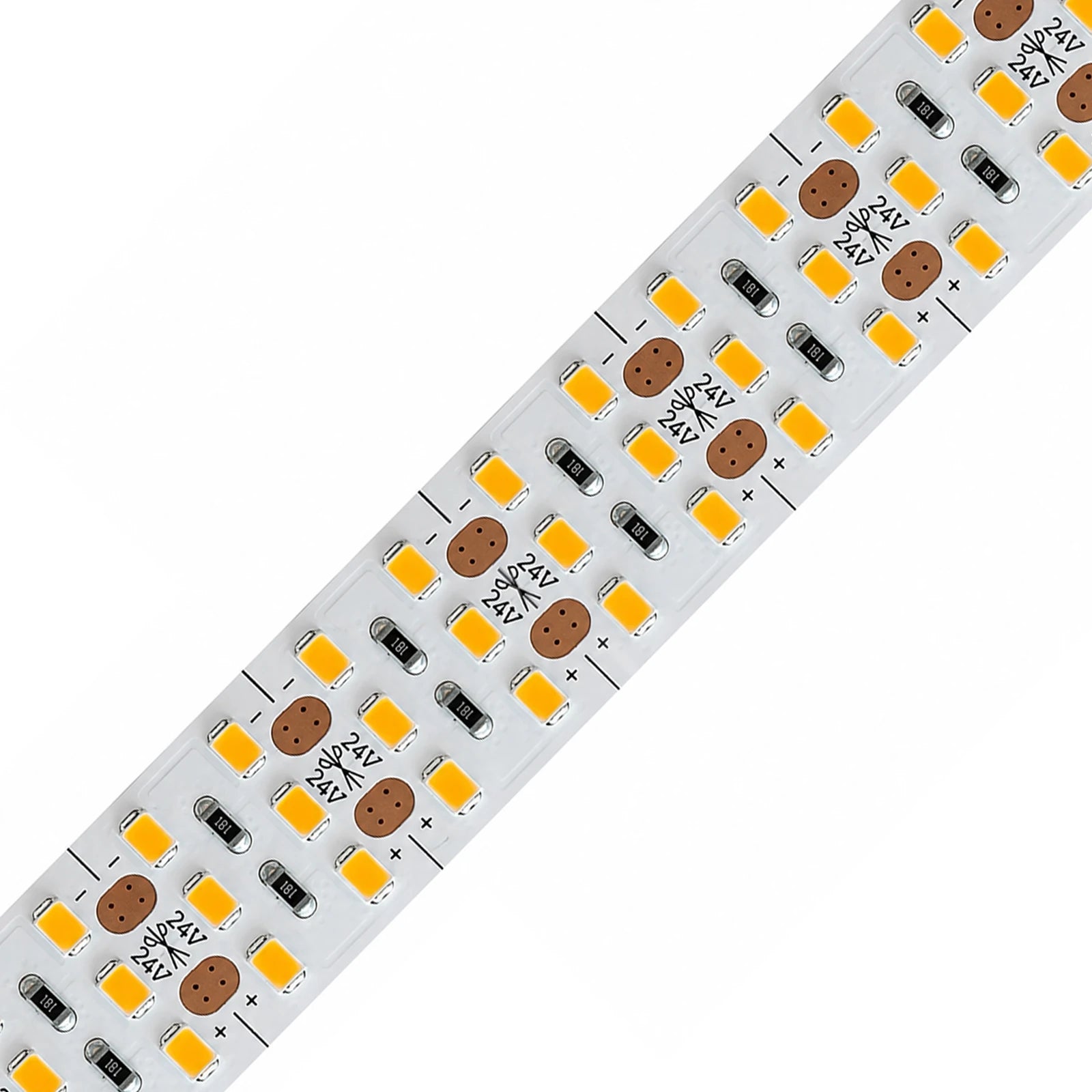

- Tri-row layout: 360 LEDs/m across three rows delivers very dense, uniform illumination with reduced visible hot spots.
- SMD 2835 chip technology: SMD 2835 LEDs maintain consistent colour and output at high packing density.
- 20mm PCB width: The 20mm board is compatible with standard extrusion profiles and surface-mount channels.
- 24V constant-voltage input: Constant-voltage 24V input works with standard LED drivers and dimming systems.
- CRI 90 / 97 colour rendering: High CRI ensures accurate colour rendering for retail merchandise, artwork, and hospitality environments.
- IP20 or IP67 options: Open or encapsulated construction available for dry, damp, and wet locations.
- Certified & compliant: UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks for professional installations.
- Custom supply available: Project quantities quoted with custom CCT, length, power, connectors, and packaging.
Technical Specifications
| Catalog Model | 2835-360-20mm-24V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 360 LEDs/m |
| PCB / Product Width | 20mm |
| Structure | Tri-Row |
| Input Voltage | DC24V |
| Power | Up to 28W/m |
| Luminous Output | 3100 lm/m |
| Color Rendering | 97 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| LED Pitch | 8.3mm per row |
| Cutting Interval | 16.7mm / 0.66in, 6 LEDs per cut (2 LEDs × 3 rows) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

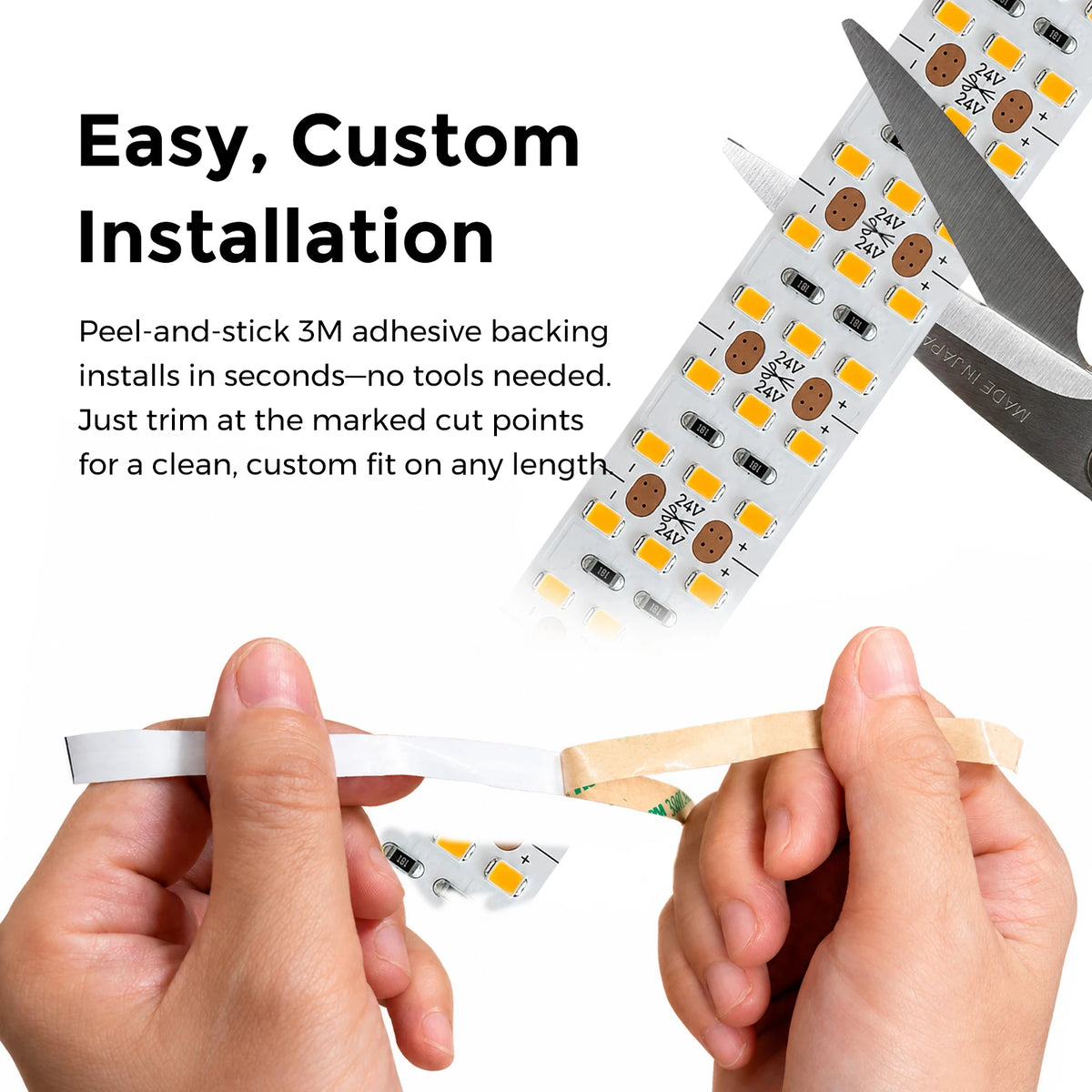

Cutting and Installation
Cut only at marked cut points (16.7mm / 0.66in, 6 LEDs per cut (2 LEDs × 3 rows)). High-density strips generate more heat per metre — mount on an aluminum channel or heatsink for best thermal management and long-term reliability. Size the power supply with at least 20% reserve capacity.

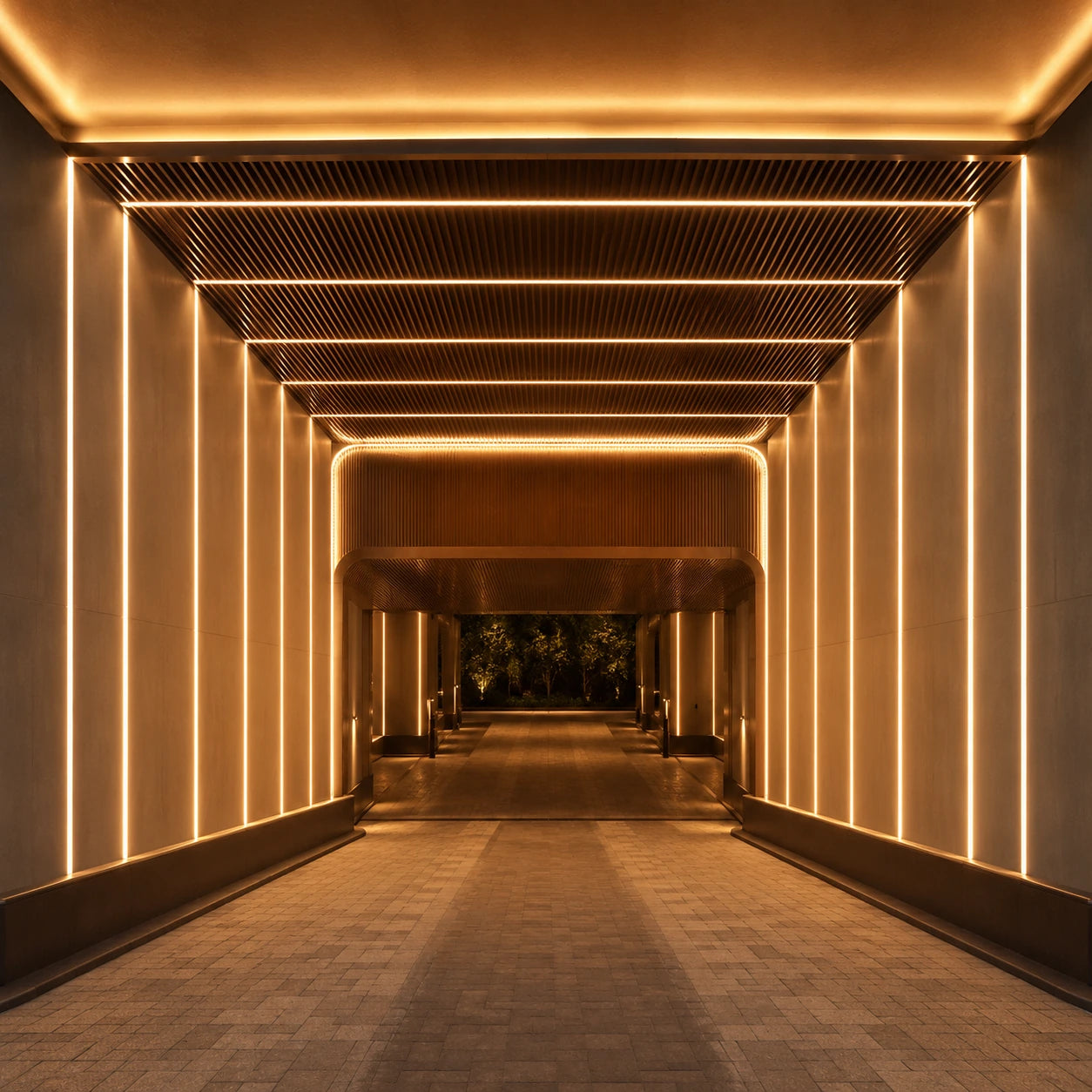

Recommended Applications
- High-end retail displays, jewellery showcases, and merchandise lighting requiring shadow-free uniformity
- Museum and gallery picture lighting where visible LED spacing is unacceptable
- Hospitality back-bar illumination, feature walls, and architectural cove details
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
