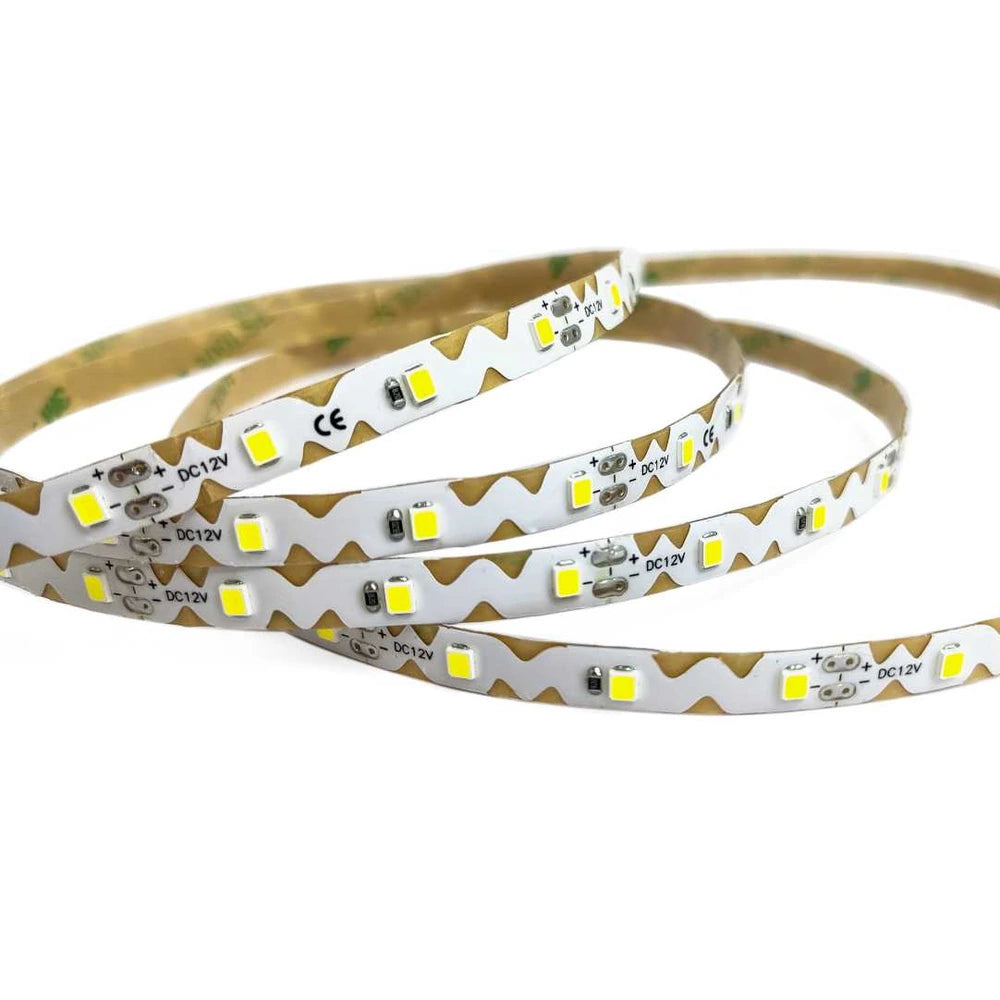

The 2835-60-7.1mm-12V-WHITE is a flexible PCB engineered to bend horizontally around curves, corners, and irregular surfaces — fitting shaped coves, curved signage, and contoured architectural details that a rigid strip cannot follow without connectors. With 60 LEDs/m SMD 2835 LEDs on a 7.1mm PCB and 12V constant-voltage input, it is well-suited to cabinet, display, furniture, and architectural accent lighting, available in 3000K, 4000K, 6500K.
Why Choose These LED Strip Lights?
- Horizontal-bend flexibility: The PCB flexes around curves and 90° corners without cracking or connector interruptions.
- 7.1mm slim PCB: The 7.1mm board fits standard extrusion channels and curved mounting surfaces.
- 60 LEDs/m LED density: 60 LEDs/m delivers even illumination across the curve without visible spacing gaps.
- 12V constant-voltage input: Runs on 12V DC — compatible with standard low-voltage drivers and dimmers.
- White-light CCT selection: Multiple CCT options from 3000K to 6500K for warm or cool white requirements.
- IP20 or IP67 options: Open PCB for interior dry locations; encapsulated construction for damp environments.
- Certified & compliant: UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- Custom project supply: Custom CCT, length, connectors, adhesive, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2835-60-7.1mm-12V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 60 LEDs/m |
| PCB / Product Width | 7.1mm |
| Input Voltage | DC12V |
| Power | 10 W/m |
| Luminous Output | 910 lm/W |
| Color Rendering | 80 |
| Color / CCT | 3000K, 4000K, 6500K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points. Bend the strip gradually — avoid kinking or creasing the PCB. Minimum bend radius varies by model; test the bend before final mounting. Use a constant-voltage driver matched to the specified input voltage with at least 20% reserve capacity.

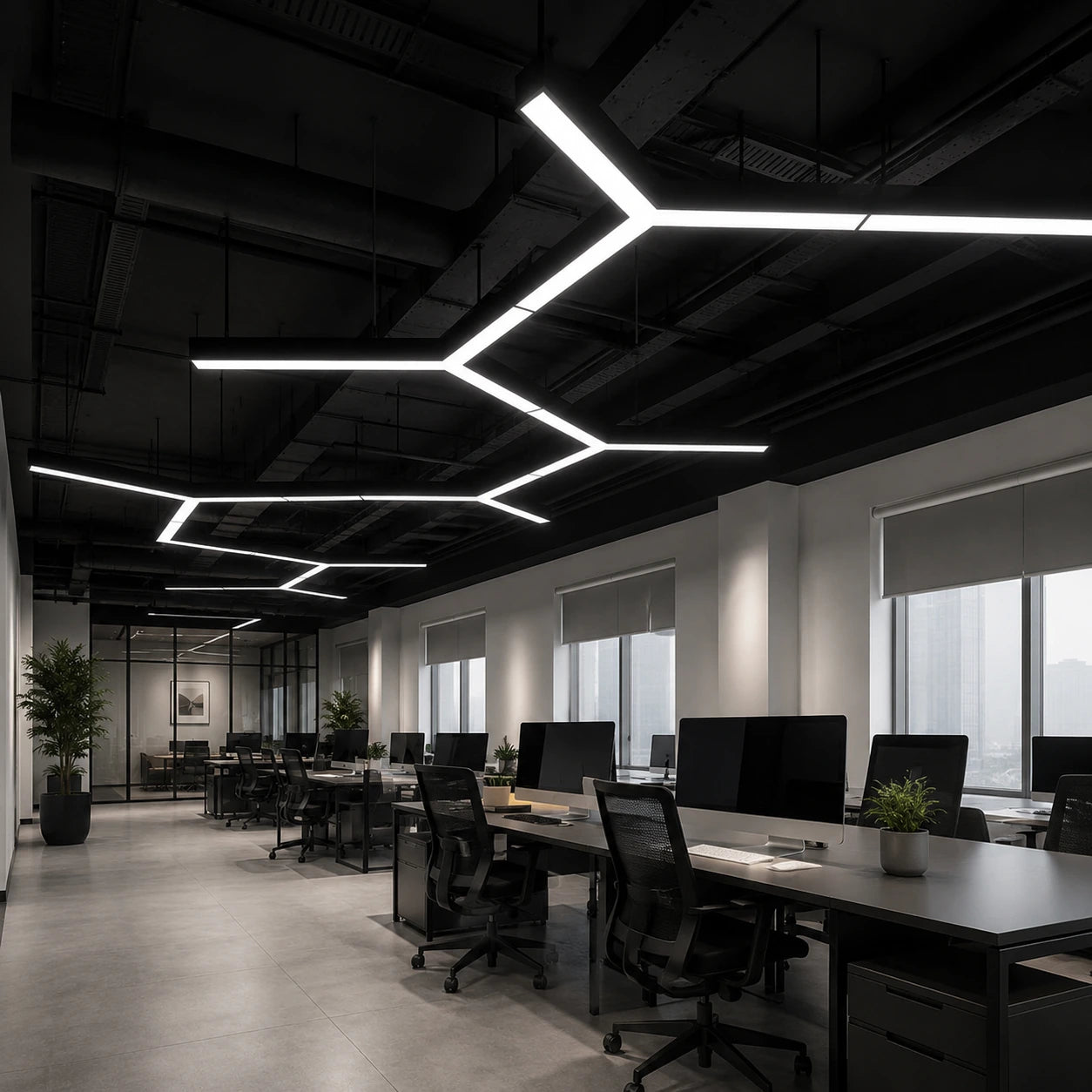

Recommended Applications
- Curved coves, columns, arched niches, and rounded architectural features
- Shaped signage, logos, and illuminated lettering requiring 90° bends without connectors
- Retail, hospitality, and display lighting on curved surfaces where rigid strips cannot conform
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
