4.5mm S-Shaped SMD 2025 Single-LED Cuttable White LED Strip Light, 90 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

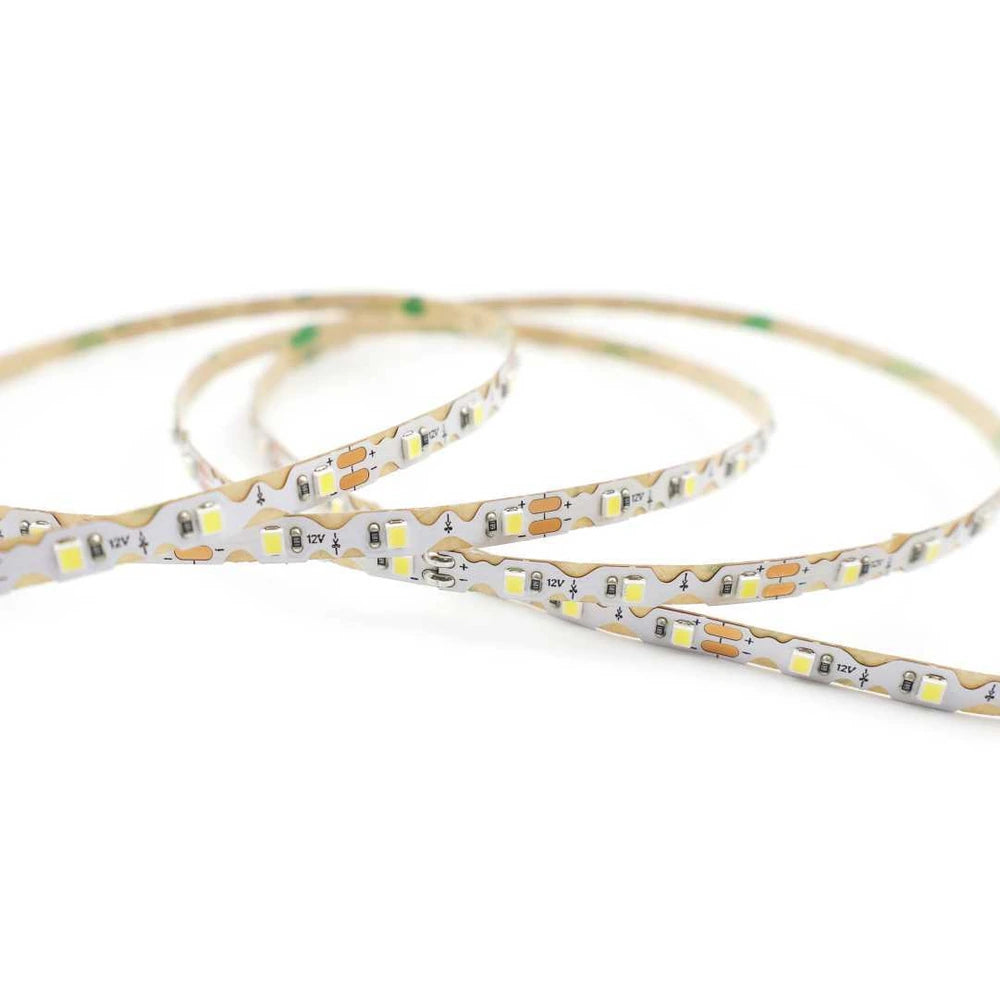

The 2025-90-4.5mm-12V-WHITE is a flexible PCB engineered to bend horizontally around curves, corners, and irregular surfaces — fitting shaped coves, curved signage, and contoured architectural details that a rigid strip cannot follow without connectors. With 90 LEDs/m SMD 2025 LEDs on a 4.5mm PCB and 12V constant-voltage input, it is well-suited to cabinet, display, furniture, and architectural accent lighting, available in 3000K, 4000K, 6500K, 10000K.
Why Choose These LED Strip Lights?

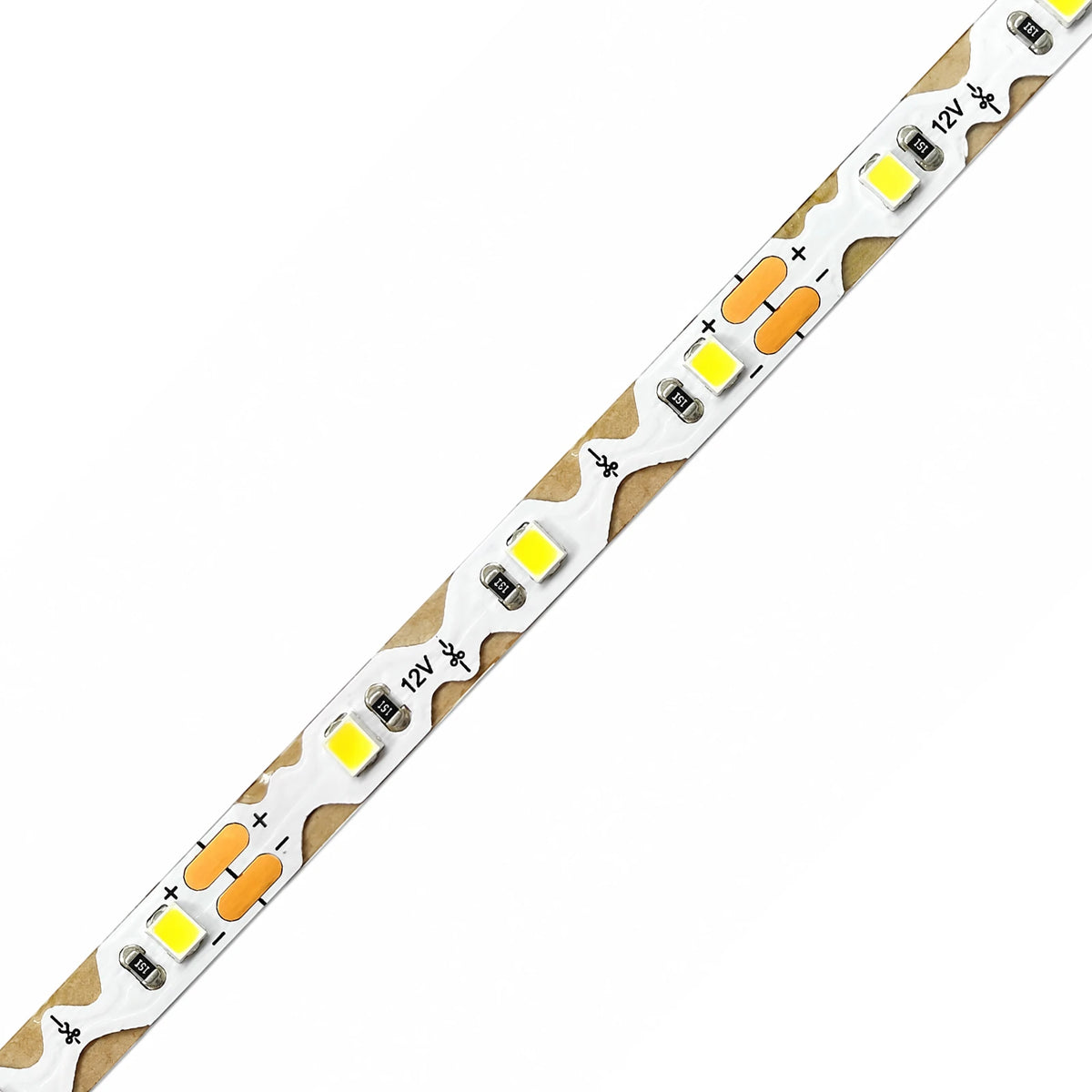

- S-shaped single-LED cuttable PCB: The narrow serpentine board bends around curves and can be cut at every LED for precise custom lengths.
- 4.5mm slim PCB: The 4.5mm board fits standard extrusion channels and curved mounting surfaces.
- 90 LEDs/m LED density: 90 LEDs/m delivers even illumination across the curve without visible spacing gaps.
- 12V constant-voltage input: Runs on 12V DC — compatible with standard low-voltage drivers and dimmers.
- White-light CCT selection: Available in 3000K, 4000K, 6500K, 10000K for warm, neutral, cool, and specialty white-light requirements.
- IP20 or IP67 options: Open PCB for interior dry locations; encapsulated construction for damp environments.
- Certified & compliant: UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- Custom project supply: Custom CCT, length, connectors, adhesive, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2025-90-4.5mm-12V-WHITE |
|---|---|
| LED Type | SMD 2025 |
| LED Density | 90 LEDs/m |
| PCB / Product Width | 4.5mm |
| Structure | S-Shaped / Bendable / Single-LED Cuttable |
| Input Voltage | DC12V |
| Power | Up to 6.5W/m |
| Luminous Output | 730 lm/m |
| Color Rendering | 90 |
| Color / CCT | 3000K, 4000K, 6500K, 10000K |
| LED Pitch | 11.1mm |
| Cutting Interval | 11.1mm / 0.44in, 1 LED per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points (11.1mm / 0.44in, 1 LED per cut). Bend the strip gradually — avoid kinking or creasing the PCB. Minimum bend radius varies by model; test the bend before final mounting. Use a constant-voltage driver matched to the specified input voltage with at least 20% reserve capacity.
Recommended Applications
- Curved coves, columns, arched niches, and rounded architectural features

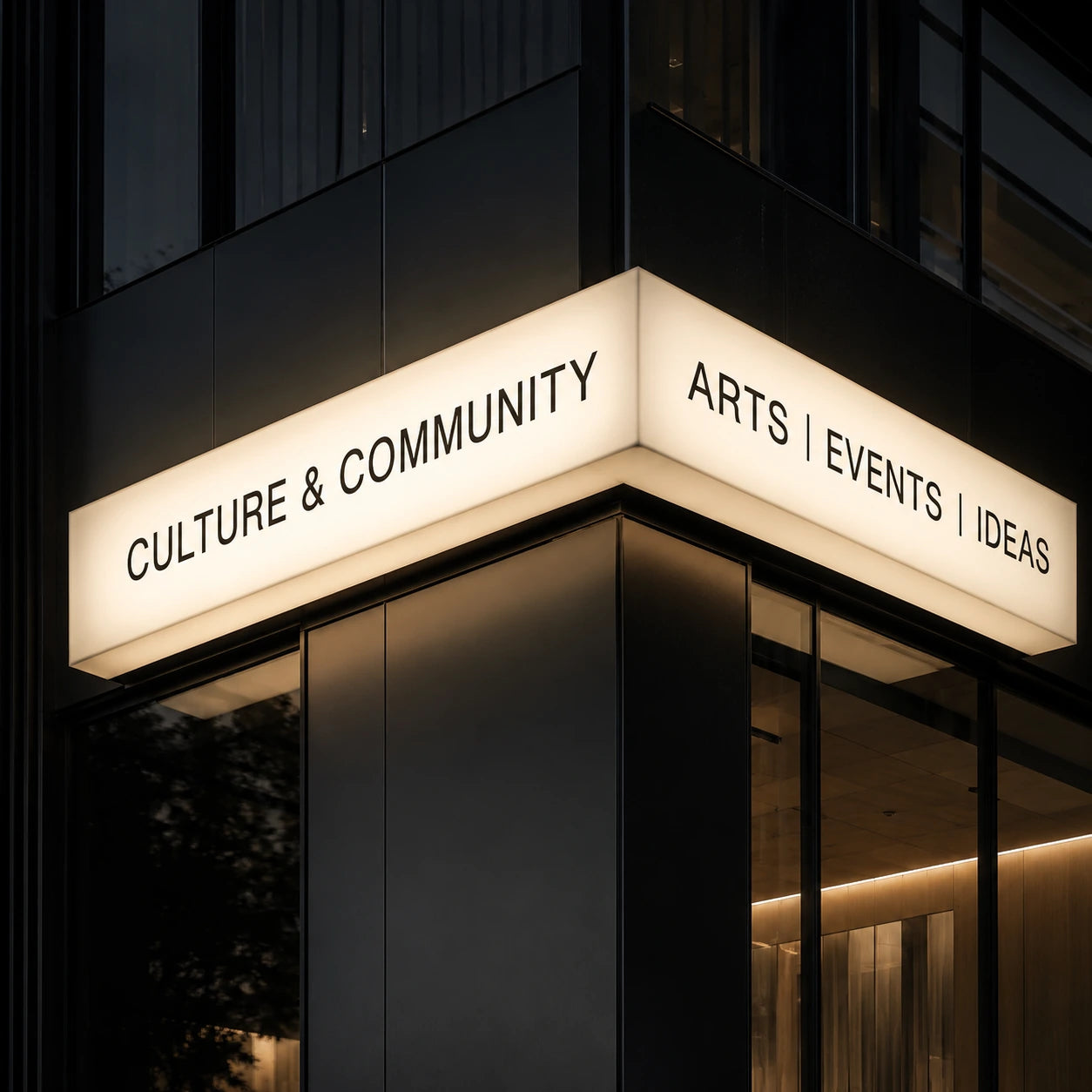

- Shaped signage, logos, and illuminated lettering requiring 90° bends without connectors
- Retail, hospitality, and display lighting on curved surfaces where rigid strips cannot conform
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
